Multifunctional 1000W 1500W 2000W Automated Laser Welding Machine

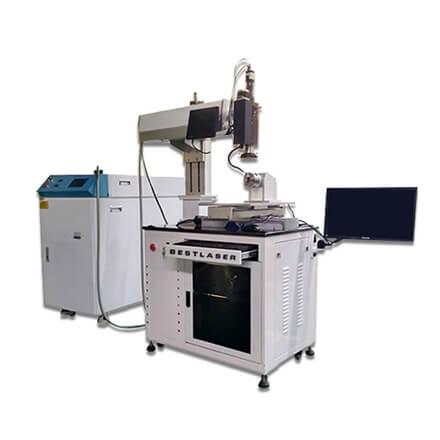

automated laser welding machine (3)

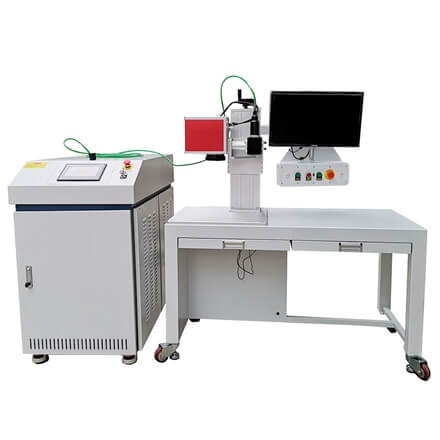

automated laser welding machine (2)

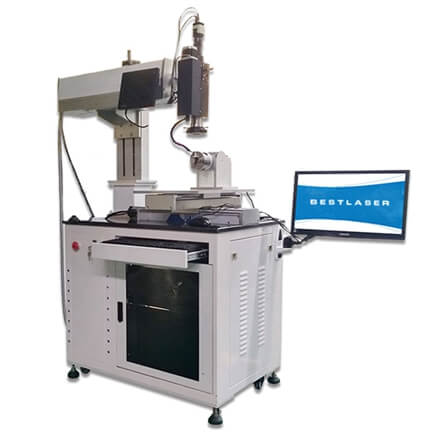

automated laser welding machine (1)
Multifunctional 1000W 1500W 2000W Automated Laser Welding Machine
automated laser welding machine (3)
automated laser welding machine (2)
automated laser welding machine (1)

Multifunctional 1000W 1500W Automated Laser Welding Machine


Category Auto Laser Welding Machine
Model No. BE-W1500D
Views 79600
Rating ★★★★★4.5/5 Based on 200 Votes
Price Range US$5999-US$15999/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Automated laser welding machines offer a more efficient, precise, and cost-effective way to weld metals than traditional methods. These machines can be programmed to carry out complex welding operations with accuracy and consistency, eliminating the need for manual labor and reducing costs associated with the process. They can also be used in challenging environments or with complex geometries that require a high degree of accuracy and repeatability.

Automated laser welding is more efficient, precise, and cost-effective than traditional welding techniques. It is also safer, as it eliminates the need for manual welding and the potential for human error.

Good Features

This automated laser welding machine can apply for different materials with different thicknesses and different coatings, could be welded into one integral plate, which greatly improves the applicable range of welding.

The heat dissipation is good, and the huge refrigeration system is not required. Conversion efficiency, low threshold, good beam quality, and narrow line width.

Continuous laser fiber optic welding machine adopts integrated structure, which can protect the operation safety and environment, and can work normally under various conditions.

Compact structure, the automated laser welding machine overall size is much smaller than the traditional YAG laser system, so the movement is very flexible.

Small size, long life and easy system integration. The fiber optic welding machine can operate normally under the harsh environment of high temperature, high pressure, high vibration.

This equipment is mainly for butt-sealing welding of pipes, which makes up for the trouble of traditional argon arc welding technology for thin plate welding with large heat fusion, easy deformation and post-processing.

Optional rotating fixture, suitable for spin welding

The laser can set continuous light output and modulated light output mode, configure coaxial air output, and optional side blowing.

No special maintenance is required, and no frequent dimming is required compared to the YAG type.

Operators can learn to operate quickly, saving you expensive technical labor costs!

The heat affected zone is small, and the deformation caused by heat conduction is also the lowest;

Worker efficiency is high, and long-term welding is not easy to fatigue.

Traditional welding adopts arc welding and other methods, which has low work efficiency and easy fatigue. This product breaks through traditional methods and adopts directional point-to-point welding, which is 10-15 times faster than ordinary welding and has high work efficiency.

img_email

Parts Introduction

laser welding (6)

Fiber Laser Source(1000W, 1500W, 2000W)

  • The automated fiber laser welding equipment uses a fiber laser source, which produces a high-quality beam with a fine welding spot.
  • The coupling efficiency is great when optical fiber is used as the wave-guiding medium. The lifespan of over ten years, without consumables and without the need for maintenance.
laser welding (2)

Welding Head

  • The fiber laser head can freely swivel to the left and right.
  • The fiber welding machine operates with flexibility and integrates well with galvanometer systems and multi-axis robots.
laser welding (3)

Automatic XY Moving Table

  • It uses Japanese servo motors and can move left/right/front/back, making it ideal for welding large workpieces.
  • High-precision positioning and rapid response.
multifunctional laser welding (3)

Industrial Water Cooling System

  • An industrial water chiller can keep the machine cool and in good working order.
  • Operators can modify the temperature parameters on the chiller panel. The water chiller includes an air-conditioning system.
laser welding (1)

CCD Display Screen

  • It may intuitively reflect welding details that human eyes cannot detect.
  • Convenient adjustment of the light spot size and solder junction position.
LEARN MORE

Application

The welding of optical communication devices, metal smart watch connectors, manual accessories (middle plates, nuts), batteries, optical fiber coupling devices, kinescope electron guns, connectors, microelectronic components, medical equipment, precision parts, etc. are all examples of things that can be welded using this technique.

It is primarily used for continuous welding, cutting, and punching of various metal plates (copper, aluminum, titanium, stainless steel, low carbon steel, and so on), as well as some non-metallic materials such as ceramics and silicon wafers.

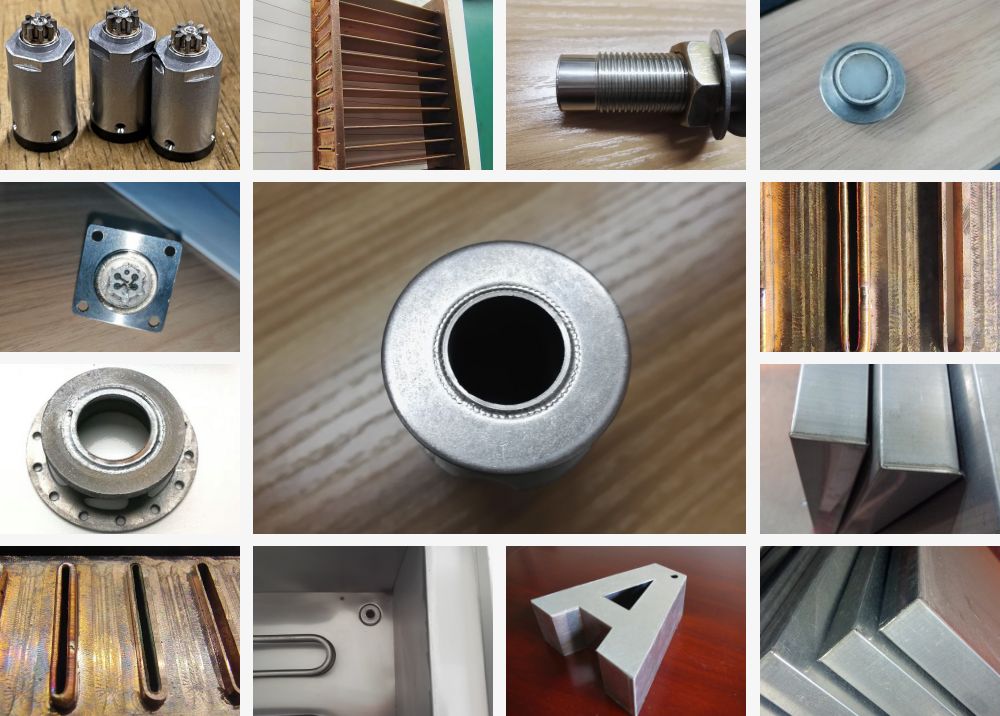

app_BE-W1500D

Product Name Fiber Optic Welding Machine
input Voltage 220V/50hz/1ph
Fiber Laser Continuous Fiber
Laser Wavelength 1064 nm
Peak Output Power 100W-2000W adjustable
Focused spot diameter 0.2-3 mm
X-axis and Y-axis travel X*Y=300 mm*300 mm
Platform size X*Y=400 mm*400 mm
Moving speed range 0-50mm/s
Reset accuracy 0.03mm
positioning accuracy Less than 0.025mm
Z axis Electric lifting height 200 mm
Rotary fixture (optional) The rotating fixture with diameter of 100mm can be manually adjusted with angle of 0-90_. It can be locked at any position in the fixture. It is driven by stepping motor. The stepping equivalent is 0.01 degree, the positioning accuracy is 0.1 degree, and the repetitive positioning accuracy is 0.05 degree.
Display mode Observation of Coaxial CCD LCD Screen
Location mode Red light
Luminous mode automatic
refrigeration system Overtemperature alarm, flow protection water level protection.
Control system Industrial Computer CNC2000 Control Software
Continuous WorKing Table ≥24h

Package and Shipment

Model Package Size Gross Weight
BE-W1500D 1.85m×0.7m×1.75m,2.26CBM 500KG
Item No. Name Description Brand Qty.
1 Laser Device RFL-C1500 (Raycus) Raycus 1SET
2 Welding Head Industrial Grade Raytools 1SET
3 Controller CNC2000 WUHAN HGTECH 1set
4 PC Industrial PC, with well installed software and parameters Top China Brand 1SET
5 Working Table Automatic,300*300mm Panasonic servo 2SET
6 CCD 8 inch coaxial LCD Shenzhen 1 SET
7 Water Chiller 1P industrial refrigeration system DOLUYO 1SET
8 Package Compound Wooden Cases BST LASER 1 SET
9 Spare Parts Installation Tools,5 PCS Protection Lens,10PCS Welding Nozzles ,Cables,etc BST LASER 1 SET
channel letter laser welding machine (14) channel letter laser welding machine (2)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
