laser cleaner machine for rust removal

Product Details

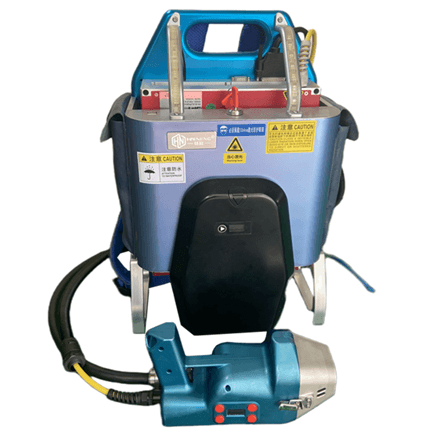

Mopa Fiber Laser Cleaning Machine
Mopa Fiber Laser Cleaning Machine

Advanced Small Compact Mopa Fiber Laser Cleaning Machine


Category

Laser Cleaning Machine

Model No.

BE-CL50S/BE-CL100S

Views 56700
Rating ★★★★★
Price Range US$6800 – US$11000/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-15 Days
Shipping Air/Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service



  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

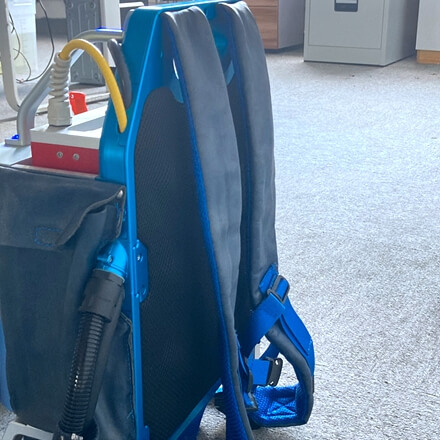

Using a sophisticated Mopa laser source and the fastest laser cleaning gun available, this backpack fiber laser cleaning system achieves high-speed cleaning on a variety of surface types. Chemical reagents, media, and water are not required for their easy operation.

Additionally, it has the features of being portable, lightweight, and tiny in size. It is appropriate for high-altitude, narrow space, outdoor operations, and precise mold industries such as heavy industrial, automobile, electronics, mold, petrochemical, aerospace, municipal, and nuclear industries.

Good Features:

  • Weighs approximately 15 kg and is portable.
  • High-performance Mopa laser cleaning with special air conditioning.
  • Self-designed built-in software that is simple to use and multilingual, along with 3.5H of battery life, supports working both indoors and outdoors.
  • Integration of eight cleaning modes, simple operation, and no need for complicated calibrating.
  • Safety lock with functional status LED indicator.
  • Real-time monitoring system with intelligence.

Mopa Laser Features

The MOPA laser is generally used for laser cleaning. The key laser parameters, including the center wavelength, pulse waveform, and pulse width, will not change because the MOPA fiber laser can be amplified solely by the seed signal source linked to the system.

As a result, the scope is larger and the parameter adjustment dimension is bigger. It provides more versatility and a wider range for surface cleaning of various materials in various applications.

Additionally, because the MOPA laser is more potent, the laser cleaning system can be improved by expanding the laser processing area or adding robots. MOPA lasers are frequently employed in developing industries like lithium-ion battery technology because of their great performance and adaptability to a variety of scene types.

img_email

Parts Introduction

Advanced Mopa Fiber Laser Source



  • Higher cleaning precision and a wider range of applications are made possible by the adjustable frequency and pulse width.

  • More intense and larger pulse energy, designed specifically for removing thin/thick rust without hurting the surface.

Handheld Laser Cleaning Gun head



  • Small and light in weight
  • There is no contact cleaning and no damage to the substrate.
  • Position cleaning with precision
  • No chemical liquid is required.
  • High efficiency and low environmental impact

Working Status Light



  • The lights change colors depending on the functioning status to assist workers in detecting faults.

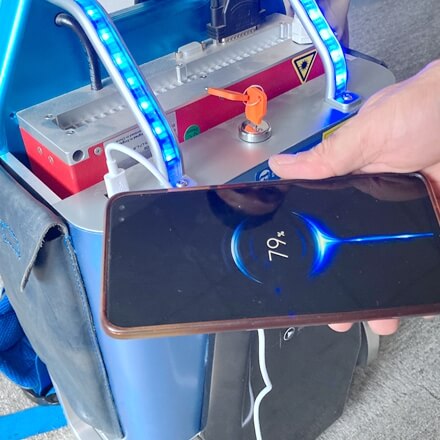

USB Port



  • This device is battery-operated, allowing it to operate both indoors and outdoors. There are USB ports for charging mobile phones, which is really convenient.



Software Screen



  • A 0.96-inch OLED screen and four mechanical keys are included in the controlling mechanism.

  • Six different languages are supported by the machine.(Mandarin, Chinese, English, French, Russian, Arabian, and Spanish)

Cleaning Modes



  • The machine features eight cleaning modes. Depending on the cleaning application, select a different cleaning mode.
LEARN MORE

Application

Lithium power battery

Pole cleaning, terminal post cleaning, injection port cleaning, battery cover cleaning, film cleaning

Aerospace

Motor Parts Cleaning, Storage Tank Cleaning, Paint Removal, Coating Removal, Sealant Removal, Mold Removal

Molds

Cleaning of tires, packaging molds, injection molds, molds for seal rings, and food molds

3C Products

Electronic board paint removal, wafer cleaning, mobile phone cover painting removal, PVD coating fixture cleaning.

Automobile

Car Body Cleaning, Car Rim Cleaning, Tyre Cleaning

Vessel Ships

Metal Rust Removal, Oil Paint Removal

Bridge and Freeway Maintenance

Bridge Construction Guardrail paint removal, metal rust removal

Rail Transit

Cleaning of Aluminum Alloy Bodies, Racks, and Motors

Petrochemical Industry

Platform Coating Removal, Pipeline Rust Paint Removal

Food

Tank Cleaning, Metal Tray Cleaning, Mold Cleaning

Thermos Cups

Cup Bottom Side Paint Removal

Other Industries

Metal Filter Cleaning, Filtering Pipe Cleaning, Stainless Steel Polishing, Oxide Layer Removal

Model No.

BE-CL50S

BE-CL100S

Laser Power

50W

100W

Power Supply Mode

Battery

Laser Class

Class 4

Laser Wavelength

1064nm

Cooling Mode

Air Cooling

Cleaning Mode

8

Maximum Scanning Width(mm)

50mm

100mm

Battery Capacity

10AH

26AH

Overall Dimension

36*50*23CM

36*50*26.7CM

Weight

12KG

18KG



Battery Capacity

10AH

26AH

Output Voltage

24V

Working Hours

50W: 1H

100W: 40Min

50W: 3.5H

100W: 2H

Overall Dimension

27.5*19.9*9.1CM

Weight

1.5KG

3.5KG

Package and Shipment

Model Package Size Gross Weight
BE-CL100S

98cm*66cm*43.5cm, 0.28CBM

48.5KG

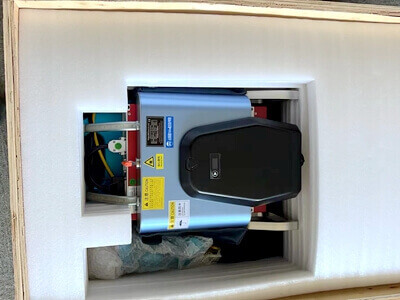

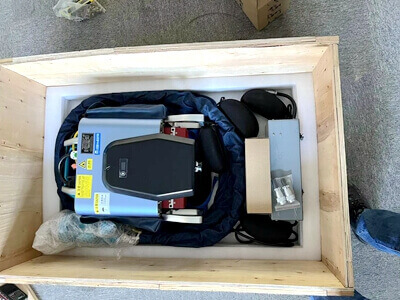

Inside layer is covered by thickening plastic film and fastened.

Middle Layer wrapped by thick sponge foam to avoid shaking on the way.

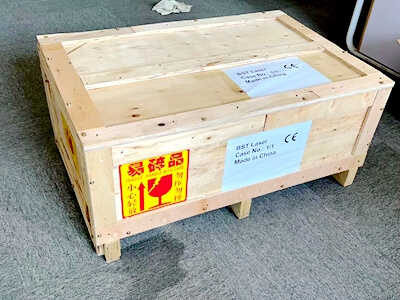

Outer layer packed by professional export thick wood craftcase.

  • Gustavo Paredesperez

    ★★★★★
    Post a review on Aug 21, 2022 From Mexico

    It is simple to use and cleans up quickly. Superb client service. It is worthwhile to recommend. —-Adam Nicoziani from Australia.

  • Andrey Poyarkov

    ★★★★★
    Post a review on Aug 21, 2022 From Russian Federation

    Rust removal by hand used to be time-consuming and labor-intensive. This rust remover successfully saves time and energy while improving work efficiency! —-Peter Melchers, Netherlands

  • Yahia Aitmoula

    ★★★★★
    Post a review on Aug 21, 2022 From Algeria

    It removes rust and some graffiti fairly nicely. —-Canada, Bell, Conrad

  • Jorge Montanez

    ★★★★★
    Post a review on Aug 21, 2022 From Peru

    I just received it. The cleaning function is fantastic. Simple to use. Later, we’re going to import bigger ones. —-Austria, Tony Skaf.

  • Carlos Guinot Sierra

    ★★★★★
    Post a review on Aug 21, 2022 From Spain

    The oxide coating is effectively removed by this pulsed laser cleaning device, and the substrate of my workpiece is not harmed. —-Brazil, Dilson Silva
