50W 100W Mini Portable Backpack Laser Rust Removal
|
Category |
Laser Cleaning Machine |
|
Model No. |
BE-CL50A/BE-CL100A |
|
Views |
48900 |
|
Rating |
★★★★★ |
|
Price Range |
US$4599 – US$7899 /Set |
|
Payment Term |
T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
|
Production Time |
7-15 Days |
|
Shipping |
Air/Sea/Train/Truck |
|
Warranty Period |
Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS

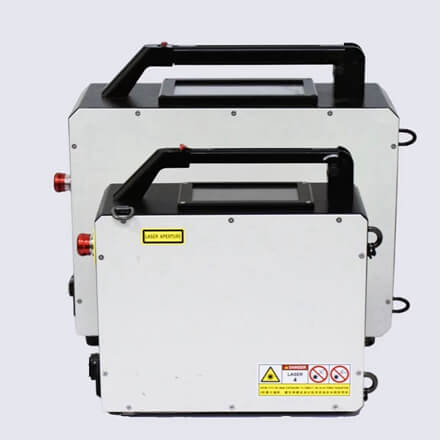

The overall dimensions of the BE-CL50A laser cleaning machine are 280*220*122mm, or the size of an A4 piece of paper, and its total weight is 8 kg; the BE-CL100A laser cleaning machine’s overall dimensions are 280*380*150mm, or the size of an A3 piece of paper, and its total weight is 10 kg.
It appears small and compact whether it is hand-held, backpack, or placed on the workstation. We innovatively integrate a safety light into the chassis handle to reduce space while maintaining high-quality safety protection measures. This machine can be attached to an external power source, allowing customers to use it freely in locations without power supply equipment. It is suitable for cleaning urban graffiti, cleaning after welding, and other tasks that require cleaning.
Good Features
- The chassis incorporates a strap buckle so that the strap can be worn over the shoulder and leaves the hands free.
- Strong mobility and an external battery
- Hand-held cleaning, distinctive small laser head, long-lasting and fatigue-free, versatile and convenient
- Excellent results, several parameters are stronger than 200W
- High cleaning effectiveness air-cooled laser cleaning device
- The system is reliable, simple to use, and has a long service life of up to 50,000 hours, making it economical.
- Extremely accurate cleaning at the nanoscale, with minimal substrate degradation;
- Environmental and green protection, no secondary pollution
Parts Introduction

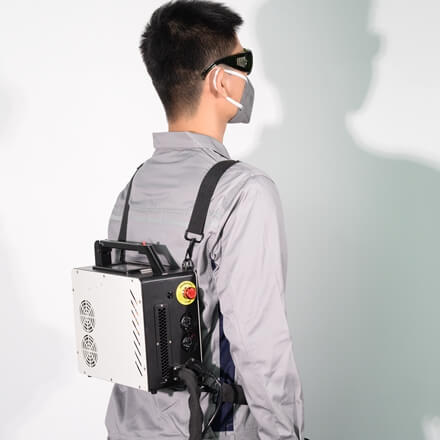

Unique Backpack Design
- Mini portable backpack or handheld
- Intelligent and accessible
- Smaller than a laptop, it is built of aluminum alloy, which is lightweight and robust..

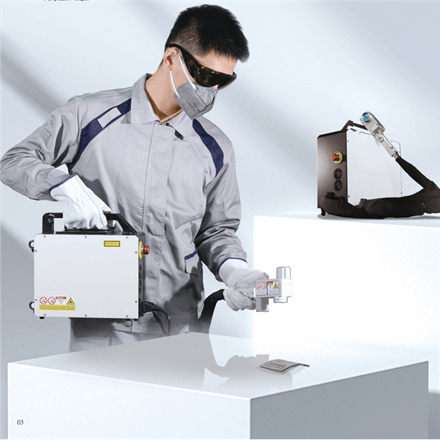

Laser Cleaning Head
- The handheld, automated, dual-purpose 5th generation 2D laser head.
- Only 650G, so you can carry it for a long time without getting fatigued.
- It is simple to use and offers a variety of functions.
- Without heat, it can endure 300W.
Controlling Software
- You can choose from six different types of graphics to prestore, including straight lines, spirals, circles, rectangles, rectangle fills, and circles.
- Convenient to use and control.
- The UI is straightforward.
-
The quick switching and selection of 12 distinct modes make it easier to produce and troubleshoot products in China, English, and other languages.
Fiber Laser Source
- Easy to use and maintain, high average power, high single pulse energy, square or round homogenized spot output.
- Particularly for the removal of rust, cleaning of oil and filth on metal surfaces, cleaning of mold surfaces, cleaning of items’ surfaces, removal of paint, stripping of stone sculptures, removal of attachments on surfaces, removal of welding surfaces, and pre-treatment of spraying surfaces
Application
- Metal surface corrosion.
- Surface paint removal methods.
- Cleaning of surface oil, stains, and filth.
- Surface coating and coating removal.
- Pretreatment of the welding surface/spraying surface.
- Remove any attachments and dust from the surface of stone statues.
- Remove rubber mold leftovers.
|
Max Average Power(W) |
50W |
100W |
|
Output Central Wavelength(nm) |
1064 |
1064 |
|
Beam Quality(M2) |
≤1.6 |
≤1.6 |
|
Power Adjustment Range(%) |
10-100 |
10-100 |
|
Band Width(nm) |
5 |
5 |
|
Max Pulse Energy(mJ) |
1.1 |
1.5 |
|
Pulse Repetition Rate(kHZ) |
45-170 |
20-200 |
|
Pulse Width(ns) |
100±10@45kHz |
180±10@65kHz |
|
Fiber Length(m) |
3 |
3 |
|
Min Bending Radius(mm) |
150 |
150 |
|
System Power Supply Requirements |
220V |
220V |
|
Power Consumption |
350W |
550W |
|
Operating Temperature(℃) |
10-40 |
10-40 |
|
Storage Temperature(℃) |
-10-60 |
-10-60 |
|
Relative Humidity(%) |
<80 |
<80 |
|
System Dimension(mm) |
280*220*122mm |
280*380*150mm |
|
Total Weight(kg) |
8 |
10 |
|
Laser Head Weight(G) |
650G |
650G |
|
Laser Head Type |
2D Scanning |
2D Scanning |
|
Laser Head Scanning Range(mm) |
100*100mm |
100*100mm |
|
Laser Head Focus Length(mm) |
160, 254 |
160, 254 |
|
Laser Head Operating Mode |
Manual/Auto |
Manual/Auto |
|
Laser Safety Classification |
Class 4 |
Class 4 |

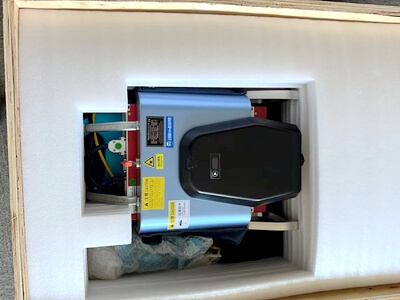

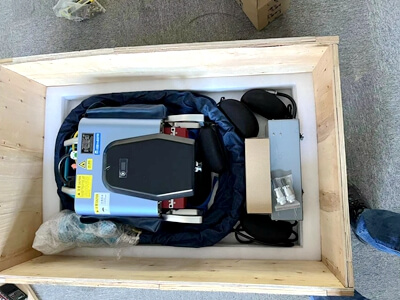

Package and Shipment
| Model | Package Size | Gross Weight |
| BE-CL50A | 31.8cm×28.5cm×12.7cm, 0.01CBM | 20KGS |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
