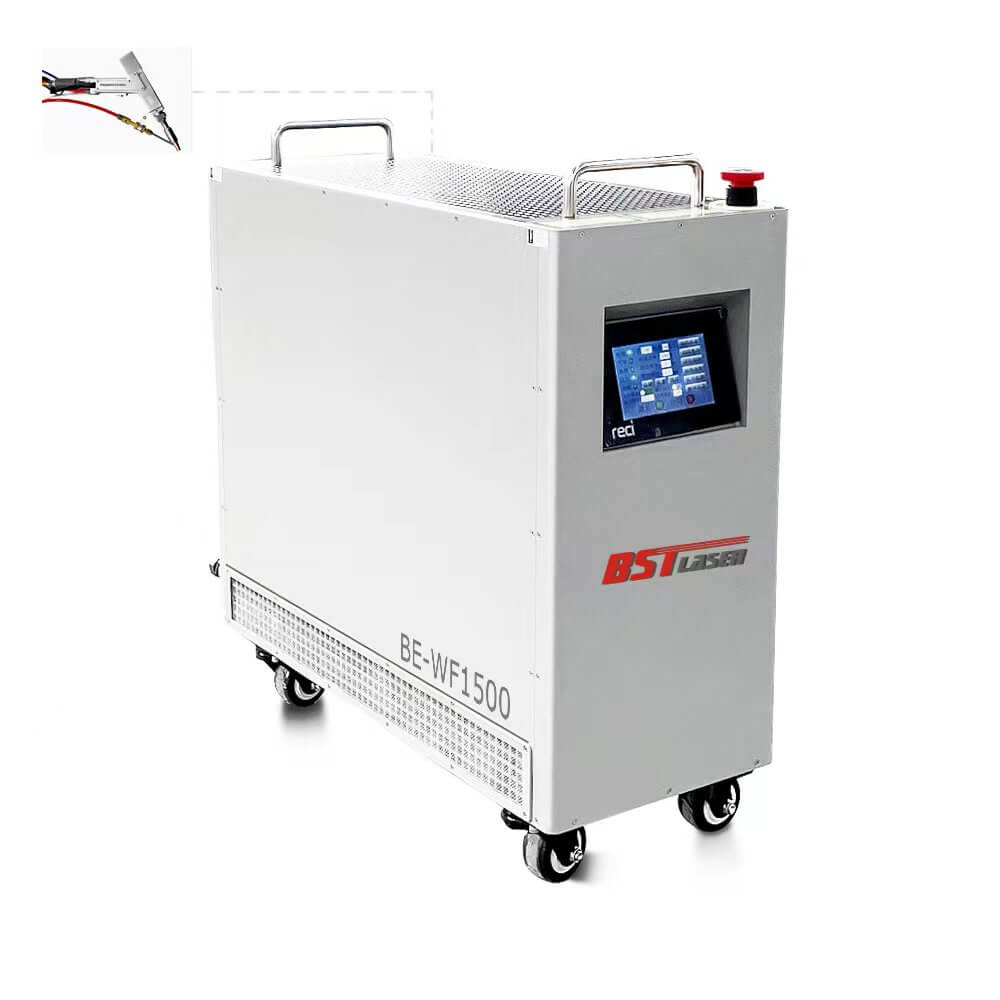

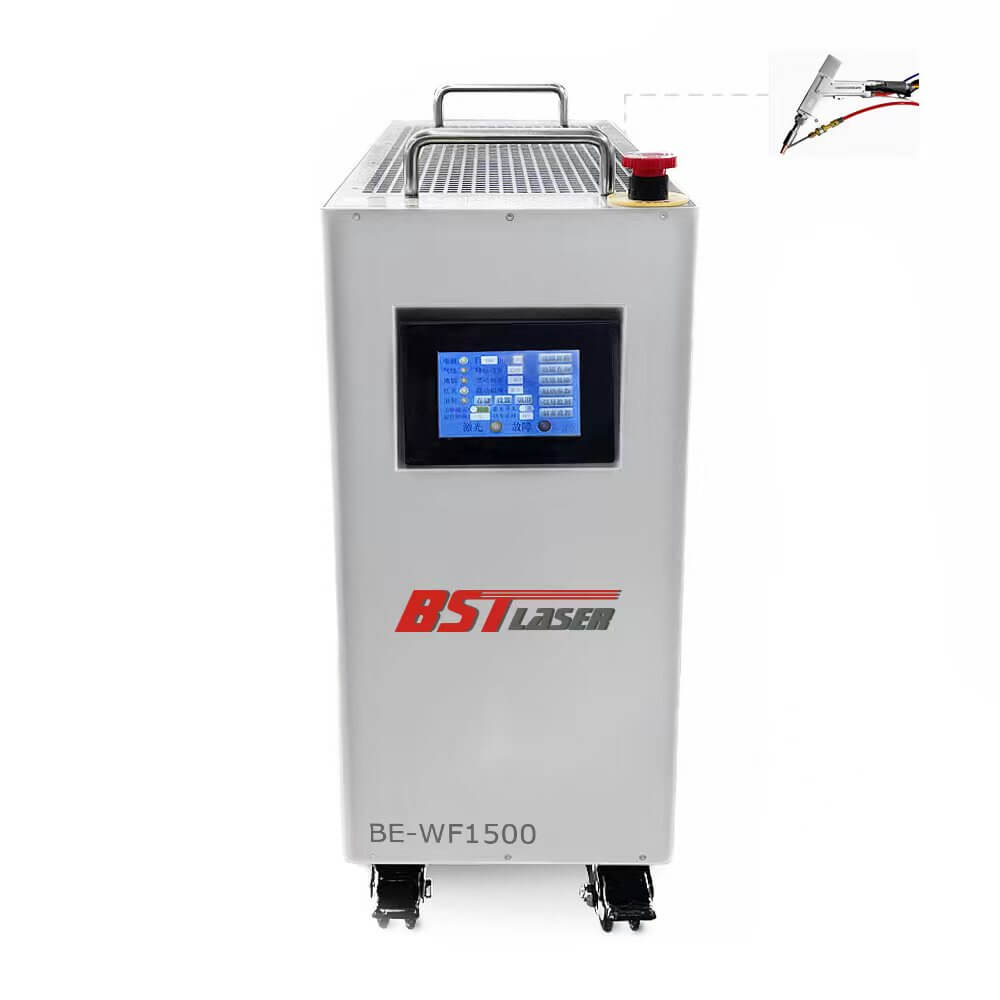

Air Cooling Mini Portable Lightweld 1500 Laser Welding System


Category Auto Laser Welding Machine
Model No. BE-WF1500S
Views 55300
Rating ★★★★★4.8/5 Based on 800 Votes
Price Range US$5599-US$8999/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 5-7 Days
Shipping Air/Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A potent and adaptable instrument for welding tiny and delicate parts is the Mini Portable Lightweld 1500 Laser Welding System. With its customizable laser power, speed, and cooling system, it produces outstanding welds in a fraction of the time required by standard welding processes.

The fiber laser’s structure is more compact due to the fiber’s ability to coil. The advantages of high electro-optical conversion efficiency, high output power, outstanding beam quality, compact structure, maintenance-free operation, and low cost are all included in this line of devices. It is widely utilized in metal welding, cutting, and other industrial processes, military defense, scientific research, and other disciplines.

Good Features

  • Introducing a New Mini Small Portable Modularized Design Weighing Only 65KGS
  • Smallest Dimensions: 35*67*72CM
  • No Welding Scar, Smooth Welding Effect, and No Deformation
  • Advanced Air Cooling Reci Fiber Laser Source with Lifetime 100,000 Hours, Nearly Maintenance-Free, and No Consumables
  • High Photoelectric Conversion Efficiency and Power Conservation
  • Mitsubishi Fiber Laser Cable 5M Imported from Japan
  • Wobble Range 0-6MM Self-Design Lightweight Flexible Laser Welding Gun
  • Built-in Control System with Touch Screen&13 Language Support
  • Able to Work Continuously for a Long Period of Time (Over 24 Hours)
  • Inspection System for Gas Pressure
  • Several layers of safety protection
  • Standard for French Schneider Electric Components



img_email

Parts Introduction

mini portable fiber laser welding (9)

Mini Compact Portable Design with Air Cooling Fiber Laser Source

  • Lightweight, only 1/4 the weight of a typical hand-held fiber laser welder, no need for a water chiller, small dimensions, easy to carry and save space both indoors and out, wider application usage
mini portable fiber laser welding (4)

Japanese Imported High Precision Fiber Laser Transmission

  • Fast speed, stable beam transmission, low consumption, and maximum power are all provided by the Japan-imported fiber cable.
  • The standard fiber cable length is 5 meters (optional 10 meters), which is ideal for long-distance welding.
mini portable fiber laser welding (6)

Intelligent Built-in Controlling System

  • Touchscreen Multi-Language (Chinese, English, Korea, Russian, Japanese, French, Germany, Latin, Traditional Chinese, Italian, Spanish, Romania, Polish).
  • Welding+Cutting+Cleaning in a single tool.
  • Function for storing parameters.



mini portable fiber laser welding (1)

Self-Design Handheld Wobble Laser Gun

  • 3 in 1 Multifunctional (Auto Welding+Cutting+Cleaning)
  • Weight: 0.8kg, Powerful and Light
  • Laser Beam Adjustment 0.5-6MM
  • Chinese, English, Korean, Russian, Japanese, French, German, Latin, Traditional Chinese, Italian, Spanish, Romanian, and Polish are the available languages.
mini portable fiber laser welding (3)

Air Cooling Fan Ensures Excellent Cooling Effect

  • Top Exhaust Fan with Two Large Exhaust Fans, High Speed, Low Noise, Energy Saving and Stable Cooling Performance
  • No need for a large water chiller, saving space, and being small and compact.



mini portable fiber laser welding (5)

Multi-Safety Protection

  • Gas Connection with Protection Gas to Keep Welding Clean.
  • Focusing on Details and Multiple Safety Measures to Ensure Perfect Performance
  • I/O Signal Port for Interfacing with an Automation System, such as a Robot Arm
mini portable fiber laser welding (2)

Emergency Button Stop

  • In case of any usage error, press the red emergency button.
  • Using the Suggestions at the Top to Give Directions and Prevent Operation Errors.
mini portable fiber laser welding (8)

Integrated Design

  • Integrated Design, Easy Storage, No Consumables, No Maintenance Required, No Professional Welding Certificates or Skills Required
  • Streamlining the Welding Process and Increasing Efficiency
  • 3-8 times faster than traditional welders.
LEARN MORE

Application

Sheet metal fabrication, advertising identification, bespoke commercial kitchen fabrication, welding of stainless steel stoves, barbeque trucks, dining cars, doors and windows, fences, stainless steel furniture lighting, distribution boxes, equipment cabinets, and pipes. Stainless steel, titanium plate, galvanized plate, white iron, titanium steel plate, colored plate, copper plate, aluminum plate, and other metals are all appropriate.

app_1000T_1 app_1000T_1

Optional Items

handheld fiber laser welding (9)

  • Separated Design, the auto feeder is separated into pieces that are easily fed by feeding wires.
  • Sizes of support wire: 6mm, 0.8mm, 1.2mm, and 1.6mm
mini portable fiber laser welding (7)

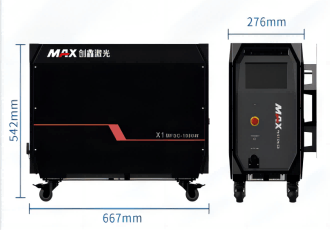

  • Utilizing a different design air-cooled fiber laser welding machine and an advanced max fiber laser source.
  • Smaller in size and weight (only 39kgs)



handheld fiber laser welding (2)

  • Stainless steel wires, carbon steel wires, and aluminum wires are all available.
  • Corrosion resistance, antioxidant, solid welding, smooth feeding, and little splash
Power 1000W 1500W
Fiber Laser Mode Continuous Laser
Polarization Direction Random
Laser Output Adjustment 10%-100%
Wave Length(nm) 1080±3
Output Power Instability <3%
Position Red Point Power(mW) >0.5
Output Port QBH
Fiber Cable Diameter 20,30 or 50
Fiber Cable Length Standard 5 meters/Customized 10 meters
Working Voltage 220V±10%/50Hz or 60Hz
Max Power Consumption(W) <4000 <6000
Controlling Mode Touch Screen with Built-in Software
Dimension(with Handle) 35*67*72CM
Weight(KGS) <55KGS <65KGS
Working Temperature 5 degree-40 degree
Working Relative Humidity <70
Cooling Air Cooling
Stored Temperature -10 degree-60 degree
1000w Fiber Handheld Maximum Welding Depth
Thickness
Materials
1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm
Stainless Steel
Galvanized Sheet
Iron
Mild Steel
Aluminum
Brass
1000w Fiber Handheld Welding Penetration Thickness
Thickness
Materials
1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm
Stainless Steel
Galvanized Sheet
Iron
Mild Steel
Aluminum
Brass
1500w Fiber Handheld Maximum Welding Depth
Thickness
Materials
1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm
Stainless Steel
Galvanized Sheet
Iron
Mild Steel
Aluminum
Brass
1500w Fiber Handheld Welding Penetration Thickness
Thickness
Materials
1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm
Stainless Steel
Galvanized Sheet
Iron
Mild Steel
Aluminum
Brass

Package and Shipment

Model Package Size Gross Weight
BE-WF1500S 0.45m×0.77m×0.82m, 0.28CBM 85KG
laser cutting cleaning welding machine jewelry laser welder (3) jewelry laser welder (1)

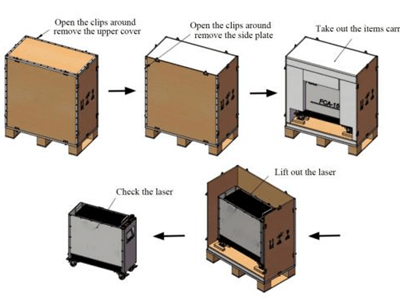

Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
