3d Channel Letter Bending Machine

Product Details

Mini Economic Aluminium Channel Letter Bending Machine

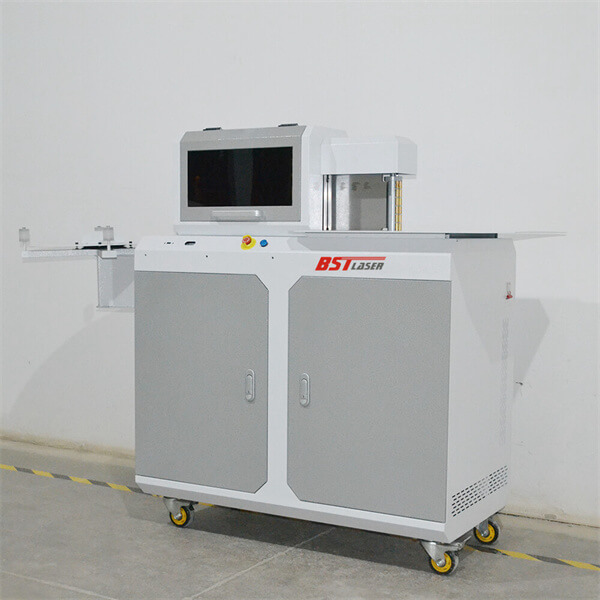

Channel Letter Bending Machine B130

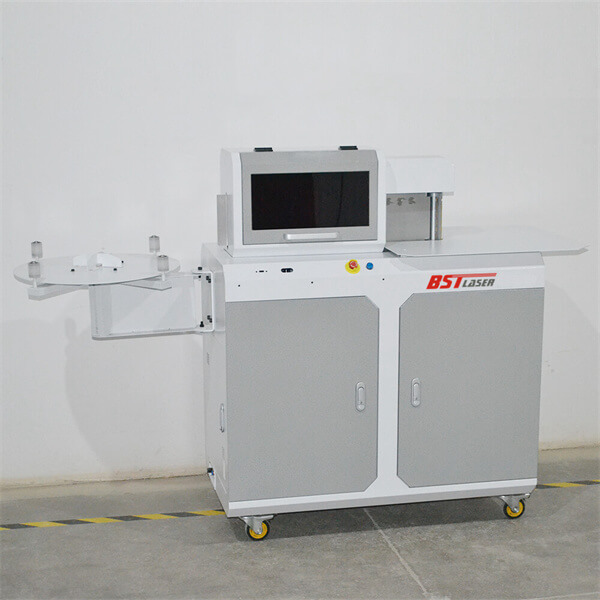

Mini Channel Letter Bending Machine B130
Mini Economic Aluminium Channel Letter Bending Machine
Channel Letter Bending Machine B130
Mini Channel Letter Bending Machine B130

Mini Economic Aluminium Channel Letter Bending Machine


Category: Channel Letter Bending Machine
Model No.: BEL-B130
Views: 4500
Rating: ★★★★★4.9/5 Based on 1000 Votes
Price Range: US$1500 – US$2500/set Based on the Features
Payment Term: T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time: 7-10 Days
Shipping: Sea/Train/Truck
Warranty Period: Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

With its compact size and low cost, the BST LASER micro channel letter bender BEL-B130 is ideal for small businesses producing aluminum letters, LED Luminous Letters, Resin Letters, and Super Letters, among other things. It has a stainless steel machine body, a polyurethane rubber roller shaft feeding mechanism, and a closed loop feeding length correction mechanism to provide accurate feeding of flat and fold edge aluminum.

Machine Feature:

  • A stepping motor controls the cutting and lifting on the tiny aluminum bending machine, allowing for quick adjustment of the cutting height and increased work productivity.
  • A single rail lifting and cutting mechanism, an integrated alloy cutting and milling blade, and a compact structure are all features of this tool.
  • The knife may be moved back and forth to assure fold-edge aluminum with varying cutting angles.
  • Pneumatic clamping ensures clamping strength and material clamping flatness. The quick thickness adjustment mechanism and the ease of adjusting the thickness of various materials cutting thickness
  • The equipment is more stable thanks to the exact electrical controller design and integrated circuit board, which make the electrical part modular and transparent in layout and enable quick classification control. The circuit part is divided into strong and weak categories with no interference.
  • The software includes a fool-type calibration feature (length cutting and bending), one-button operation, and is quick and easy to use.
  • The primary operation The interface allows you to specify alternative material heights and thicknesses, as well as match different engraving equipment tool compensation functions.

Parts Introduction

Mini Economic Aluminium Channel Letter Bending Machine Parts Introduction

Closed Loop Feeding Compensation Mechanism

  • It can assure precise feeding of flat and fold-edge aluminum.
Mini Economic Aluminium Channel Letter Bending Machine Parts Introduction

Pneumatic Clamping  and One Button Depth Adjustment Structure

  • Check the clamping strength and flatness of the material clamping. Quick thickness adjustment mechanism and simple thickness adjustment for various materials cutting thickness.
Mini Economic Aluminium Channel Letter Bending Machine Parts Introduction

Plug-in IO Integrated PCB board

  • It makes the electrical part modular and obvious in layout, allowing for rapid and clear classification control, no interference, and more stable equipment.
Mini Economic Aluminium Channel Letter Bending Machine Parts Introduction

Two-axis Linkage Bending Structure

  • High efficiency, no scratches on the aluminum material, smooth discharge, and low resistance all contribute to the elimination of waiting periods in forward and reverse arcing.
Mini Economic Aluminium Channel Letter Bending Machine Parts Introduction

Integrated Milling Cutter Structure

  • Hard alloy structure with a lifespan of more than 1-2 years.
  • The knife can be moved back and forth to achieve a different cutting angle on the fold edge metal.
LEARN MORE

Application

The Mini Aluminium Channel Letter Bending Machine is a versatile and reliable solution for bending and fabricating channel letter signs. The machine is easy to use and requires minimal setup, making it ideal for small to medium sized businesses. It is a cost-effective solution that can help you create professional quality signs with ease.

Relevant Industries

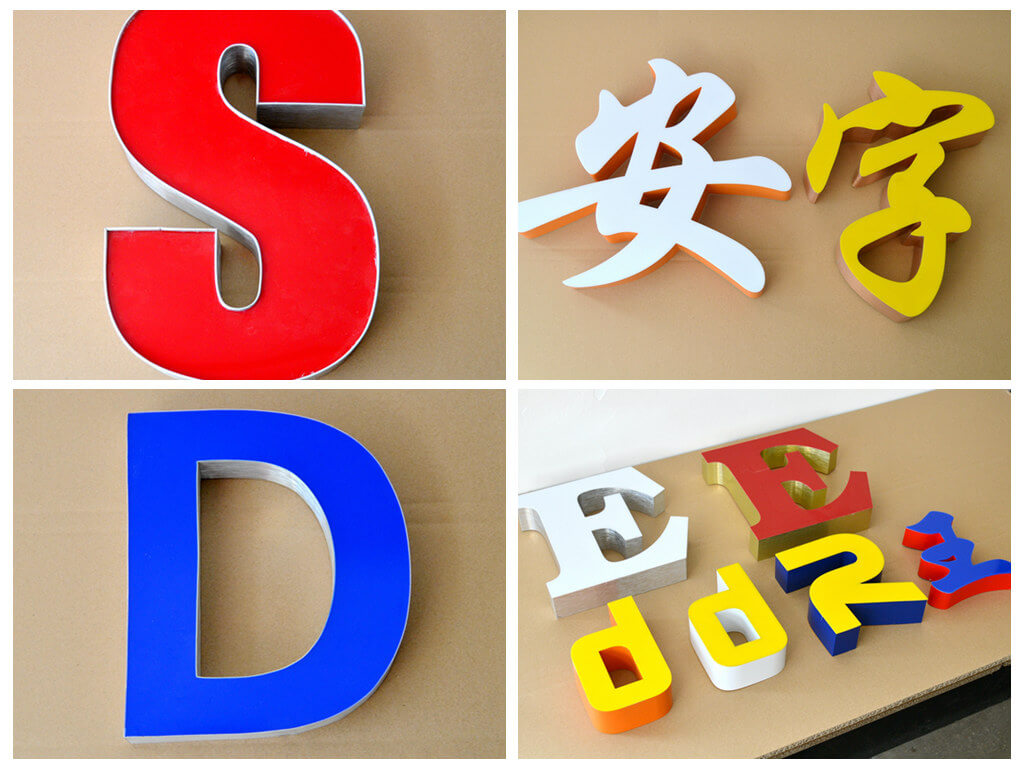

Letter bending machine for tiny channels B130 is a professional machine used to create metal edge strips LED luminous channel Letters. It can cut and bend metal at the same time, such as aluminum profiles, flat aluminum, and fold-edge aluminum, among other things.

Aluminium Channel Letter Bending Machine

Optional Items

Optional Items_Auto Flange Channel Letter Bender Machine_1

An industrial PC system with well-installed apps and confirmed standards for immediate use.

Optional Items_Auto Flange Channel Letter Bender Machine_2

Air Pressure: 0.6-0.8mpa, which the client can purchase with a machine or prepare themselves.

Optional Items_BEL-S150_3

Aluminum Milling Cutter, Imported Model with Good Rigidity, Lifetime Can Reach Three Years

Hardware Feeding system Rolling continuous feeding mechanism
Slotting system Electronic lifting rotary milling cutter structure
Bending system Two-axis linkage copper shaft roller extrusion system(Non-scratch material)
Motor Two-phase stepper motor 4 set;
DC carbon brush motor 1 set
Weight 100kg
Dimensions L1650mm×W700mm×H1150mm


Performance


Material category Folded aluminum & Flat aluminum
Bending Height 20—200mm
Material thickness Flat Aluminum:0.5-0.8mm
Fold Edge Aluminum:0.6mm
Support format AI PLT DXF
Feeding accuracy Length±0.1mm; Radius>7mm


Sfotware


Control card Four-axis motion control card
Software system Auto drive automatic bending system
Input voltage 220V 50Hz 3Kw
Air pressure 0.6-0.8Mpa

Package and Shipment

Model Package Size Gross Weight
BEL-B130 65cm×110cm×135cm, 0.965CBM 135KG

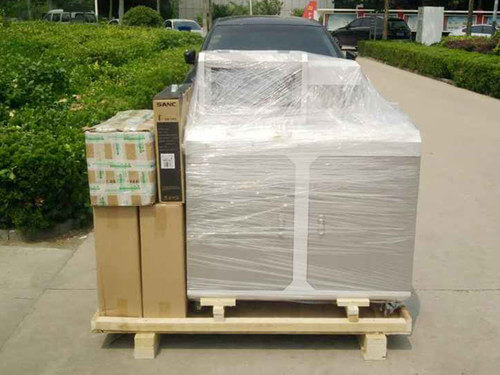

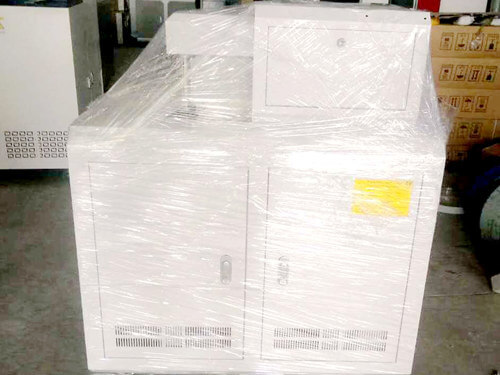

Mini Economic Aluminium Channel Letter Bending Machine Package Aluminium Channel Letter Bending Machine Mini Aluminium Channel Letter Bending Machine

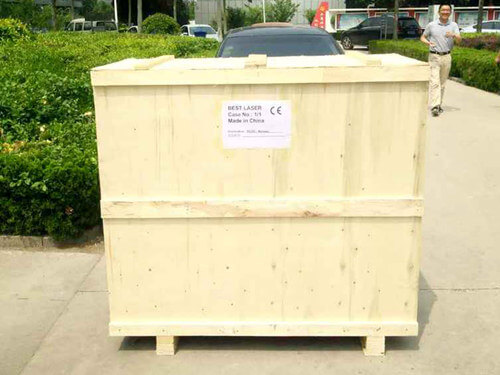

Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
