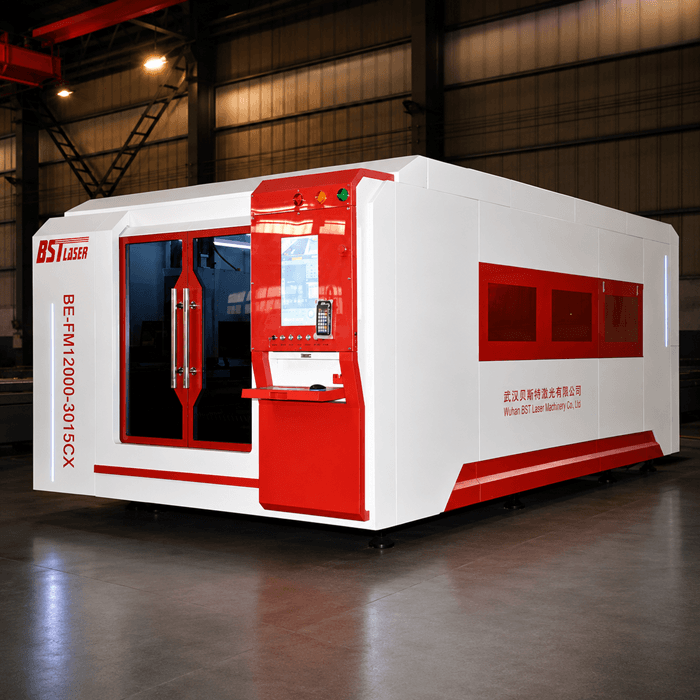

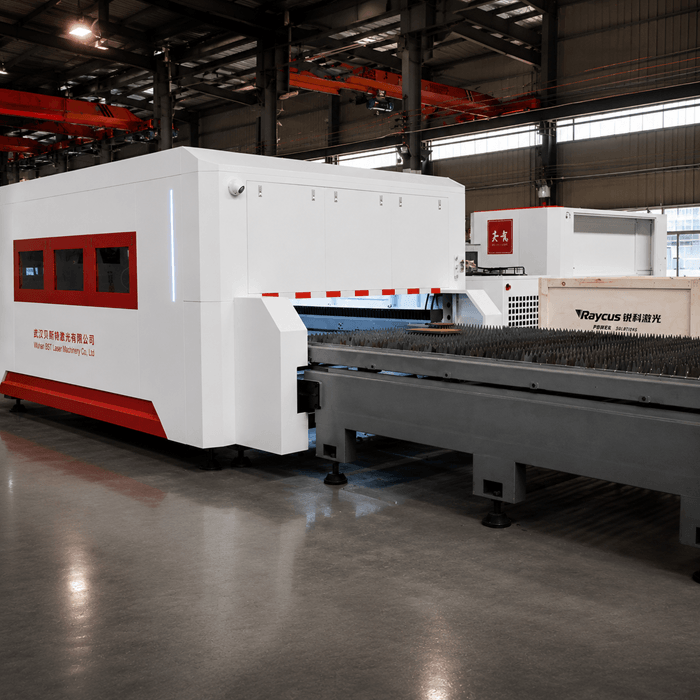

Full Enclosed Fiber Laser Cutting Machine 3kw 6kw with Double Exchange Table
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM-3015XC |
| Views: | 3800 |
| Rating: | ★★★★★5/5 Based on 5200 Votes |
| Price Range: | US$13,500 – US$35,000/set Based on the Features |
| Payment Term: | T/T Bank Transfer |
| Leading Time: | 20-30 Days |
| Shipping: | Sea Shipment |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
High-Speed, Safe and Efficient Fiber Laser Cutting Solution
The Full Enclosed Cabinet Fiber Metal Laser Cutting Machine with Double Exchange Working Table is designed for high-precision and high-volume sheet metal fabrication. Featuring a fully enclosed protective structure and an automatic dual-pallet exchange system, this fiber laser cutting machine significantly improves production efficiency while ensuring operator safety and a cleaner working environment.
Widely used in metal processing, machinery manufacturing, electrical cabinets, automotive parts, advertising signs, kitchenware, elevators, and construction industries, this machine delivers fast, accurate, and reliable cutting performance for various metal materials.
STANDARD COMPONENTS
◆ CYPCUT®FSCUT2000 CNC Control System
◆ Fuji®High Dynamic EtherCAT servo drive
◆ BSTLASER®Dynamic System 4.0:1.5g Acceleration
◆ BSTLASER®Fast Piercing 2.0:Ultra Performation
◆ Automatic Table Exchanger 3015 (Optional 4015,4020,6015,6020)
◆ Smoke Extraction Fan System
◆ Graphite Anti-burn Technology
◆ Fiber Laser Source Raycus 3000w 6000w 12000w
◆ Class IV safety system and CE marking
◆ CYPCUT®Embedded Pcs: Industrial PCs with directly integrated I/O level
◆ Hiwin®high performance and high accuracy rack and pinion system
Metal Cutting Capacity
| Laser Power | 3000W | 4000W | 6000w | 10000W | |
| Nominal power | kw | 3 | 4 | 6 | 10 |
| Power requirement | kw | 10 | 13 | 19 | 32 |
| Wavelength | nm | 1074 | 1074 | 1074 | 1074 |
| Carbon steel | mm | 22 | 25 | 25 | 30 |
| Stainless steel | mm | 10 | 12 | 20 | 28 |
| Aluminum Alloys | mm | 8 | 10 | 16 | 26 |
| Brass | mm | 6 | 8 | 12 | 15 |
Machine Feature:

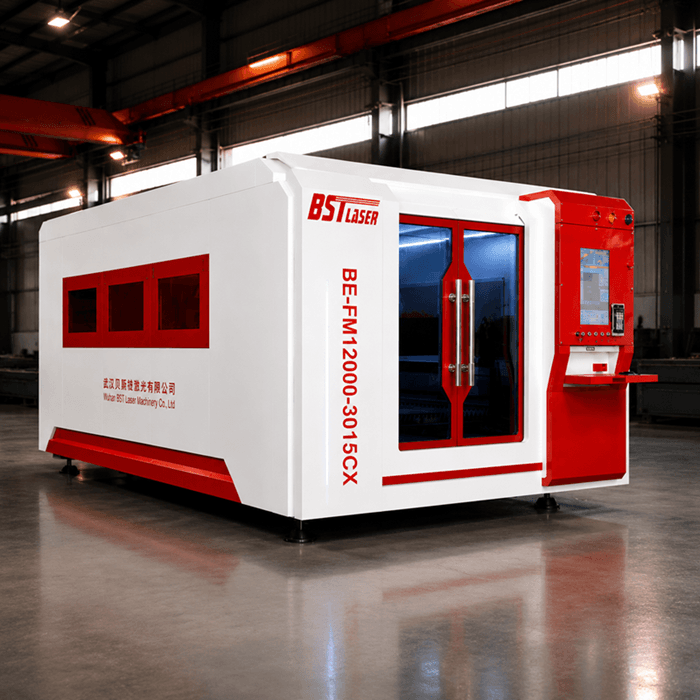

- Fully Enclosed Protective Design
The machine adopts a fully enclosed cabinet structure with laser-protective viewing windows, effectively reducing laser radiation, smoke, and dust emissions. It provides a safer and more environmentally friendly working environment.
- Double Exchange Working Table
The automatic double exchange table allows loading and unloading while cutting, minimizing downtime and maximizing productivity. The pallet exchange process is fast and stable, making it ideal for continuous industrial production.
- High-Precision Cutting Performance
Equipped with a high-performance fiber laser source and precision transmission system, the machine achieves smooth cutting edges, excellent accuracy, and consistent cutting quality across different materials and thicknesses.

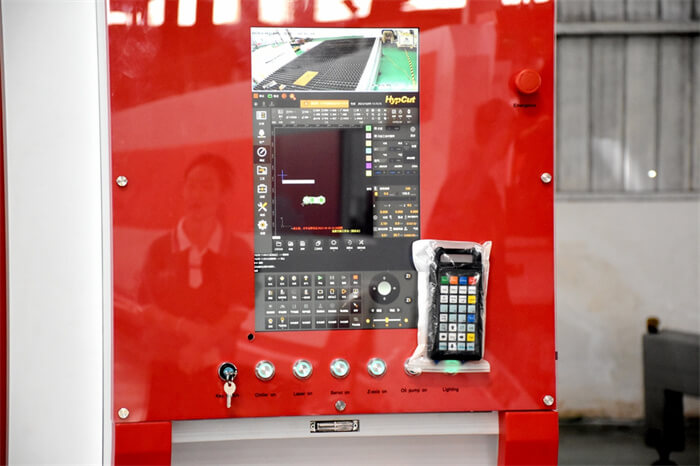

- Intelligent CNC Control System
The advanced CNC control system supports automatic nesting, intelligent path optimization, real-time monitoring, and user-friendly operation, improving efficiency and reducing material waste.
- Stable Heavy-Duty Machine Bed
The reinforced welded machine frame undergoes stress-relief treatment to ensure long-term stability, high-speed operation, and outstanding cutting accuracy.
Parts Introduction

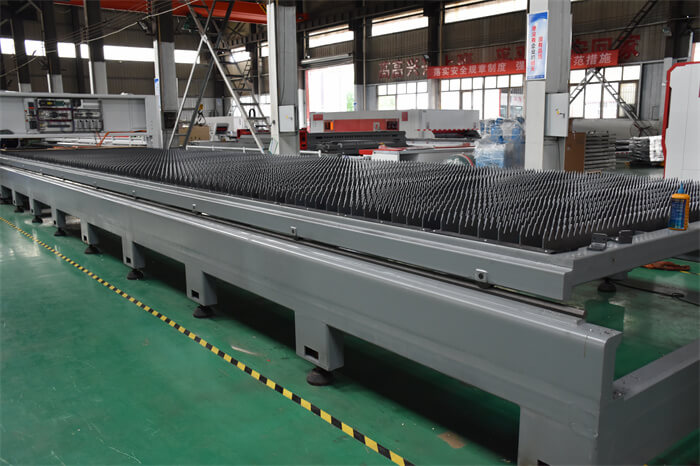

Heavy -Duty Lathe Bed and Machine Cabinet
Gantry Type Heavy-duty Steel Thick Metal Plate Welding Structure
* 3 Times CNC Precision Milling
* Whole Weight Over 8000kgs
* Non-Deformation Over 50 Years
* Reasonable Machine Structure

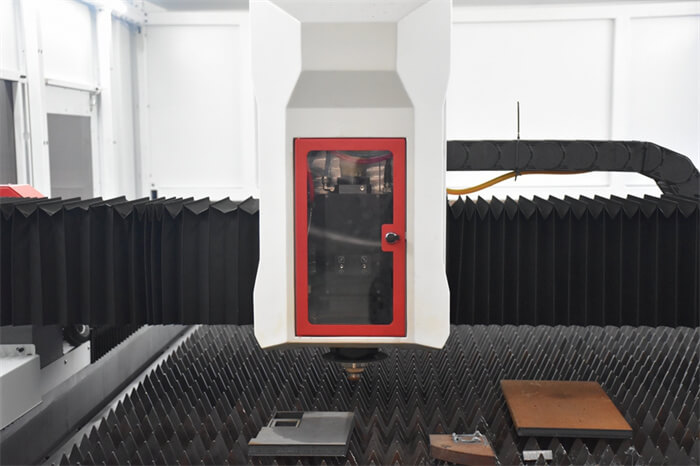

Bochu Boci High Pecision Intelligent Cutting Head
* Boci laser head is produced by Bochu company, which more compatible with FSC8000 controller.
* Automatically inspection laser head working(lens, cavity temperature, gas flow…)
* Overcome all shortcomings of all laser head on the market
* Modularized structure, which lower the failure rate and fastest troubleshoot.
* Durable and long-term working stability
* Compatible up to 15KW

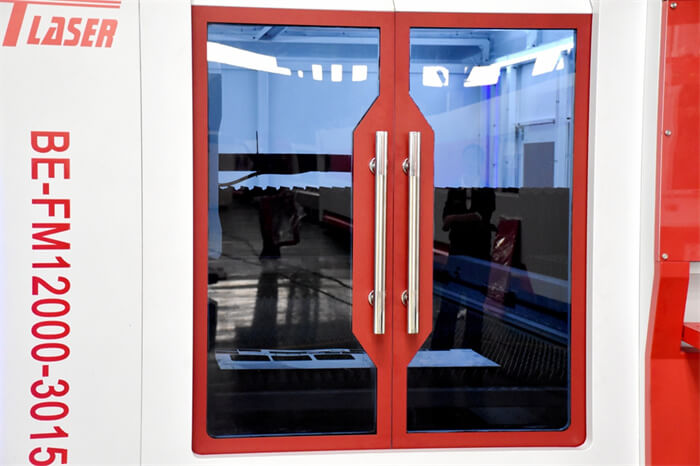

Sliding Door with Observing Window
* Sliding door enables the operator enter into housing.
* The observing window made of laser protection glass, and good for human eyes.

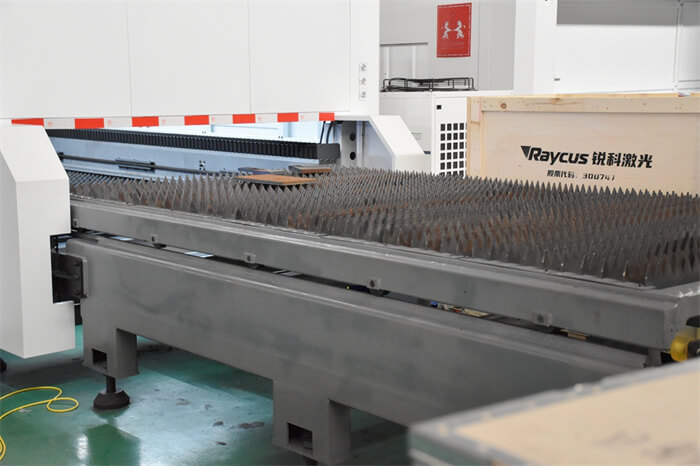

Double Exchange Double Table
- Double worktable also can improve your cutting efficiency more and more . During the cutting action you can feed in new steel plate ready to cutting and then exchange for another one
- It helps increasing the working efficinecy, and ease the manual work.
CCD Realtime Monitoring System
Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop,control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance

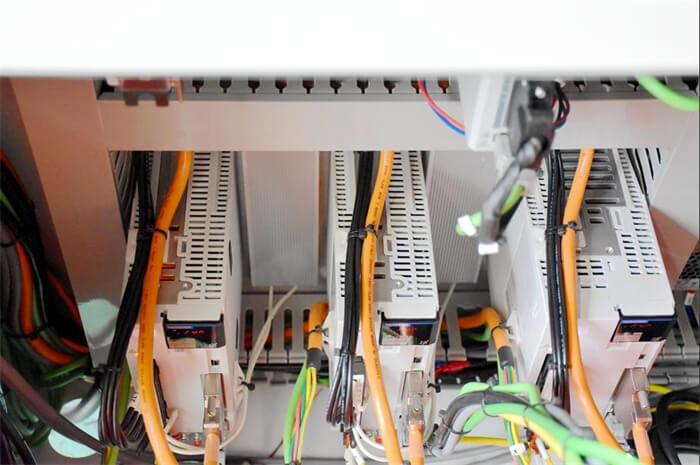

Genuine Yaskawa AC Servo Motor with Driver
Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop,control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance.
Application
Metal laser cutting machines are an essential tool in any metalworking shop. They offer a wide range of advantages over traditional cutting methods. These advantages include greater precision, speed, and efficiency, as well as improved safety for both the operator and the material being cut. They are also cost-effective, as they require less material to achieve the same quality cuts.
Relevant Industries
Railway transportation, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen and bathroom, decorative advertising, laser external processing services, and so on.
This fiber metal laser cutting machine is suitable for cutting metal :
Carbon Steel
Stainless Steel
Aluminum
Brass
Copper
Galvanized Steel
Alloy Metals
Optional Items

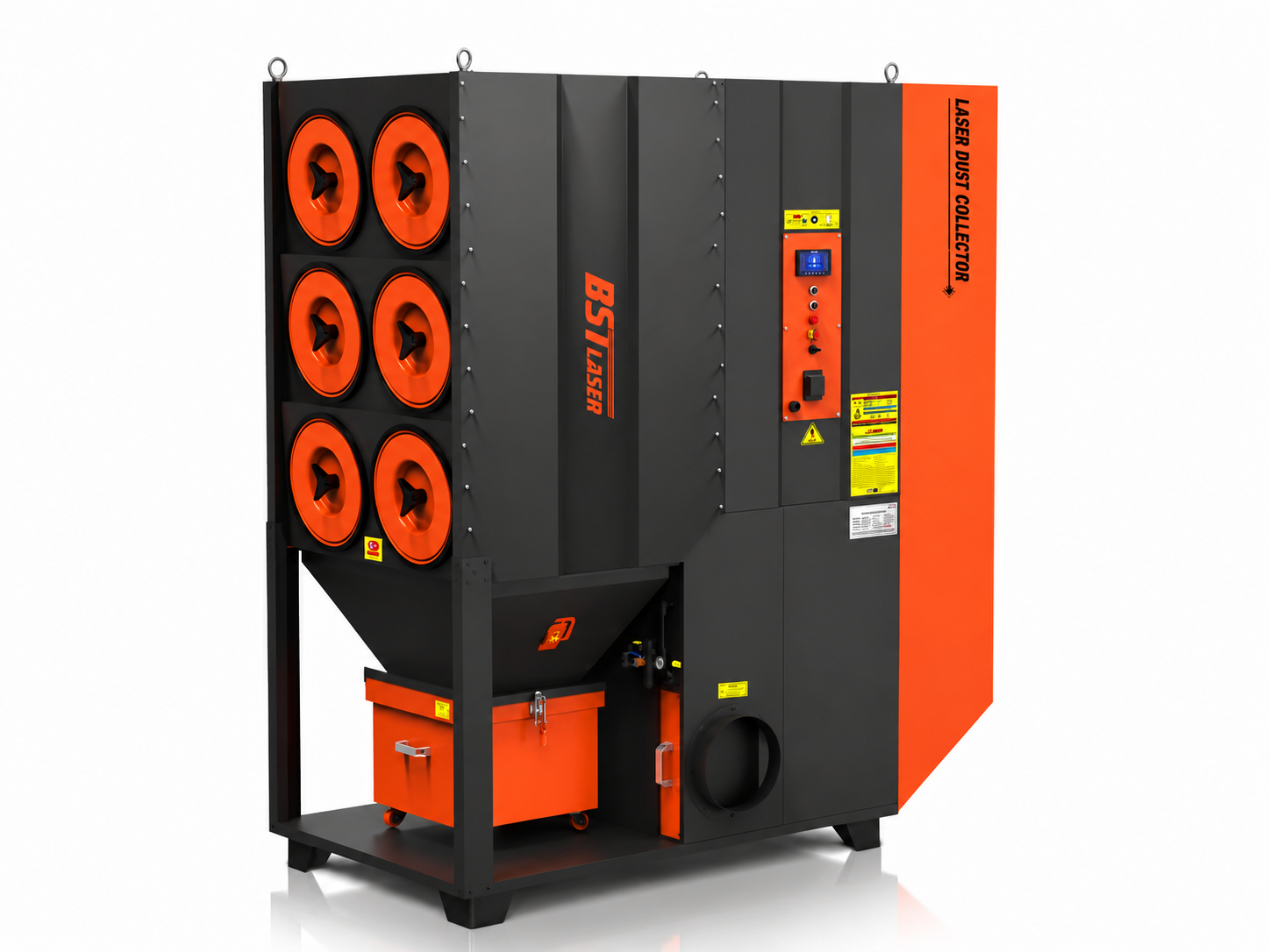

Industrial Fume Extractor
Designed to efficiently remove smoke, dust, and harmful particles generated during laser cutting.It helps maintain a clean working environment, protects operators’ health, and improves machine performance by reducing contamination inside the equipment.

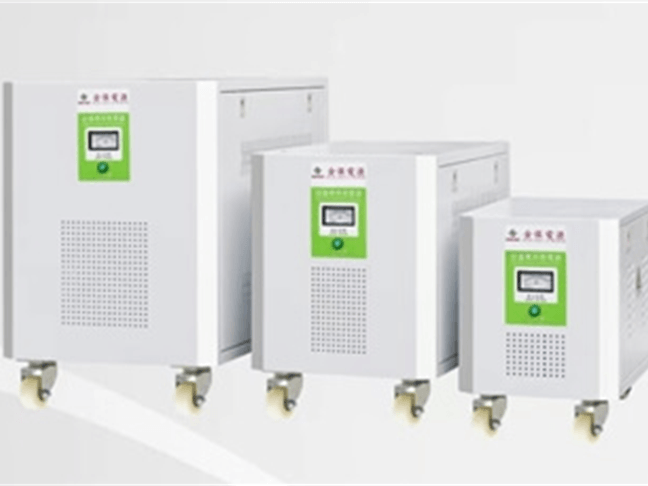

Voltage Stabilizer/Transformer
Ensures a stable and reliable power supply for the fiber laser cutting machine，proect the fiber optical parts and prolong machine’s lifetime .

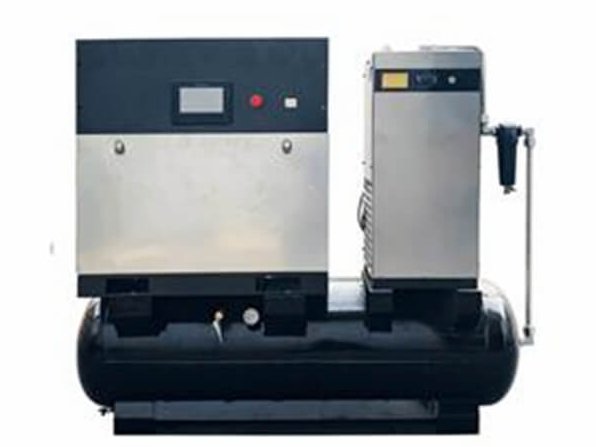

Industrial Air Compressor
Air Compressor Integrated and Compact, Economical Air Assist Gas System,Economic gas for cutting thin metal below 3mm
| Model | BE-FM-3015XC |
| Working Size | 1500×3000mm 2000×6000mm |
| Laser Power | 3000w 6000W 10000W |
| Laser Source | Raycus (Optional: Max/JPT/IPG) |
| Optional Size | 4000×1500mm/6000×1500mm/6000×2000mm |
| Max. Cutting Speed | 30-50 Meters / Min (up to materials) |
| Max. Location speed | 60m/min |
| Laser wavelength | 1070nm-1080nm |
| Minimum line width | ≤0.1mm |
| X/Y Location Accuracy | 0.03mm |
| Re-location precision | ±0.02mm |
| Max Acceleration | 1.5G |
| Max. moving speed | 100m/min |
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc |
| Power demand | 3 PHASE AC 380V 50HZ/60HZ |
| Working Table | Exchanging Working Table |
| Worktable max. load | 6000KGS |
| Transmission Method | gantry type double rack servo drive |
| Table-driven system | Japanese Imported Servo Motor & Driving System |
| Focus Method | Following and Automatic Adjust Focus |
| Control software | Cypcut |
| Working Environment Temperature | 0℃～45℃ |
| Working Environment Humidity | 5%～95% non-condensing |
Package and Shipment
| Model | Machine Size Dimension | Gross Weight |
| BE-FM-3015XC | (8040+6700)×3045×2100mm | 6000KG |
 |
 |
 |
| Inside layer is covered by thickening plastic bag and foam for waterproof. | Loading container EXW factory, workers putting machine into container | Send to the named sea port and load in the container |
-
