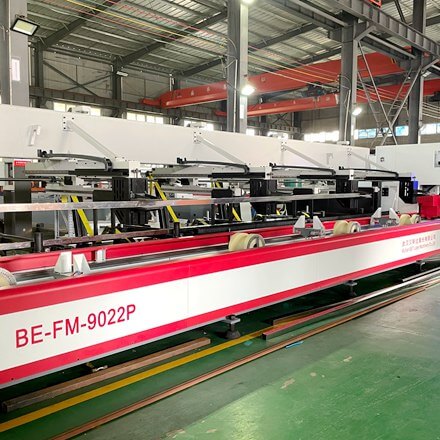

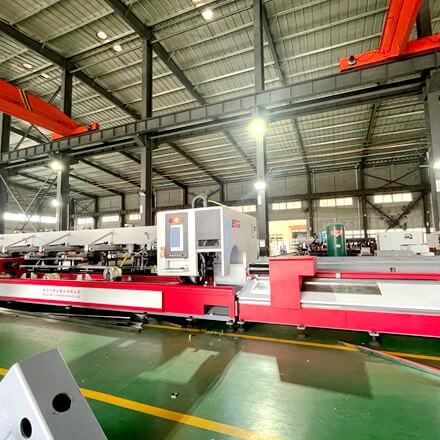

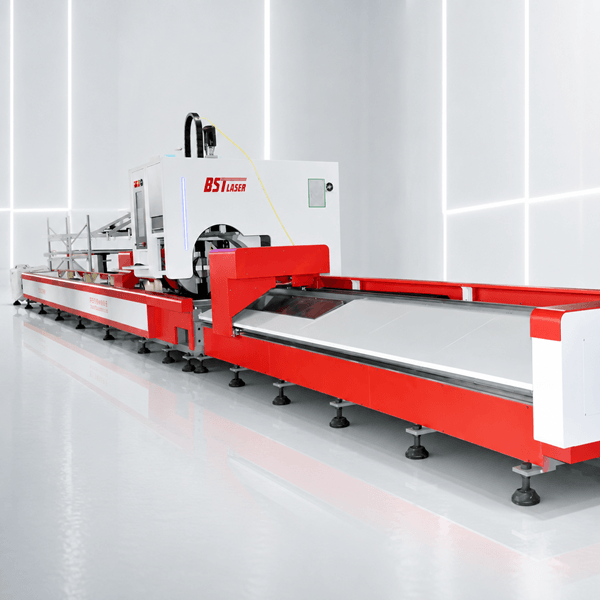

Automatic Loading Metal Pipe Tube 45 Degree Bevel Fiber Laser Cutting Machine
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM-9022PL |
| Views: | 58300 |
| Rating: | ★★★★★ |
| Price Range: | US$28,900 – US$49,800/set |
| Payment Term: |
T/T Bank Transfer,Western Union, Paypal, Alibaba Trade Assurance |
| Production Time: | 30-45 Days |
| Shipping: | Sea/Train/Truck |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
BST Laser fully automatic fiber laser pipe cutting machine, equiped with professional loading system, to realize whole bunch of materials uploading, which reduces the operation personnels and largely increase processing efficiency! It combines automation, efficiency, and flexibility, which is an important metal fabrication equipment of 4G automate factory.
Unique patented pneumatic chuck, simple structure but stable performance, good tightness and motion features, which can clamp square tube, round tube, elliptic tube, H-steel…
Three chucks processing enables more flexibility and ensures zero tail materials cutting.
Professional pipe tube cutting software, with complete cutting parameters crafts. Optional 45 degree bevel cutting laser head, to realize AB 45 degree cutting. This machine is widely used in stainless steel, carbon steel, brass, aluminum, galvanized sheet…different metals.
Good Features
- Intelligent loading and unloading system
Material distribution, loading, seamless connection and follow-up support
- Automatic centering, zero tail material cutting
Realize the hoisting and loading of the whole bundle of pipes
- Easy to continue cutting
- Automatic loading/unloading transfer table
- Saving loading and unloading costs and improving processing efficiency
- Three chucks and middle chuck can support double clamping and assist in correcting the deformation of small pipes
- It can meet various pipe cutting requirements such as round pipe, square pipe, rectangular pipe, oval pipe, steel profile etc.
- Wide range of applications, high degree of automation and good cutting effect
- This latest fully automatic three-chuck pipe cutting machine adopts an intelligent and efficient bus-type operation control system, latest pipe cutting software and professional nesting software, allowing you to use it conveniently and efficiently.
| No. | Item | Functions | |||
| 1 | Laser Source | l Red Point | l Alarm Protection | l Continuous Laser | |
| 2 | Laser Head | l Auto Focus | l Auto Following | l Anti-Collision | |
| 3 | Water Chiller | l Double Temperature Display and Control | l High and Low Water Level | l Alarm | |
| 4 | Machine Bed | l Mortise and tenon joint Structure | l Plate Welding | l Anneal | l Gantry Milling |
| 5 | Transmission | l 6H Precision | l High Arc | l Flange Connection | l Bus Type Servo |
| 6 | Gas | l Flowing Control | l High Pressure and Low Pressure | ||
| 7 | Oil | l All-round Lubrication | l Timing Control | ||
| 8 | Electric Control | l High Voltage and Low Voltage Separate | l Modularization | ||
| 9 | Parts Shield | l Pipeline Shield | l Machine Bed Shield | l Transmission Shield | l Safety Alarm |
| 10 | Controlling | l windows | l HCI | l Bus System | l Upgrade Supprting |
| 11 | Pipe Clamping | l Pneumatic automatic centering and clamping | l Adjustable clamping Power | l Any Pipe Tube Clamping | l Follow up shelving support |
| l Follow up flap material receipt | l Gantry Cutting | l Whole Pipe Cutting | l 45 Degree Bevel | ||
| 12 | Operation Software | l Multi-Language | l File Edit | l One Button Cut | l Layers Craft |
| l One click alignment | l Craft Library | l Multi Perforation | l Frog Jump | ||
| l Fly Cutting | l Auto Calibration | l Sharp Angle Craft | l Corner Craft | ||
| l Files CHeck | l Path Optimization | l Common Edge Cutting | l Marking Notes | ||
| l Auto Centering | l Characters Processing | l Auto Leveling | l Cutting Compensation | ||
| l Micro Connection | l Simple Nesting | l Pre-Perforation | l Starting and ending knife Craft | ||
| l Power-off Memory | l Chopping | l Processing Management | l Processing Report | ||
| l Pipe Tube Nesting | l Machining simulation | l Special cutting process | l 3D Parts Drawing | ||
Parts Introduction
45 Degree Bevel Cutting Head
- AB axis 45 degree bevel cutting and straight angle cutting
- Compact size and compatible with pipe cutting machine
-
High Stability, Flexibility and Accuracy
Top China Brand China Raycus Fiber Laser Device
- Produced by State-owned Listed Company
- Quality/Service Are Guaranteed(3 Years Warranty)
- Represents China R&D Highest Level with Core Technology
-
Annual Sales over 25,000 Sets
Pneumatic Double Action Chuck
- Full stroke clamping, automatic and precise positioning, fast automated cutting
- The bearing seat is supported by a wide seat and has high load-bearing stability.
- Optional clamping of various profiles to keep pipe fittings from slipping, such as round pipe, square pipe, irregular pipe…
-
Diameter 120mm, 160mm, 220mm, 240mm and above
Back Chuck
- Motor fast acceleration
- Stable Drive
- Zero waste material cutting
- Easy for calibration

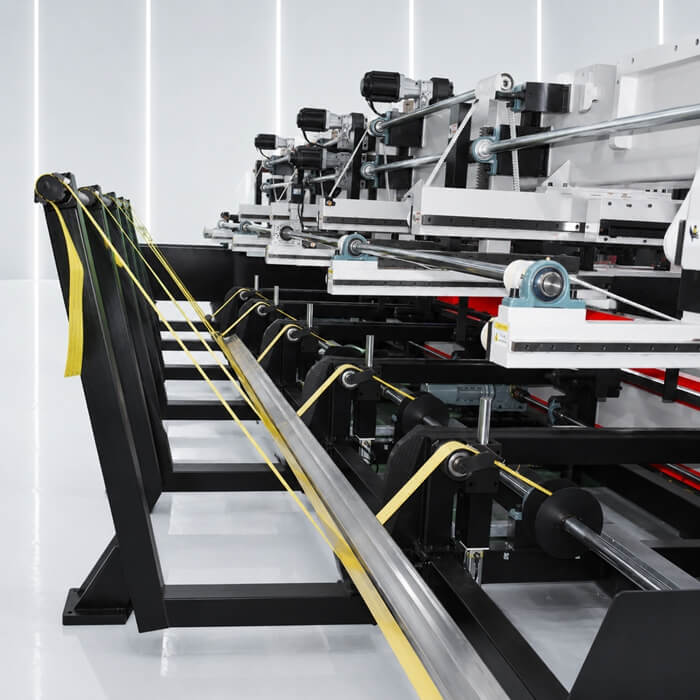

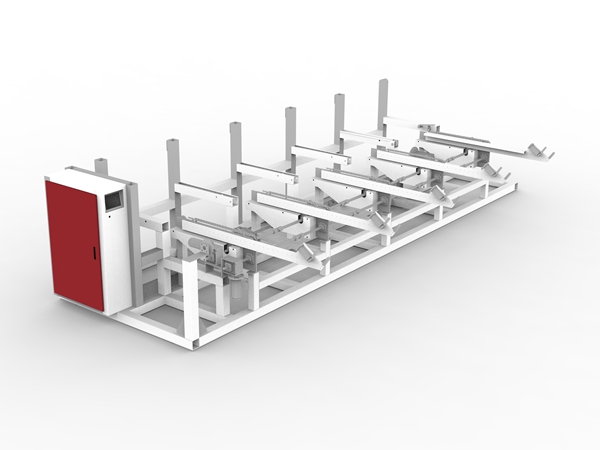

Full Automatic Loading System
- Fully automatic servo motor control loading system
- Realize different pipe, different length and different shape of materials bunch loading and inspection
- Seamless integration with cutting machine
Three Pneumatic Chucks
- It is designed with a three-chuck structure. The third chuck can clamp and pull the pipe material, thereby realizing long pipe/whole pipe feeding and cutting and cutting of zero tail material.
-
It can cut round tubes, square tubes, rectangular tubes, channel steel, angle steel, I-beam, special-shaped steel, etc.

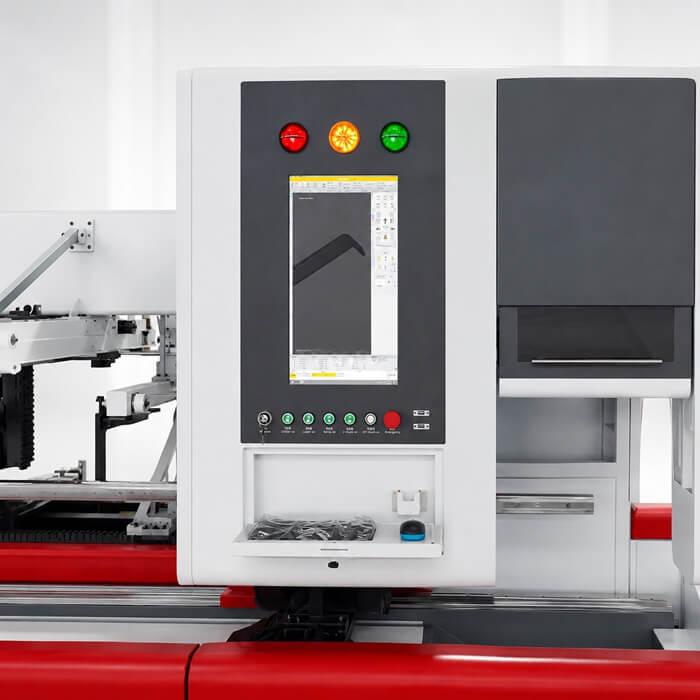

Professional Pipe Tube Cutting Cypcut Control System
- FSCUT3000/5000/8000 designed for professional tube cutting, supporting standard tube (retangle,circle,oval,ellipse and obround etc.) and steel channels (T/U/H shaped) production of high precision and efficiency.
45 Degree Bevel Cutting
- Increasing efficiency and saving time for later seamless welding
- Easily realize different cutting craft requirements

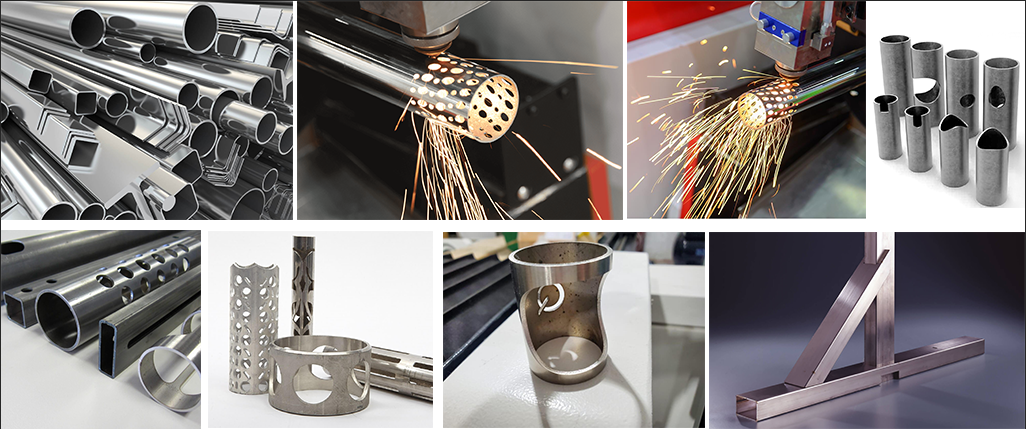

Application
Tube laser cutting machine can be used for cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheets, metal plate, metal pipe and tube, etc. Fiber Laser Cutting Machine.
Not only cut conventional tubes like round,square and rectangular tubes and profiles like channel, angle and H-shaped steels,but also cut special-shaped tubes easily like triangular, concave,Land C-shaped tubes, etc.
Optional Items

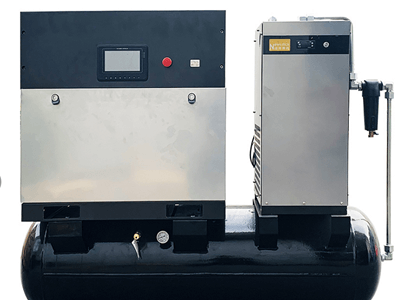

Air Compressor
The most economic cutting adopts compressed air.
The air compressor and filter are integrated ,which is compact and could save much space.
Just need to connect one cable which are easy to install and connect

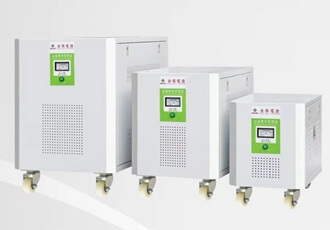

Voltage Stabilizer/Transformer
Machine standard voltage 380V. Voltage stabilizer or transformer helps adjusting the voltage to ensure laser machine working without interference.

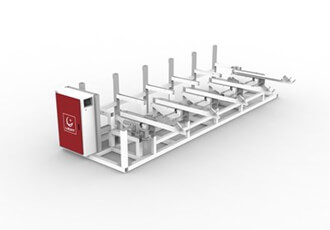

Semi-Auto Loading System
Semi automatic loading system is more economic than fully automatic, which suitable for less budget project.
| Item | Specification |
| Type | 5 axis, 6 axis, 8 axis, 9 axis |
| System | TubePro-3000S, TubePro-5000B, TubePro-5000A |
| Power | 1500-20000W |
| Loading Weight | 5T |
| Max Acceleration | 1.5G |
| Laser wavelength | 1070nm |
| Repositioning Accuracy | ±0.03mm/m |
| Diameter Range |
Round hole chuck: Square hole chuck: |
| Working length range | 6m, 8m, 9m,12m,14m |
| Loading system | Semi-auto, Fully Auto |
| Cooling Method | Water-cooling |
| Item | 5 Axis | 6 Axis | 8 Axis |
| Laser | MAX | MAX | MAX |
| Laser head | WSX/RAYTOOL | WSX/RAYTOOL | WSX/RAYTOOL |
| Cutting software system | TubePro-3000S | TubePro-5000B | TubePro-5000A |
| Gear rack & Rail | ROUST | ROUST | ROUST |
| Motor&Drive | YASKAWA | YASKAWA | YASKAWA |
| Reducer | DESBOER | DESBOER | DESBOER |
| Pneumatic system | NNT | NNT | NNT |
| Chiller | Hanli | Hanli | Hanli |
| Chuck exercise mode | A-B chuck linkage action | A-B chuck single action + linkage type | ABC |
| Material unloading table | Yes | Yes | Yes |
| Flip plate with the material moving | No | No | No |
| Max Cutting Thickness For Referrence | ||||
| Power | 1500W | 2000W | 3000W | 6000W |
| Stainless Steel | 8mm | 9mm | 12mm | 19mm |
| Carbon Steel | 12mm | 16mm | 20mm | 25mm |
| Aluminum | 6mm | 8mm | 9mm | 15mm |
| Non-ferrous Metal | 5mm | 6mm | 7mm | 12mm |

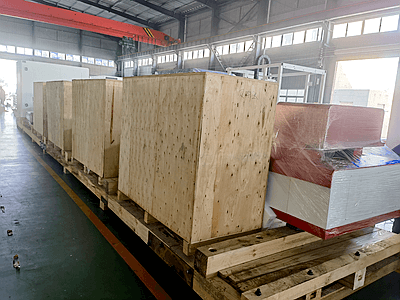

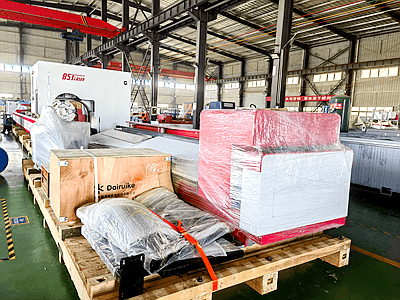

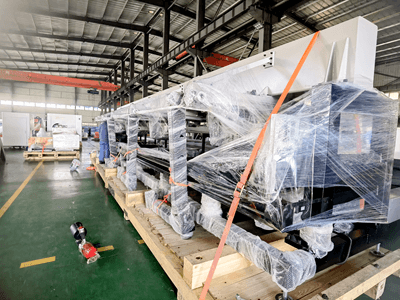

Package and Shipment
| Model | Net Weight | Package Size | Gross Weight | Volume |
| BE-F9022PL | 9000KGS | 12.8×2.28×2.38M | 10000KG | 69CBM |
 |
 |
 |
|
Inside layer is covered by thickening PE film and foam for waterproof. |
Middle layer is covered by foam to protect the machine from shaking |
Outside is with fumigated Wooden Box which comply with export standard |
-
