Fiber Laser Cutting Machine
Fiber Laser Cutting Machine

Dual Source Fiber Laser Cutting Machine for Sheet Metal Wood Acrylic


Category:

Fiber Metal Laser Cutting Machine

Model No.:

BE-FM-3015FCG

Views:

10000

Rating:

★★★★ 5/5 Based on 3500 Votes

Price Range:

$12,000 to $45000/set Based on the Features

Payment Term:

T/T Bank Transfer,L/C

Production Time:

30-45 Days

Shipping:

Sea Shipment

Warranty Period:

36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service

  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

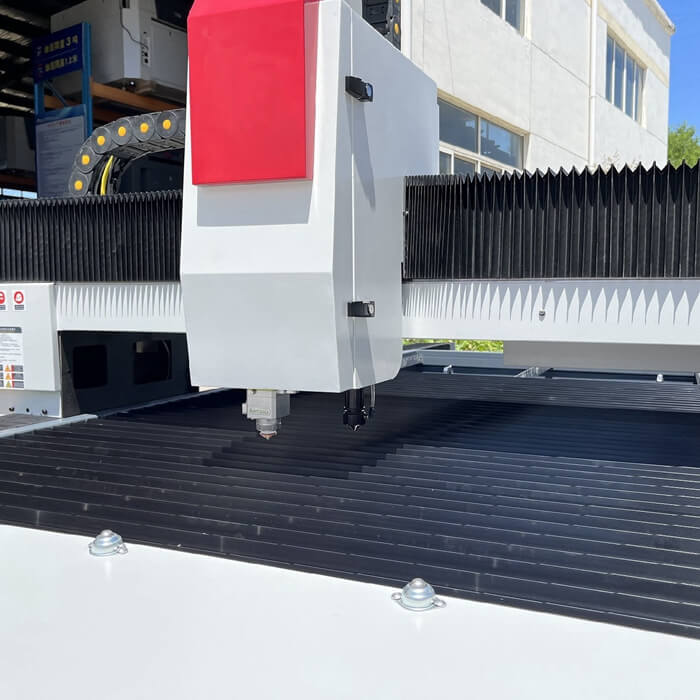

BST LASER New Launched Metal Nonmetal Fiber Laser Cutting Cutting Machine is equipped with double laser source,180w Co2 Glass Sealed Laser Tube and 1500w (can be with 2000w 3000w 6000w and even bigger power) Fiber Metal Laser Device,with 2 sets laser can free switch between metal and nonmetal cutting,one machine equivalents to two machines which totally solved metal nonmetal cutting with high speed and precision .

SATNDARD COMPONENTS

Professional AU3TECH CNC Control System for Metal and Nonmetal

Fuji®High Dynamic EtherCAT servo drive

BSTLASER®Dynamic System 4.0:1.5g Acceleration

BSTLASER@Fast Piercing 2.0:Ultra Performation

Automatic Table Ezchanger 3015 (Optional 4015,4020,1560,2060)

Smoke Extraction Fan System

Fiber Laser Source Raycus 1000w 1500w 2000w 3000w

Class IV safety system and CE marking

CYPCUT@Embedded Pcs:Industrial PCs with directly integrated I/O level

Hiwin@High performance and high accuracy rack and pinion system

Top China Brand 180w CDWG Brand Co2 Laser Device

Technical Features

  • -Equipped with two laser source :fiber laser device+co2 sealed glass laser tube,equivalent to two machines

  • -Professional double laser source cutting software with powerful function

  • -Heavy Loading Plate and pipe welding machine body structure,holding surface are processed by digital gantry

  • -Grinding precision gear rack,servo motor,Hiwin Linear Guide Rail and precison reducer transmission system

  • -Dustproof Co2 Optional Laser Path Structure to avoid smoke and scrip to enter in

  • -Home use two-phase electricity with 220v/2 phase,save operation costs

img_email

Parts Introduction

Machine Body

  • Adopting heavy-duty square tube welding structure with thickness of 8mm and reasonable structural design.

  • CNC machining, milling three times.

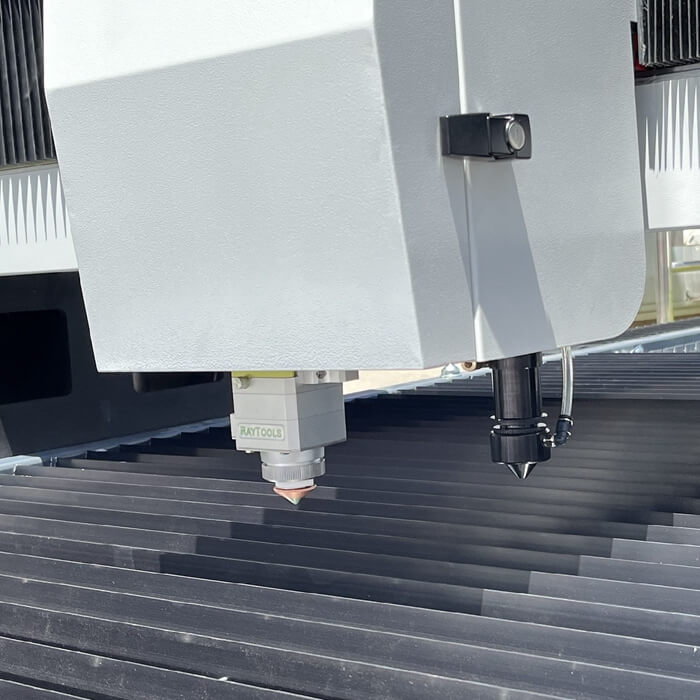

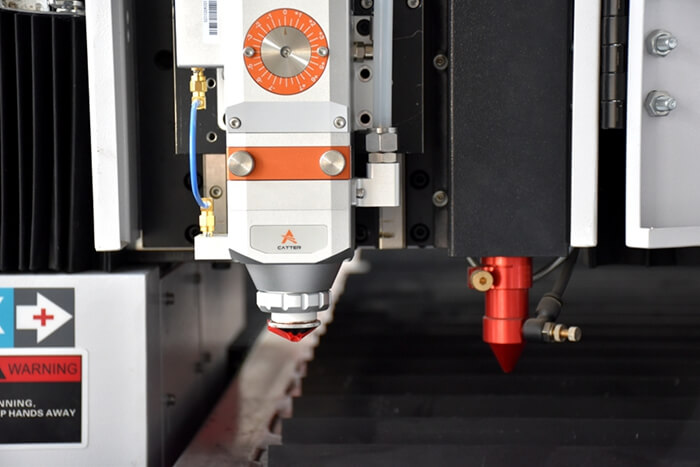

Professional Laser Cutting Head

  • Metal laser cutting head is with auto following and dynamic following function ,specially for cutting metals

  • Nonmetal laser cutting head with patent design double blowing function which can  effectively cut the thicknen nonmetal like acrylic wood plastic,etc

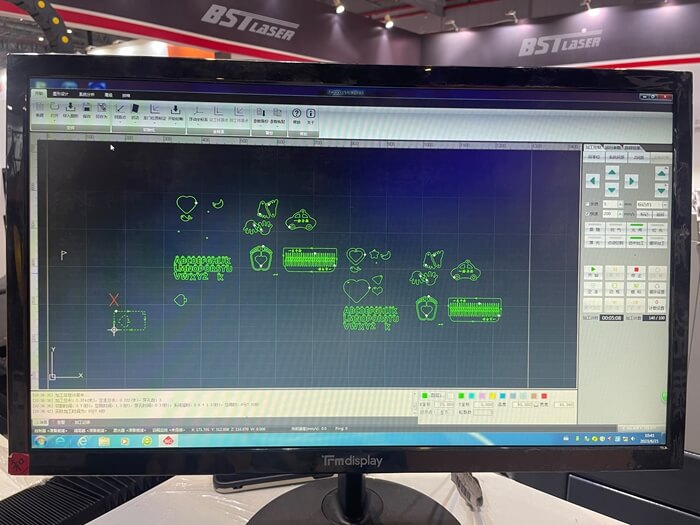

Powerful Controlling System

  • Special dual laser source cutting control system and software, easy to use, powerful cutting performance.



  • Support multi languages like English,Spanish,Portugal,Polish,German,etc

Transmission System

  • Famous Brand HIWIN linear guide and YYC grinding gear rack
  • Max traveling speed reach 80m/min and max acceleration reach 1.5G

Auto Foucing Laser Cutting Head-Raytools Swiss

  • Modular design with easy maintenance. Dual water cooling circuits.
  • Auto focus to reduce human intervention and improve piercing and cutting efficiency.

Top China Brand Fiber Laser Device

  • Equipped with Genuine Raycus brand fiber laser device with lifetime 100000 hours

Co2 Sealed Glass Device

  • Top Brand CDWG Brand with lifetime 10000h (other brand Reci,EFR and Yongli are available )

Protection for Laser Path

  • The optical path is protected to prevent smoke and slags from metal cutting from affecting the optical path and protect the CO2 laser lens

Clear Electronic Layout

  • Modularized Circuit board and  strong and weak electricity path ensure no interference and the equipment is more stable.
LEARN MORE

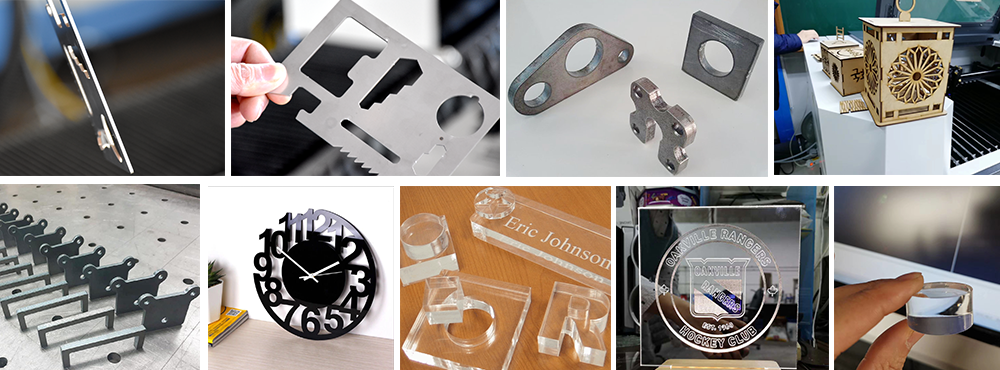

Application

Metal Nonmetal Fiber Laser Cutting Machine is widely used in signage,advertisement industry and metal processing industry.It’s the perfect laser cuttIng machine for metal plate cutting like stainless steel,carbon steel,aluminum,copper,brass,etc and nonmetal like wood,acrylic,wood,plastic,plexiglass,organic glass ,etc



Optional Items

Max Laser Device

Fiber Laser Device and Power

  • China Made Brand Fiber Laser Device Raycus /MAX /RECI
  • Laser Power :2000w 3000w 6000w
air-compressor-1

Air Compressor

  • Most economic cutting method which need air compressor +dryer filter  usually for cutting thin metal below 2mm
Model BE-FM-1325FCG BE-FM-3015FCG
Working Size 1200×2500mm 1500×3000mm
Laser Type Fiber Laser+Co2 Laser Device
Fiber Laser Power 1500w 2000w 3000w 4000w 6000w
Co2 Laser Power 180w 300w
Laser Source Raycus (Optional:Max/Reci/BWT/IPG)
Laser Wavelength Fiber :1070-1080nm  Co2 :10.6um
Max Running Speed 60000mm/min
Max. Cutting Speed 30-50 Meters / Min (up to materials)
Location precision ±0.03mm
Re-location precision ±0.03mm
Max Acceleration 0.6G
Cutting Thickness 1500w:6mm Stainless Steel
180w:20mm Acrylic
Supporting Format Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc
Power demand 1 PHASE AC 220V 50HZ/60HZ
Cooling Way Water Cooling
Whole Machine Power <10kw (1500w+180w)
Transmission Method gantry type double rack servo drive
Table-driven system Japanese Imported  Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Size Dimension 4010mm ×2050mm ×1600mm 4510mm ×2250mm ×1600mm
Running  Temperature 0℃~45℃
Running Humidity 5%~95%  non-condensing

Package and Shipment

Model Package Size Gross Weight
BE-FM-3015FCG 446cm×223cm×180cm,179CBM 4000KG
