150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
jewelry laser welder
150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
150W Small Compact Gold Silver Jewelry Repair Laser Welder Price
jewelry laser welder

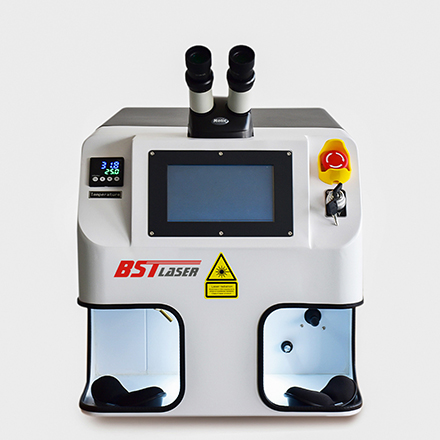

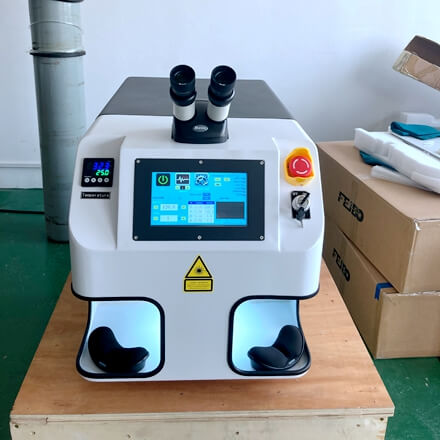

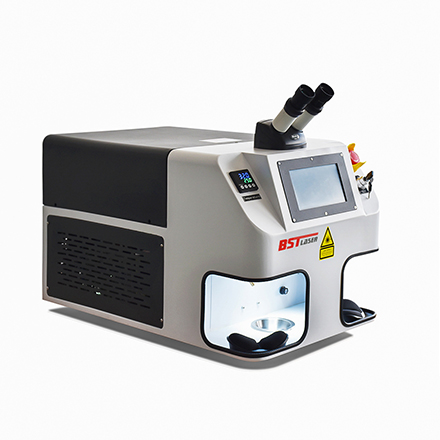

Small Compact 150w Gold Silver Jewelry Repair Laser Welder Price


Category Auto Laser Welding Machine
Model No. BE-W150
Views 75380
Rating ★★★★★4.9/5 Based on 800 Votes
Price Range US$3000-US$4800/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 7-10 Days
Shipping Air/Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Compact Gold Silver Jewelry Repair Laser Welder is an innovative jewelry repair and restoration solution. This laser welder helps to save time and money with its precision and accuracy and is suitable for both professional and amateur jewelers.

The welding process has a small heat-affected zone, the welding spot size is adjustable, beautiful, and flawless without any post-processing, accurate placement, and quick welding process. Environmental preservation, high efficiency, and pollution-free welding are all positive benefits. It works on gold, silver, platinum, stainless steel, titanium, and other metals and alloys.

Good Features

  • One Key Operation: One key switch makes it easier and more convenient for the user to start up the machine.
  • Single Chip Microcomputer Control and Adjustment: It can save 20 sets of commonly used welding settings for reuse.
  • The entire apparatus is more suited for the jewelry sector due to its ergonomic design. The equipment is excellent, lovely, performs steadily, and is fit for long periods of continuous labor.
  • Large internal space that is ideal for storing equipment and fittings.
  • Both the CCD camera and the high-resolution microscope add to the convenience.
  • The process of replacing, sanitizing the workspace, and recycling welding chips is really simple.
  • The welding location is made clearer by an LED ring shadow less illumination with adjustable brightness.
  • Finer light spots to satisfy the demands of fine welding.

Configuration List:

No. Name MFR Qty.
1 Laser Crystal YAG 7*145(Brand New, Beijing Opto) 1
2 Laser Cavity UK Imported Brand Morgan Ceramic Cavity 1
3 Power Supply LCD Touch Screen 1
4 Water Pump Strong Inside Cooling(50HZ) 1
5 Xenon Lamp 8*125*270mm 1
6 Position Microscope+CCD+Red Pointer 1
7 Shading System  Auto Microscope 1
8 Controller Single Chip 1
9 Foot Pedal BST Laser 1
10 Temperature Display Screen BST Laser 1
11 Professional Export Wood Craft case BST Laser 1

img_email

Parts Introduction

jewelry laser welding (3)

Humanized Design

  • European-style tiny portable design
  • Ergonomic mechanical structure based on scientific research.
  • Anti-static, anti-rust metal chassis that is easy to move and saves space.
jewelry laser welding (2)

Observation Microscope+CCD Camera

  • China’s best high-precision microscope (10X).
  • CCD camera with red pointer.
  • Precision placement and welding procedure.
jewelry laser welding (1)

Laser Optical Path

  • Morgan brand optical cavities, which shield the laser source and increase lifespan, were imported into the UK.
  • For static-free operation, strong current and weak current separate.
  • Clear wiring layout that complies with European standards
jewelry laser welding (7)

Powerful Crystal Rod

  • Chinese 11th Scientific Research Institute created the well-known brand 7*145 crystal rod of Beijing.
  • High energy and resistance to damage.
  • Maximum power output is 170W.
jewelry laser welding (8)

Laser Xenon Lamp

  • Exquisite UV Filtering Silica Glass China top brand authentic Xenon lights are used.
  • 10,000,000 times in a lifetime
  • High Efficiency Fine Laser Beam
jewelry laser welding (5)

Controlling Screen

  • Integrated control system with great sensitivity
  • Convenient parameter configuration
  • Different parameters (current, frequency, pulse, etc.) can be set up by users in accordance with various materials.
jewelry laser welding (1)

Temperature Display Screen

  • Temperature Inspection that is Intelligent.
  • Operation is simple.
  • Easily detecting problems.
jewelry laser welding

Big Inner Space

  • Inside, there is a large inner space area where operators can conveniently place fixtures or tools.
  • Welding Flexibility
  • Hand Pads Reduce Fatigue
jewelry laser welding (6)

Connection Ports

  • Connection Scientific Design
  • Simple Design for Ease of Use
LEARN MORE

Application

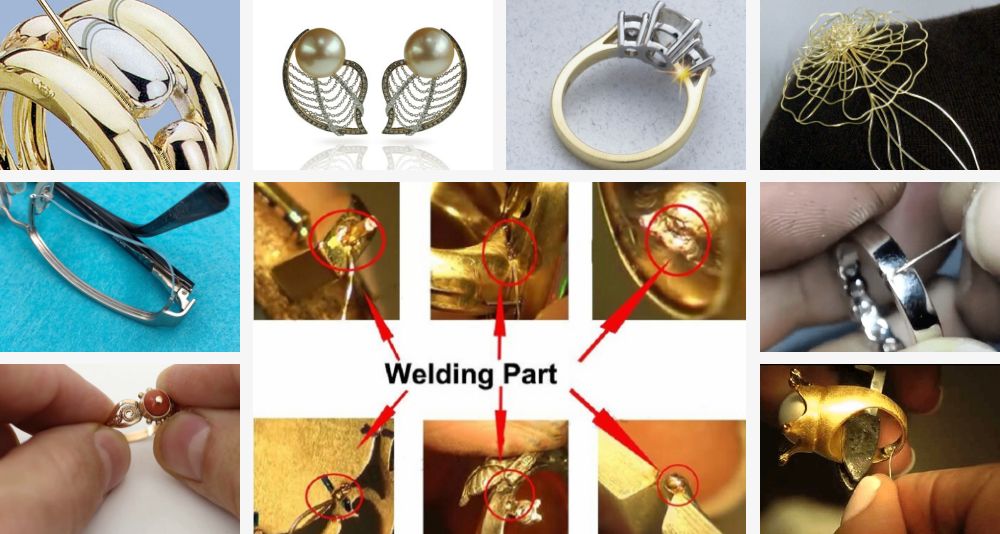

Metal jewelry welding is used to create rings, earrings, bracelets, necklaces, tie clips, cufflinks, and other jewelry from gold, silver, platinum, copper, titanium, and other metal materials. Additionally, small hardware goods are welded in the sectors of precision parts, electronic components, micro motors, and others.

app_BE-W150

Model BE-W150
Power 150W
Wavelength 1064nm
Power Consumption 3.5KW
Laser Focus 110mm
Pulse Frequency ≤0.1-20Hz
Pulse Width ≤15ms
Protection Gas Single
Voltage 220V/110V
Observation System Microscope 10X + CCD Camera
Cooling Inner Water Cooled
Controls Touch Screen + Joystick
Language Chinese/English
Protective Gas Argon
Net Dimension L730*W430*H520mm
Net Weight 50kgs
Wood Package Size L850*W530*H610mm
Wood Package Weight 80kgs

Package and Shipment

Model Package Size Gross Weight
BE-W150 0.85m×0.53m×0.61m, 0.28CBM 80KG
jewelry laser welder (2) jewelry laser welder (3) jewelry laser welder (1)

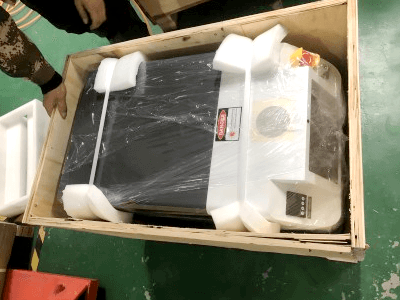

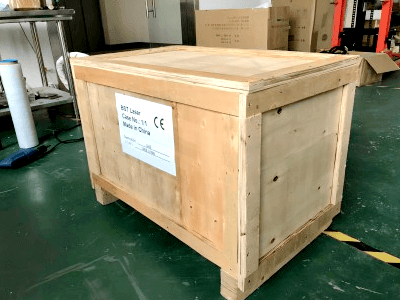

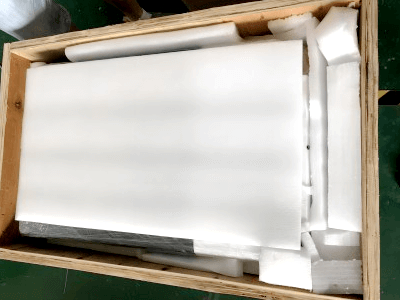

Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
