Auto Laser Welding Machine

Product Details

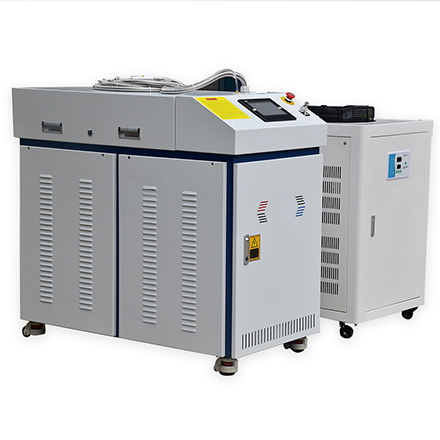

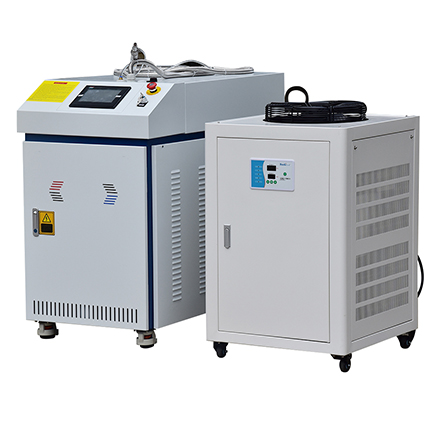

300W 500W Fiber Transmission Laser Welder Hand Held for Metal
300W 500W Fiber Transmission Laser Welder Hand Held for Metal
300W 500W Fiber Transmission Laser Welder Hand Held for Metal
automated laser welding machine (1)
300W 500W Fiber Transmission Laser Welder Hand Held for Metal
300W 500W Fiber Transmission Laser Welder Hand Held for Metal
300W 500W Fiber Transmission Laser Welder Hand Held for Metal
automated laser welding machine (1)

300W 500W Fiber Transmission Laser Welder Hand Held for Metal


Category Auto Laser Welding Machine
Model No. BE-W300F/BE-W500F
Views 46400
Rating ★★★★★4.3/5 Based on 400 Votes
Price Range US$3800-US$4999/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 7-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A fiber transmission laser welder handheld for metal is an effective way to weld metal components quickly, accurately, and with minimal heat input. This tool utilizes a laser beam that is transmitted through a fiber optic cable and focused onto the workpiece to precisely join the two pieces of metal together.  It is capable of producing extremely small and intricate welds with the highest level of accuracy and repeatability.

The device works by transmitting a laser beam through a fiber optic cable, allowing welders to perform precision welding on thin metals with ease. For the parts that are difficult to access, hand held fiber cable and non-contact welding is implemented, which has greater flexibility.

Good Features

  • The welding spot energy is distributed evenly, and the light spots are flawless as required by welding characteristics.
  • Suitable for intricate welds, spot welding of various devices, and seam welding of thin plates with a thickness of less than 5mm.
  • Ceramic condenser cavity imported from the United Kingdom is corrosion resistant and heat resistant, with a service life of up to 8-10 years. This welder’s Xenon lamp has been flashed 8 million times.
  • Automatic tooling fixtures can be tailored for mass production.
  • A laser beam carrying energy delivered via fiber cable can be spectrally separated into two, four, or even six lines, allowing for multi-station high-precision laser processes.
  • There is little thermal deformation and heat impacted zone, little pollution, and no harm to the human body.
  • Japan imported 5m fiber optic wire, which is flexible and convenient and can be used for welding in any position and angle.

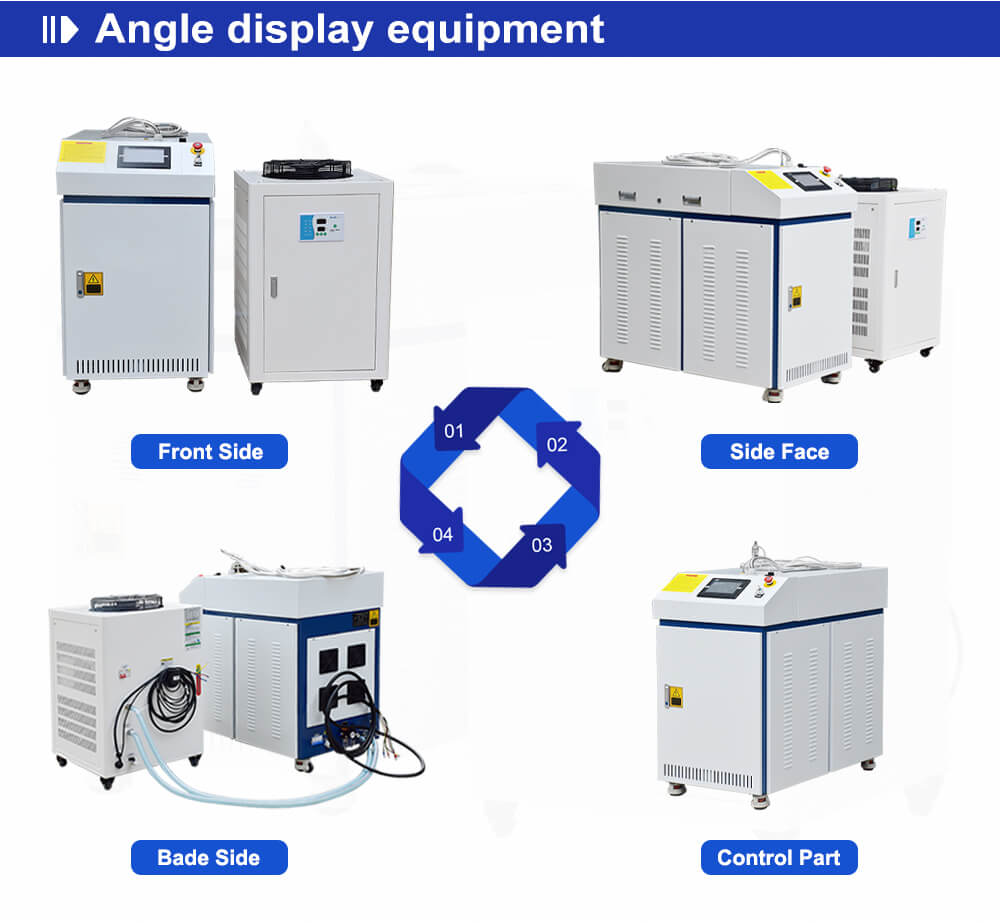

handheld laser welder (14)

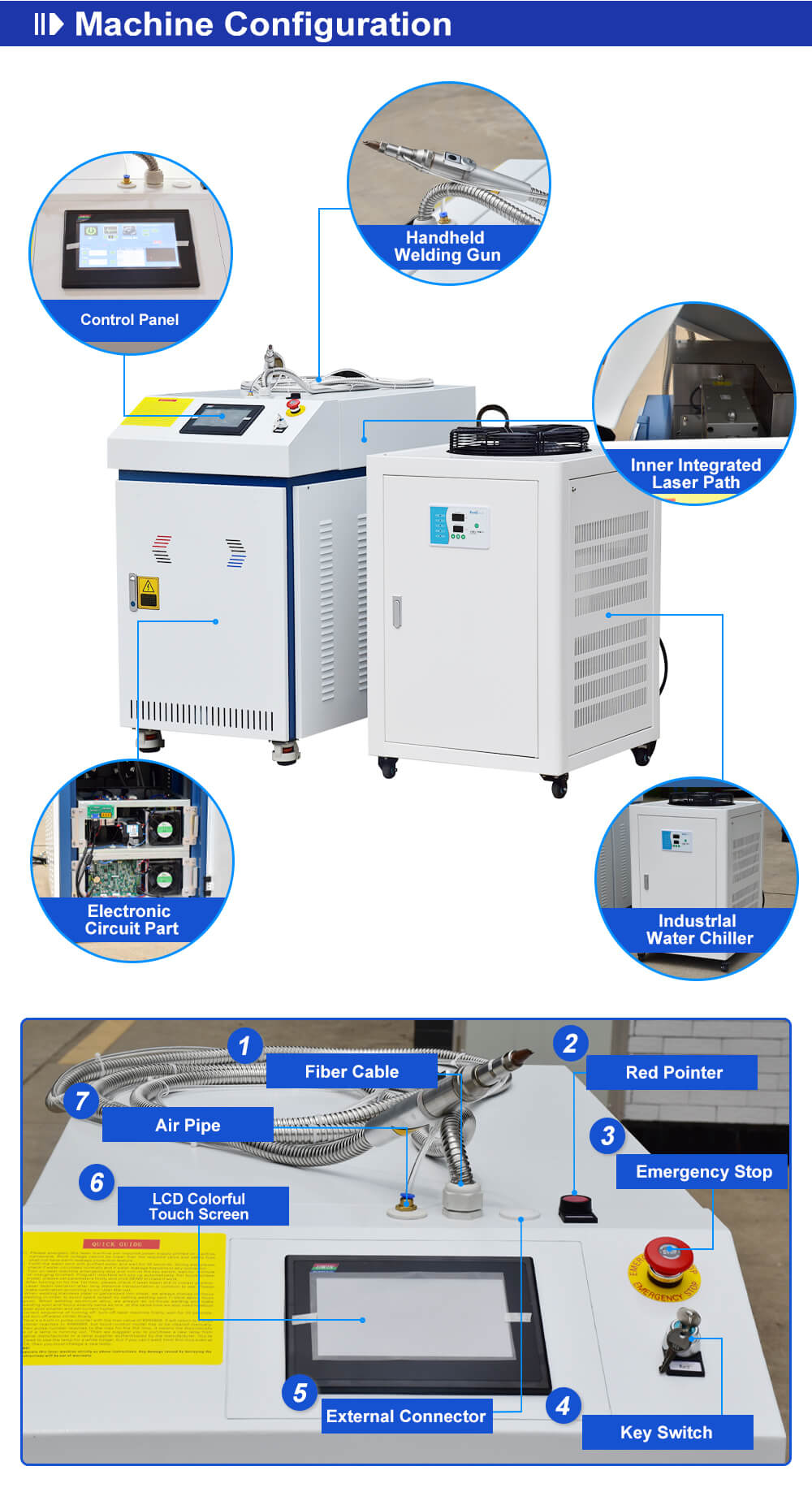

handheld laser welder (13)

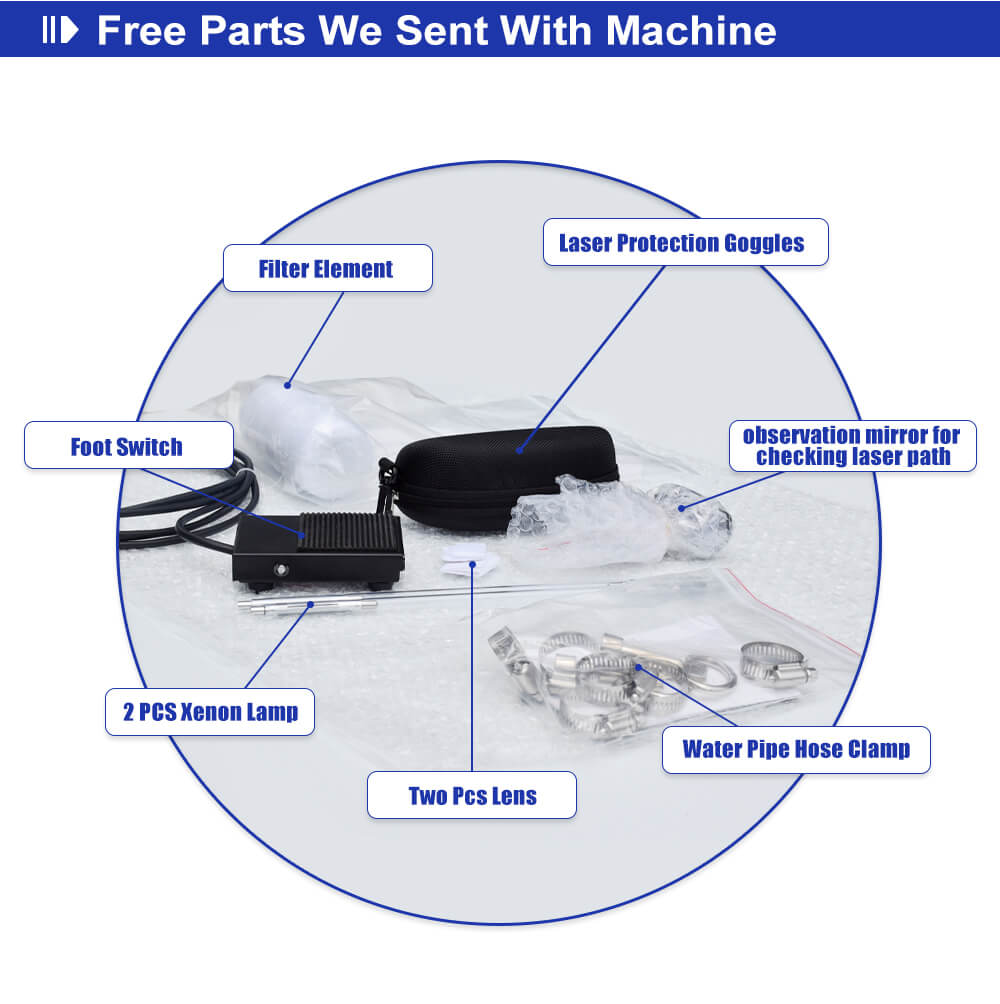

handheld laser welder (15)

img_email

Parts Introduction

Handheld Welding Pen

  • There are two types of copper nozzles available to meet various welding requirements.
  • The wider application can be used for a variety of purposes, including metal components, internal welding, right-angle welding, narrow-side welding, and large spot welding.
handheld laser welder (2)

Handheld Fiber Cable

  • To meet a variety of welding applications, a handheld portable 5m fiber cable with a Mitsubishi optical core imported from Japan is used.
  • Avoiding broken or distorted metal fiber cable during operation
handheld laser welder (1)

Fiber Optic Tube

  • Mitsubishi fiber tube, a Japanese original imported brand, more a strong and more steady transmission
  • Excellent heat dissipation, long lifespan, and low laser usage.
handheld laser welder (3)

Laser Optic Layout

  • Morgan brand optical cavities, which shield the laser source and increase lifespan, were imported into the UK.
  • Static Free requires the separation of strong and weak currents.
  • The Wiring is well laid out and to European standards.
handheld laser welder (12)

Xenon Lamp

  • Original Xenon lamps from China’s leading brands are used.
  • 8,000,000 times, for instance, at an 8-hour workday, one lamp can last 6 to 12 months.
  • The laser’s power source is a xenon bulb; when it burns out, simply replace it with a new one.
Fiber Transmission Laser Welder Hand Held for Metal Parts Introduction

Crystal Rod

  • Beijing’s famous brand 7*145 crystal rod, created by China’s 11th Scientific Research Institute
  • Intensive Energy and Not Easily Damaged
  • Maximum Power of 170W
handheld laser welder (4)

LCD Colorful Screen

  • Integrated control system with great sensitivity
  • Convenient parameter configuration
  • Users can configure many settings (current, frequency, pulse, etc.) based on the material.
handheld laser welder (5)

Industrial Water Chiller

  • An industrial water chiller can cool the unit and ensure that it is in good working order.
  • On the chiller panel, operators can change the temperature parameters. The water chiller includes an air-conditioning system.
    (300w-1p,400w/500w-2p)
handheld laser welder (7)

Electronic Part

  • European Standard electronic parts, with exact design and an integrated circuit board, are used to create the electrical component in modularization.
  • A simple arrangement that allows for easy classification
handheld laser welder (6)

Quick Guide Operation Notice

  • Help you understand the basic operation of the machine and the essential maintenance in order to avoid damage.
LEARN MORE

Application

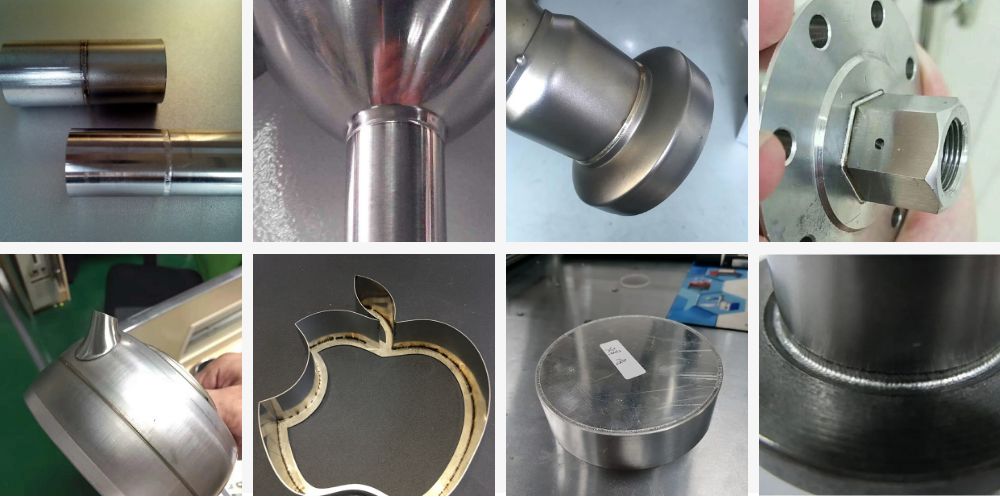

Fiber Transmission Laser Welder Hand Held is primarily used for plastic molds made of S136, SKD-11, NAK80, 8407, 718, 738, H13, P20, W302, 2344 mold steel, carbon steel, common alloy steel, stainless steel, beryllium copper, copper, and extremely hard alloy material, Casting mold, forging die, stamping die, die casting molds. Mobile phones, digital gadgets, autos, and motorbikes, as well as other mold-making and molding industries, make extensive use of this material.

W300F application

Model BE-W300F BE-W500F
Fiber Cable Length 5m / 8m / 10m(optional )
Table Loading Weight ≤200KG ≤200KG
Voltage 220V/50HZ 40A 380V/50HZ 60A
Welding Depth 0.1-1.8mm 0.1-2.5mm
Laser Type Nd:YAG Pulse Xenon Lamp
Spot Size 0.2-3.0mm
Laser Wave Length 1064nm
Pulse Width ≤15ms
Laser Device Power 300W 500W
Handheld Head Power 240W 400W
Single Pulse Energy 80J 100J
Frequency ≤30Hz ≤50Hz
Focus Distance 180mm
Cooling Water Cooling
Cooling Capacity 2700W 5000W
Whole Machine Power <9KW <16KW
Noise ≤60db
Transmission System Fiber optical transmission system
Energy Instability <2%
Beam Divergence ≤8mrad
Working Temperature 55°F(13°C)-82°F(28°C)
Consumable Xenon lamp、Protection Lens
Working Humidity 5%-75%
Oil Mist ≤15mg/m&sup3
Machine Dimension Chiller 750*550*1200mm
700*500*900mm
750*550*1200mm
900*700*900mm
Package Size 1530*830*1100mm 1530*810*1100mm
960*760*1150mm
Gross Weight 320KG 430KG

Package and Shipment

Model Package Size Gross Weight
BE-W500F 1.53m×0.75m×1.35m,1.37CBM
0.95m×0.7m×1.15m, 0.77CBM
420KG
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
