3d Channel Letter Bending Machine

Product Details

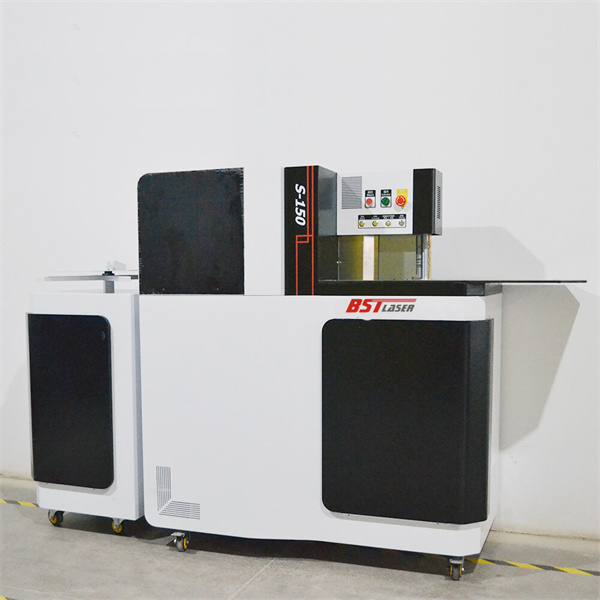

3-in-1 Aluminum Stainless Steel Channel Letter Bending Machine
1 Aluminum Stainless Steel Channel Letter Bending Machine

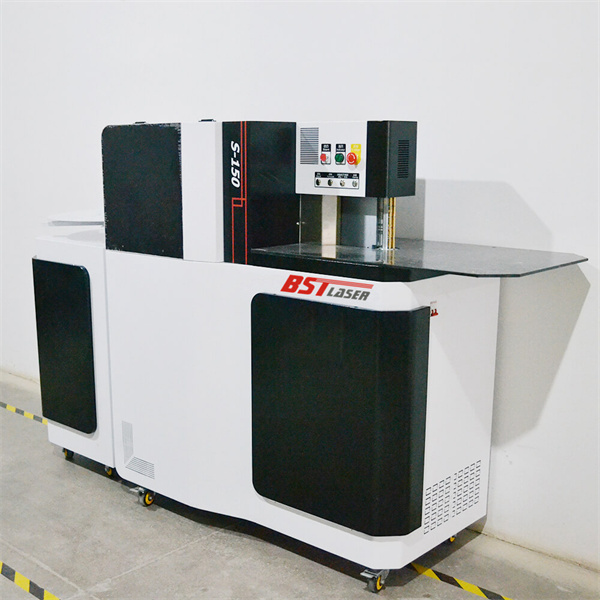

2 Aluminum Stainless Steel Channel Letter Bending Machine S150
Multifunctional Channel Letter Bender S150
3-in-1 Aluminum Stainless Steel Channel Letter Bending Machine
1 Aluminum Stainless Steel Channel Letter Bending Machine
2 Aluminum Stainless Steel Channel Letter Bending Machine S150
Multifunctional Channel Letter Bender S150

CNC 3-in-1 Aluminum Stainless Steel Channel Letter Bending Machine


Category: Channel Letter Bending Machine
Model No.: BEL-S150
Views: 8500
Rating: ★★★★★5/5 Based on 1000 Votes
Price Range: US$4000 – US$5500/set Based on the Features
Payment Term: T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time: 10-15 Days
Shipping: Sea/Train/Truck
Warranty Period: Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

BEL-S150 Multifunctional CNC Channel Letter Bending Machine is a new advertising letter-making machine that can be used to produce logos, signs, neon signs, billboards, light boxes, outdoor advertising, and other advertising manufacturing channel letters. It can be used for bending various materials such as aluminum strips, aluminum profiles, single or double-sided fold-edge aluminum, stainless steel strip, galvanized sheet, and so on, as with advanced bending technology and high configuration parts.

 It is equipped with advanced features such as multi-axis control, automatic positioning, and programmable memory.

Machine Feature:

  • Two slotting, bending, and control systems that can be changed automatically allow for the free processing of various materials.
  • A separate feeding cabinet that ensures steady material feeding
  • Powerful and advanced Bends flat aluminum, aluminum with trim caps, aluminum profiles, stainless steel, galvanized iron, etc. in a three-in-one design.
  • Materials bending height: 20 to 150 mm
  • Bending Thickness: SS (0.3-0.8mm), galvanized sheet (0.4-1.0mm), Aluminum Profile (0.6-1.5mm)
  • Slotting System: The milling cutter is made of a strong alloy that can swing back and forth, allowing for precise control of the slotting angle and depth;
  • Plane cutters employ imported finished blades that do not need to be sharpened, resulting in lower costs and more stable and smooth cutting.
  • Ball screw transmission and a high-power servo control system provide for improved working efficiency.
  • Support for numerous vector graphic formats such as AI, PLT, DXF, and NC

img_email

Parts Introduction

steel and aluminum channel letter bending machine

Indicator and Function Press Button

  • Each standard function has a clear button, making the entire action simple.
  • By pressing a switch button, you can easily choose between bending stainless steel and aluminum materials.
Stainless Steel Channel Letter Bending Machine 2

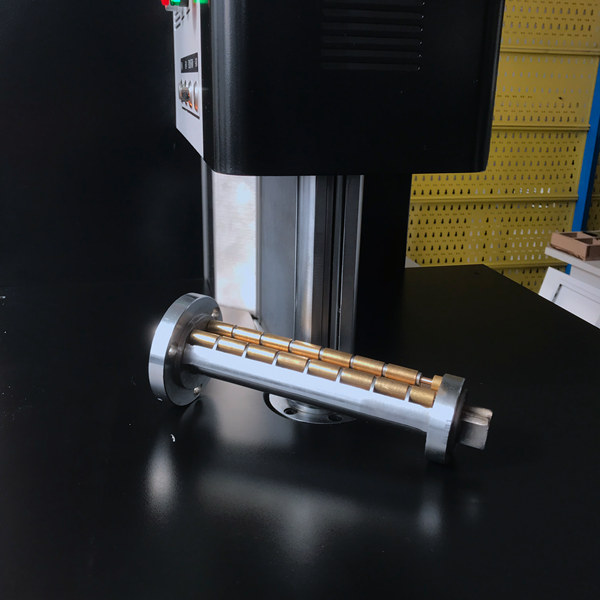

Replaceable two-axis linkage bending structure

  • The machine is equipped with two bending systems (stainless steel and aluminum), which you can switch depending on the properties of your bending materials.
  • This extends the life of the bending arc tool and ensures great bending precision.
Stainless Steel Channel Letter Bending Machine 5

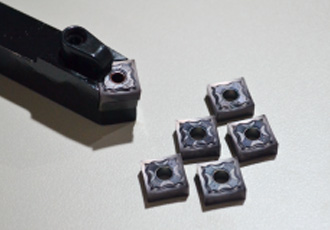

Korean KORLOY hard Alloy Slotting Knife

  • Hard alloy slotting knife made in Korea, KORLOY
  • Suitable for slotting stainless steel and flat aluminum.
  • The planer is constructed of hard alloy completed, cutting stable and smooth, free grinding, and low cost.
Stainless Steel Channel Letter Bending Machine 3

One-touch Slotting Depth Adjustment

  • Switch freely, no need to adjust again when changing materials, using a one-step switch system for double-pole alternative bending for metal coil and a patent extrusion bending system for aluminum profile.
Stainless Steel Channel Letter Bending Machine 4

Precision Milling Cutter for Aluminum

  • Can swing 360 degrees, automatically identify angle, and process a variety of aluminum profiles.
  • With high stiffness, the lifetime might be extended to three years.
Industrial Aluminum Channel Letter Bender A200

Clear Electronic Layout Comply with European Standard

  • With high stiffness, the lifetime might be extended to three years.
  • Delixi gadget and high voltage anti-interference filter
  • Integrated servo motor and IO PCB board
  •  American 15A power plug High subdivision module driver
LEARN MORE

Application

The BEL-S150 channel letter bending machine is a high-quality tool for creating metal edge strips LED light channel Letters. S150 can cut and bend metal simultaneously, such as aluminum profiles, flat aluminum, flat stainless steel, and galvanized sheets. It entails bending a stainless steel strip into the appropriate shape. This technique is frequently time-consuming and difficult to complete manually, requiring significant skill and experience.

Making stainless steel letters necessitates the use of a laser cutting machine as well as a laser welding machine. When combined with the 1325 engraving machine, it can finish the process of any metal words on the market.

Stainless Steel Channel Letter Bending Machine 7

Optional Items

Optional Items_Auto Flange Channel Letter Bender Machine_1

Industrial PC system with well-installed software and validated specifications for direct use

Optional Items_Auto Flange Channel Letter Bender Machine_2

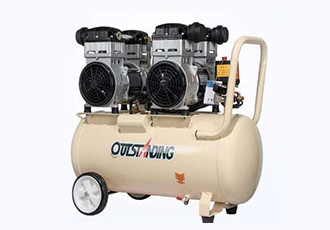

Air Pressure: 0.6-0.8mpa,you can prepare by yourself or with machine together

Optional Items_BEL-S150_3

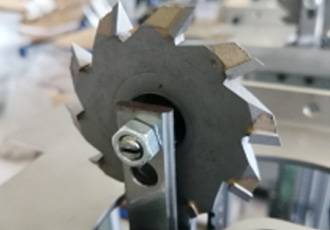

Aluminum Milling Cutter, imported model with good stiffness

Aluminum Milling Cutter, an imported model with good stiffness

Hardware Feeding system Rolling continuous feeding structure(Closed loop self-test system)
Slotting system Ball Screw Transmission, Korean KORLOY  Slotting Knife/Pneumatic lifting rotary milling cutter structure (Reversible swing knife)
Bending system Two-axis linkage arc system/ Two-axis linkage copper shaft roller extrusion system(Non-scratch material)
Driving motor Servo motor 2 set; stepper motor 3 set
Weight 340kg
Dimensions Body: L1500mm×W850mm×H1550mm; Feeding Table: L500mm×W500mm×H1100mm


Performance


Material category Aluminum profile, stainless steel, galvanized sheet flat aluminum (20—150mm)
Material thickness Stainless steel  0.3—0.8mm
Galvanized sheet 0.4—1mm
Aluminum profile 0.6—1.5mm
Support format AI PLT DXF NC
Feeding accuracy Length±0.1mm; Radius>10mm


Sfotware


Control card ADTECH/Leetro Four-axis motion control card
Software system Autodrive/CBS4 auto bending system
Input voltage 220V 50Hz 3.5Kw
Air pressure 0.6-0.8Mpa

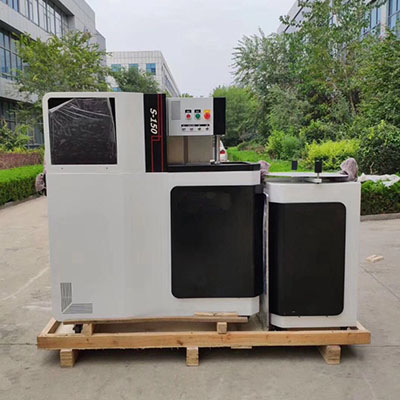

Package and Shipment

Model Package Size Gross Weight
BEL-S150 210cm×81cm×165cm,2.807CBM 350KG
Precision Aluminum Profile Channel Letter Bender package-3

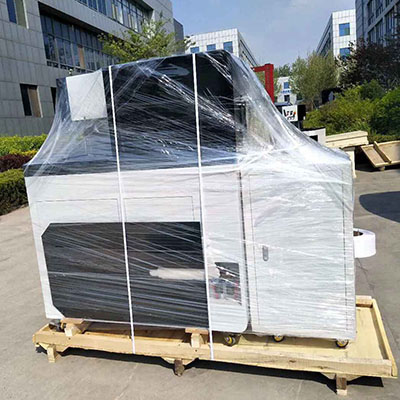

Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craft case.



  • Hossein Azimi

    ★★★★★
    Post a review on Aug 21, 2022 From UK

    The machine is structurally sound and has excellent, simple software and performance.

  • Muhammad Tayyab

    ★★★★★
    Post a review on Aug 21, 2022 From UK

    It is a powerful piece of equipment that has drawn many potential consumers to my company and is highly recommended to those wishing to enter the sign industry.

  • Ermal Alushi

    ★★★★★
    Post a review on Aug 21, 2022 From Italy

    The trim cap channel letter bender machine BEL-A200 is operational, but we do not have technical help at this time.

  • Josef Helmlinger

    ★★★★★
    Post a review on Aug 21, 2022 From Chile

    The machine functions properly. I’ll recommend it to my friends.

  • Fredy Lasso

    ★★★★★
    Post a review on Aug 21, 2022 From Spain

    Your letter-bending machine is fantastic, and I am so grateful to you and your firm.

  • Fredy Lasso

    ★★★★★
    Post a review on Aug 21, 2022 From France

    Also, just to let you know, we’ve been getting a lot out of the device. We haven’t had many opportunities to utilize it because of the outbreak, but when we have, we’ve written some fantastic letters.

  • Ernesto Reyes

    ★★★★★
    Post a review on Aug 21, 2022 From USA

    Outstanding machine. I’d want to thank the supplier for her help and support during the purchasing process.
