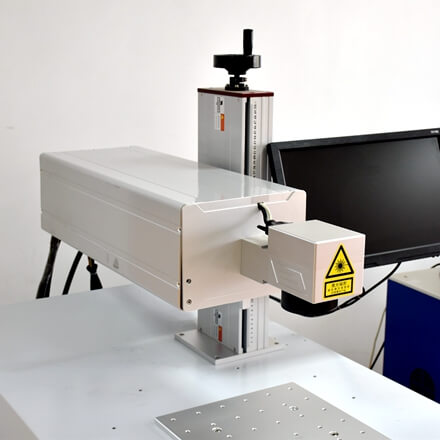

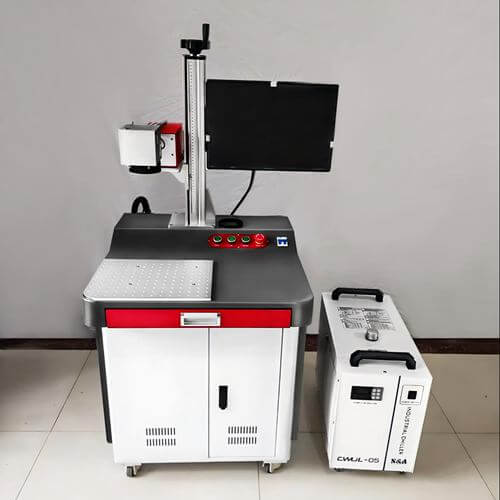

3W 5W 7W 10W Glass Plastic UV Laser Marking Machine
uv laser marking machine (1)
uv laser marking machine (2)
uv laser marking machine (3)
3W 5W 7W 10W Glass Plastic UV Laser Marking Machine
uv laser marking machine (1)
uv laser marking machine (2)
uv laser marking machine (3)

3W 5W 7W 10W Glass Plastic UV Laser Marking Machine


Category Fiber Laser Marking Machine
Model No. BE-UV
Views 61300
Rating ★★★★★4.7/5 Based on 500 Votes
Price Range US$3999 – US$6999/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-15 Days
Shipping Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The 3D Glass Plastic UV Laser Marking Machine is a revolutionary new laser marking technology that is capable of marking glass and plastic surfaces with intricate detail and accuracy. This technology has the potential to revolutionize the way products are marked, allowing for the creation of complex 3D logos and designs with exceptional precision.

Using a 3D glass plastic UV laser marking machine offers many advantages over traditional methods of marking. It is faster, more accurate, and can be used on a variety of materials. It is also more cost-effective and environmentally friendly than other marking methods.

Machine Feature:

  • The UV laser marker machine’s laser spot output is smaller, the light mode is good, the marking effect is fine, the marking line is finer, and it’s perfect for fine graphics and text mark.
  • All air-cooled UV laser technology, high precision control, good laser stability, and 24 hours of continuous operation at room temperature
  • The UV laser engraving equipment is frequently utilized since most materials can absorb ultraviolet light.
  • The entire machine has a consistent performance, is modest in size, and consumes little power.
  • The UV laser engraving machine has a completely enclosed laser chamber design that is dust-proof, has a long service life, and has a low failure rate.
  • Customized a variety of non-standard models and automated engineering equipment based on the various needs of customers.

img_email

Parts Introduction

uv laser marking machine (2)

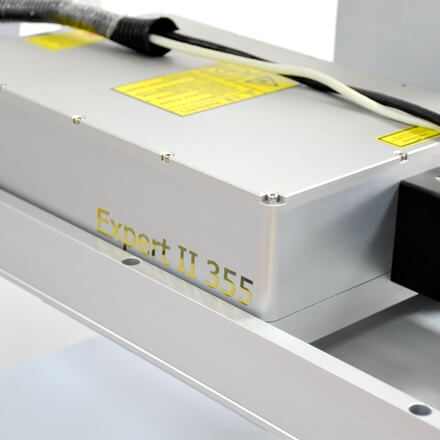

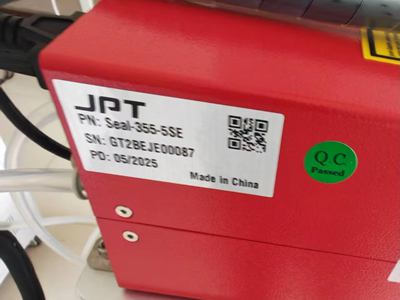

UV Fiber Laser Device

  • Top China Brand UV laser source at 355 nm, with a pinpoint laser spot and the lowest heat-affected zone. It has a wide range of applications and is appropriate for high-precision marking down to 0.02 mm.
  • Cold laser prevents material burning or damage.
  • Saving money with a small, compact size, an integrated design without large optical components!
uv laser marking machine (3)

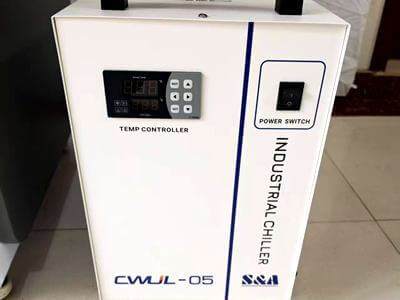

Water Chiller

  • China Best S&A Water Chiller CWUL-05, which works steadily and accurately to control temperature automatically. Water and energy savings, low noise
  • Over ten years of durability and longevity



flying fiber laser marking machine

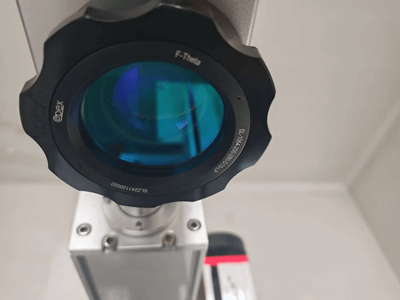

Singapore Imported Lens

  • An imported quartz lens with high transmittance produced in Singapore and strong laser focusing assures clear, precise branding.
uv laser marking machine (5)

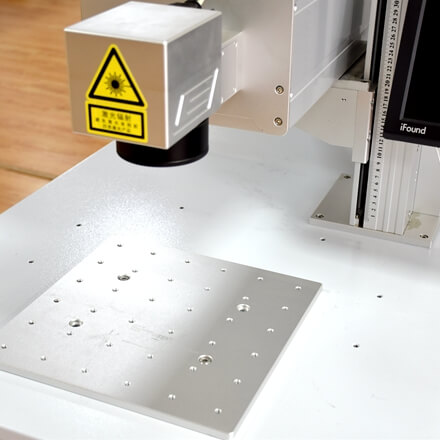

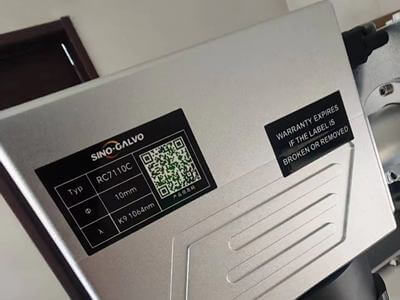

Galvanometer Scanning Head

  • Digital scanning head with German technology, minimal volume, steady performance at high speeds.
  • High sensitivity, great positioning accuracy, and potent interference resistance.
uv laser marking machine (8)

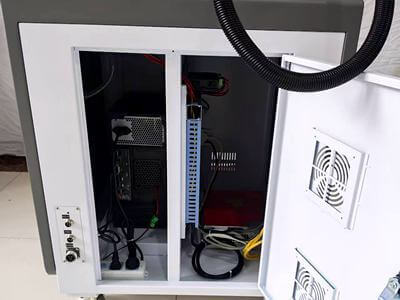

Controlling Cabinet

  • All electrical components are located in the cabinet, reducing space, thanks to the integrated design of the laser source controlling system, PC main body, and controlling card.
uv laser marking machine (9)

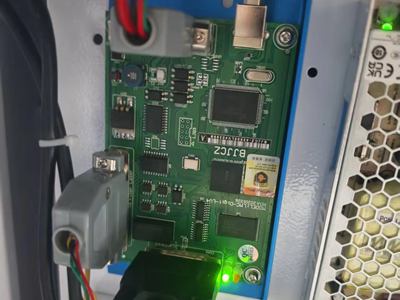

Laser Source Controlling System

  • The panel has touch screens and controls for the comfort of operators.
  • System for operational inspection
uv laser marking machine (4)

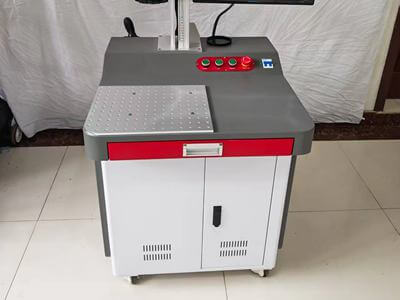

High quality aluminum alloy cabinet

  • To achieve greater cooling and long lifespan with continuous operation for 24 hours, heavy duty design with a separate water chiller is used.
uv laser marking machine (7)

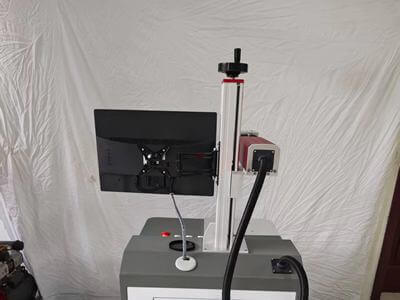

Rotating handle&ruler scale

  • The focus distance can be easily adjusted and precision adjusted.
uv laser marking machine (6)

Industrial PC

  • The Windows operating system, applications, and parameters are already installed on the PC.
  • With no additional setup or modifications required, the operator can operate the equipment immediately after receiving it.
LEARN MORE

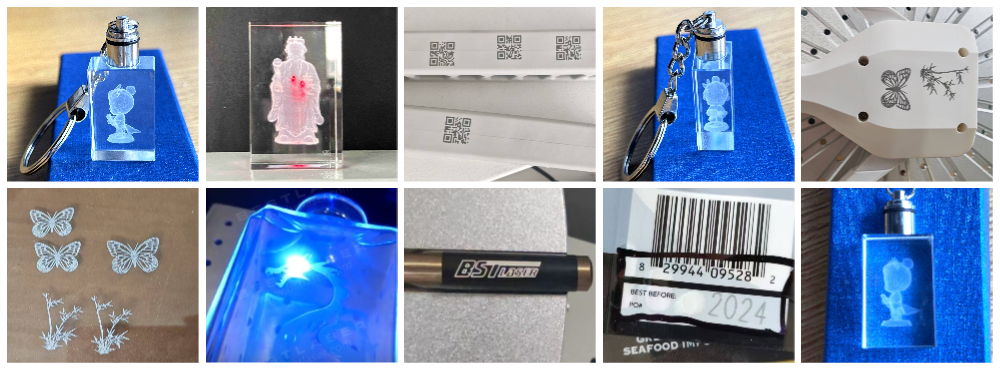

Application

The UV laser marking machine’s major component is its one-of-a-kind low-power laser beam, which is particularly well suited for the high-end market of ultra-fine processing and is used to mark the surface of packaging bottles for cosmetics, medications, and other polymer materials.

The marking is crisp and solid, and the impression is satisfactory. Better than ink coding and pollution-free; flexible PCB board marking and dicing; silicon wafer micro-hole and blind-hole processing; LCD liquid crystal glass two-dimensional code marking; glassware surface drilling; metal surface coating marking; plastic buttons; electronic components; gifts; communication equipment; building materials, etc.

Application_BE_UV

Optional Items

Co2 Galvo Laser Machine

Rotary Device(65mm, 80mm, 100mm diameter)

The rotating tool may hold the circular object while marking it. It facilitates rotary operation.

flying fiber laser marking machine

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)

In the event that the marking size varies, the machine must have a separate focus lens.

Furthermore, the marking size varies, as do the power and laser spot sizes.

Co2 Galvo Laser Machine

Working Table

Adjusting the focus distance is made easier by it.

The XYZ axis may be shifted up and down with ease.

online laser marking machine (4)

Fume Extractor

A fume extractor can remove any dust or fumes produced during operation in order to protect the environment and public health.

Co2 Galvo Laser Machine

Cutting Fixture

With this cutting fixture, thin plates may be fixed without distorting and corrected, which is especially helpful for gold and holographic foil plates.

3d laser marking machine

XY Electric Moving Table

On huge sections of material, it is effective for marking. It can divide the marking operation into multiple stages.

Model BE-U50B-3w BE-U50B-5W BE-U50B-7W
Laser Power 3W 5W 7W
Laser Type Nd: Yag
Wavelength 355nm
Marking Area 70mm/110mm/150mm/200mm/300mm (Optional)
Repeat Frequency 20-200KHZ
Min. Line Width 0.01mm
Marking Speed ≤7000mm/s
Cooling Mode Air Cooled or Water Cooled
Pulse width(adjustable) 90-130ns
Gross Power ≤1000W ≤1200W ≤1500W
Repeatability ±0.002mm
Beam quality ≥1.1 ≥1.3 ≥1.6
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG, PCX
Software Ezcad
Min Character 0.15mmx0.15mm
Min Line Width 0.017mm
Marking Depth 0.01-1.0mm(subjejct to material)
Voltage AC 220V/50-60Hz
Environment Requirements Temperature 15-30℃ /Humidity 20-80%
Production Origin Made In China

Package and Shipment

Model Net Weight Package Size Gross Weight Volume
BE-UV 120KGS 105×70×154CM 140KG 1.13CBM
uv laser marking machine (1) uv laser marking machine uv laser marking machine (1)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
