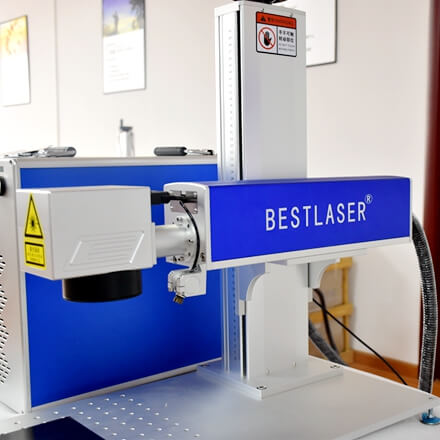

Stainless Steel Metal Color Marking Mopa Fiber Laser Machine
mopa fiber laser
mopa fiber laser
mopa fiber laser
Stainless Steel Metal Color Marking Mopa Fiber Laser Machine
mopa fiber laser
mopa fiber laser
mopa fiber laser

Stainless Steel Metal Color Marking Mopa Fiber Laser Machine


Category Fiber Laser Marking Machine
Model No. BE-F20M
Views 85700
Rating ★★★★★4.8/5 Based on 500 Votes
Price Range US$2699 – US$3999/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 5-7 Days
Shipping Air/Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Mopa fiber laser marking equipment is utilized for color marking on stainless steel, oxide aluminum black marking, and high contrast marking on plastic. Adjustable pulse width and superb beam quality enable more accurate marking than a standard laser.

The parameters of the Mopa laser marking machine can be easily adjusted, and it can perform basic laser marking, stainless steel color marking, oxide aluminum black marking, and high contrast marking on a variety of metals (Nickel Alloys, Steel, Titanium) and non-metallic without damaging the material’s surface. It is frequently used to identify medical products and various polymers (Black Polyamide, PBT, Polypropylene). Mopa fiber laser marking machine outperforms standard Q-switched fiber laser marking machine.

Machine Feature:

Color Marking: The Mopa fiber laser marking equipment is utilized for color marking on stainless steel, oxide aluminum black marking, and high contrast marking on plastic. Adjustable pulse width and superb beam quality enable more accurate marking than a standard laser.

Long Lifespan: As adopted German advanced mature fiber optical technology, the machine’s lifetime is over 120,000 hours, which largely increases the service time.

Free of Maintenance and No Consumables: During operation, fiber laser markers are almost free of maintenance, no consumables need, which saves labor and cost.

Easy Operation:  No need to adjust laser path, no need for professional skills and just common people can operate after 1-2 days training, which lowers the use threshold.

High-efficiency Photoelectric Conversion Rate: No power coupling loss, no consumables, lowering running expenses.

Fast Speed: Thanks to the sophisticated Galvo head, the scanning speed can exceed 8000mm/s, significantly reducing the marking time.

Powerful Marking Software:Letters/patterns/characters/code/image…different content can be marked. You can annotate whatever you like. All that remains is to load the marking file into the software.

Wide Application: It allows marking on a variety of materials, including plastic, porcelain, ABS, iron, gold, silver, titanium, and stainless steel.

Environmental-Friendly: Non-polluting and human-safe.

Durability: It can withstand harsh situations such as shock, vibration, high temperatures, and dust.

Comparison Q Switch Laser Mopa Laser
Oxide Aluminum

Base Material Easy Deformation

Marking Rough

No Deformation

Fine Marking

Anodized Aluminum Black Marking Unavailable Marking Different Blackness By Setting Up Different Parameters
Metal Deep Engraving Rough Engraving Fine Engraving
Stainless Steel Color Marking Defocus and Difficult to Set Up More Vivid Colors By Mixing the Pulse Width/Frequency
PC ABS Plastic Marking Burned Spot and Rough Marking Exquisite Effect and Fine Marking
Transparent Oil Paint Removal Difficult to Clean Easy to Clean and High Efficiency



Electronics, Chips High Precision Marking



Pulse too Wide and too Powerful

Pulse width is adjustable

Laser Beam Thinner and Fine

Power is more Even

img_email

Parts Introduction

mopa fiber laser

Mopa Color Fiber Laser Source

  • Mopa Color Fiber Laser Source is well-known for its adjustable pulse width (2-350ns) and frequency (1-4000KHZ).
  • Color marking on stainless steel, anodized aluminum black marking, contract marking on plastic, and other high-precision markings.
mopa fiber laser

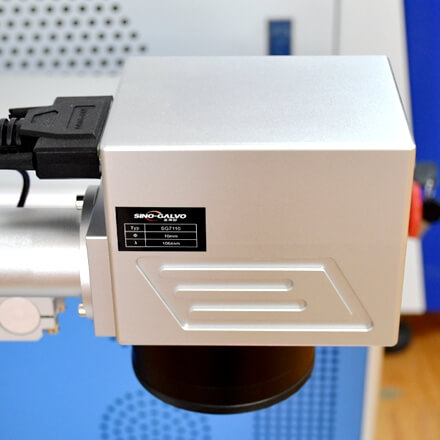

Sino-galvo digital scanning head

  • The well-known Sino-galvo digital scanning head, with a maximum speed of 8000mm/s, ensures stability and efficiency while meeting industrial marking requirements.
  • High sensitivity, high precision positioning, and powerful anti-interference capabilities.
enclosed fiber laser marking

JCZ controller card

  • The I/O port, which is a part of the original, authentic Beijing JCZ controller card, guarantees robust functionality.
  • High sensitivity, quick speed, and precision
flying fiber laser marking machine

Singapore Imported Lens

  • The Wavelength Focus Lens, imported from Singapore, ensures a high-quality laser beam.
  • Light transmission and electro-optical conversion efficiency are both high.
mopa fiber laser

2D XY Working Table

  • Operators can put the objects on the working table, which ensures the object is in.
mopa fiber laser

High Quality Aluminum Alloy Machine Box

  • Integrated design with aluminum alloy materials, high rigidity,non-deformation and get resty forever.
  • Whole machine’s appearance looks modern and beautiful.
flying fiber laser marking machine

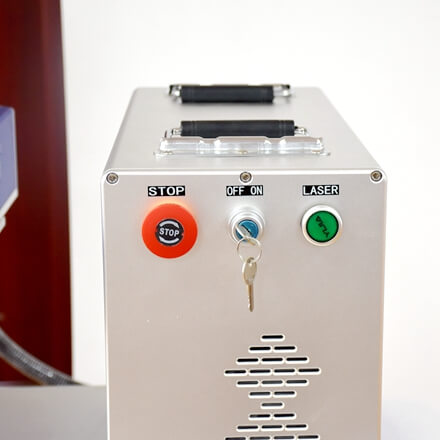

Urgent Stop/Key Switch/Laser Switch

  • Urgent Stop: When some error happens during marking, the operator can press the red urgent stop then the machine stop working.
  • Key Switch: Machine On
  • Laser Switch: Laser Source On
flying fiber laser marking machine

Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port

  • Even the machine is little size, yet it is multipurpose.
co2 galvo laser marking machine

Latest Version Ezcad Software

  • Bitmap formats include BMP, JPG, JPEG, GIF, TGA, PNG, TIF, and TIFF.
  • The following vector formats are supported: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR, and Windows 10/Win8/Win7/XP (both 32 and 64 bit).
LEARN MORE

Application

Mopa fiber laser marking machine is used for various metal materials such as iron, copper, aluminum, gold, silver, and so on, as well as some non-metal materials such as PC, ABS, PVC, PC+ABS, keyboard marking, transparent key marking, charger marking, and so on.

3C electronics, medical equipment, car parts, electronic components, integrated circuits (IC), instrumentation, electrical appliances, hardware items, building materials, glasses and watches, jewelry, handmade presents, and other industries are examples of application industries.

Application_F20M

Optional Items

Co2 Galvo Laser Machine

Rotary Device (65mm, 80mm, 100mm diameter)

Rotary device can hold the round object and rotate when marking. It realizes rotary working.

flying fiber laser marking machine

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)

The machine needs to equip with a different focus lens if the marking size is different.

Also, marking sizes is different, and power and laser spot size vary.

Co2 Galvo Laser Machine

Working Table

It helps to adjust the focus distance.

XYZ axis can be adjusted up and down flexibly.

online laser marking machine (4)

Fume Extractor

To protect the environment and human’s health, the fume extractor can clean the fumes and dust occurred when working.

Co2 Galvo Laser Machine

Cutting Fixture

This cutting fixture helps correct the metal plate and fix the thin plate without deformation, especially for gold plates, holographic foil etc.

3d laser marking machine

XY Electric Moving Table

It works when marking on big size material. It can divide the marking job into several times.

Model BE-F20M
Laser Source JPT Brand (IPG, Raycus, MAX optional)
Laser Power 20W 30W 60W 70W 100W
Wave Length 1064 nm
Marking Area 70*70mm,110*110mm, 175*175mm, 220*220mm, 300*300mm
Frequency Adjustable 1KHZ-4000KHZ
Pulse Width Adjustable 2-350ns
Beam Quality 1.4 M²
Marking Speed 7000-12000mm/s
Marking Depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air Cooling
Positioning Way Double Red Pointer
Laser Source Life Span More than 120,000 hours
Control Software JCZ EZCAD
Supported Format Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF  Vector: AI,  PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
Control Board ORIGINAL BJJCZ
Operating Voltage AC220V/50HZ/ or AC110V/60HZ
Gross Power ≤500W
Supported Windows Windows
Certificate ISO, CE, FDA
Material Can Be Processed all metal material and part of non-metal material, such as hard plastic
Others USB cable for connection, U flash disk with software and English manuals and install video.
After-sales Service Three years warranty for the machine.Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training.
Packaging Standard Export Plywood Box
Plug European/America/UK/International different Plugs
Net Weight 50kgs
Gross Package Weight 62kgs
Packaging Dimension 85*41*82CM

Package and Shipment

Model Net Weight Package Size Gross Weight Volume
BE-F20M 50KGS 85*41*82CM 62KG 0.29CBM
Laser metal engraving machine (7) Laser metal engraving machine (8) Laser metal engraving machine (9)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
