6060 Mini Fiber Laser Cutting Machine for Precision Sheet Metal Cutting
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM1500 |
| Views: | 5800 |
| Rating: | ★★★★★5 /5 Based on 3500 Votes |
| Price Range: | US$7000 – US$8000/set Based on the Features |
| Payment Term: | T/T Bank Transfer |
| Leading Time: | 30-45 Days |
| Shipping: | Sea Shipment |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS

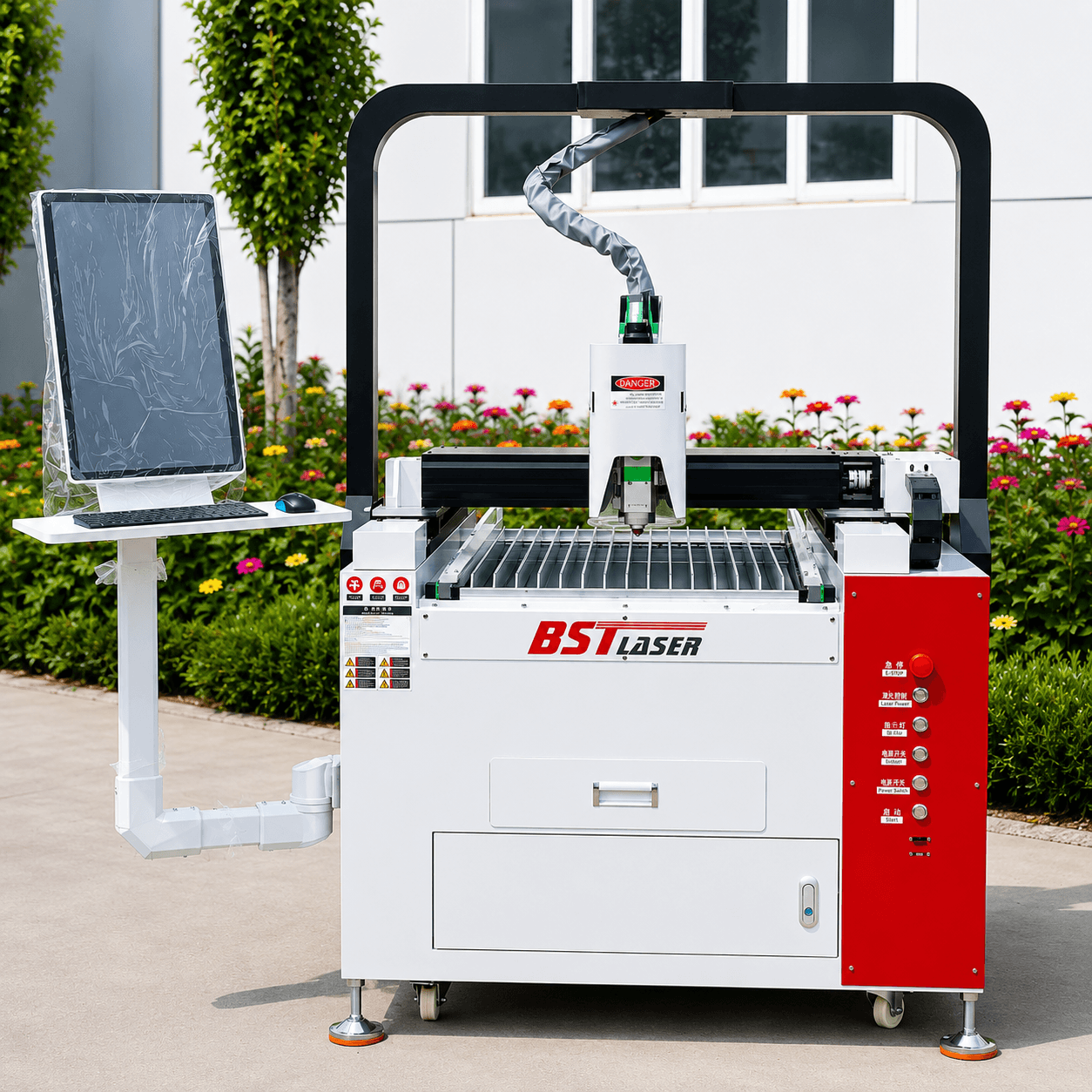

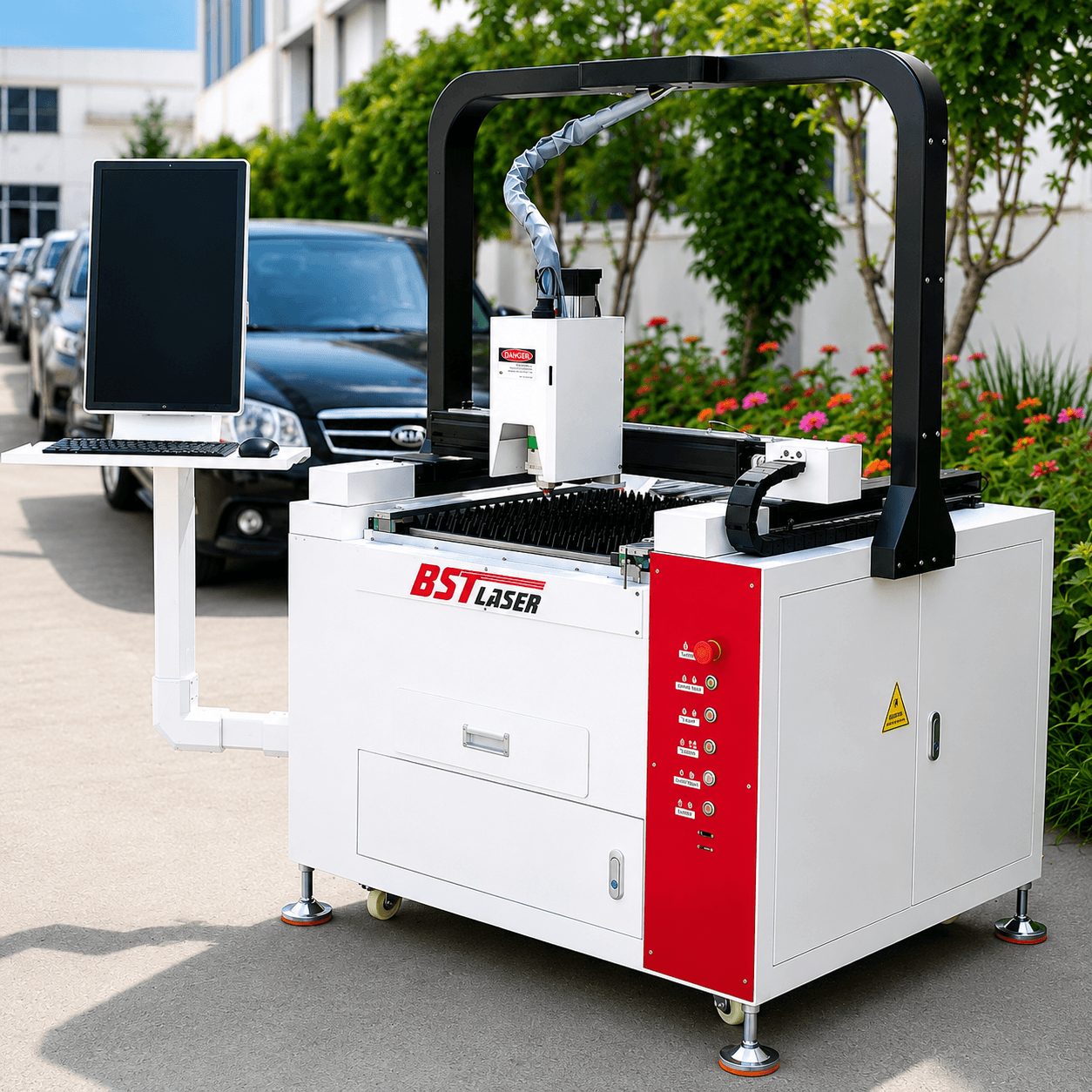

The BST LASER 6060 Mini Fiber Laser Cutting Machine is a compact yet powerful solution for precision metal cutting. Designed for small and medium-sized sheet metal fabrication, it combines high-speed performance, excellent cutting quality, and reliable operation in a space-saving design.
With a 600 × 600 mm working area, this machine is ideal for workshops, manufacturers, research laboratories, and custom fabrication businesses that require accurate cutting without occupying a large production area.
Powered by a high-performance fiber laser source and equipped with premium components, the machine delivers smooth cutting edges, high positioning accuracy, and low operating costs. Whether you are cutting stainless steel, carbon steel, aluminum, brass, or copper, the BST 6060 provides consistent and professional results.
Key Features
High Cutting Precision
The rigid machine frame, precision ball screw transmission, and professional servo system ensure excellent positioning accuracy and stable operation. Clean edges and minimal burr reduce the need for secondary processing, improving production efficiency.
Compact Footprint
Unlike large laser cutting machines, the 6060 model occupies much less workshop space while maintaining industrial-grade cutting performance. It is an ideal choice for factories with limited space or businesses entering the laser cutting industry.
Fast & Stable Performance
The advanced CNC control system and high-speed servo motors provide smooth motion, fast acceleration, and reliable cutting quality during continuous production.

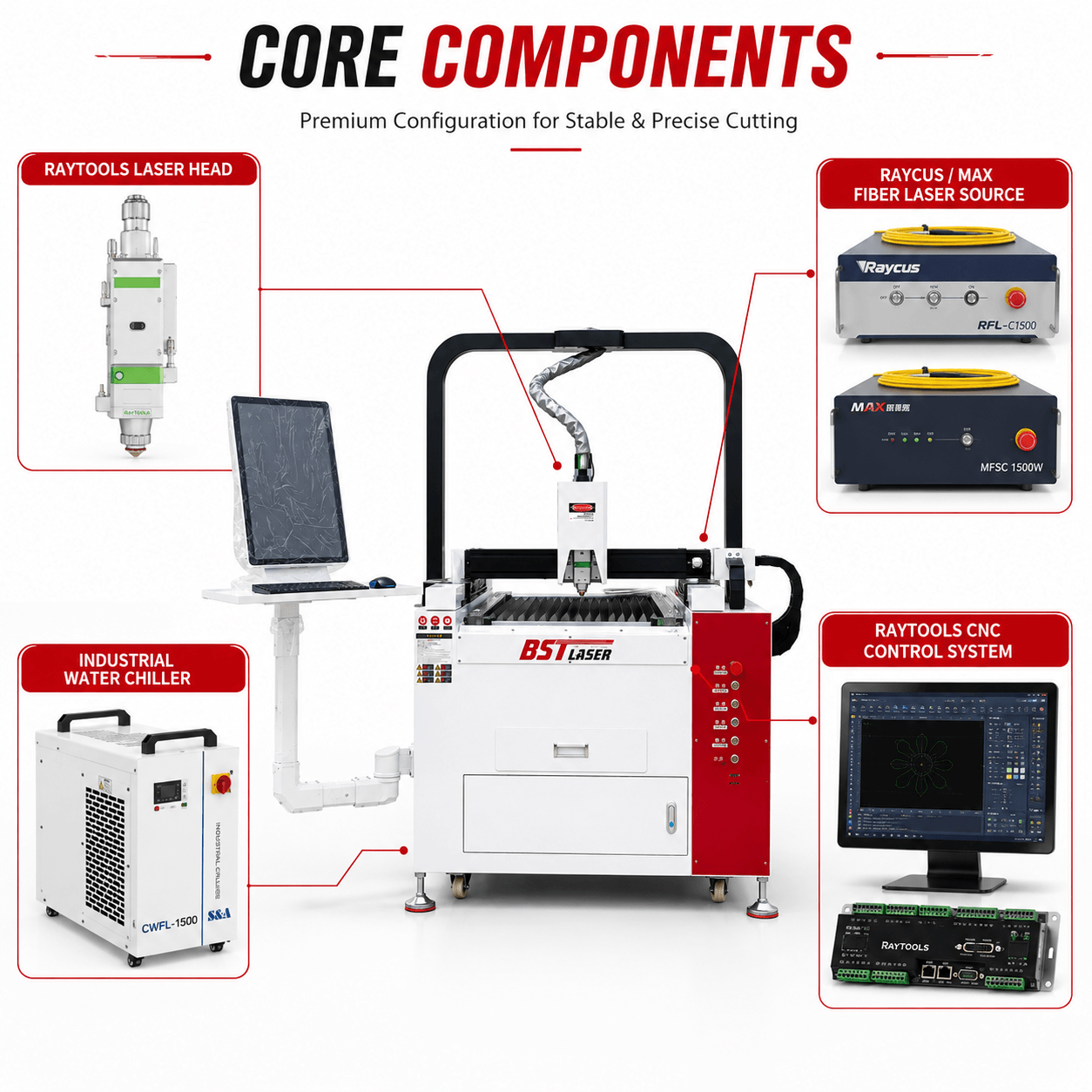

Premium Components
Every machine is built using trusted components to ensure long service life and stable performance.
Standard configuration includes:
- Raycus Fiber Laser Source
- RayTools Manual/Auto Focus Laser Head
- HCFA Servo Motors
- Professional CNC Control System
- Industrial Water Chiller
- Precision Ball Screw Transmission
- Linear Guide Rails
Easy Operation
The intuitive control software makes machine operation simple and efficient. Even first-time users can quickly learn the basic functions with our training and technical support.
Low Maintenance Cost
Fiber laser technology requires no mirrors or laser gas replacement, resulting in lower maintenance costs, reduced downtime, and higher production efficiency compared with traditional laser systems.
Metal Cutting Capacity
| Laser Power | 1000W | 1500W | 2000W | 3000W | |
| Nominal power | kw | 1 | 1.5 | 2 | 3 |
| Power requirement | kw | 7 | 7 | 8 | 12 |
| Wavelength | nm | 1074 | 1074 | 1074 | 1074 |
| Cutting capacity | |||||
| Carbon steel | mm | 10 | 16 | 20 | 22 |
| Stainless steel | mm | 5 | 6 | 8 | 10 |
| Aluminum Alloys | mm | 3 | 4 | 6 | 8 |
| Brass | mm | 2 | 2.5 | 5 | 6 |
Parts Introduction

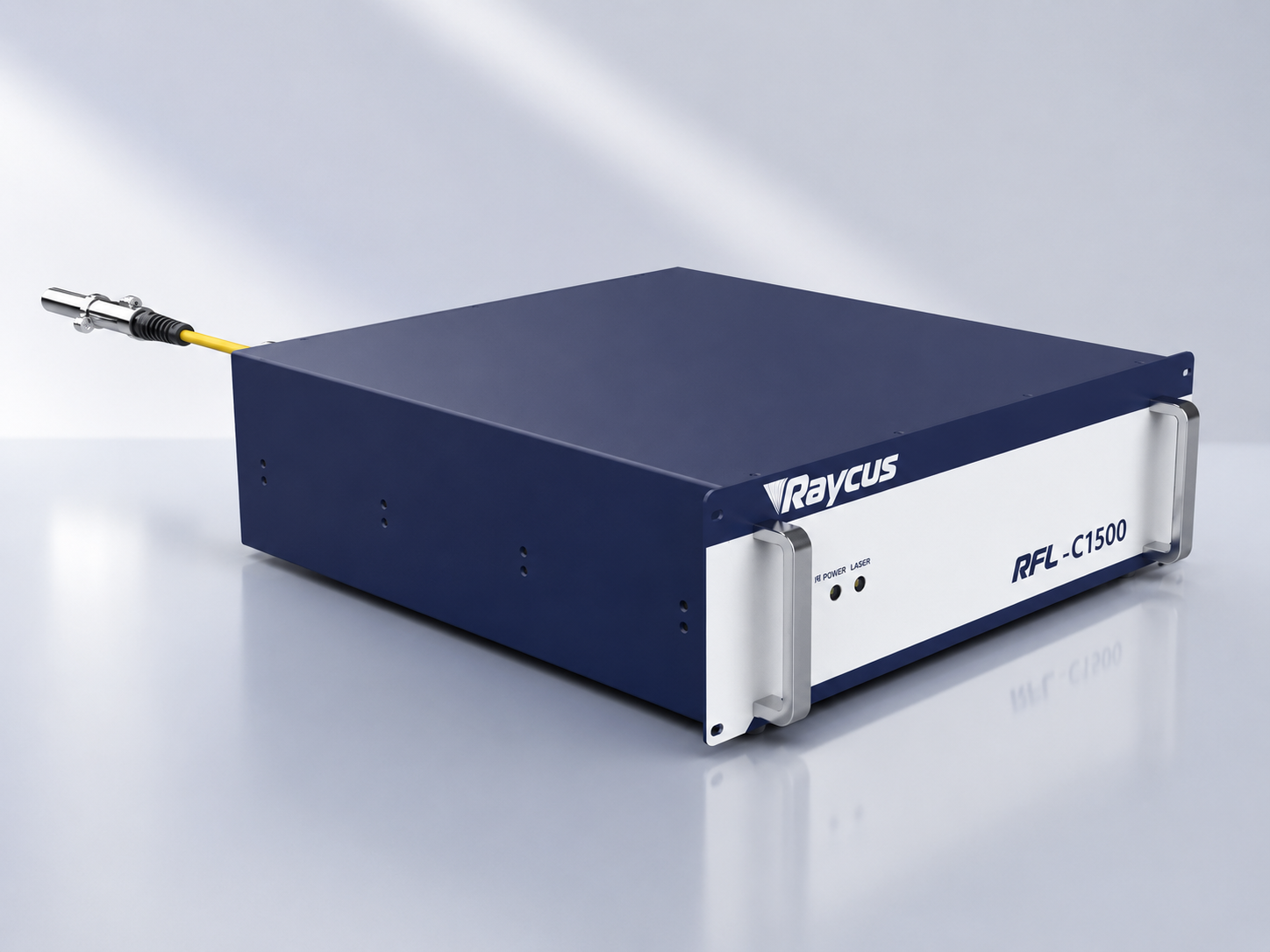

Fiber Laser Source
- Compatible with: Raycus, Max, BWT, Reci…
- Available Power: 1500W, 2000W, 3000W
- Long service life with stable laser output.

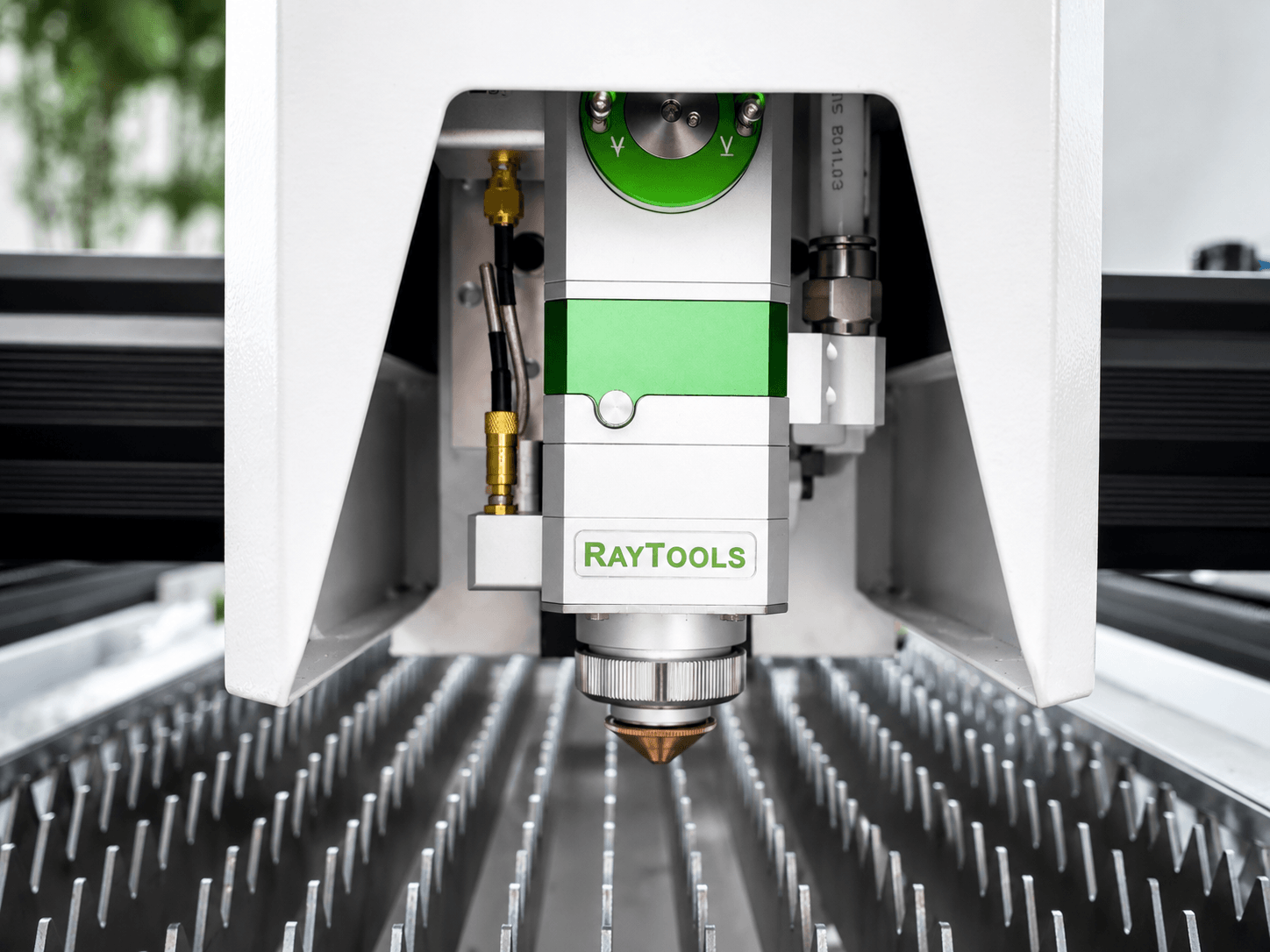

Laser Head
- Manual Focus or Auto Focus
- Intelligent Height Following
- Excellent Piercing Performance
- Superior Cutting Quality
- Easy Maintenance

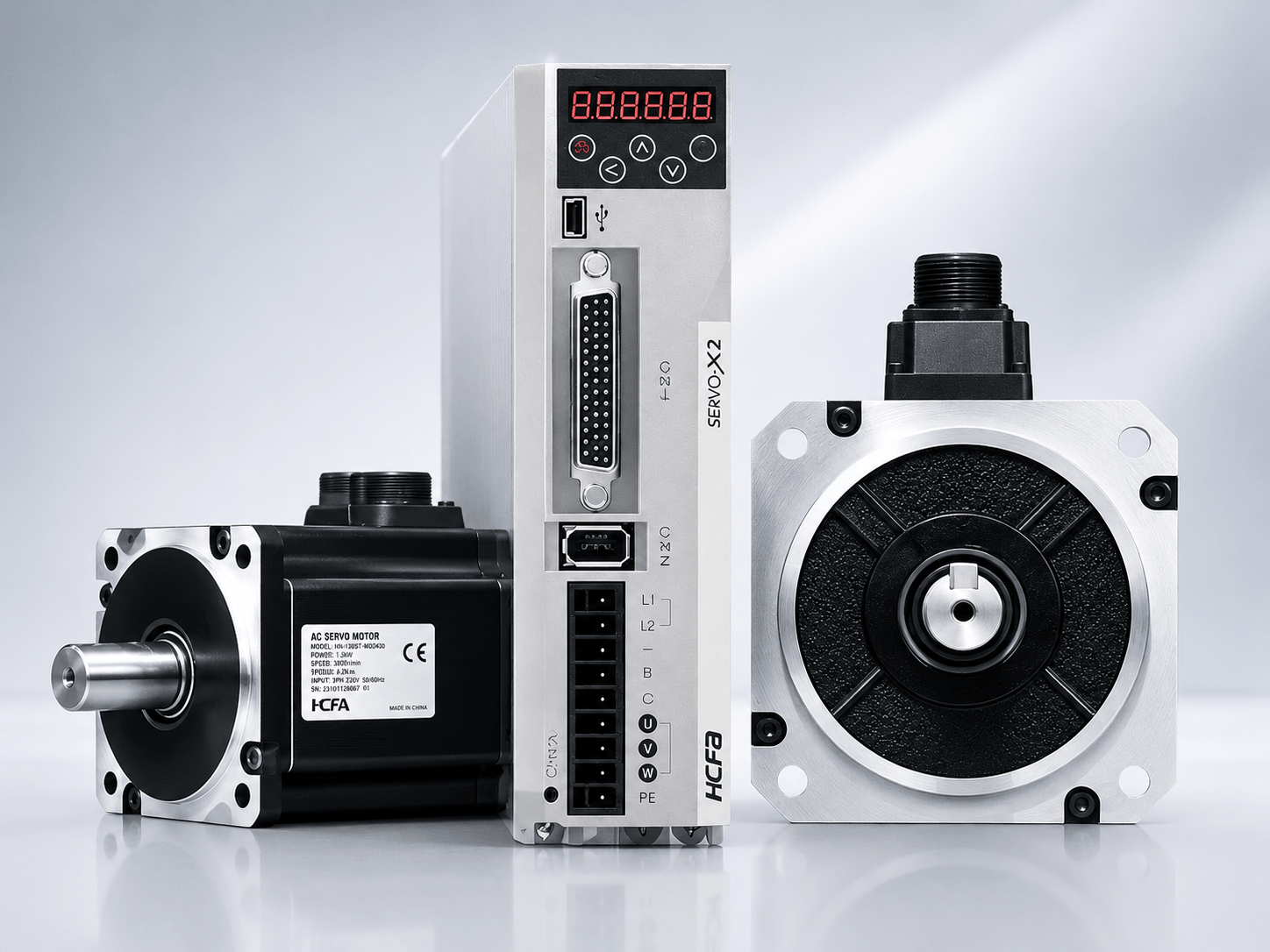

Precision Servo Motion System
- High positioning accuracy
- Smooth acceleration
- Fast response
- Stable continuous production
Intelligent CNC Control System
- User-friendly software supports(DXF, AI, DWG, PLT, SVG…)
- Functions include:Lead-in/Lead-out,Fly Cutting, Edge Finding, Common Line Cutting, Material Library, Production Statistics
- Easy to learn for beginners.

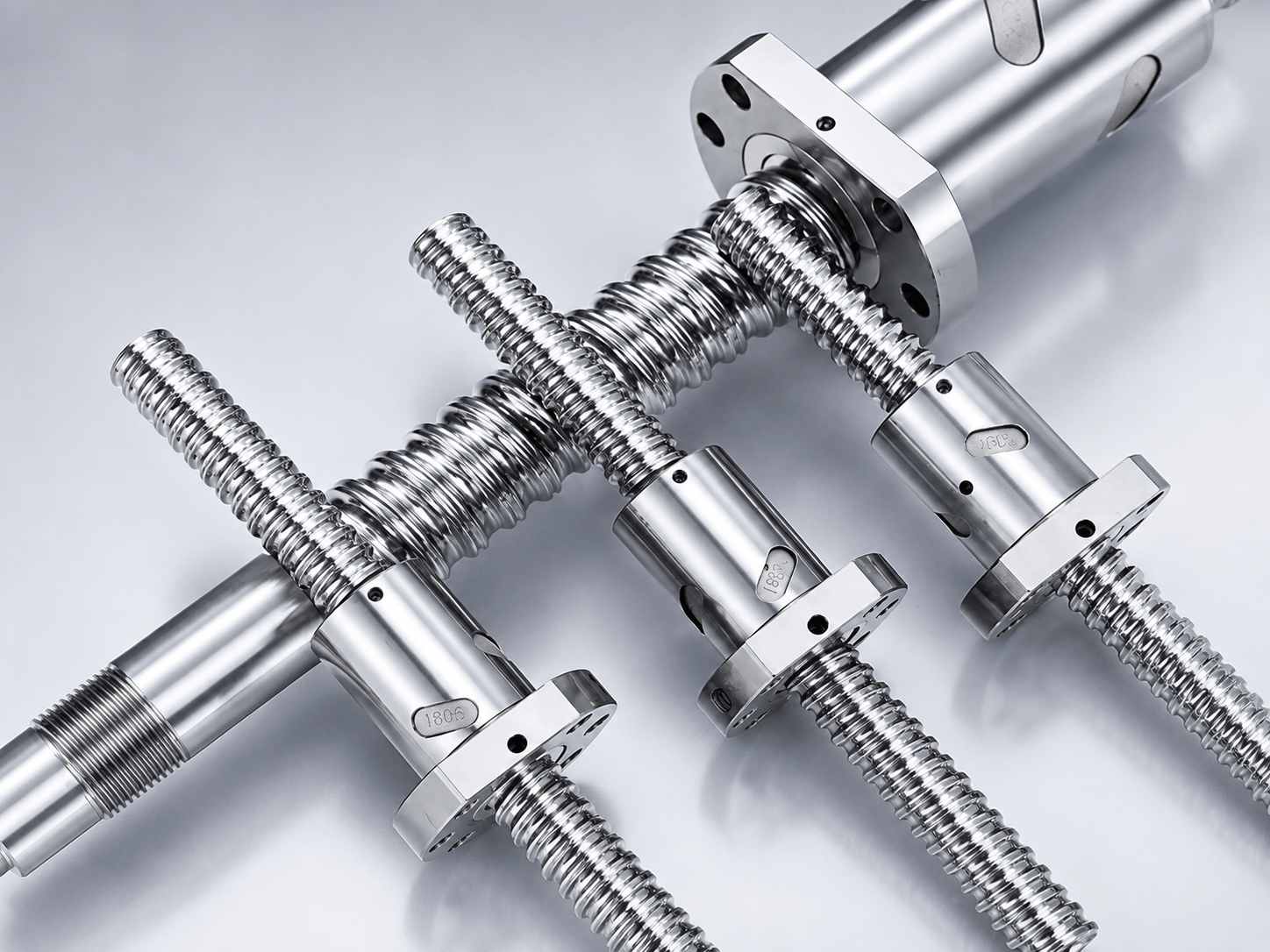

Ball Screw Transmission
- High positioning accuracy
- Smooth and stable movement
- Low backlash
- Long service life

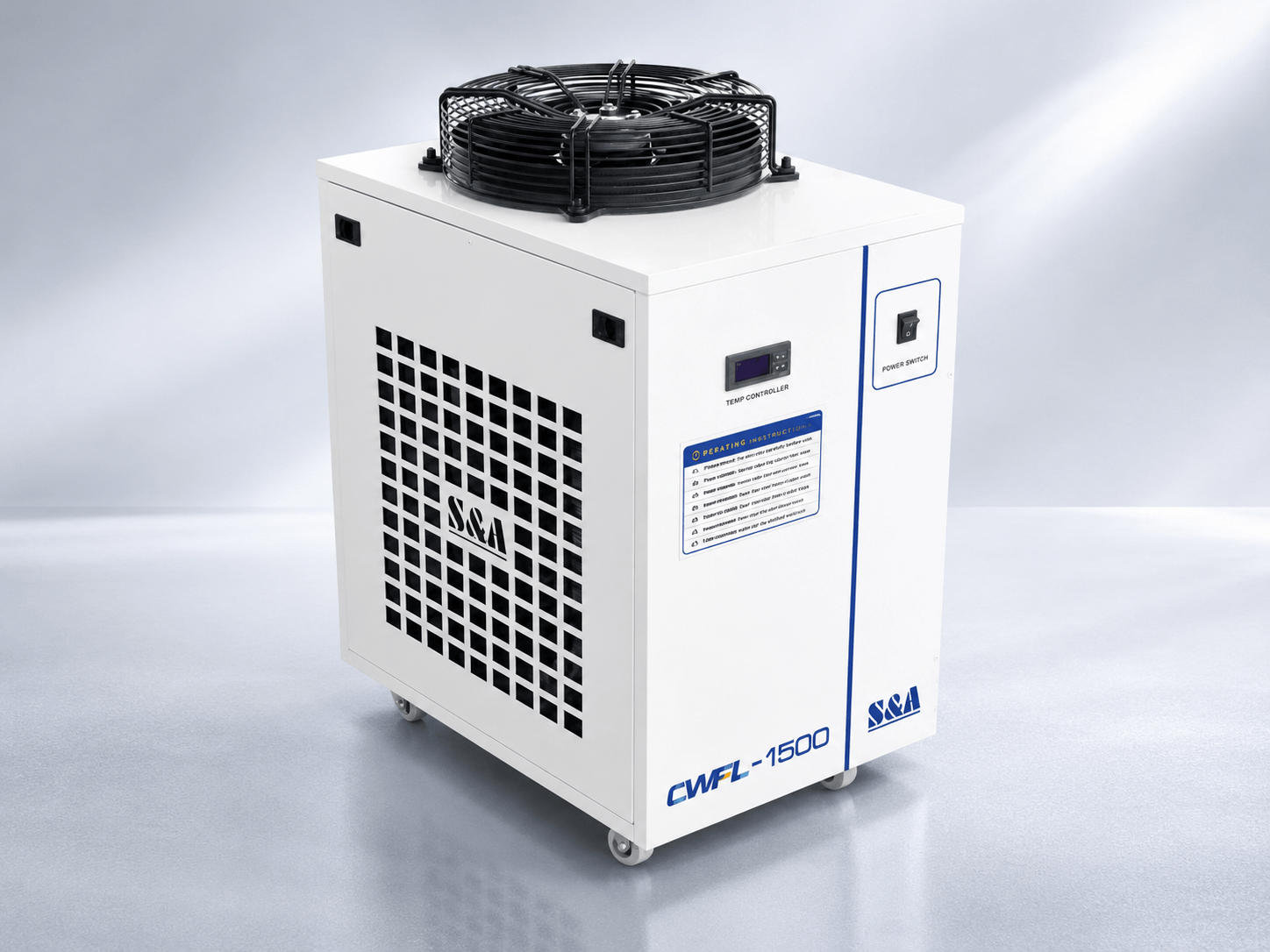

Water Chiller
- With numerous alarm protection features, the S&A CWFL series is from a top Chinese brand.
- It operates in two modes: constant temperature and intelligent temperature management.
Thicken Saw Tooth Platform
- Non-deformation, preventing metal plate moving when cutting and convenient for loading unloading.

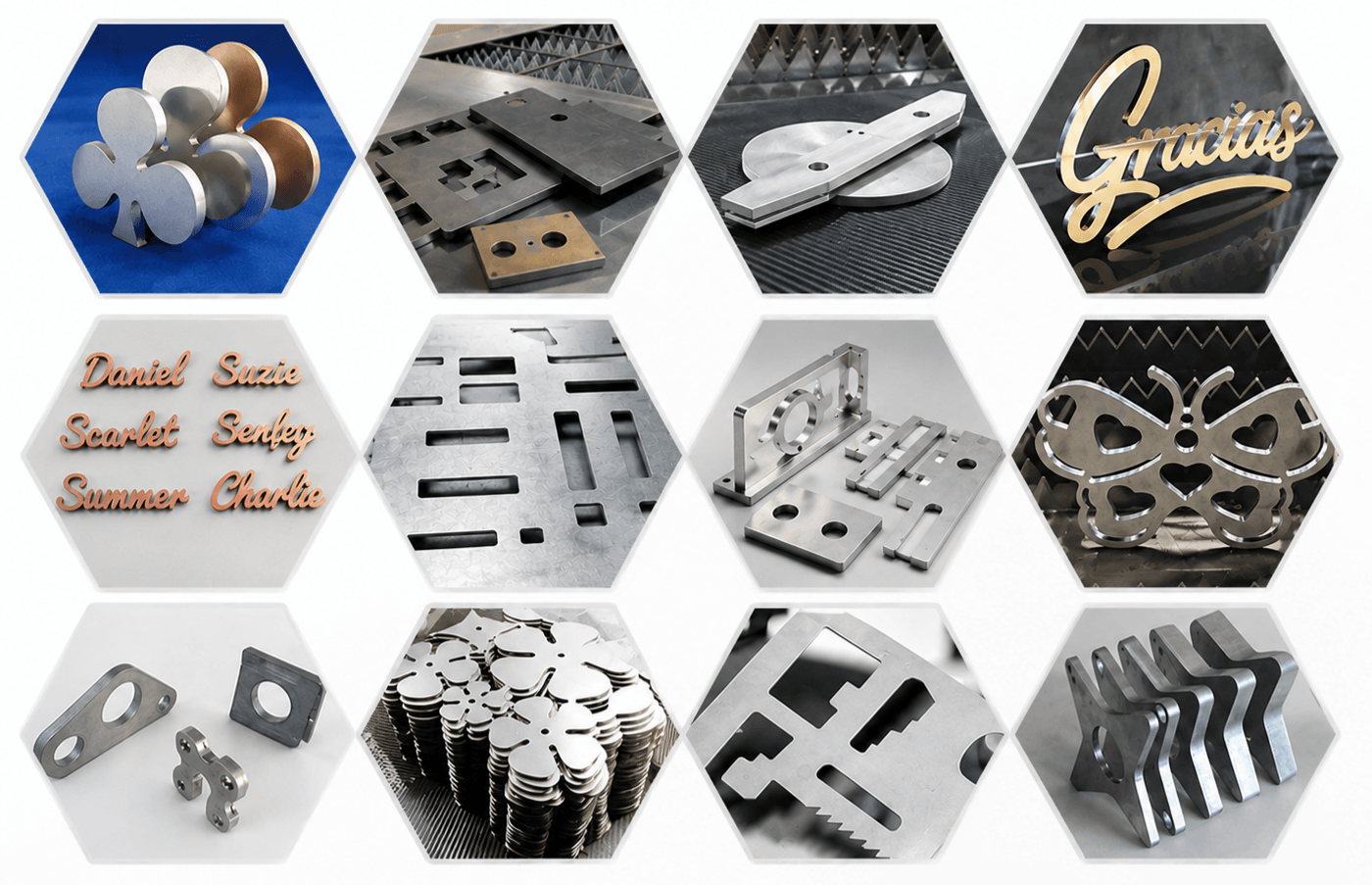

Application
The machine can cut: Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Steel, Titanium
Perfect for thin and medium-thickness sheet metal processing.
The BST 6060 Mini Fiber Laser Cutter is widely used in: Sheet Metal Fabrication, Advertising Signs, Kitchen Equipment, Electrical Cabinets, Metal Crafts, Precision Parts, Hardware Manufacturing, Electronic Components, Decorative Metal Products
Optional Items
Reci 1500W to 3000W Continuous Fiber Laser Device (small power )
1500W to 3000W Continuous Fiber Laser Device Max (Middle power )
The most cost-effective cutting processes, which require an air compressor and a drier filter, are typically used for cutting thin metal less than 2mm thick.
| Model | BE-FM1500 |
| Working Area | 600*600 mm |
| Laser Power | 1500w 2000w 3000w |
| Laser Source | Raycus (Optional: Max/Reci/BWT/IPG) |
| Laser Technology | Germany Technology |
| XYZ Working area | 600*600*150mm |
| Optional Size | 600*400mm, 900*600mm, 1300*900mm |
| Max. Cutting Speed | 30-50 Meters / Min (up to materials) |
| Max. Location speed | 60m/min |
| Laser wavelength | 1070nm |
| Minimum line width | ≤0.1mm |
| Location precision | ≤±0.05mm |
| Re-location precision | ±0.02mm |
| Max Acceleration | 1.0G |
| Max. moving speed | 100m/min |
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc |
| Power demand | 220V/380V, 50HZ/60HZ |
| Cooling Way | Water Cooling |
| Worktable max. load | 600KGS |
| Transmission Method | Ball Screws |
| Table-driven system | China Top Quality Servo Motor & Driving System |
| Focus Method | Following and Automatic Adjust Focus |
| Control Method | Offline Movement Control |
| Control software | Raytools |

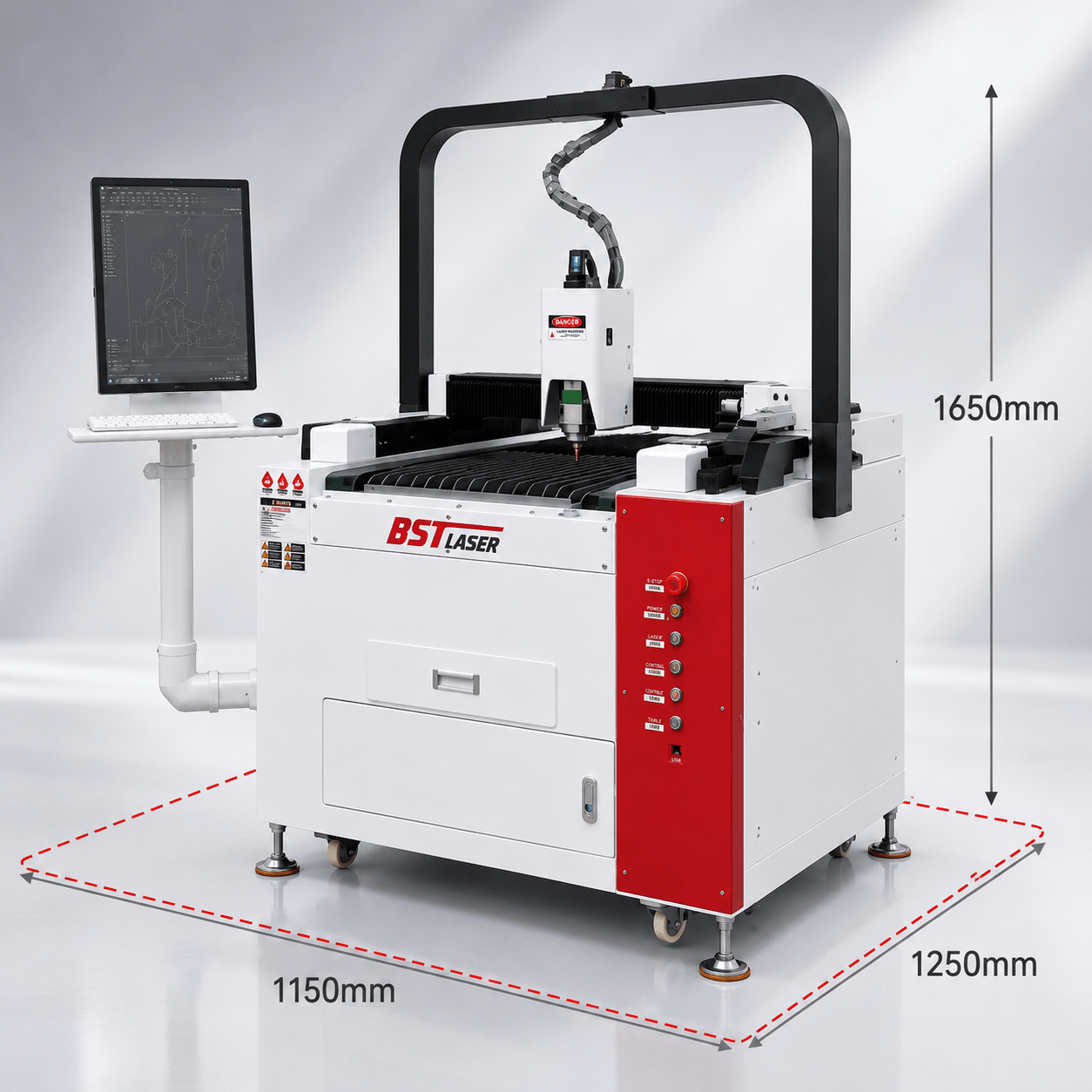

| Size Dimension | 1150mm ×1250mm ×1650mm |
| Working Environment Temperature | 0℃～45℃ |
| Working Environment Humidity | 5%～95% non-condensing |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-FM1500 |
128.5cm×114cm×182.5cm, 2.7CBM 65cm×47.5cm×90.5cm, 0.3CBM |
558KG |
 |
 |
 |
| Inside layer is covered by thickening plastic bag and foam for waterproof. | Loading container EXW factory, workers putting machine into container | Send to the named loading port for shipment by sea which needs 20-50 days |
-
