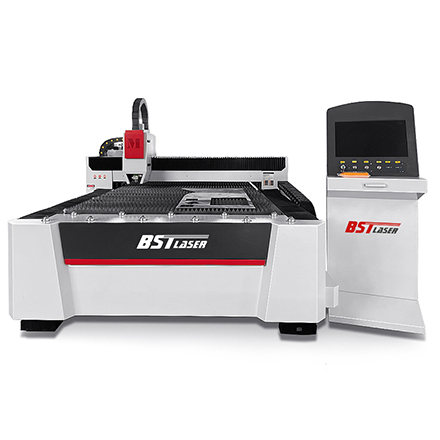

Flatbed Single Table Fiber Metal Laser Cutting Machine
Flatbed Single Table Fiber Metal Laser Cutting Machine
Flatbed Single Table Fiber Metal Laser Cutting Machine
Flatbed Single Table Fiber Metal Laser Cutting Machine

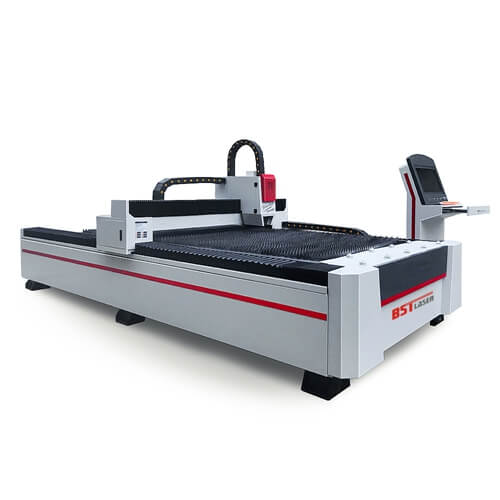

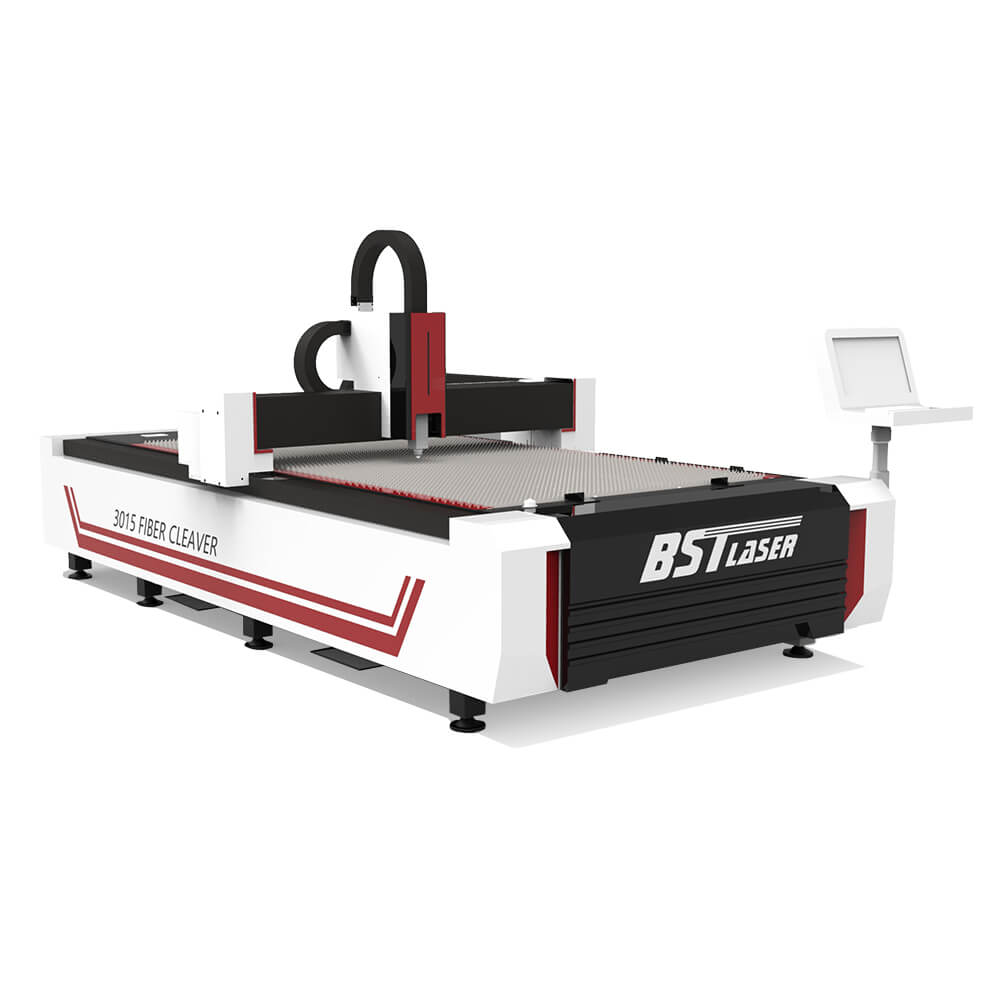

CNC Flatbed Single Table Fiber Metal Laser Cutting Machine


Category: Fiber Metal Laser Cutting Machine
Model No.: BE-FM-3015S
Views: 5800
Rating: ★★★★★5 /5 Based on 3500 Votes
Price Range: US$12,000 – US$35,000/set Based on the Features
Payment Term: T/T Bank Transfer
Leading Time: 30-45 Days
Shipping: Sea Shipment
Warranty Period: 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Fiber Metal Laser Cutting Systems have evolved into one of the most popular and cost-effective high-precision metal processing tools. The flatbed sheet metal laser cutting machine with a single table is an excellent entry-level laser cutter that does not require much training. The flatbed fiber laser cutting machine provides users with tremendous cutting capabilities and efficiency while being simple to operate and maintain. As a result, it is a fantastic option for those seeking cost-effective processing.

Fiber metal laser cutting machines offer a variety of benefits to businesses in a variety of industries. They are capable of cutting a wide range of materials quickly and accurately, while also providing a high degree of precision. Additionally, they are cost-effective and require minimal maintenance, making them an attractive option for any business looking to improve its efficiency and productivity.

STANDARD COMPONENTS

CYPCUT®FSCUT2000 CNC Control System

Fuji®High Dynamic EtherCAT servo drive

BSTLASER®Dynamic System 4.0:1.5g Acceleration

BSTLASER@Fast Piercing 2.0:Ultra Performation

Automatic Table Exchanger 3015 (Optional 4015,4020,1560,2060)

Smoke Extraction Fan System

Fiber Laser Source Raycus 1000w 1500w 2000w 3000w

Class IV safety system and CE marking

CYPCUT@Embedded Pcs:Industrial PCs with direct ly integrated I/O level

Hiwin@High performance and high accuracy rack and pinion system

Metal Cutting Capacity

Laser Power   1000W 1500W 2000W 3000W
Nominal power kw 1 1.5 2 3
Power requirement kw 7 7 8 12
Wavelength nm 1074 1074 1074 1074
Cutting capacity
Carbon steel mm 10 16 20 22
Stainless steel mm 5 6 8 10
Aluminum Alloys mm 3 4 6 8
Brass mm 2 2.5 5 6

Machine Feature:

  • The machinery structure is built on an industrial-grade heavy-loading basis. All components are guaranteed to be of the highest quality, original, and authentic.
  • The transmission system employs a bridge gantry-type middle drive structure, a double rack servo drive, and Japan Yaskawa servo motors with high inertia and high torque
  • The maximum acceleration of Taiwan’s high-precision rack and reducer can reach 1.5G, ensuring high speed and precise operation.
  • The overall machine body is based on a thicker cast iron structure and a complete cast aluminum gantry.
  • To effectively reduce stress, the strong base has been milled and secondary annealed.
  • It utilizes a cutting head with high precision imported from the USA and a world-renowned superior quality fiber laser generator with the dynamic following and focusing.
  • The lifespan of a fiber laser generator is over ten years, and it requires little to no maintenances.
  • High-performance laser cutting control system with full closed-loop control.
  • System for industrial linear modules with Z-axis precision.
  • An independent control cabinet, an industrial machine tool foot, and a robust towline cable are all standard features.
  • European electrical design standards and Electric components from France.
  • Professional laser cutting software that enables high-speed penetration through the use of sharp corner smoothing and visual designing.



Parts Introduction

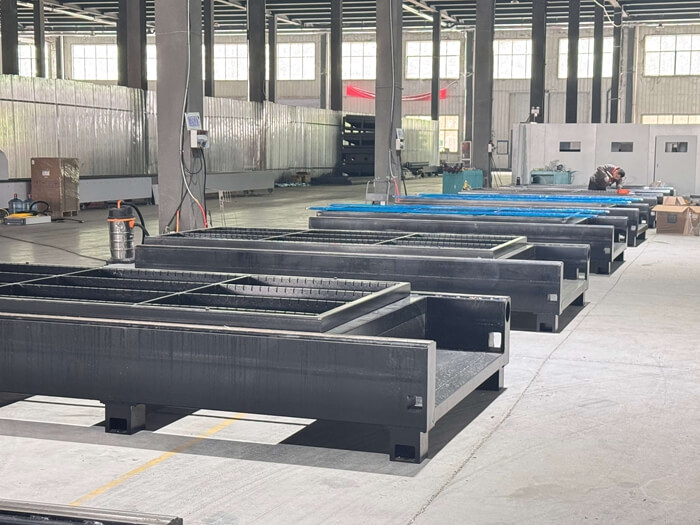

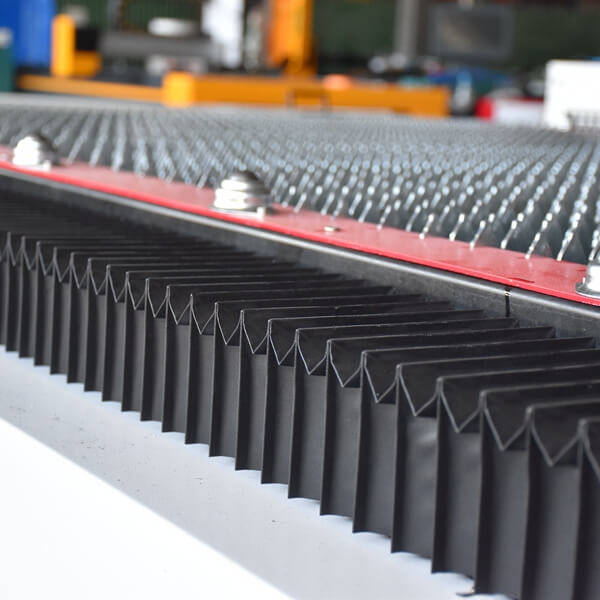

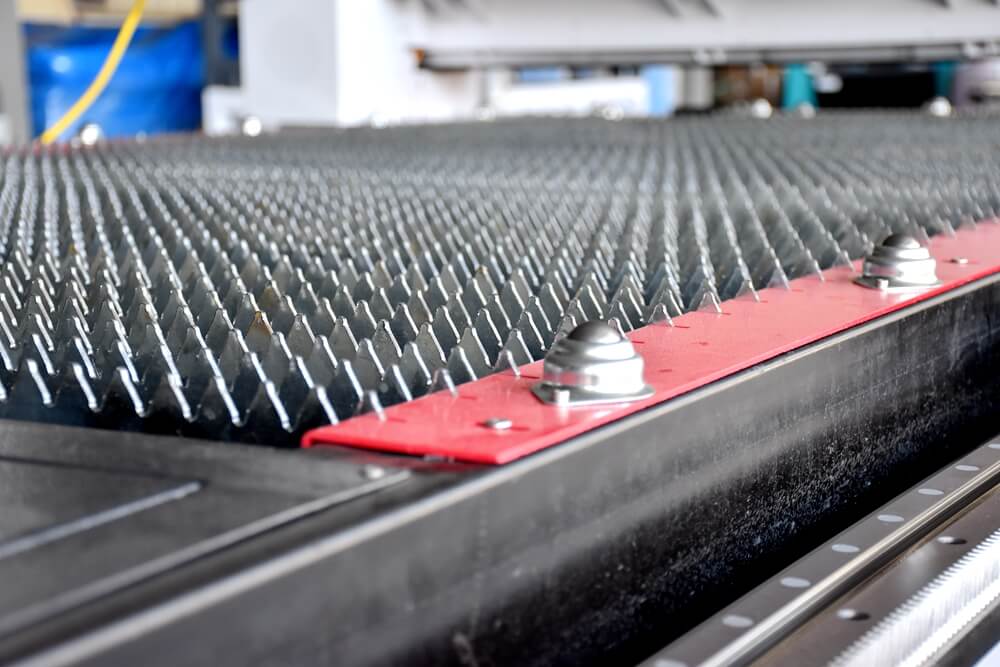

Machine Body

Machine Body

  • Adopting heavy-duty square tube welding construction with a thickness of 8mm and appropriate structural design.
  • CNC machining, three times milling.
  • The first pass is roughing and leveling, the second pass is fine milling and the third pass is finish milling.
  • The machine body can assure stability and non-deformation for 50 years and has the features of stable structure, good stiffness, and high dynamic responsiveness.
  • The integrated cast aluminum gantry ensures great speed and stability.
Single-Table-Fiber-Metal-Laser

Cast Aluminum Beam

  • The integrated cast aluminum gantry ensures excellent speed and balance performance, as well as light-weight, good dynamic response, faster acceleration, and a better overall cutting impact.

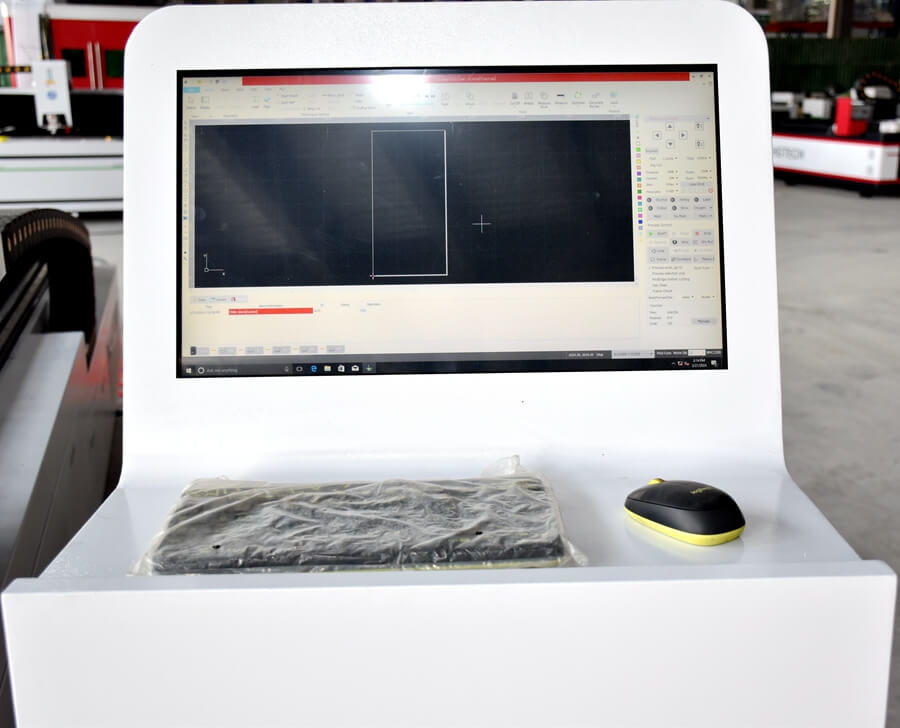

FSCUT2000S Cypcut Control System

FSCUT2000S Cypcut Control System

  • The upgraded version of the FSCUT2000C medium power laser cutting system, the FSCUT2000S is a full-solution open-loop control system specifically created for the sheet metal fabrication sector. It has features like simple installation and setup, outstanding performance, and completely integrated solutions.
fiber metal laser machine

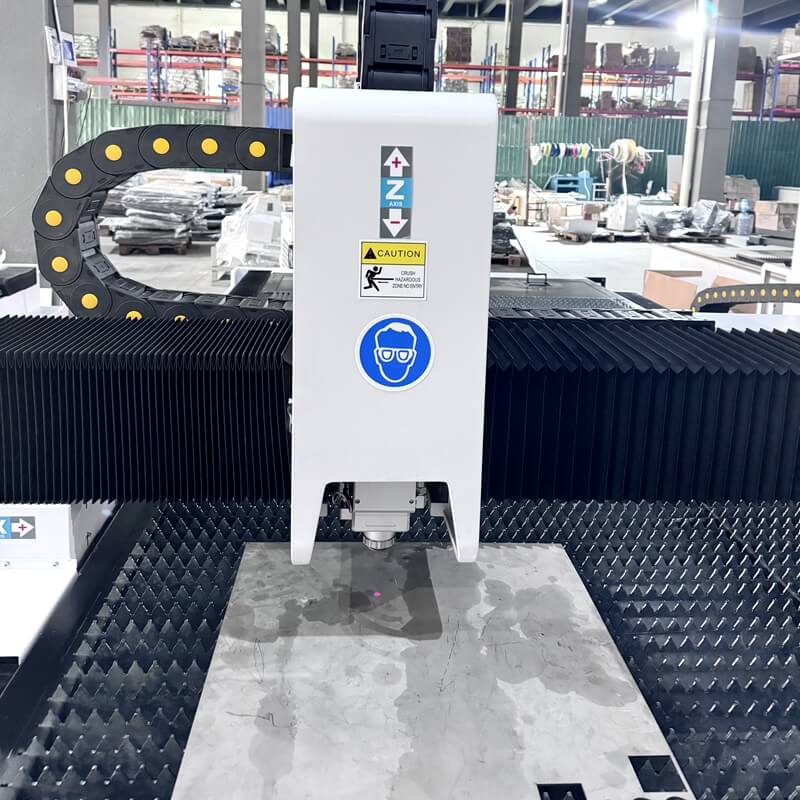

Z Axis Transmission

  • Z-axis employs a high-precision industrial linear module sliding table and modern servo traveling system, assuring high precision, and a longer lifetime.
Flatbed Single Table Fiber Metal Laser Cutting Machine Parts Introduction

Transmission System

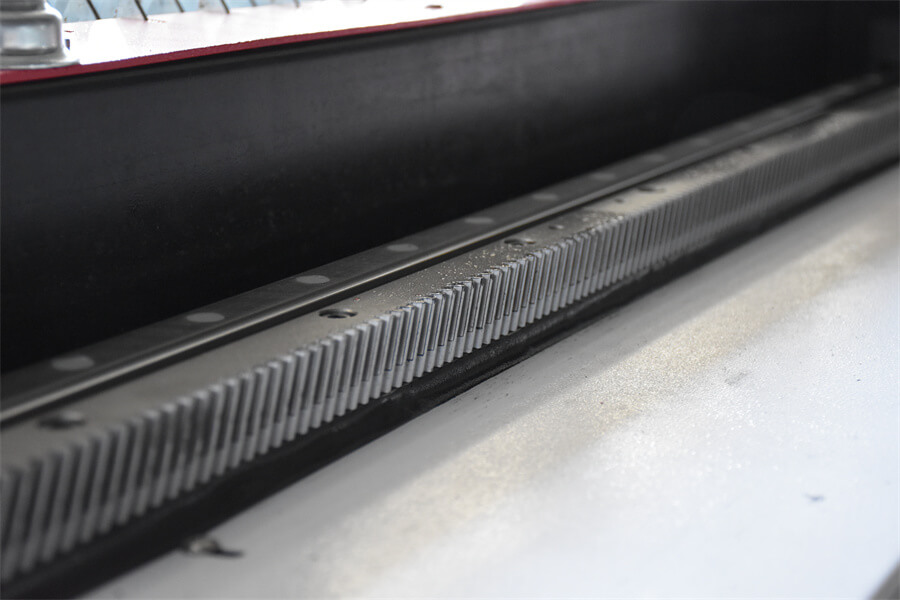

  • HIWIN linear guide and BYYC grinding gear rack are well-known brands.
  • The maximum travel speed is 80m/min, and the maximum acceleration is 1.5G.
FSCUT2000S Cypcut Control System

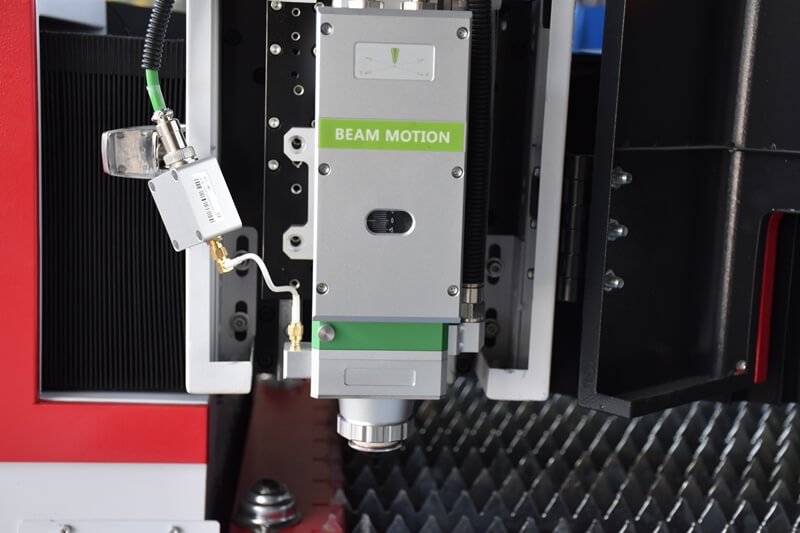

Auto Foucing Laser Cutting Head-Raytools Swiss

  • Design that is modular and easy to maintain.
  • There are two water cooling circuits.
  • Auto focus to reduce human intervention and enhance piercing and cutting efficiency.
  • 3 Collimation and focus lens protection glasses (top, middle, and bottom).
  • IP65 dustproof, patented cover glass cover plate.
  • Accuracy≤50um
  • Collimation Side (Top): 24.9*1.5mm
  • Bottom/Middle Focusing Side (27.9*4.1mm)
Flatbed Single Table Fiber Metal Laser Cutting Machine Parts Introduction

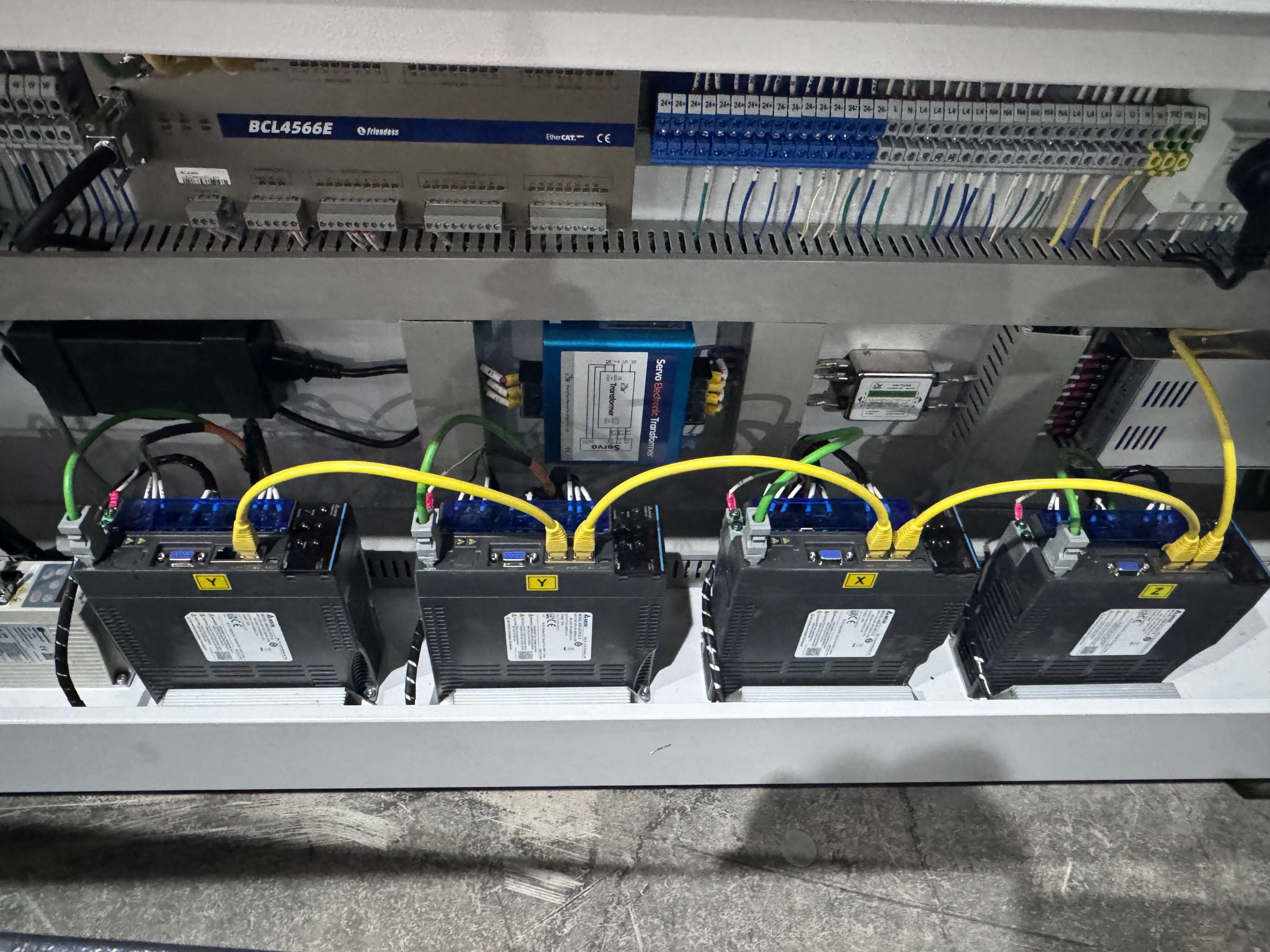

Servo Motors

  • Japan Yaskawa Servo Motor System (-7series) X/Y/Z axis all use Japan Yaskawa motor. Dual drivers are included with the Y-Axis.
  • It is capable of high-speed, high-precision transmission.
Flatbed Single Table Fiber Metal Laser Cutting Machine Parts Introduction

Reducer

  • Simbo reducer from Japan
  • Flange output, precision, and stability life are greater than ten times that of the shaft output Grade 3 accuracy.
Flatbed Single Table Fiber Metal Laser Cutting Machine Parts Introduction

Cooling System

  • With numerous alarm protection features, the S&A CWFL series is from a top Chinese brand.
  • It operates in two modes: constant temperature and intelligent temperature management.
LEARN MORE

Application

Sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing, and other manufacturing and processing industries make extensive use of fiber laser cutting machines.

Materials for cutting:

Metal sheet cutting in stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium, and other metals.

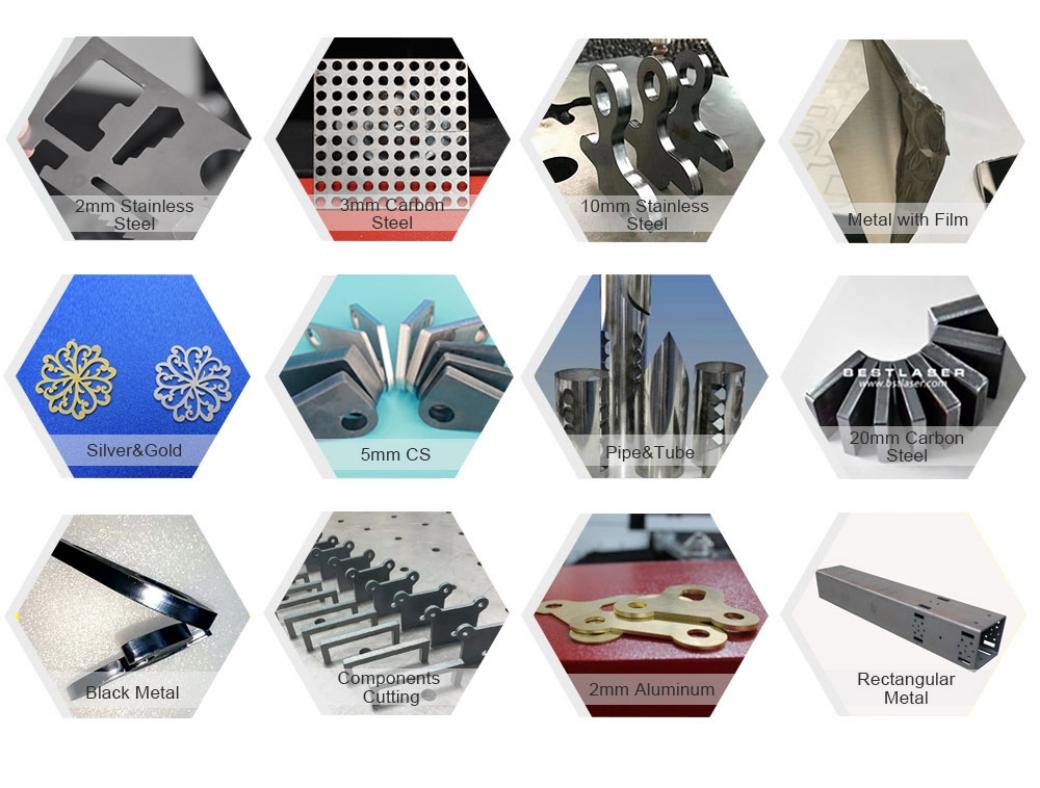

Cutting Materials

Optional Items

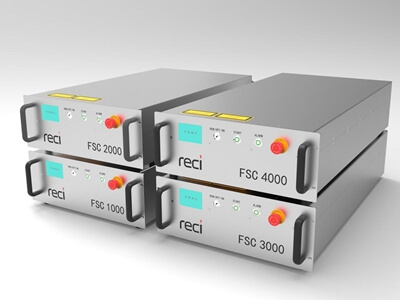

Reci 1000W to 2000W Continuous Fiber Laser Device (small power )

Max Laser Device

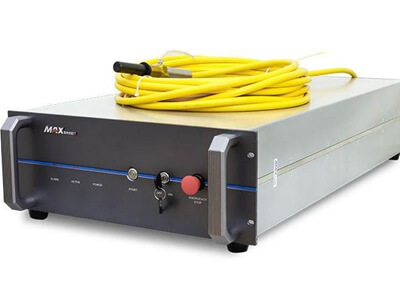

1000W to 3000W Continuous Fiber Laser Device Max (Middle power )

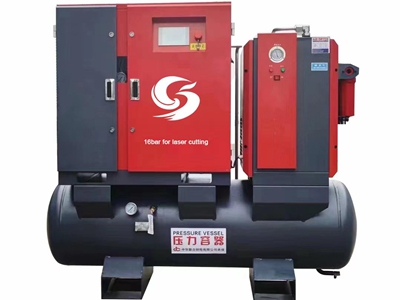

air compressor for fiber metal laser

The most cost-effective cutting processes, which require an air compressor and a drier filter, are typically used for cutting thin metal less than 2mm thick.

Model BE-FM-3015S
Laser Type Fiber Laser
Laser Power 1000w 1500w 2000w 3000w 4000w 6000w
Laser Source Raycus (Optional: Max/Reci/BWT/IPG)
Laser Technology Germany Technology
XYZ Working area 1500*3000*150mm
Optional Size 4000×1500mm/6000×1500mm/4000×2000mm/6000×2000mm
Max. Cutting Speed 30-50 Meters / Min (up to materials)
Max. Location speed 60m/min
Laser wavelength 1070nm
Minimum line width ≤0.1mm
Location precision ≤±0.05mm
Re-location precision ±0.02mm
Max Acceleration 1.5G
Max. moving speed 100m/min
Supporting Format Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc
Power demand 3 PHASE AC 380V 50HZ/60HZ
Cooling Way Water Cooling
Worktable max. load 4000KGS
Transmission Method gantry type double rack servo drive
Table-driven system Japanese Imported  Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Control Method Offline Movement Control
Control software Cyprus/NC Studio
Size Dimension 4500mm ×2900mm ×1750mm
Working Environment Temperature 0℃~45℃
Working Environment Humidity 5%~95%  non-condensing

Package and Shipment

Model Package Size Gross Weight
BE-FM-3015S 446cm×223cm×180cm, 179CBM 4000KG
fiber metal laser package fiber metal laser package Fiber Metal Laser Package 4

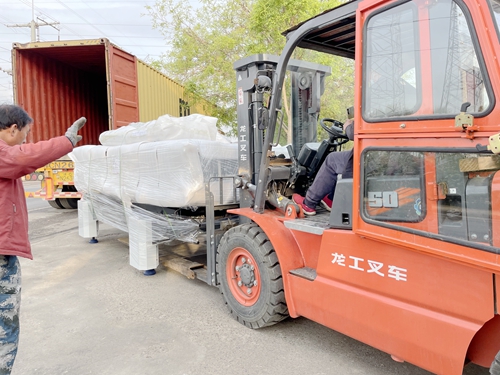

Inside layer is covered by thickening plastic bag and foam for waterproof. Loading container EXW factory, workers putting machine into container  Send to the named loading port for shipment by sea which needs 20-50 days
  • SAMEH ABDELWAHAB

    ★★★★★
    Post a review on Aug 21, 2022 From Egypt

    Very powerful machine; we intend to purchase many more in the future and to represent your firm in Egypt.

  • Sangho Yi

    ★★★★★
    Post a review on Aug 21, 2022 From Korea

    The laser and motion are outstanding, with superb cutting effects, and we are very pleased with it; we suggest it to clients.

  • Salvatore marrapesa

    ★★★★★
    Post a review on Aug 21, 2022 From Italy

    Everything is operating well now, and the cutting is excellent. We may still require some technical support during testing, but all issues have been resolved.

  • UAE

    ★★★★★
    Post a review on Aug 21, 2022 From Hadhrat Ali

    We can build and test the machine using your user manual and training video; no technical assistance is required.

  • Miguel A Hernandez

    ★★★★★
    Post a review on Aug 21, 2022 From USA

    Fast, efficient, and excellent service from the company. As usual, a fantastic product.

  • Jose Eduardo Paris Muñoz

    ★★★★★
    Post a review on Aug 21, 2022 From Brazil

    Always good work. with lot of instructions… technical service is very good… I m very happy to ov laser, it’s my 8th machine I have order to them.
