Ground Rail Large Format Metal Laser Cutter
ground-rail-fiber-metal-laser
Ground Rail Large Format Metal Laser Cutter
ground-rail-fiber-metal-laser

Ground Rail Large Format Fiber Metal Laser Cutter


Category Fiber Metal Laser Cutting Machine
Model No. BE-FM-3015G
Views 2000
Rating ★★★★★4.9/5 Based on 5200 Votes
Price Range US$35,000 – US$65,000/set Based on the Features
Payment Term T/T Bank Transfer
Leading Time 50-70 Days
Shipping Sea Shipment
Warranty Period 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Ground Rail Large Format Fiber Metal Laser Cutter is a versatile and powerful machine that can cut through a variety of materials such as steel, aluminum, and stainless steel. This machine can cut both thin and thick materials, such as plastics, paper, and cloth, as well as sheet metal and plates. We have introduced ultra-large size ground rail fiber metal mechanical equipment to satisfy the needs of our clients for cutting ultra-large size metal plates.

With a huge working size capable of cutting large plates and a stroke of 140003500mm, any specific size may be designed. Precision YYC helical gears are used to drive the X and Y axes of the gantry beam, which is made of high-strength aluminum alloy.

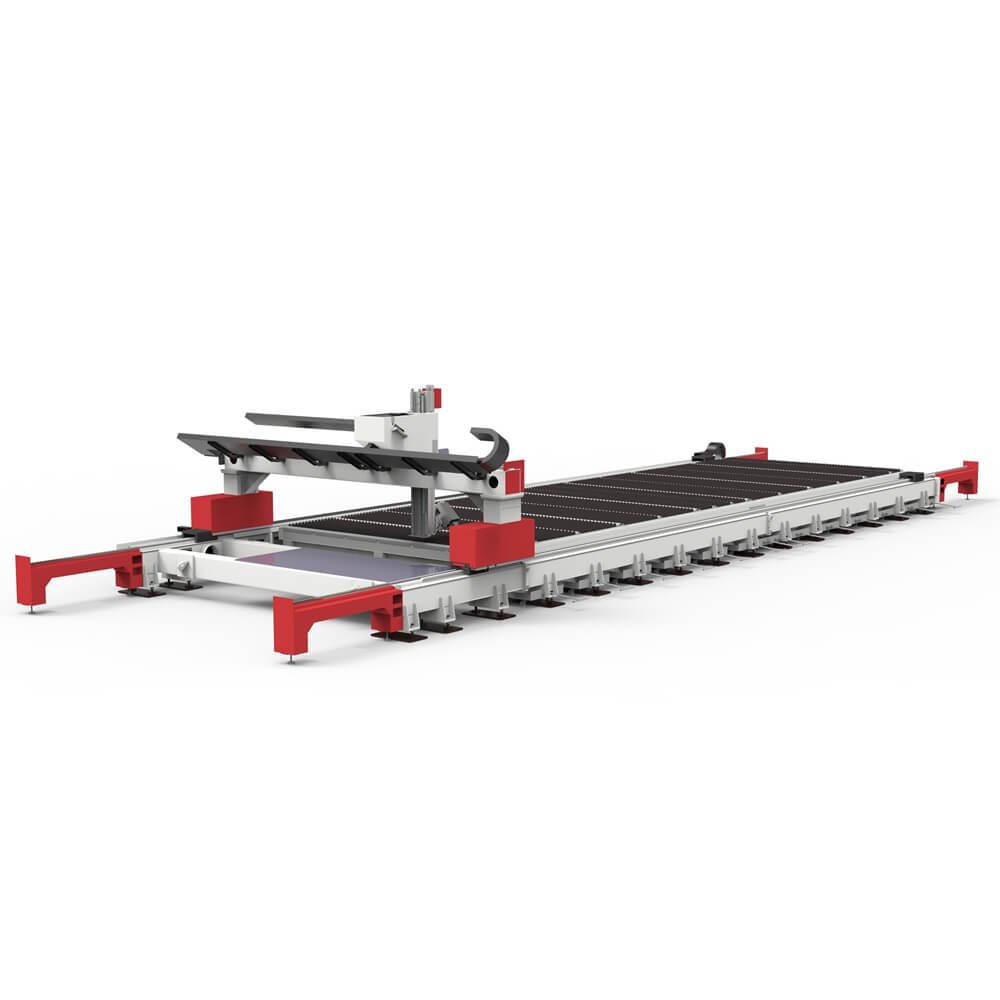

Large Size Fiber Metal Laser Cutter with Linear Rail

Ground Rail Large Format Metal Laser Cutter-4

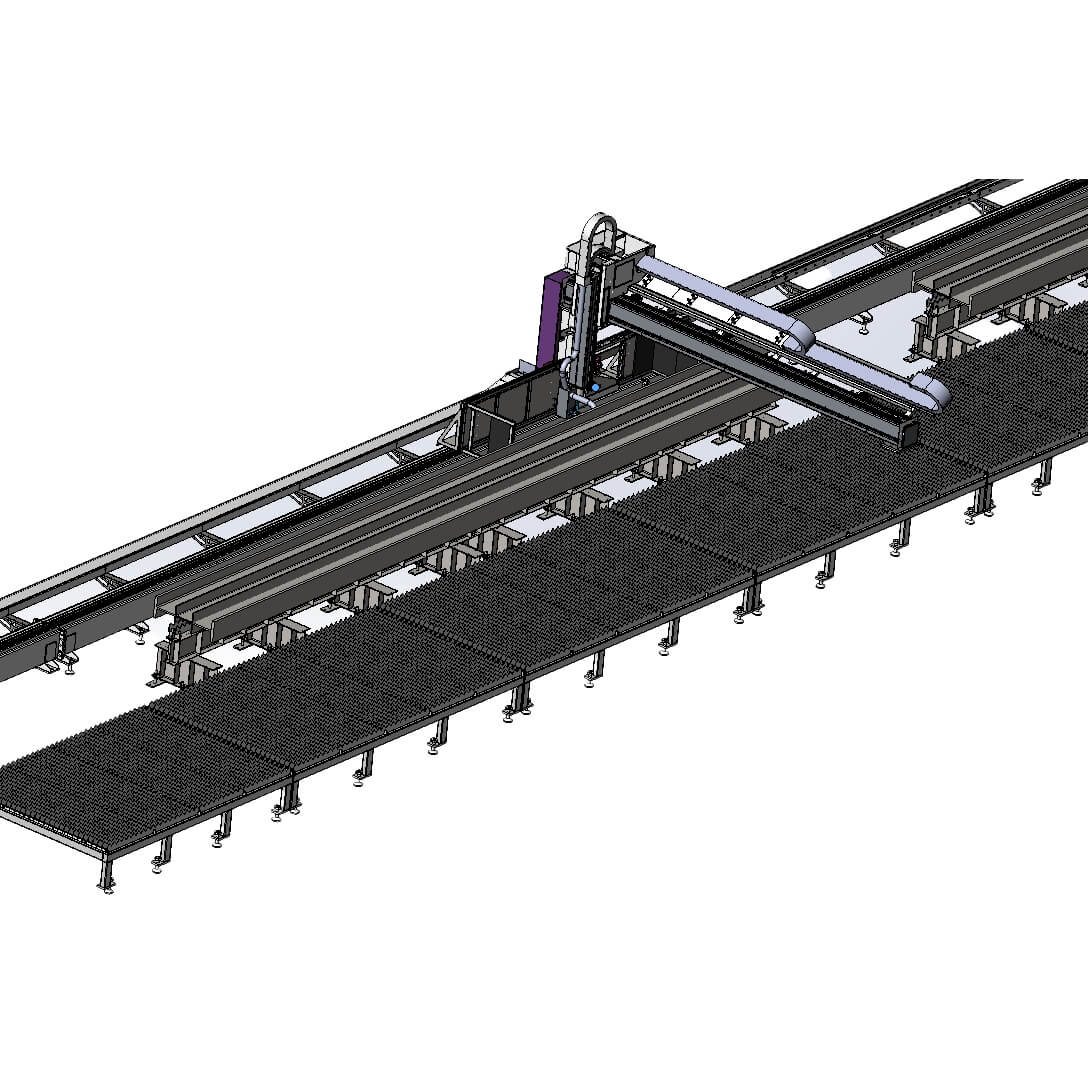

Ultra Large Size Fiber Metal Laser Machine with Ground Rail
big-fiber-metal-laser-cutter

STANDARD COMPONENTS

Name Specifications Parameter Qty. Brand
Machine Body BE-FM12000-G35140

X Axis: 3500mm

Y Axis: 14000mm

1 BST LASER
Standard Working Table     1 BST LASER
X Axis Motor 1.8KW Main Cable 1 YASKAWA
Y Axis Motor 4.4KW Main Cable 2 YASKAWA
Z Axis Motor 750W Main Cable 1 YASKAWA
X/Y Speed Reducer     3 Shimpo
Sliding Table     1 BST LASER
Voltage Transformer Electronic Transformer   1 Top China Brand
Oil Path Auto lubricator system   1 Top China Brand
Pneumatic parts High pressure gas path Include Filter 1 ASCO
X Axis Liner Guide Rail 25   2 PMI
Y Axis Liner Guide Rail 30   2 PMI
X/Y Gear Rack     1 YYC
X/Y Wheel Gear     1 YYC
X/Y/Z Chain     1 Top China Brand
X Axis guide Rail Cover     2 Top China Brand
Controlling Part
Working Platform Matched Electronic Parts 1 Schneider
Industrial computer display Industrial Screen 1 BG
Controlling System BOCI CYPCUT FSCUT8000 1 CYPCUT
Cutting Head BLT 641 1 BOCI
Laser Device 12KW 1 Raycus
Chiller 12KW 1 HANLI

Metal Cutting Capacity

Laser Power   3000W 6000w 8000W 12000W
Nominal power kw 3 6 8 12
Power requirement kw 10 19 26 38
Wavelength nm 1074 1074 1074 1074
Carbon steel mm 22 22 25 40
Stainless steel mm 10 16 25 30
Aluminum Alloys mm 8 12 25 25
Brass mm 6 10 12 12

Machine Feature:

The flying optical path, synchronous drive of the bilateral gear rack, and integrated moving structure of the laser and beam are all features of the high-performance, large-format BST LASER CNC laser cutting machine. The configuration of an enlarged workbench along with the optimized Siemens CNC system for laser cutting in Germany increase the humanized operation, and the movement is steady and dependable.

  • Laser onboard structure: Ensure that the laser cutting head may move to various positions while maintaining the same high level of precision in the laser cutting.
  • A moving double beam is propelled by both sides in between the guide rails. A laser, a laser electrical cabinet, an external optical path system, a waterway gas control system, a Z-axis box, and a cutting head are all installed on the beam.
  • Fixed table: Ideal for processing large plates while feeding small plates.
  • Device for transmitting cables and trachea: Tank chains are used to transport cables and trachea both horizontally and vertically.

Parts Introduction

Large Format Metal Laser Cutter 1

Professional Moving Structure

  • Working Dimensions: 3500mm14000mm
  • Power range: 3000W-12000W
  • Using a laser and a beam to combine the entire moving structure, synchronous driving of a bilateral gear rack, flying optical path, and humanized operation.
Large Format Metal Laser Cutter 2

LCD Touch Screen Controller

  • Large LCD touch screen device with considerable flexibility and the ability to cut metal sheets of various sizes.
  • When cutting long and huge sheets, the machine’s cutting efficiency is greatly improved by its chair-equipped design, which allows the operator to sit on the machine and move with it.





2d-Cypcut-Software

Cypcut Sheet Cutting Software

  • CypCut sheet cutting software has been meticulously designed for the fiber laser cutting market. It blends CAD, Nest, and CAM components and facilitates complex CNC machine operation. Drawing, nesting, and workpiece cutting may all be completed with a few clicks.
guide rail

Linear or Road Guide Rail

  • Taiwan PMI/Hiwin high precision linear square track and Taiwan YYC grinding grade rack (Original Genuine)
  • It provides rapid cutting speed, exceptionally precise positioning, and a long service life.
multifunctional laser welding (3)

Industrial Cooling System

  • S&A CWFL series is a top China brand with a variety of alarm protection functions.
  • It has two functioning modes of constant temperature and intelligent temperature management.
laser cutting head

Raytools Auto Focusing Cutting Head

  • Simple to maintain modular design.
  • Dual water cooling circuits.
  • To reduce human interaction and improve piercing and cutting efficiency, use auto focus.
  • 3 cover glasses (top, middle, and bottom) for collimation and focus lens protection.
  • Patented cover glass cover plate that is dustproof to IP65 level. All-around dust control.
LEARN MORE

Application

Industries That Apply

Machinery components, electrics, sheet metal fabrication, electrical cabinets, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automobile parts, and other metal cutting industries.

Materials for Application

Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass, and other metal sheets, plate, pipe, and tube, and so on. Laser Cutting Fiber Machine.

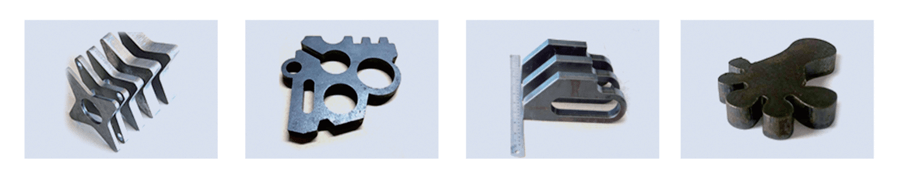

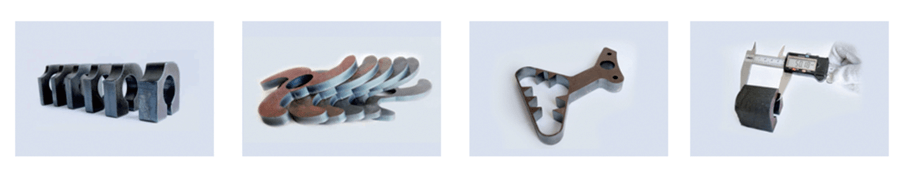

Ground Rail Large Format Metal Laser Cutter sample Ground Rail Large Format Metal Laser Cutter sample Ground Rail Large Format Metal Laser Cutter sample

Optional Items

Max Laser Device

Economic Max Brand Fiber Laser Optional Device (1000w,2000w,3000w,6000w).

air-compressor-1

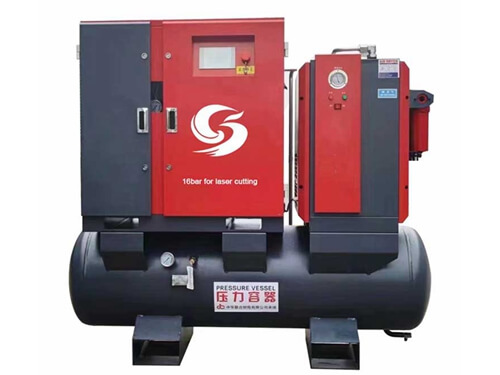

The most cost-effective air assistant gas system, with an integrated air compressor and dryer filter, is small in size yet powerful in function.

IPG fiber laser device

Top Global Brand Genuine IPG fiber laser device, with exceptional stability and a longer lifetime.

Performance Indicators 35140 Ground Rail Type Gantry Laser Cutting Machine
X/Y Positioning accuracy ±0.1mm/m
X/Y Axis Motion Repeatability Precision ±0.08mm
X/Y Working Area 3500mm*14000mm
Max Movement Speed 70m/min
Driver AC Servo Motor
Working Voltage 380v/50Hz/3ph
Structure Thicken Steel Structure
Matched Laser Device Power 12000W

Package and Shipment

fiber metal laser package fiber metal laser package Fiber Metal Laser Package 4

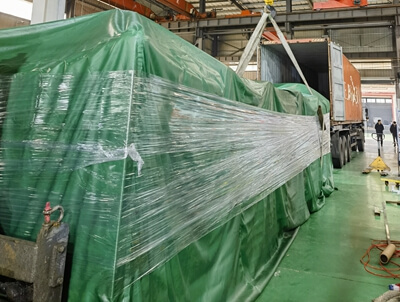

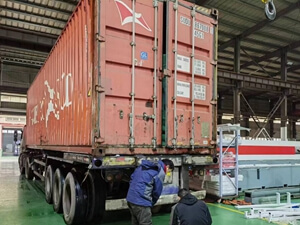

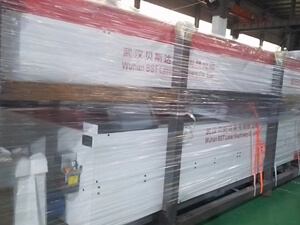

Inside layer is covered by thickening plastic bag and foam for waterproof. Loading container EXW factory, workers putting machine into container  Send to the named sea port and load in the container
