fiber laser marking machine

Product Details

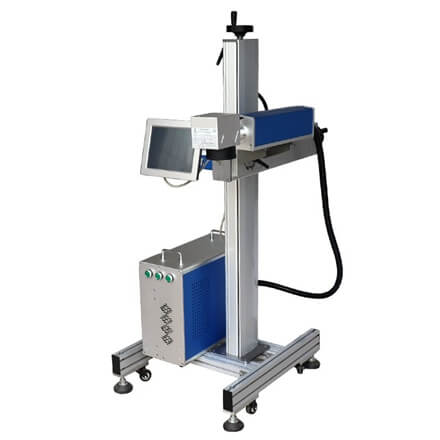

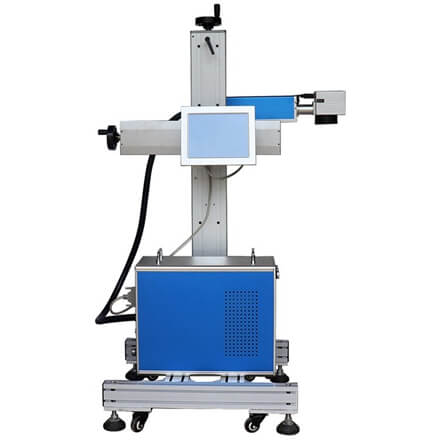

Bottles Package Online Flying Fiber Laser Marking Machine
flying fiber laser marking machine
flying fiber laser marking machine
online laser marking machine
Bottles Package Online Flying Fiber Laser Marking Machine
flying fiber laser marking machine
flying fiber laser marking machine
online laser marking machine

Bottles Package Online Flying Fiber Laser Marking Machine


Category Fiber Laser Marking Machine
Model No. BE-F60
Views 52400
Rating ★★★★★4.8/5 Based on 500 Votes
Price Range US$2199 – US$3499/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 5-7 Days
Shipping Air/Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Bottles Package Flying Fiber Laser Marking Machine is here to revolutionize your business, providing a unique and reliable way to mark and engrave bottles and packages. With its high precision and speed, this machine will allow you to expand your business and increase your profits while ensuring that your products are marked with quality and accuracy. The machine is capable of marking both text and graphics and is ideal for applications such as labeling, tracking, and coding.

It is an ideal blend of laser and automatic manufacturing lines, satisfying online flying marking demand while enhancing efficiency.

It can process most metal and nonmetal materials, as well as correctly mark the surface of tiny components, thanks to its non-contact processing, ease of operation, lack of pollution, high-speed automatic operation, and high marking efficiency.

Machine Feature:

Production Line Use: It comes with professional internet marking software that may be used to mark moving lines or objects.

PLC Control:  The device may label product information such as serial numbers, batch numbers, and dates, and it can work with a production line’s PLC system.

Long Lifespan:  The machine’s lifetime is above 120,000 hours due to the use of German highly advanced fiber optical innovation, which greatly extends service time.

Free of Maintenance and No Consumables:  Almost no maintenance is required when Bottles Package Online Flying Fiber Laser Marking Machines are in use, which reduces labor costs.

Easy Operation: There is no need to alter the laser route, no requirement for professional abilities, and anyone can operate after 1-2 days of training, lowering the use threshold.

High-efficiency Photoelectric Conversion Rate: There is no power coupling loss, no consumables, and thus no operational costs.

Fast Speed: With the installation of an improved Galvo head, the scanning speed can approach 8000 mm/s, considerably lowering the amount of time required for marking.

Powerful Marking Software: Tags can be applied to a variety of content kinds, including letters, patterns, characters, codes, and images. You are allowed to mark anything you choose. Simply drag and drop the marking file into the app.

Wide Application: Metal, stainless steel, aluminum, iron, gold, silver, titanium, and other nonmetals, as well as plastic, ceramic, and ABS, may be labeled.

Environmental-Friendly: Non-polluting and human-safe.

Durability: It can tolerate extreme conditions including shock, vibration, high temperatures, and dust.img_email

Parts Introduction

flying fiber laser marking machine

Fiber Laser Source

  • The world’s most famous fiber laser source has a lifetime of more than 120,000 hours, no consumables, and continuous quality.
  • A very thin laser beam and a high laser focusing capacity are required for high accuracy marking.
flying fiber laser marking machine

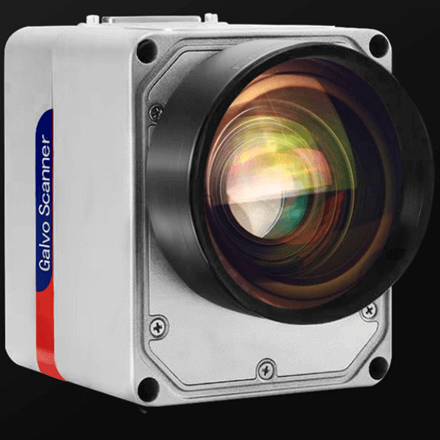

Sino-galvo digital scanning head

  • The well-known Sino-galvo digital scanning head, with a maximum speed of 8000mm/s, provides stability and efficiency while exceeding industrial marking requirements.
  • High sensitivity, precise positioning, and strong interference rejection.
flying fiber laser marking machine

Software Screen

  • With the help of a built-in software screen, this system can designate moving production lines dynamically.
  • Serial codes, digits, and dates can all be marked at the fastest possible pace.
flying fiber laser marking machine

Singapore Imported Lens

  • The Wavelength Focus Lens, imported from Singapore, ensures a high-quality laser beam.
  • Light transmission and electro-optical conversion efficiency are both high.
flying fiber laser marking machine

Marking Application

  • This machine can mark in several directions and handle complex applications with ease.
flying fiber laser marking machine

High Quality Aluminum Alloy Machine Box

  • High stiffness, non-deformation, and get a rusty eternally integrated design with aluminum alloy materials.
  • The overall appearance of the equipment is modern and stunning.
flying fiber laser marking machine

Urgent Stop/Key Switch/Laser Switch

  • Urgent Stop: When some error happens during marking, the operator can press the red urgent stop then the machine stop working.
  • Key Switch: Machine On
  • Laser Switch: Laser Source On
flying fiber laser marking machine

Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port

  • Despite being small, the machine has several different functions.
LEARN MORE

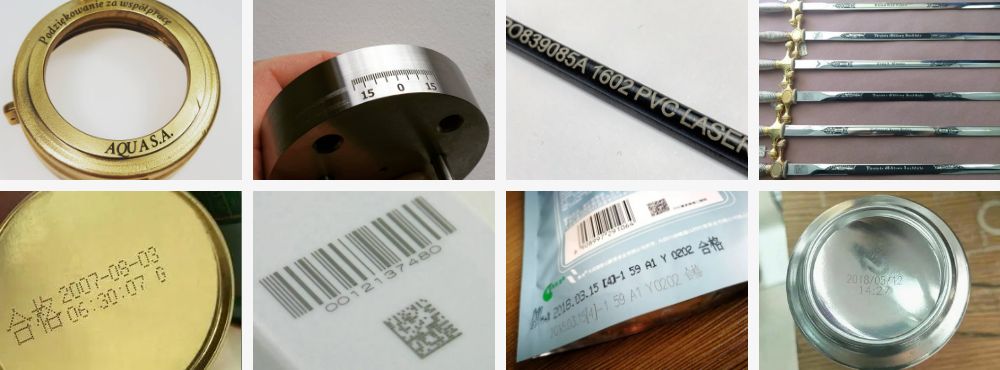

Application

Flying fiber laser marking machines are versatile and user-friendly, making them an ideal choice for a variety of marking applications. They deliver permanent marking and can be used to mark metals, plastics, and other materials quickly and accurately. They are used to mark food packaging, boxes, bottles, wire cables, electron components, wire cables, pipes, textiles, and so forth.

Application_F60

Optional Items

Co2 Galvo Laser Machine

Rotary Device (65mm, 80mm, 100mm diameter)

The round object can be held and rotated by the rotary marking tool while marking. It allows for rotating operation.

flying fiber laser marking machine

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)

The equipment must have a new focus lens installed in case that the marking size changes.

Additionally, the size of the laser spot, the power, and the marking sizes vary.

Co2 Galvo Laser Machine

Working Table

It facilitates the adjustment of the focus distance.

The XYZ axis can be easily shifted up and down.

online laser marking machine (4)

Fume Extractor

Particularly for gold plates, holographic foil, and other thin plates, this cutting device aids in adjusting the metal plate and fixing it without deforming.

Co2 Galvo Laser Machine

Cutting Fixture

Particularly for gold plates, holographic foil, and other thin plates, this cutting device aids in adjusting the metal plate and fixing it without deforming it

3d laser marking machine

XY Electric Moving Table

It is useful for labeling large chunks of material. It can divide the marking activity into several steps.

Model BE-F20M
Laser source Raycus brand (IPG, MAX, JPT optional)
Laser power 20W 30W 50W 100W
Weave length 1064 nm
Marking area 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm
Laser repetition frequency 20KHZ-80KHZ
Beam quality 1.5 M²
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Double Red Pointer
Laser Source Life Span More than 120,000 hours
Control software JCZ EZCAD
Supported Format Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF  Vector: AI,  PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
Control board ORIGINAL BJJCZ
Operating Voltage AC220V/50HZ/ or AC110V/60HZ
Gross Power ≤500W
Supported Windows Windows
Certificate ISO, CE, FDA
Material can be processed all metal material and part of non-metal material, such as hard plastic
Others USB cable for connection, U flash disk with software and English manuals and install video.
After-sales Service Three years warranty for the machine.Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training.
Packaging Standard Export Plywood Box
Plug European/America/UK/International different Plugs
Net Weight 120kgs
 Gross Package weight 140kgs
Packaging Dimension 105*70*154cm

Package and Shipment

Model Net Weight Package Size Gross Weight Volume
BE-F20D 120KGS 105×70×154CM 140KG 1.13CBM
Laser metal engraving machine (7) Laser metal engraving machine (8) Laser metal engraving machine (9)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
