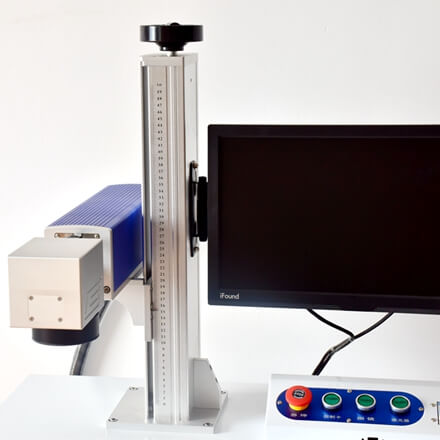

Laser Metal Marking Machine With Industrial PC


Category Fiber Laser Marking Machine
Model No. BE-F20D
Views 57600
Rating ★★★★★4.8/5 Based on 500 Votes
Price Range US$1899 – US$2799/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 5-7 Days
Shipping Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Machine Feature:

  • Long Lifespan: Due to the use of German sophisticated mature fiber optical technology, the machine’s lifetime exceeds 120,000 hours, significantly increasing the service time.
  • Free of Maintenance and No Consumables: Fiber laser markers operate with little to no maintenance and don’t require any consumables, which reduces labor costs.
  • Simple Operation: After 1-2 days of training, ordinary people may operate without altering the laser route or possessing the expertise, lowering the use threshold.
  • High-efficiency Photoelectric Conversion Rate: Operating costs are obviously reduced because there is no power coupling loss and there are no consumables.
  • Fast Speed: Due to the adoption of a sophisticated Galvo head, the maximum scanning speed reaches 8000 mm/s, significantly reducing the marking time.
  • Powerful Marking Software: Different information can be marked, including letters, patterns, characters, codes, and images. You can make any mark you desire. All that is required is to load the marking file into the program.
  • Wide Range of Applications: It allows marking on a variety of materials, including plastic, porcelain, ABS, iron, gold, silver, titanium, and stainless steel.
  • Environmentally friendly: non-polluting and non-hazardous to humans.
  • Durability: It can withstand adverse situations such as shock, vibration, high temperatures, and dust.

img_email

Parts Introduction

laser metal marking machine (4)

Fiber Laser Source

  • World famous fiber laser sourcewhich has a lifetime of over 120,000 hours, no consumables, is free of maintenance with reliable quality.
  • Extremely thin laser beam, and strong laser focusing capability to realize high precision marking.
laser metal marking machine (5)

Sino-galvo digital scanning head

  • Famous Sino-galvo digital scanning head, which a max speed reaching 8000mm/s, which ensures stability and efficiency and meets industrial marking requirements.
  • High sensativity, high precision positioning and strong anti-interference.
enclosed fiber laser marking

JCZ controller card

  • Original genuine Beijing JCZ controller card, the I/O port, ensure powerful functions and easy operation.
  • High sensativity, fast speed and high accuracy
flying fiber laser marking machine

Singapore Imported Lens

  • Singapore imported Wavelength Focus Lens, with strong focusing capability ensures fine quality laser beam.
  • High Light Transmission and electro-optical conversion efficiency.
co2 galvo laser marking machine

2D XY Working Table

  • Operators can put the objects on the working table, which ensures the object is in.
laser metal marking machine (6)

High Quality Aluminum Alloy Machine Box

  • Integrated design with aluminum alloy materials, high rigidity,non-deformation and get resty forever.
  • Whole machine’s appearance looks modern and beautiful.
laser metal marking machine (2)

Urgent Stop/Key Switch/Laser Switch

  • Urgent Stop: When some error happens during marking, the operator can press the red urgent stop then the machine stop working.
  • Key Switch: Machine On
  • Laser Switch: Laser Source On
laser metal marking machine (3)

Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port

  • Even the machine is small size, but it is multifunctional.
co2 galvo laser marking machine

Latest Version Ezcad Software

  • Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
  • Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
  • Win10/Win8/Win7/XP (both 32 and 64 bit all supported
LEARN MORE

Application

Medical equipment, household appliances, automotive products, household appliances, monitors, hardware tools, electronics, precise bathroom, gift accessories, battery industry, information technology industry.

Application_F20D

Optional Items

Co2 Galvo Laser Machine

Rotary Device (65mm, 80mm, 100mm diameter)

The round object can be held by a rotating device while being marked. It is capable of rotary operation.

flying fiber laser marking machine

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)

If the marking size varies, the machine must be equipped with a new focus lens.

Additionally, there are variations in power, laser spot size, and marking sizes.

Co2 Galvo Laser Machine

Working Table

It is useful for adjusting the focus distance.

The XYZ axis can be flexibly moved up and down.

online laser marking machine (4)

Fume Extractor

To safeguard the environment and human health, the fume extractor can clean up any fumes or dust that may have been generated while working.

Co2 Galvo Laser Machine

Cutting Fixture

Particularly for gold plates, holographic foil, and other thin plates, this cutting fixture aids in metal plate correction and fixes thin plates without deforming.

3d laser marking machine

XY Electric Moving Table

It works well for marking on large pieces of material. The job of marking might be divided into multiple sessions.

Model BE-F20D
Laser source Raycus brand (IPG, MAX, JPT optional)
Laser power 20W 30W 50W 100W
Weave length 1064 nm
Marking area 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm
Laser repetition frequency 20KHZ-80KHZ
Beam quality 1.5 M²
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Double Red Pointer
Laser Source Life Span More than 120,000 hours
Control software JCZ EZCAD
Supported Format Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF  Vector: AI,  PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
Control board ORIGINAL BJJCZ
Operating Voltage AC220V/50HZ/ or AC110V/60HZ
Gross Power ≤500W
Supported Windows Windows
Certificate ISO, CE, FDA
Material can be processed all metal material and part of non-metal material, such as hard plastic
Others USB cable for connection, U flash disk with software and English manuals and install video.
After-sales Service Three years warranty for the machine.Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training.
Packaging Standard Export Plywood Box
Plug European/America/UK/International different Plugs
Net Weight 120kgs
 Gross Package weight 140kgs
Packaging Dimension 105*70*154cm

Package and Shipment

Model Net Weight Package Size Gross Weight Volume
BE-F20D 120KGS 105×70×154CM 140KG 1.13CBM
Laser metal engraving machine (7) Laser metal engraving machine (8) Laser metal engraving machine (9)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
  • Gustavo Paredesperez

    ★★★★★
    Post a review on Aug 21, 2022 From Mexico

    Operating the device is pretty simple. We appreciate the patience of the BST Laser team. The machine leaves a clean mark on our gift items. I’ll share BST with my buddies.

  • Andrey Poyarkov

    ★★★★★
    Post a review on Aug 21, 2022 From Russian Federation

    My expectations were surpassed by this gadget. The machine is made up of well-known brand components. We purchased our first fiber laser from BST three years ago, and we now have eight of them. The machine is incredibly stable and long-lasting.

  • Yahia Aitmoula

    ★★★★★
    Post a review on Aug 21, 2022 From Algeria

    We personalize a few tiny present items. Since we are a small company, we only started with 20W. Customers seem to like the marking we attempted on numerous rings and jewelry. Thanks!

  • Jorge Montanez

    ★★★★★
    Post a review on Aug 21, 2022 From Peru

    I tested many minor items after making a purchase. I enjoy studying the distinctions in engraving. Many fonts, patterns, and artwork can be engraved. This machine has a lot of power!

  • Carlos Guinot Sierra

    ★★★★★
    Post a review on Aug 21, 2022 From Spain

    The range of uses for this equipment is enormous. All materials can leave marks, including metal, plastic, and ABS. All of my requirements are met by a single machine. It is truly multifunctional. We will place another order!
