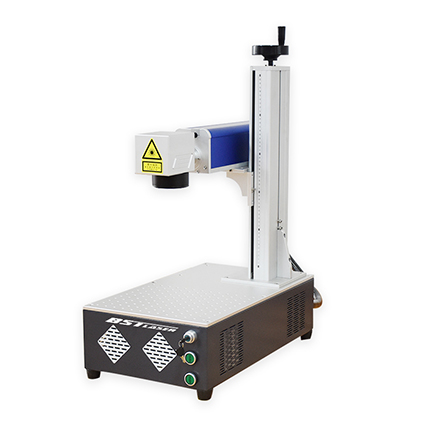

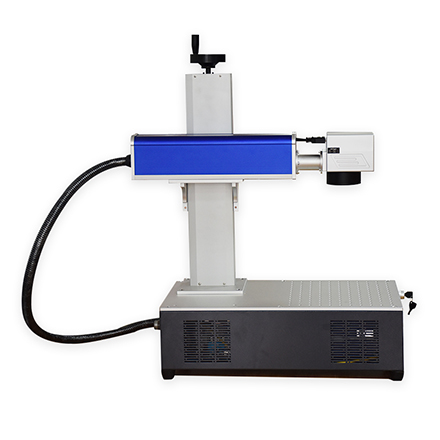

Mini Small Fiber Laser Metal Engraving Machine


Category Fiber Laser Marking Machine
Model No. BE-F25
Views 43900
Rating ★★★★★4.8/5 Based on 500 Votes
Price Range US$1599 – US$2599/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 5-7 Days
Shipping Air/Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

 When it comes to metal engraving projects, a mini small fiber laser metal engraving machine can be a great tool to have in your arsenal. A mini small fiber laser metal engraving machine is a type of laser engraver that is capable of etching surfaces of many different metals such as gold, brass, and stainless steel. The machine uses a focused beam of light to engrave any kind of design into the metal surface. The fiber laser beam can be used to engrave a variety of materials, including aluminum, stainless steel, copper, brass, and titanium.

Machine Feature:

Long Lifespan: As adopted German advanced mature fiber optical technology, machine lifetime over 120,000 hours, which largely increasing the service time.

Free of Maintenance and No Consumables: During operation, fiber laser markers almost free of maintenance, no consumables need, which save labor and cost.

Easy Operation: No need adjust laser path, no need professional skills, and just common people can operate after 1-2 days training, which owering the use threshold.

High-efficiency Photoelectric Conversion Rate: no loss of power coupling, no consumables, obviously reducing operating costs.

Fast Speed: As adopted advanced Galvo head, the scanning speed reach 8000mm/s max, which largely shorten the marking time.

Powerful Marking Software: Letters/patterns/characters/code/image…different content can be marked. You can mark whatever you want. Just need loading the marking file into software.

Wide Application: It enables to mark on different materials, from metal, stainless steel, aluminum, iron, gold, silver, titanium, and other nonmetals plastic, ceramic, ABS…

Environmental-Friendly: Non-pollution and safe to people.

Durability: It can bear hostile environment, such as shock, vibration, high temperature or dusty.
img_email

Parts Introduction

desktop fiber laser marking machine

Fiber Laser Source

  • The world-famous fiber laser source has a lifetime of more than 120,000 hours, no consumables, and is maintenance-free with consistent quality.
  • To achieve high precision marking, a laser must have a very narrow laser beam and powerful laser focusing capabilities.
mopa fiber laser

Sino-galvo digital scanning head

  • With a top speed of 8000mm/s, the well-known Sino-galvo digital scanning head ensures stability and effectiveness while meeting industrial marking requirements
  • High sensitivity, extremely accurate placement, and potent interference-blocking properties.
enclosed fiber laser marking

JCZ controller card

  • The original Beijing JCZ controller card and the I/O port ensure powerful functionality and simple operation.
  • High sensitivity, rapidity, and precision.
flying fiber laser marking machine

Singapore Imported Lens

  • The Wavelength Focus Lens, which was imported from Singapore, has great focusing capabilities, ensuring a high-quality laser beam.
  • The efficiency of light transmission and electro-optical conversion are both high.
Laser metal engraving machine (3)

2D XY Working Table

  • Operators can place the objects on the working table to guarantee that they are in.
  • The working table’s height can be adjusted to accommodate different materials.
Laser metal engraving machine (1)

High Quality Aluminum Alloy Machine Box

  • Integrated design using aluminum alloy materials, high rigidity, non-deformation, and long life.
  • The overall appearance of the equipment is modern and stunning.
Laser metal engraving machine (2)

Urgent Stop/Key Switch/Laser Switch

  • When an error occurs while marking, the operator can stop the machine by pressing the red urgent stop button.
  • Key Switch: Machine Turned On
  • Laser Switch: Laser Source Turned On
Laser metal engraving machine (4)

Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port

  • Even the machine is small size, but it is multifunctional.
co2 galvo laser marking machine

Latest Version Ezcad Software

  • Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
  • Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
  • Win10/Win8/Win7/XP (both 32 and 64 bit all supported
LEARN MORE

Application

Medical equipment, household appliances, automotive products, household appliances, monitors, hardware tools, electronics, precise bathroom, gift accessories, battery industry, information technology industry

Steels such as stainless steel, iron, copper, magnesium, aluminum, gold, silver, titanium, and platinum as well as a variety of metal oxides, hard alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, and engineering plastics are just a few examples.

Application_F25

Optional Items

Co2 Galvo Laser Machine

Rotary Device (65mm, 80mm, 100mm diameter)

Rotary device can hold the round object and rotate when marking. It realizes rotary working.

flying fiber laser marking machine

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)

The machine needs to equip with a different focus lens if the marking size is different.

Also, marking sizes are different, and power and laser spot sizes vary.

Co2 Galvo Laser Machine

Working Table

It helps to adjust the focus distance.

XYZ axis can be adjusted up and down flexibly.

online laser marking machine (4)

Fume Extractor

To protect the environment and human’s health, the fume extractor can clean the fumes and dust occurred when working.

Co2 Galvo Laser Machine

Cutting Fixture

This cutting fixture helps correction the metal plate and fix the thin plate without deformation, especially for gold plates, holographic foil etc.

3d laser marking machine

XY Electric Moving Table

It works when marking on big size material. It can divide the marking job into several times.

Model BE-F25
Laser source Raycus brand (IPG, MAX, JPT optional)
Laser power 20W 30W 50W 100W
Weave length 1064 nm
Marking area 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm
Laser repetition frequency 20KHZ-80KHZ
Beam quality 1.5 M²
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Double Red Pointer
Laser Source Life Span More than 120,000 hours
Control software JCZ EZCAD
Supported Format Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF  Vector: AI,  PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
Control board ORIGINAL BJJCZ
Operating Voltage AC220V/50HZ/ or AC110V/60HZ
Gross Power ≤500W
Supported Windows Windows
Certificate ISO, CE, FDA
Material can be processed all metal material and part of non-metal material, such as hard plastic
Others USB cable for connection, U flash disk with software and English manuals and install video.
After-sales Service Three years warranty for the machine.Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training.
Packaging Standard Export Plywood Box
Plug European/America/UK/International different Plugs
Net Weight 40kgs
Gross Package weight 50kgs
Packaging Dimension 78*48*42cm

Package and Shipment

Model Net Weight Package Size Gross Weight Volume
BE-F25 40KGS 78×48×42CM 50KG 0.16CBM
Laser metal engraving machine (7) Laser metal engraving machine (8) Laser metal engraving machine (9)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
