3d Channel Letter Bending Machine

Product Details

Channel Letter Bending Machine BEL-K120
Channel Letter Bending Machine BEL-K120

Classic Stainless Steel Aluminum Channel Letter Bending Machine Price


Category :

channel letter bending machine

Model No.:

BEL-K120

Views : 4000
Rating :

4/5 Based on 1000 Votes

Price Range : US$3000 – US$4000/Set Based on the Features
Payment Term : T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 7-15 Days
Shipping : Sea/Train/Truck
Warranty : Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Steel letter bending machine K120 is BST LASER original and most classic model for bending stainless steel and flat aluminum,perfect combination between costs,technical features and bending performance.It is a professional sign making equipment for processing flat stainless steel, galvanized sheet and flat aluminum luminous characters.

Machine Feature:

  • Independent Feeding Cabinet,suitable for raw materials with different height.
  • Machine body use high end hard chromium plating craft which ensure wear-resisting, corrosion ,prolong machine lifetime.
  • Adopt servo motor control and ball screw transmission, strong bending torque,high precision and fast feeding speed.
  • With servo motor double axle alternately expansion bending system,strong bending arc which make sure high bending arc shape, no need further manual bending.
  • With unique materials collecting alert function which make sure not waste materials.
  • Modularized Circuit board and strong and weak electricity path ensure no interference and the equipment is more stable.

img_email

Parts Introduction

Unique Feeding Structure

  • Closed Loop Feed Feedback SystemEnsure the finished work piece and source file perfectly matched.
  • Rolling-typed continuous feeding structure,it won’t bring any scratch on the materials surface.

Slotting System

  • Sweden ASSAB+17 Planning Tool which can cut the steel with high efficiency.
  • TBI Ball Screw Transmission ensure Ensure the strong torque, high precision and fast speed.

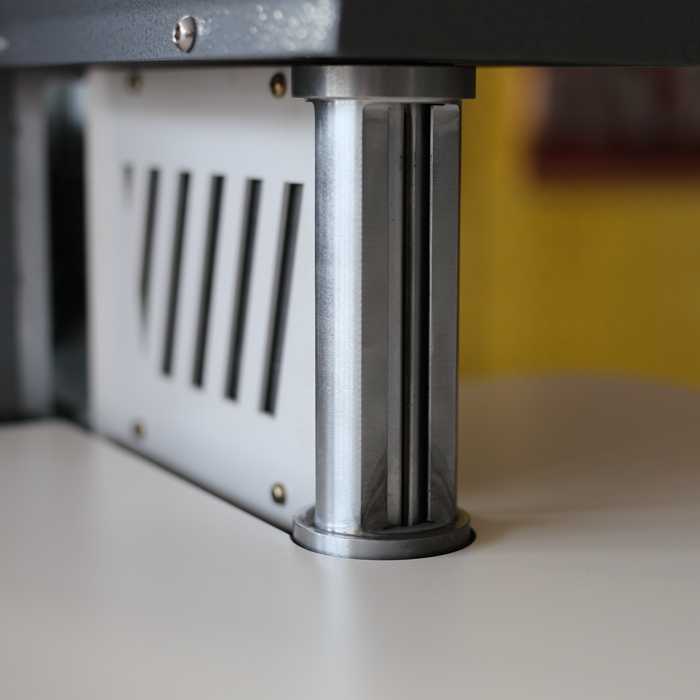

Double Axis Coupling Bending System

  • Making sure the finished letter with high forming degree,doesn’t need further manual calibration.

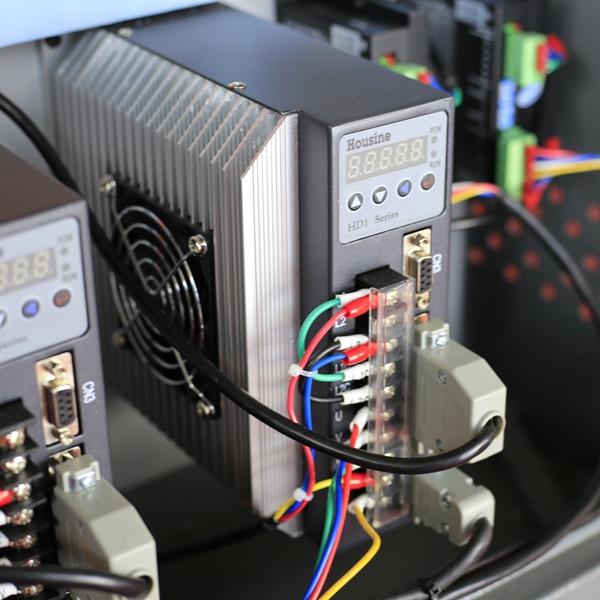

Servo Motor Control

  • Driven by 2pcs servo motors and 2pc step motor,Ensure the strong torque, high precision and fast speed.

Standardized wiring and IO Integrated PCB

  • Circuit part is separate with strong and weak electricity,no interference is and the equipment is more stable.

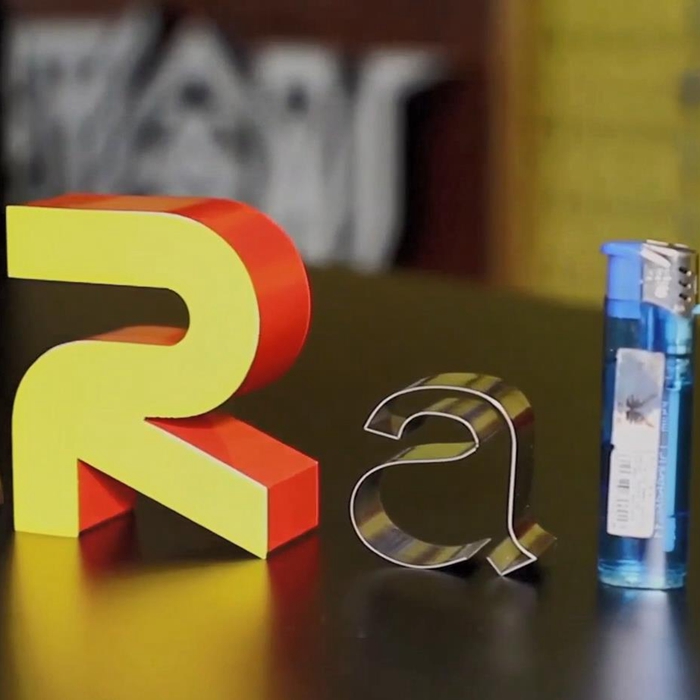

Processing Materials

  • This machine can produce small letter less than 7mm. It process at high precision. Driven by servo motors, it is high-end flat material channel letter bending machine.
LEARN MORE

Application

BEL-K120 cnc metal channel letter bending machine is a professional equipment for making metal edge strips lED luminous channel Letter. K120 can simultaneously cut and bend metal such as flat aluminum, flat stainless steel and galvanized sheets.

 Stainless Steel Letter Bending Machine 1

Optional Items

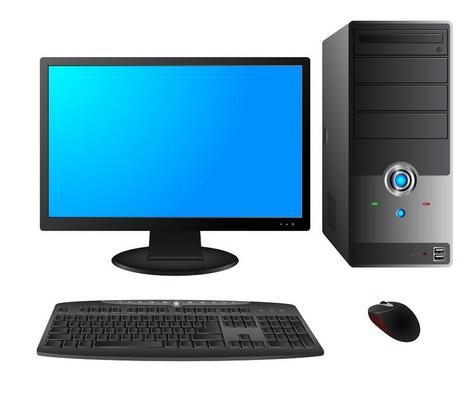

Industrial PC system with tested settings and properly installed applications for immediate use

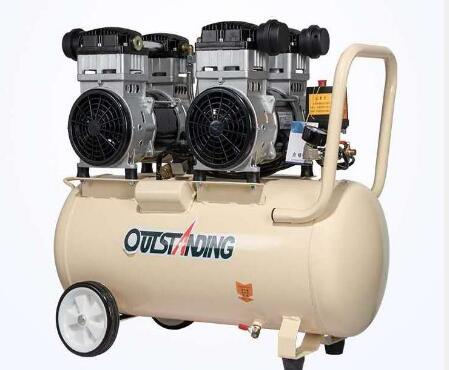

Air Pressure :0.6-0.8mpa, you can prepare by yourself or with the help of a machine.

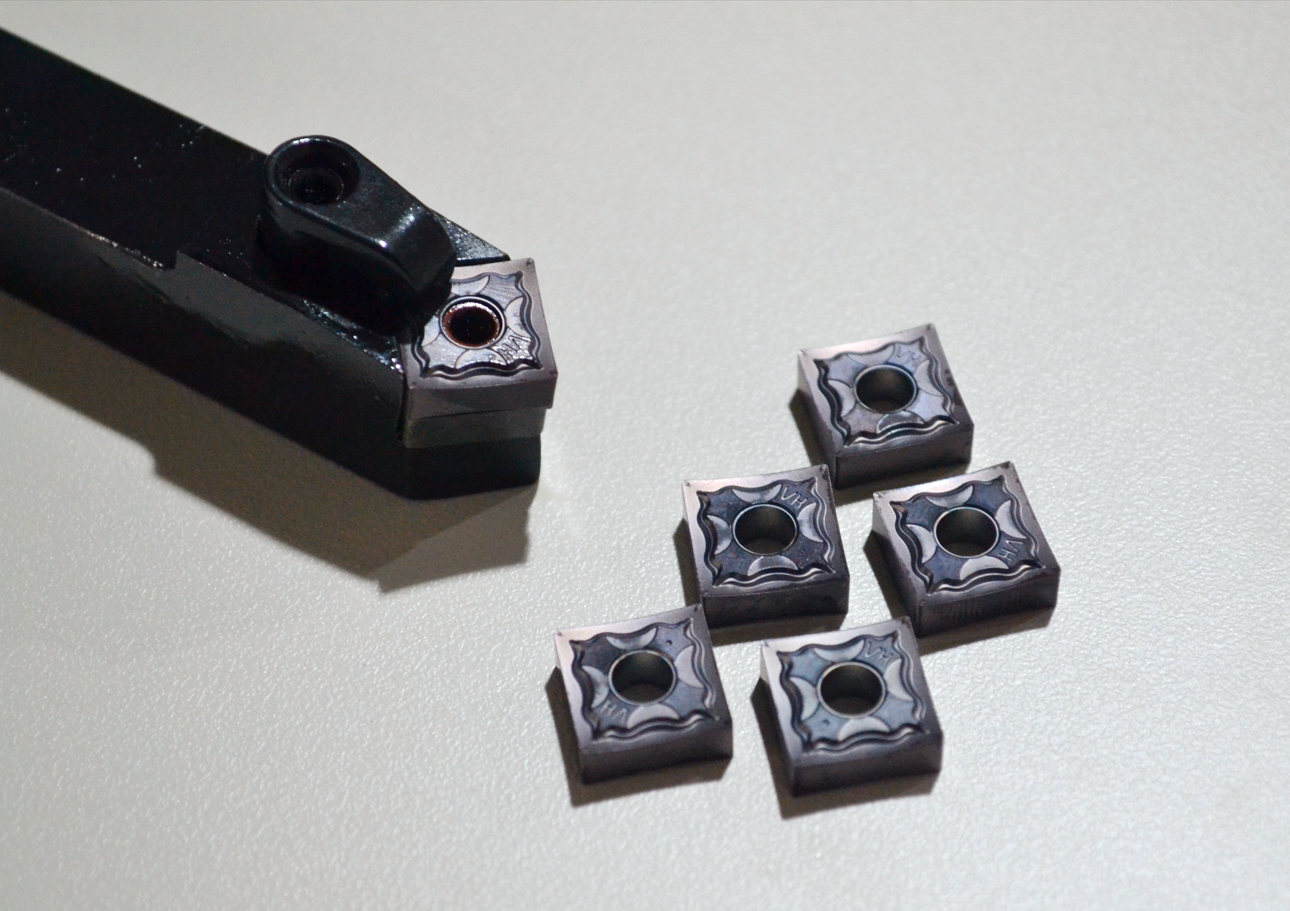

Planar Cutter for slotting stainless steel and flat aluminum.

Hardware

Feeding system

Rolling-typed continuous feeding device

Slotting system

Sweden ASSAB planning tool

Bending system

Double axis coupling bending system

Drive motor

2PCS servo motor,2PCS stepper

Machine weight

280kgs

Overall size

Machine Body:L1650 x W850 x H1650mm

Feeding Table :L500 x W500 x H1100mm



Performance

Material type

Stainless steel/Galvanized /Flat aluminum (Height:20-120mm)

Material thickness

SS(0.3-1.0mm)

Galvanized(0.4-1.2mm),

Flat aluminum(0.6-1.5mm)

Support format

AI PLT DXF

Feeding accuracy

Length ±0.1mm   Radius >10mm





Software

Motion control

ADTECH/Leetro Four-axis motion control card

Software

Auto Drive/ CBS4

Voltage

220V 50HZ 3kw

Air compressor

0.6-0.8Mpa
