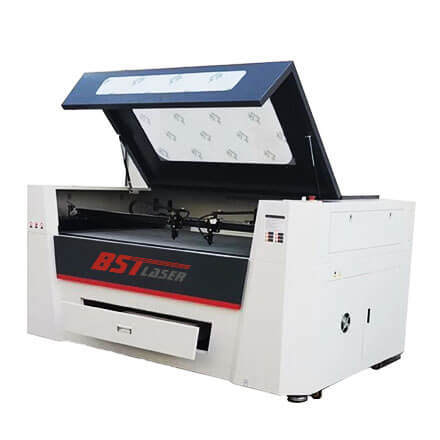

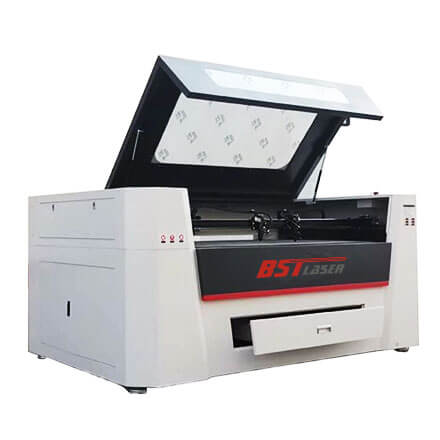

Dual Head CO2 Laser Engraving Cutting Machine
Dual Head CO2 Laser Engraving Cutting Machine

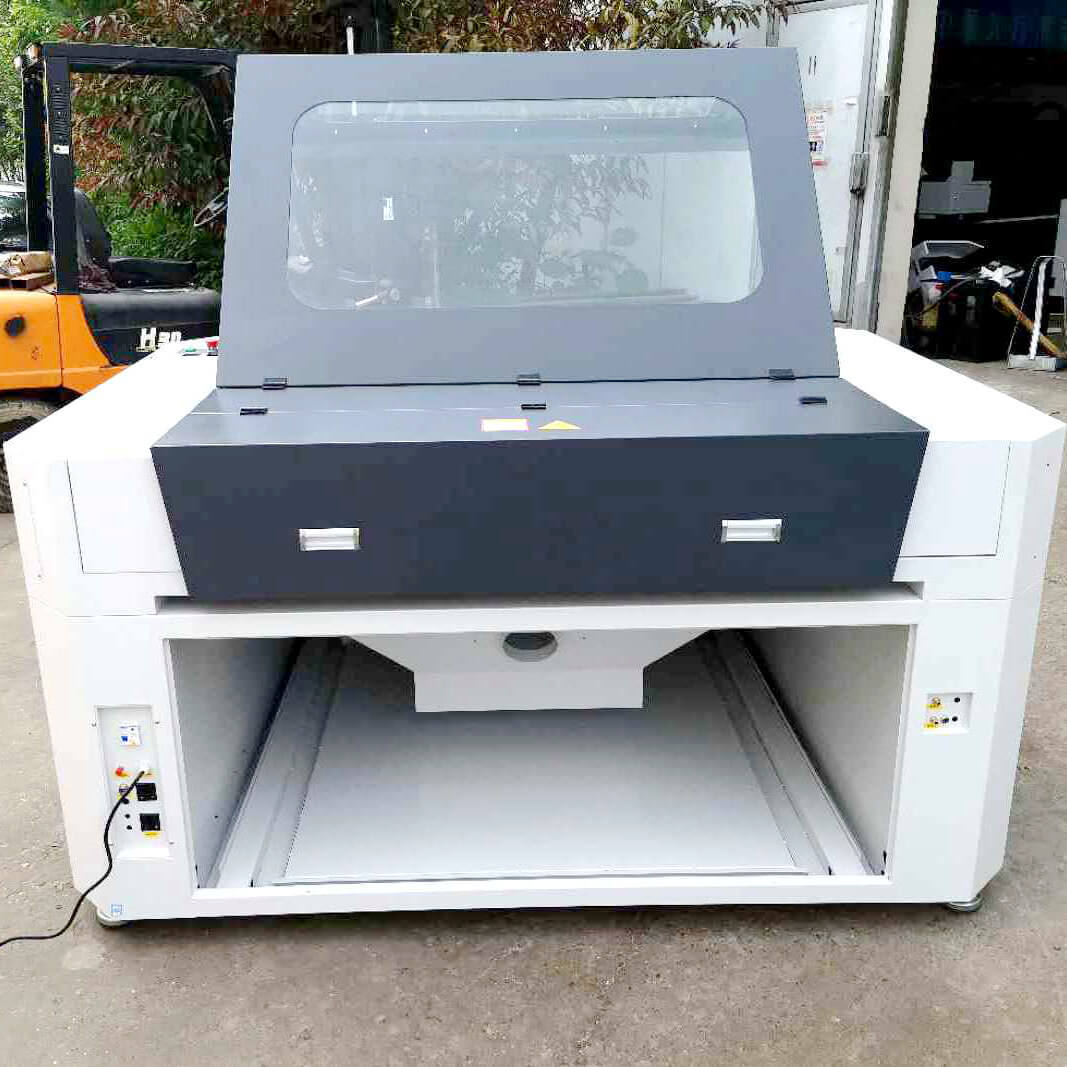

Co2 Laser Cutter Machine 8
Dual Head CO2 Laser Engraving Cutting Machine
Dual Head CO2 Laser Engraving Cutting Machine
Co2 Laser Cutter Machine 8

Dual Head CO2 Laser Engraving Cutting Machine


Category Co2 Laser Cutting Machine
Model No. BE-DK1490VII
Views 8000
Rating ★★★★★6/5 Based on 750 Votes
Price Range US$2500 – US$5500/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-10 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Dual Head CO2 Laser Engraving Cutting Machine is the perfect tool for bringing your creative vision to life. With its advanced technology and dual-head design, it can precisely cut and engrave a wide range of materials quickly and efficiently. This machine features two laser heads that can be used simultaneously for faster and more precise engraving and cutting.

With its ability to precisely etch, engrave, and cut a variety of materials, it is a great addition to any business’s arsenal of tools.

Good Features

  • Double heads that work at high efficiency and effectiveness at the same time are ideal for mass production.
  • To prevent fire, a new powerful exhausting system and double-blowing system have been introduced, ensuring the safety of the cutting and the health of the human body.
  • A CCD camera can be installed on the machine to achieve high-precision positioning and contour edge cutting.
  • The Y axis with a scientific middle drive and imported diaphragm coupling ensures high transmission accuracy.
  • Industrial water cooling system with sophisticated temperature display.
  • Strip blades and honeycomb tables are available to meet a variety of cutting needs, and they support a modular up-and-down table.
  • Using a well-known Taiwanese brand square linear guide rail. A better reduction gearbox produces less cutting vibration and offers greater cutting precision.
  • All digital 3-phase step motors and drive, whose balance (power and torque) vastly outperforms the 2-step motors utilized by the majority of our competitors.
  • 0 high-speed data transmission port, as well as PC control and DSP offline USB disk importing file capability.
  • The most recent Ruida/Trocen controlling software supports 12 languages, making it suited for global consumers.
  • If the power goes out occasionally, the machine can resume the cutting task that was started.
  • Adopting a long-life 10000h Co2 laser tube and lens mirrors imported from the United States, the laser beam is thinner, lowering the cost of operation consumables.

img_email

Parts Introduction

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Machine Structure

  • One molding, 150KG, annealed and digital CNC machine processed, bearing capacity not easily deformed
  • The frame is built of 100*100 metal tubing, which ensures excellent stability.
Dual Head CO2 Laser Engraving Cutting Machine 1

Dual Laser Cutting Head

  • The double laser heads can be configured to work together or individually depending on your processing requirements.
  • It can be fine-tuned based on the thickness of the materials.
Dual Head CO2 Laser Engraving Cutting Machine 6

LCD DSP Offline Control System

  • Adopting the most recent China Brand Ruida Controller with full number keys and other standard function keys, making operation more simple and convenient.
  • Supporting 12 different foreign languages, communication is possible without any obstacles.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Control Panel

  • With separate current and voltage displays, it is simple to determine whether the machine is normal and the exact problem.
  • The panel output voltage is 24V, which is safer for humans.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Special Exhaust System

  • Larger holes down and smaller holes up, may effectively absorb smoke and dust during processing
Dual Head CO2 Laser Engraving Cutting

Unique Working Table Design

  • Working table holder with several height levels, easily adjustable lifting height dependent on material thickness. Furthermore, two working tables (strike+honeycomb) can be conveniently placed.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Glass Laser Tube

  • CDWG is a top brand with a 10-year warranty.
  • Original label and code on that, which clients may view on the official website
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

Reflect Mirrors and Lens

  • Imported from the United States, this is the world’s first brand.
  • The transmission rate of the lens is three times that of the competition.
  • A mirror is a silicon gold dielectric film lens that is 20% more expensive than a metal molybdenum mirror.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Power Supply

  • Can provide enough laser power to the laser tube. With a 5-year lifespan and consistent performance
Compact-Co2-Laser-Cutting-M

Industrial Water Chiller

  • Adopt the CW-5000/CW5200 Water Chiller with a temperature display to protect the water circulation from power outages.

Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction img_6

Transmission System

Japan Imported NSK Bearing Transmission Lifetime prolong 5 times

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Auto Exhausting/Blowing

  • Intelligent Self-designed Design
  • Auto opening when machine working and turn off when stop
  • Exhaust Fan stop 15S/30S after machine stop processing, it ensures the smoke can be completely cleaned.
Dual Head CO2 Laser Engraving Cutting Machine 3

European Standard Circuit Layout

  • The electrical part is modularized with clear layout.
  • Strong and weak current are separated, no interference and more stable during cutting.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Guide Rail

Genuine Taiwan Hiwin/PMI Brand Linear Guide Rail which ensure high stability and accuracy.

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Loading System

Auto Front and Back through design system which ensure super-length and large materials processing such as big wood acrylic plate sheet more easily.

LEARN MORE

Application

Materials on hand:

1. The laser fabric cutting machine is commonly used in the production of clothing materials such as leather and textiles, cloth and fabric, denim and jeans, shoes and jeans, carpet and fabric, toys and toys, wool and woolen, and fabric and fabric.

2. Advertisement materials include acrylic, plastic, PVC board, rubber plate, seal, organic glass, plexiglass engraving, paper engraving, and cutting.

3. Wood materials: plywood cutting, MDF engraving, and wood engraving and cutting.

Application industries include the garment industry, trademarks, embroidery, apparel, fabric and crafts, toys, cars, mechanisms, and electrons, as well as advertisement, arts, and other fields. It is also known as a laser fabric cutting machine, a laser engraver, a Co2 laser cutting machine, and a laser carving machine.

app_BE-DK1490VII

Optional Items

BE-DK1490VII Optional Items

Motorized Up and Down System with Auto Focus Function

  • Typically thicken materials thicker than 20mm and in conjunction with a rotating system.
  • With a Separated Design, you can remove it from the machine when you don’t need the cutting performance or utilize one set on multiple machines to save money
BE-DK1490VII Optional Items

Rotary System

  • Rotary engraves cylindrical or column workpieces in a circle.
  • We have three designs to satisfy your various applications, and unique requests can be accommodated.
BE-DK1490VII Optional Items

Double Working Table for Different Application

  • Honeycomb Working Table: Designed specifically for engraving or soft material engraving cutting (like cloth, leather, silk, fabric, etc)
  • Strike Working Table: Primarily used for cutting and processing heavy materials such as wood, MDF, plexiglass, acrylic, and so on.
BE-DK1490VII Optional Items

CCD Camera System

Auto Scanning Plus Automatic Nesting Cutting printed images such as logos and photographs on t-shirts using automatic position recognition

BE-DK1490VII Optional Items

Auto Following Function

When the cutting materials are uneven, the machine can detect this and automatically adjust the focus distance.

BE-DK1490VII Optional Items

Lens Cooling System

Cooling the lens and reflecting mirrors during high power and mass production cutting extends the life of the item.

Model BE-DK14090VII
Laser Power 100W/120W/150W/180W/200W
Laser Type Hermetic and Detached Co2 Laser Tube
Engraving Speed 0-60000mm/min
Cutting Speed 0-60000mm/min
Cutting Thickness 0-25MM Acrylic (Others Determined by Materials)
Repeat Location Accuracy +/-0.0125MM
Driving Mode DC0.8A 24V Stepper Motor
Position System Red Dot
Interface USB
Mechanical Ratio 0.025mm
Voltage AC220V/50HZ or 110V/60HZ or Depend on Customer
Minimum Letter Chinese Character: 2MM, English Letter: 1MM
Machine Power ≤1500W
Power AC220V/50HZ ±15 50hz(optional 220v,60hz or 110v/60hz)
Controlling System CNC Professional Control System
Support Graphics Mode BMP DST PLT DXF AI DWG
Cooling Mode Circulation Water Cooling and Protection System
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Laser Engraving & Cutting Software
Operating Temperature 0-45C
Operating Humidity 5-95%
Packing Standard Wooden Box
Operation  Detailed Video to Teach Customer How to Operate the Machine

Package and Shipment

Model Package Size Gross Weight
BE-DK1490VII 2.21m×1.6m×1.28m, 4.53CBM 600KG
Co2 Laser Cutting Machine 9060 1 Co2 Laser Cutting Machine 9060 3 Package
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
  • Mr.Mario Delgado

    ★★★★★
    Post a review on Aug 21, 2022 From USA

    The machine’s foundation is solid and free of distortion. All components have been inspected by our specialist. It is just as promised. BST Laser is a trustworthy supplier. Buyers benefit from advantageous machine quality, after-sales service, and conditions. Purchase is recommended!

  • Charles L. McIntosh

    ★★★★★
    Post a review on Aug 21, 2022 From Canada

    We have one 150w co2 laser cutter machine with one head from others, but the speed is a little low after some years, so BST LASER Maggie suggested I buy one set dual head 180w to replace my old one, and the cutting speed improved three times faster than my old machine, which helped me save a lot of money. Thanks!

  • Mark Collins

    ★★★★★
    Post a review on Aug 21, 2022 From Ireland

    In Brazil, we resell machines. The machine used by BST Laser is unlike any other. Because the design and components are the best on the market, we chose BST as our China partner. Although the machine price is somewhat more than that of Shandong, clients gain more!

  • Antonio

    ★★★★★
    Post a review on Aug 21, 2022 From Germany

    Just got the machine! It looks more stronger than the picture. Acrylic cutting really accurate. Machine setup well in factory. It saves much time and reduces risks. BST Laser gave us big support!

  • Muhammed Jamsheed

    ★★★★★
    Post a review on Aug 21, 2022 From Morocco

    My friend introduced BST to me. We are quite satisfied with the machine, especially the technical support. It solves big problem for us. Although it is a little bit expensive, but machine quality is better than others. Really like it.:)

  • Jhonathan

    ★★★★★
    Post a review on Aug 21, 2022 From Columbia

    Since it was my first time purchasing a machine like that from China, I was a little concerned about the operation and quality. However, when I opened the machine, I was pleasantly surprised to find that it was just as strong and of the same quality as those I could have purchased locally. Additionally, the after-sales staff was extremely kind and professional, walking me through the process despite our significant time differences. I would definitely recommend them to others.
