Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Co2 Wood Laser Cutter Machine 1390
Co2 Wood Laser Cutter Machine
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Co2 Wood Laser Cutter Machine 1390
Co2 Wood Laser Cutter Machine

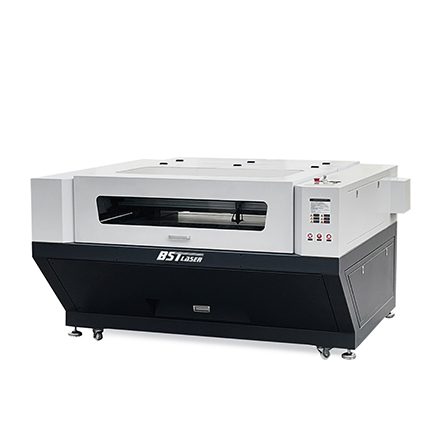

High Precision Co2 Wood Laser Cutter Machine 1390


Category Co2 Laser Cutting Machine
Model No. BE-DK1390PH /BE-DK1313PH
Views 8500
Rating ★★★★★5/5 Based on 680 Votes
Price Range US$4000 – US$8000/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 7-10 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The High Precision Co2 Wood Laser Cutter Machine is a revolutionary technology for the woodworking industry. The machine is capable of cutting any type of wood with extreme accuracy and precision. It is also capable of engraving intricate patterns and designs on wood with ease. It uses a laser beam to cut materials such as wood, acrylic, paper, and other materials. This is done by a laser beam, which is generated by a CO2 laser source. The laser beam is focused on the material to be cut and the material is then vaporized or melted.

Good Features

① Highest Precision and Fastest Speed Cutting

Japanese servo motors are full-closed, with far higher position precision than typical step motors.

Servo motors outperform step motors in terms of overloading capacity. The excellent performance of servo motors is determined by their high response, stiffness, and accuracy.

Taiwan ball screws are used for XY axis transmission, ensuring excellent precision and long-term use.

② Suitable for Heavy-duty Work

* The machine body construction is made of 5MM steel pipe that has been precisely milled three times and has been tested to be very strong and firm. After extended use, the base body maintains a stable performance with no deformation.

* Imported high precision linear guide rail and professional optical system that is dust-proof and lubricated, improving engraving quality and extending machine lifetime.

* Use China’s well-known brand S&A CW-6000 Water Chiller with temperature display to avoid overheating and preserve the water circulation from power outages.

* Fitted with high-quality USA-imported focus lenses and reflect mirrors.

③ Unique Design

It uses a self-designed scientific design that adheres to European and American high-end market standards. Small and compact dimensions, a human design with robust functionality capable of competing with global top brands!

④ Easy Operation

Offline PC control or DSP (LCD Touch Controlling Panel)

The machine is equipped with sophisticated Ruida 6445G software, which has user-friendly and strong functionality and supports 12 languages.

⑤ One Machine Multiple Use

Engraving and cutting nonmetal materials like acrylic, wood, plastic, leather, fabric, bamboo, and so forth.

Optical and Other Features:

  • Use a laser tube with a power of 300W. Better laser output mode with double-tube folding balanced cavity structure. Marble bracket with dual high voltage construction, dual power supply mode, long life and stability.
  • Support higher-power and more dependable optical lenses. The mirror silicon-based gold-plated substance has a diameter of 30mm, an industrial-grade precision optical mount, and the ability to cool the lens with water.
  • Water-cooled high-power laser head with different 20/25/30 diameters and focal lengths. The mirror and cutting nozzle heights can be flexibly adjusted.
  • The quality of the cut surface can be improved and the risk of fire can be decreased with the help of a patented laser head with double blowing design.
  • Software light control mode and motion control algorithm tuned for 300W high-speed cutting characteristics. Zero reset technology is patented.
  • CCD placement, edging, and cutting are all optional.

img_email

Parts Introduction

Machine Body

  • Steel pipe with a diameter of 5MM.
  • Durable construction.
  • Keep for 50 years without distortion.
Servo-Motor

Japanese Servo Motors and Drive

  • High level of working precision.
  • The fastest possible speed.
  • The performance remains outstanding even after extended use.
Co2 Wood Laser Cutter Machine 1390

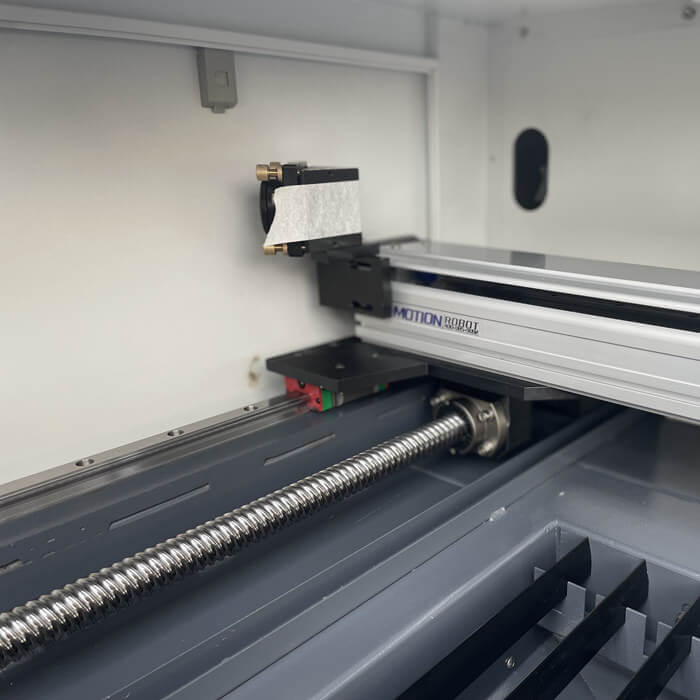

Ball Screws Transmission

  • On the XY axis, Taiwan Ball Screws are used.
  • High stiffness and strength.
  • Faster cutting.
Co2 Wood Laser Cutter Machine 1390

Laser Tube

  • Folding High Power Laser 300W.
  • It is possible to cut thick plates, such as 40MM acrylic, with this tool.
Co2 Wood Laser Cutter Machine

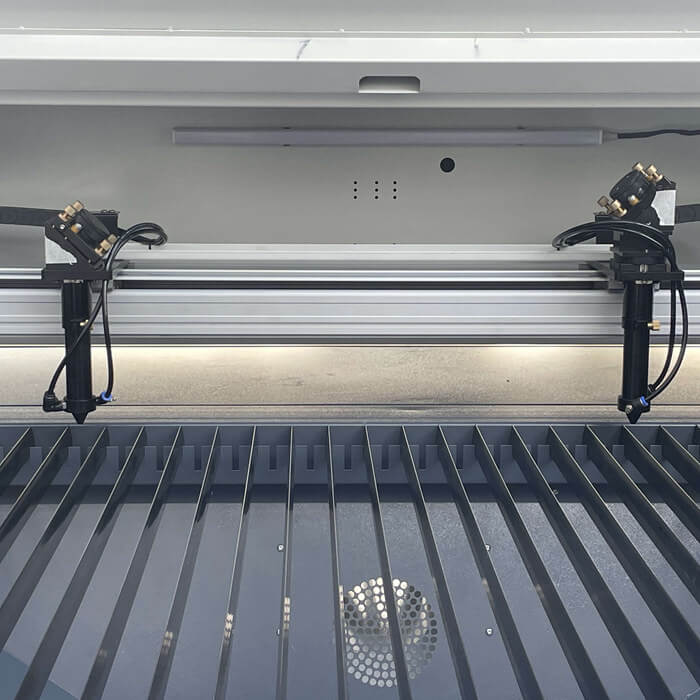

Laser Cutting Head

  • Advanced Water Cooling Laser Head.
  • Ensure a continuous working time of 48 hours.
  • A twin air blowing device is utilized to prevent a fire.
Co2 Wood Laser Cutter Machine

Scientific Switch Button

  • Operation is straightforward. Use a switch button and an ammeter to detect the operating process.
Water Chiller

Water Chiller

  • Intelligent S&A Brand CW-5200/CW-6000 Water Chiller
Co2 Wood Laser Cutter Machine 1390

Electric Circuit

  • European Standard Electric Circuit Design is compliant with safety standards.
  • Simple Checking for Troubleshooting
High Performance Laser Power Supply

High Performance Laser Power Supply

  • The LCD panel’s current display
  • Fault detection that is integrated
Co2 Wood Laser Cutter Machine 1390

Reflect Mirrors and Lens

  • The original worldwide brand, imported from the United States
  • The lens’ transmission rate is three times that of other brands.
  • Mirror is a lens made of silicon gold dielectric film that costs 20% more than a metal molybdenum mirror..
LEARN MORE

Application

A Co2 wood laser cutter machine can open up a world of possibilities for your business. It can help you cut and engrave wood, glass, paper, and more with ease and precision. With a CO2 wood laser cutter machine, you can create intricate designs, engrave logos, and more.

Co2 Wood Laser Cutter Machine

Material Engraving Cutting Material Engraving Cutting
Acrylic Cloth
MDF Paper
Wood Stone ×
PVC Marble ×
Double Color Board Granite ×
Rubber Stainless steel × ×
Leather, Fabric Carbon   steel × ×

Optional Items

Optional Items

Water Cooling Laser Head

During high power and mass production cutting, cool lenses and reflect mirrors, extending the components lifetime.

Dynamic Following System

When the materials are uneven, the machine can sense the height of the cutting materials and automatically change the focus distance.

CCD Edge Recognition System

Automatic Nesting + Automatic Scan Automatic position recognition, cutting printed images, such as logos and images on t-shirts, etc.

Model BE-DK1390VS BE-DK1313VS
Working Area 1250×900MM 1250×1250MM
Laser Power 150w 180w 300W
Laser Type Hermetic and Detached Co2 Laser Tube,10.6μm
Maximum Running Speed 40000mm/min
Maximum Working Speed 15000mm/min
Cutting thickness 300w: 40mm/180w: 30mm (acrylic )
Repeat Location Accuracy +/-0.05mm
Machine Tool Positioning Accuracy +/-0.05mm
Driving mode Japanese servo motors and drive
Graphic File Fomats Support AI, PLT, DXF, DST
Voltage AC220V/50HZ or 110V/60HZ or depend on customer
Machine Power <3KW (300W Laser Device )
Controlling System CNC Professional Control System
Support Graphics Mode BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF etc.
Cooling Mode Industrial Water Cooling System
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Laser Engraving & Cutting Software(Ruida Software)
Operating temperature Dgree: 0-45℃, Humidity: 5-75%(No Condensation)
Dimensions (L*W*H)  2100×1650×1200mm  2100×1650×1200mm

Cutting Parameters

Materials Thickness 300w Cutting Data 150w–180w Cutting Data
Cutting Speed Best Cutting Speed Cutting Speed



Acrylic

3mm 80-100mm/s 80mm/s 40-60mm/s
5mm 40-50mm/s 40mm/s 20-28mm/s
8mm 20-25mm/s 20mm/s 10-15mm/s
15mm 8-12mm/s 8mm/s 2-4mm/s
20mm 5-7mm/s 4mm/s 1-1.5mm/s
30mm 2-3mm/s 2mm/s 0.6-1mm/s
Note: Above Speed is just for you as reference, fastest cutting speed affected by materials, environment, voltage, etc. Best Cutting Speed is reference for the new laser tubes which ensure the best cutting effect.

Package and Shipment

Model Package Size Gross Weight
BE-DK1390PH 2.21m×1.75m×1.28m, 4.53CBM 900KG
BE-DK1313PH  2.21m×2.21m×1.28m, 6.25CBM 900KG
Co2 Laser Cutting Machine 9060 1 Co2 Laser Cutting Machine 9060 3 Package
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
