Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Co2 Laser Cutter for Wood and Metal
Co2 Laser Cutter for Wood and Metal
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Co2 Laser Cutter for Wood and Metal
Co2 Laser Cutter for Wood and Metal

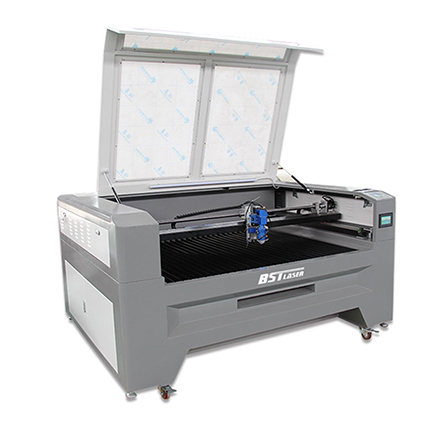

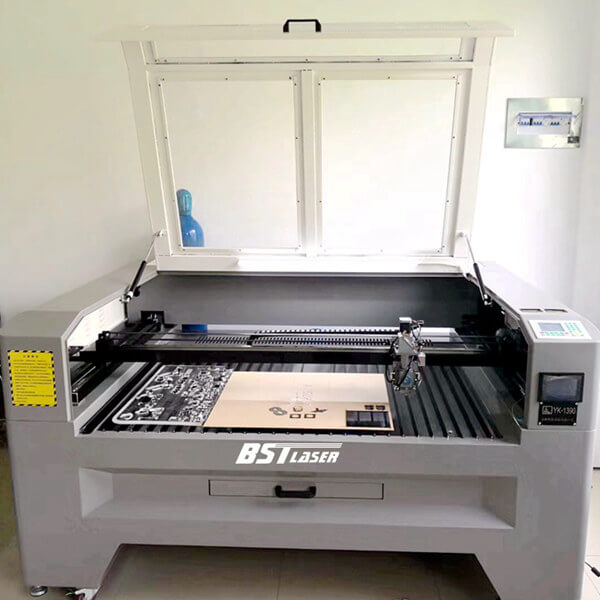

Multifunctional Co2 Laser Cutter for Wood and Metal 1390


Category Co2 Laser Cutting Machine
Model No. BE-DK1390M
Views 3500
Rating ★★★★★4.9/5 Based on 700 Votes
Price Range $6000 – $9500/Set Based on the Features
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 10-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The CO2 Laser Cutter for Wood and Metal 1390 is a revolutionary tool for cutting and engraving a wide range of materials. This laser cutter makes it possible to easily cut and engrave intricate designs on wood, metal, and other materials with precision and speed.

CO2 laser cutters, which use carbon dioxide lasers, are one type of laser cutter commonly used in manufacturing, metalworking, and woodworking applications.

Machine Feature:

  • Up to 30% is possible for extremely high photoelectric conversion efficiency. As a result, the machine consumes the least amount of electricity when compared to other laser-cutting machines with the same output power. The cutting loss is the smallest.
  • The focus spot is excellent and the cutting seam is very smooth with a high-grade laser beam from a high-power laser tube. Then efficiency and quality can improve.
  • The entire light path is made up of fiber lasers and fiber laser units that have been joined together using cable splicing technology. Furthermore, the entire light path is surrounded by a fiber laser waveguide.
  • There is no need for a laser operating gas; cutting can begin by blowing air.
  • The efficiency is consistent and reliable, and the light route does not need to be adjusted. Therefore, the machine is simple to use and maintain.
  • The machine uses less energy and water. Additionally, the device doesn’t need petrol. Thus, operating expenses are lower.
  • Optional selection with a high configuration Japan-imported servo motor and driving system with a ball screw transmission.
150w / 180w Cutting Parameters
Material Thickness Speed Auxiliary air
Carbon steel   0.5mm   40-50mm/s Oxygen
  1.0mm   30mm/s
  1.5mm   16-20mm/s
  2mm   10mm/s
Stainless steel   0.5mm   40-50mm/s Oxygen
  1.0mm   30mm/s
  1.5mm   16-20mm/s
Acrylic   20mm   2-3mm/s Air
MDF/ Plywood   10-15mm   10-15mm/s Air
80w / 300w Cutting Parameters
Material Thickness Speed Auxiliary air
Carbon steel 0.5mm 55 mm/s Oxygen
1.0mm 45 mm/s
1.5mm 30 mm/s
2.0 mm 25 mm/s
3.0mm 10 mm/s
Stainless steel 0.5mm 60-70mm/s Oxygen
1.0mm 50mm/s
1.5mm 25-30mm/s
2.0mm 15 mm/s
Acrylic 20mm 3-5 mm/s Air
MDF /Plywood 10-15mm 15-20 mm/s Air

img_email

Parts Introduction

Co2 Laser Cutter for Wood and Metal

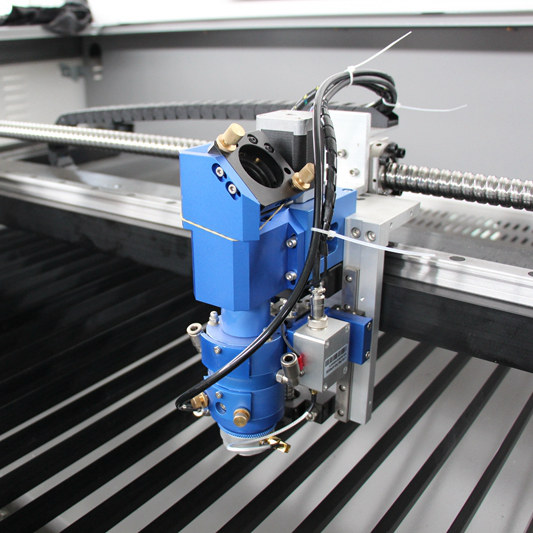

Auto-focus Metal Sheet Laser Cutting Head

  • The dynamic focus laser cutting head can adjust the focusing distance automatically even if the metal sheet is not flat. Recognize the precision of the cutting effect.
Co2 Laser Cutter for Wood and Metal 1390

Ruida Controlling System

  • The most recent version of the laser engraving/cutting control system, with improved hardware stability and resilience to high voltage and static electricity.
  • The human-machine operating system, which is based on a 5-inch color screen, offers a more user-friendly interface and more powerful functions.
300w Co2 Laser Cutter

Co2 Beam Combined Laser Device

  • Adopted proprietary technology, integrated light combining device, to concentrate light energy and increase beam quality.
  • Single tube output and double tube synchronous control are available, as well as continuously adjustable power output.
  • All-metal construction provides more extensive protection.
  • The lifetime of kovar sealing technology and inner catalyst is over 10000 hours.
Co2 Laser Cutter for Wood and Metal 1390

Advanced Colorful LCD Screen+ USB Port+ DSP Offline Control

  • Metal and non-metal cutting parameters are supported. U disk and USB connectivity are supported.
Co2 Laser Cutter for Wood and Metal

High Density Blade Strip Working Table

  • We use a high-density thickened blade strip working table to ensure a heavy loading weight when cutting thick materials like wood, stainless steel, acrylic, and MDF. It enables long-term non-deformation and precision cutting.
Co2 Laser Cutter for Wood and Metal 1390

Electric Cabinet

  • The laser power supply, motors, and driver are all built in the correct order. The wire connection and screws are considerably stronger and more difficult to loosen. Quality is comparable to German machines.
Co2 Laser Cutter for Wood and Metal 1390

Thicken Machine Bed and Body

  • Adopt a thicker machine bed that is at least two grades higher than a standard co2 laser for severe loading.
  • It’s not easy to become twisted.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

Reflect Mirror& Lens

  • High-quality imported lenses from the United States offer more precise beam focusing, finer beam, and longer life.
300w Co2 Laser Cutter 1325

Industrial Water Chiller

  • Adopt the CW-5000/CW5200/CW-6000 Water Chiller with temperature display to protect the water circulation from power outages.
High-Performance-Power-Supply

High Performance Power Supply

  • With the Ampere Meter shown on the LCD screen
  • Integrated fault detection



LEARN MORE

Application

CO2 Laser cutters are powerful tools that can be used to cut both wood and metal materials. This type of technology can be used for a variety of applications, from engraving logos to cutting intricate shapes. The laser cutter is operated with a laptop, which allows for precise control over the cutting parameters. This technology enables users to cut and engrave intricate shapes and designs with precision, accuracy, and speed.

Acrylic, stainless steel, carbon steel, MDF, and die board is all acceptable materials.

Metal spectacle frames, furniture plate cutting, MDF photo frame cutting, and building model cutting are all examples of applicable shows.

Material Cut Engrave Material Cut Engrave
Acrylic | Plexiglass | PMMA | Perspex Organic board | Double color sheet
Wood | Plywood | Veneer | MDF | Balsa Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather
Fabric | Cloth | Textile Carpet | Mat | Rug | Wool Felt
Paper | Cardboard | Chipboard | Press Board Ceramic | Tile | Marble | Glass
Plastic Fiber Glass | Filter Cloth

Co2 Laser Cutting Machine application

Co2 Laser Cutting Machine application

Optional Items

1390 Optional Items

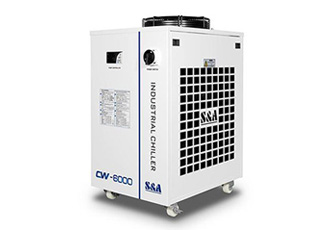

CW-6000 Industrial Water Chiller

Large industrial water chiller to maintain machine stability and long-term operation (often for power >300w).

1390 Optional Items

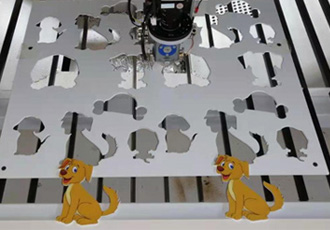

Auto CCD Recognition System

Automatic Nesting+ Auto Scanning+ Auto position recognition, or cutting a printed image, such as a logo or a picture on a t-shirt, etc.

1390 Optional Items

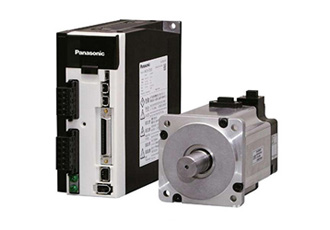

Servo Motor

The standard configuration includes a three-phase step motor and a servo motor, which ensures great cutting precision and low noise.

1390 Optional Items

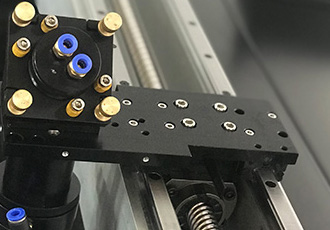

Ball Screw Transmission

While belt transmission is the industry standard, ball screw transmission ensures good cutting precision while processing at high speeds.

ModelWorking  BE-DK13090M
Area 1300*900mm
Laser Power 150w 180w 260w 300w
Laser Type CO2 Sealed Laser Tube, 10.6um
Transmission Method & Driving System High Precision Ball Screw Transmission
Japan Imported Yaskawa Servo Motor and Driving System
Cooling Type Water Cooling,150w-180w Machine use CW-5200, 260w-300w Machine use CW-6000
Working Table Stainless steel knife table
Laser Output Control (0-100% Set by Software )
Smallest Character Engraving Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision
4000DPI
Positioning Accuracy ±0.02mm/m
Positioning Speed 20m/minMax.
Cutting Thickness 40mm
Controlling Software DSP Control System
Graphic Format Supported BMP, PLT, DST, DXF, and AI, etc
Compatible Software CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipment Exhaust Fan and Air Exhaust Pipe
Working voltage AC110-220V ±10%/10A,50-60HZ

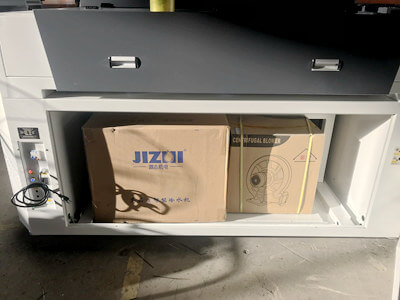

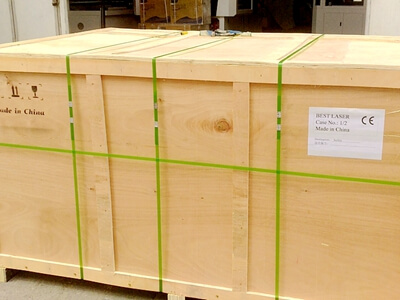

Package and Shipment

Model Package Size Gross Weight
BE-DK1390M 2250x1650x1420mm, 5.272CBM 800KG
Co2 Laser Cutting Machine 9060 1 Co2 Laser Cutting Machine 9060 3 Package
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
