3d Channel Letter Bending Machine

Product Details

Flat Alumiunm Stainless Steel Letter Bending Machine

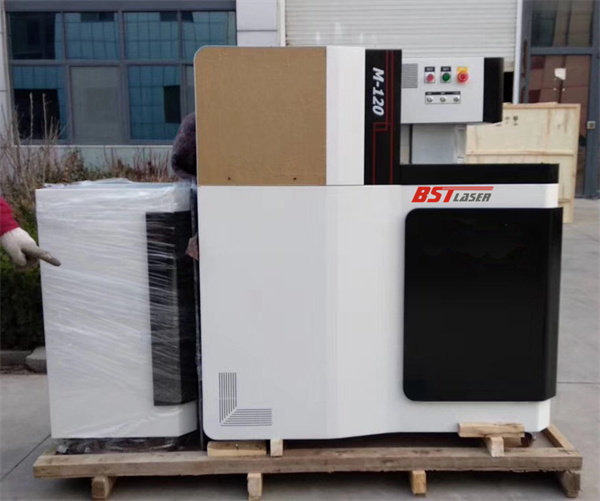

Steel Bending Machine M120

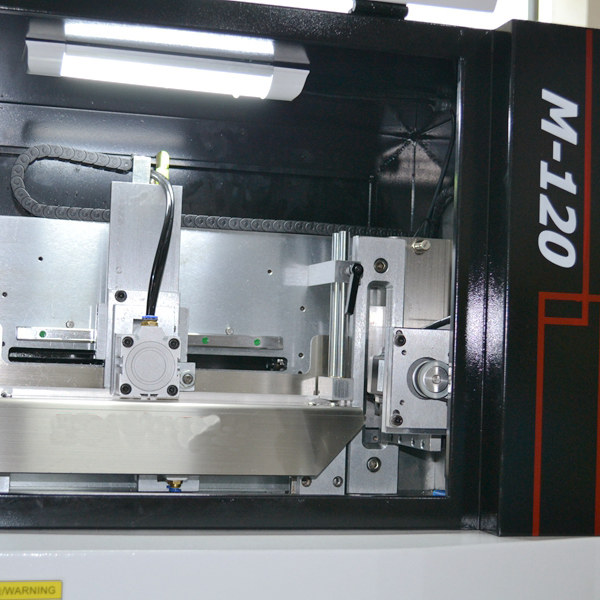

Stainless Steel Letter Bending Machine 3
Stainless Steel Letter Bending Machine 4
Flat Alumiunm Stainless Steel Letter Bending Machine
Steel Bending Machine M120
Stainless Steel Letter Bending Machine 3
Stainless Steel Letter Bending Machine 4

Automatic Flat Alumiunm Stainless Steel Letter Bending Machine


Category: Channel Letter Bending Machine
Model No.: BEL-M120
Views: 7000
Rating: ★★★★★5/5 Based on 1000 Votes
Price Range: US$4000 – US$6000/set Based on the Features
Payment Term: T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time: 10-15 Days
Shipping: Sea/Train/Truck
Warranty Period: Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A Flat Aluminum Stainless Steel Letter Bending Machine is a great tool for any fabrication shop or sign shop. It can be used to quickly and accurately bend letters, logos, and other shapes out of sheet metal. The machine is easy to use, requires minimal setup, and can be used to make a variety of shapes. This machine is capable of bending aluminum, stainless steel as well as other materials making it an invaluable tool for a wide variety of projects.

Machine Feature:

  • Mechanical arm alternately feeding structure ensures quick feeding speed and no material deformation.
  • Flat aluminum from 1.5 mm stainless steel to 0.6 mm flat aluminum can be held with ease by a ball screw and servo motor transmission.
  • Material bending height: 20 to 120 mm
  • The act of bending Thickness: stainless steel 0.3—2mm, galvanized sheet 0.4—1.2mm, flat aluminum 0.6—1.5mm.
  • Forming alloy knives avoids the need for grinding and provides a longer lifespan.
  • At its most extreme, the telescopic shaft bending machine is capable of achieving tiny-degree arc bending.
  • Various vector file formats such as AI, PLT, DXF, NC, and others are supported.

Parts Introduction

Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

Indicator and Function Press Button

  • Each standard function has a clear button, making the entire action simple.
  • By pressing a switch button, you can easily choose between bending stainless steel and aluminum materials.

Closed loop feed feedback system

  • It is driven by two screw rods and positioning nuts and controlled by a servo motor to provide genuine material feeding accuracy to 0.1mm. It overcomes sliding issues and is independent of the roller pressure feeding type
Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

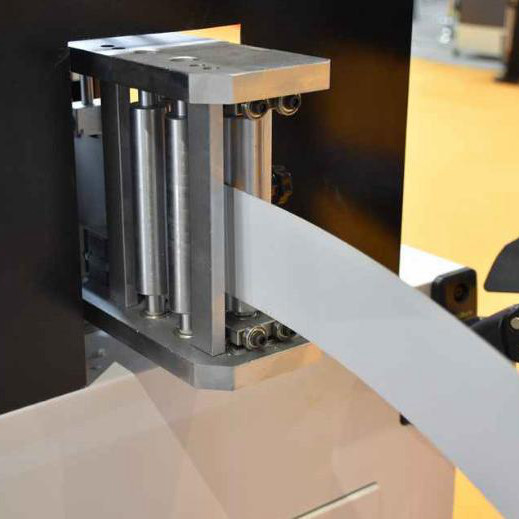

Double-axis Alternating Telescopic Bending Structure

  • The short arc and small angle forming degree are quite high, which can avoid the interference phenomena of the bending axis to the greatest extent.
Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

Ball Screw Drive Alternate Feeding Structure

  • The double-axis alternating telescopic bending mechanism automatically replaces the bending axis based on the inner and outer arc changes of the figure, so avoiding the bending axis interference phenomenon to the maximum extent possible.
  • The control software contains a built-in multi-point slotting capability that allows for a small arc and a high-angle forming degree.
  • It may effectively thin the thickness of the material and allow for easy bending.
Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

Standardized wiring and IO Integrated PCB

  • The electrical control portion has a precise design and an integrated circuit board, which allows the electrical section to be modularized.
  • A simple layout that allows for easy classification. The circuit component is separated with strong and weak electricity, resulting in less interference and greater stability.
Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

Korea Imported Plane Cutter for Stainless steel

  • Using Korea-imported strong alloy knives eliminates the need for grinding.
  • When the material is bent, the round tip structure increases its toughness.
Flat Alumiunm Stainless Steel Letter Bending Machine Parts Introduction

Ball Screw Transmission and Servo Motor Control

  • Ensure high precision, high torque, and quick speed.
  • Can readily support flat aluminum ranging in thickness from 1.5 mm stainless steel to 0.6 mm flat aluminum.
LEARN MORE

Application

The M120 bending machine is powered by an arm clamping mechanism and a servo motor. This type of machine is perfect for commercial signage applications and can help you save time and money by eliminating the need for manual labor.

It can readily grip flat aluminum ranging from 1.5 mm stainless steel to 0.6 mm flat aluminum. The hassle of grinding is removed with alloy knife forming. At its most extreme, the telescopic shaft bending mechanism can achieve tiny degree arc bending.

 Stainless Steel Letter Bending Machine 1

img_email

Optional Items

Optional Items_Auto Flange Channel Letter Bender Machine_1

Industrial PC system with tested settings and properly installed applications for immediate use

Optional Items_Auto Flange Channel Letter Bender Machine_2

Air Pressure :0.6-0.8mpa, you can prepare by yourself or with the help of a machine.

Planar Cutter for slotting stainless steel and flat aluminum.

Category Feeding system Rolling continuous feeding structure(Closed loop self-test system)
Slotting system Ball Screw Transmission, Korean KORLOY  Slotting Knife/Pneumatic lifting rotary milling cutter structure (Reversible swing knife)
Bending system Two-axis linkage arc system/ Two-axis linkage copper shaft roller extrusion system(Non-scratch material)
Driving motor Servo motor 2 set; stepper motor 3 set
Weight 340kg
Dimensions Body: L1500mm×W850mm×H1550mm; Feeding Table: L500mm×W500mm×H1100mm


Performance


Material category Aluminum profile, stainless steel, galvanized sheet flat aluminum (20—150mm)
Material thickness Stainless steel  0.3—0.8mm
Galvanized sheet 0.4—1mm
Aluminum profile 0.6—1.5mm
Support format AI PLT DXF NC
Feeding accuracy Length±0.1mm; Radius>10mm


Sfotware


Control card ADTECH/Leetro Four-axis motion control card
Software system Autodrive/CBS4 auto bending system
Input voltage 220V 50Hz 3Kw
Air pressure 0.6-0.8Mpa

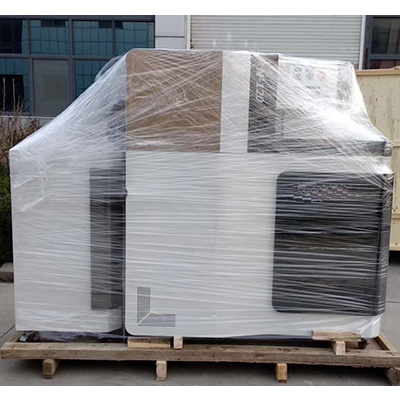

Package and Shipment

Model Package Size Gross Weight
BEL-S150 210cm×81cm×165cm,2.807CBM 350KG
Channel Letter Bending Machine BEL-M120 2 Flat Alumiunm Stainless Steel Letter Bending Machine Package

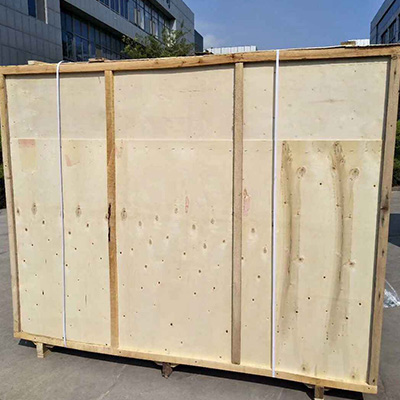

Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craft case.



  • Hossein Azimi

    ★★★★★
    Post a review on Aug 21, 2022 From UK

    The machine offers good, straightforward software and performance and a sound structural design.

  • Muhammad Tayyab

    ★★★★★
    Post a review on Aug 21, 2022 From UK

    It is a powerful piece of equipment that has lured many potential customers to my firm and is highly recommended to those looking to enter the sign industry

  • Ermal Alushi

    ★★★★★
    Post a review on Aug 21, 2022 From Italy

    We don’t have any technical assistance for the trim cap channel letter bending machine BEL-A200 right now, but it works fine

  • Josef Helmlinger

    ★★★★★
    Post a review on Aug 21, 2022 From Chile

    The trim cap channel letter bender machine BEL-A200 is functioning, however we do not have technical support at this time

  • Fredy Lasso

    ★★★★★
    Post a review on Aug 21, 2022 From Spain

    Your letter-bending gadget is excellent, and I owe you and your company a great debt of gratitude.

  • Fredy Lasso

    ★★★★★
    Post a review on Aug 21, 2022 From France

    The machine is working perfectly. I’ll recommend it to my friends.

  • Ernesto Reyes

    ★★★★★
    Post a review on Aug 21, 2022 From USA

    High quality machine. I want to thank supplier for her support and enormous help during purchase.
