High Precision CNC Aluminum Profile Channel Letter Bender Machine


Category: Channel Letter Bending Machine
Model No.: BEL-A130S
Views: 5500
Rating: ★★★★★5/5 Based on 1000 Votes
Price Range: US$3000 – US$4500/set Based on the Features
Payment Term: T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time: 7-10 Days
Shipping: Sea/Train/Truck
Warranty Period: Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The A130S is the greatest Aluminium Channel Letter Bending Machine / Letter Bender for Flat and various types of aluminum Profiles, the ideal choice for manufacturing profile letters and the unbounded letter. With a servo motor and a telescope bending mechanism, it has a high bending torque and a high forming degree. Which can bend 1.2mm aluminum profiles and small letters with flawless bending results.

A precision aluminum profile channel letter bender is a machine designed to bend aluminum profile strips into desired shapes. The bender works by applying force to the profile strip and bending it into the desired shape. The profile strips are typically used in the manufacturing of signage, such as channel letters and other types of signs.

Machine Feature:

  •  External stand-alone Encoder and Omron High Performance sensors, More sensitive reactions and Longer service life.
  • All-in-one aluminum die Casting feeding rack, more stable and higher accuracy.
  • Double-side swing milling cutting to make the notching 45-160 Degree automatically.
  • High bending precision for flat aluminum strips, aluminum profiles, and channelume coil, etc.
  • Slotting Adjusted by software, more convenient and accurate .
  • The electrical parts are modularized, Taiwan MW power supply, Delixi electrical components, strong stability.
  • Adopt servo control, circulating clamping and feeding system with diamond powder spraying process ensure high precision and fast speed.
  • Double Axis telescopic bending system  make sure high degree of small arc and small angle forming.
  • With a unique material reminder function to ensure that the material is not wasted through shearing; wrong alarm reminder function to protect machine.

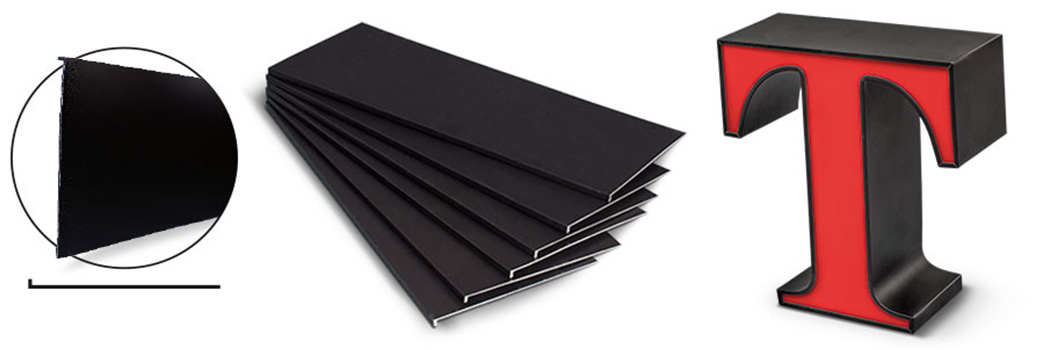

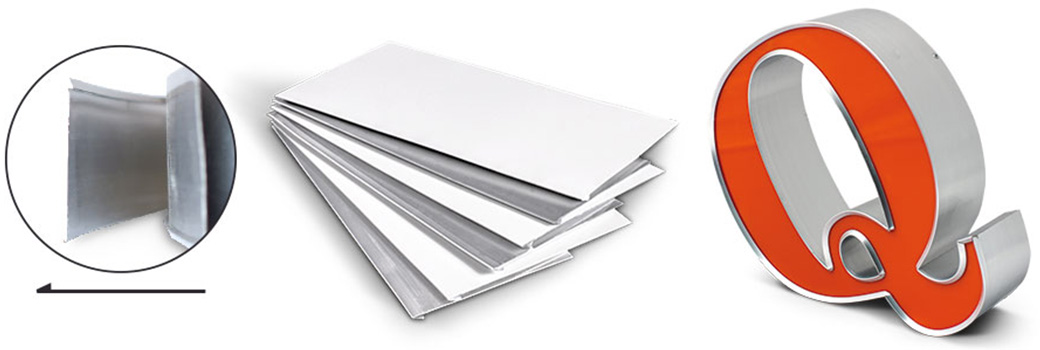

Precision Aluminum Profile Channel Letter Bender PRODUCT DETAILS Precision Aluminum Profile Channel Letter Bender PRODUCT DETAILS

Parts Introduction

Aluminum Stainless Steel Letter Bending Machine 2

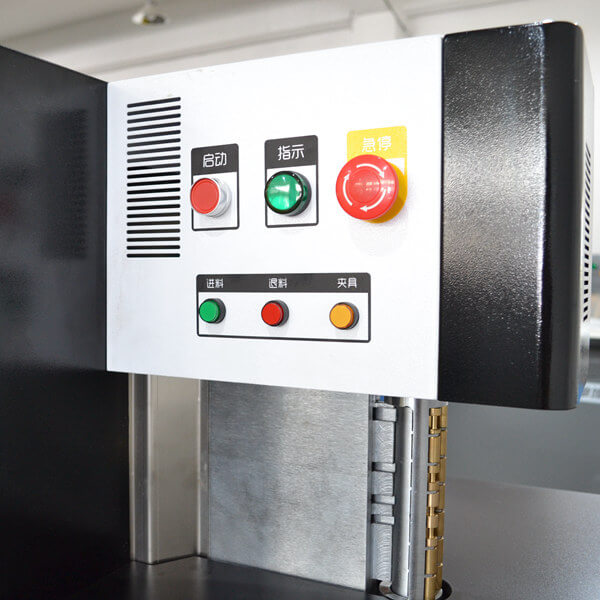

Indicator and Function Press Button

Each standard function has a clear button, making the entire action simple.

Precision Aluminum Profile Channel Letter Bender Parts Introduction

Manual Screw Fastening Clamping

More Consistent and Accurate

Precision Aluminum Profile Channel Letter Bender Parts Introduction

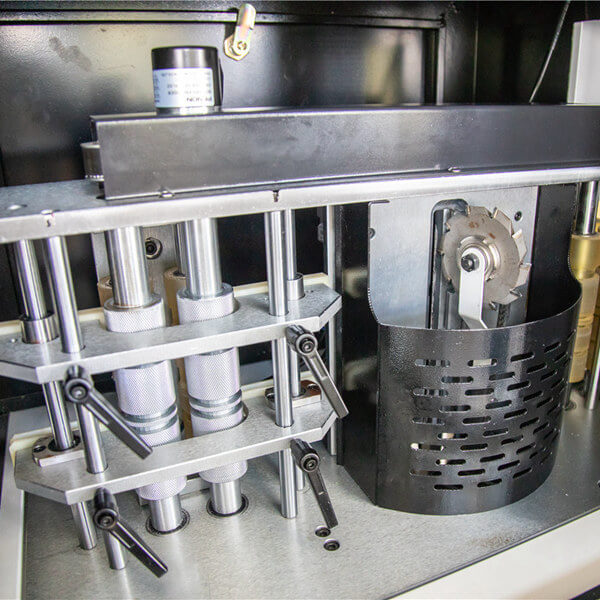

Swing Milling Cutter 45-135 degree

Can cut aluminum with 360-degree angles and get a “V” cut

Channel Letter Making Machine 6

Push-in IO integrated PCB

There is less interference, and the technology is more stable.

Precision Aluminum Profile Channel Letter Bender Parts Introduction

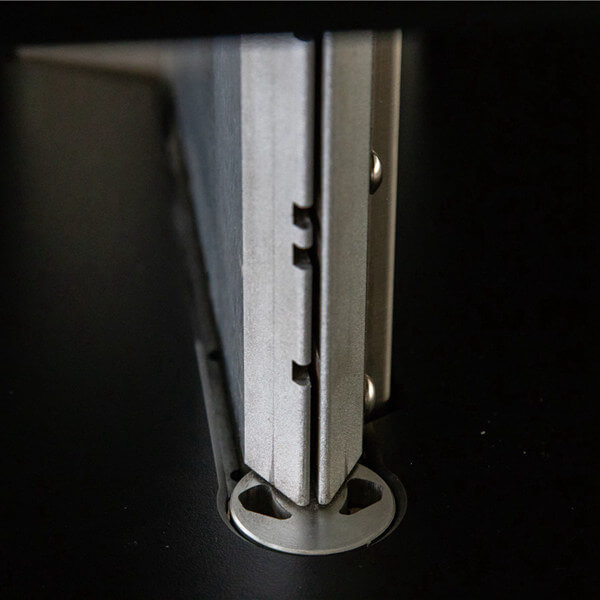

Telescopic Bending System

Especially for small arc letters and complex designs.

Precision Aluminum Profile Channel Letter Bender Parts Introduction

Electric Slotting Depth Adjustment

More precise and convenient

Channel Letter Machine

Closed Loop feed feedback system

Ensure that the finished letter and graphics design are the same.

LEARN MORE

Application

Precision aluminum profile channel letter benders are widely used in industries such as sign-making, automotive, and aerospace. These tools allow for the production of high-quality lettering on various materials, such as aluminum, stainless steel, and other metals.

Relevant Industries: Advertising industry (Logos, signs, neon signs, billboards, light boxes production, outdoor advertising, and other advertising production).

Suitable Material 20-130mm wide Thickness:0.4-1.5mm Flat aluminum strip, single folded edge aluminum, double folded edge aluminum, aluminum profiles, and thin stainless steel bending are some of the materials used.

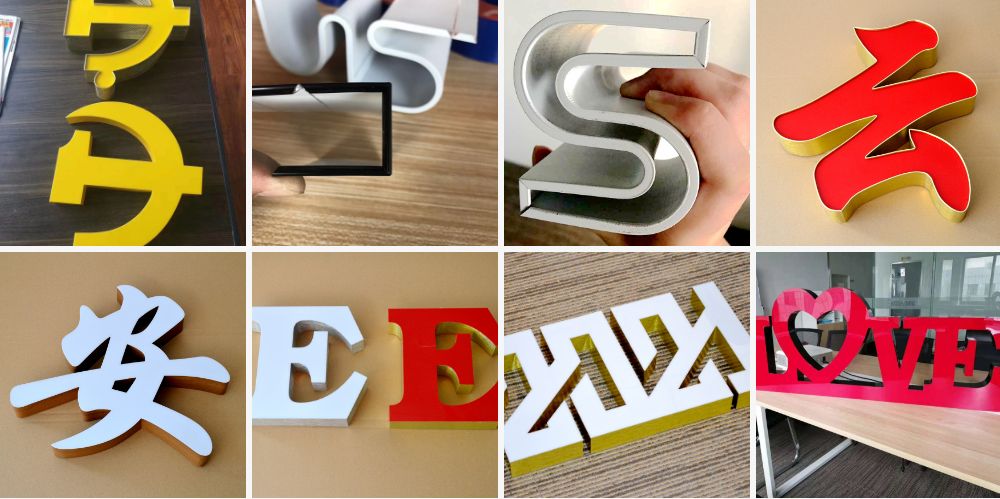

Channel Letter Bending Machine application

img_email

Optional Items

Optional Items_Auto Flange Channel Letter Bender Machine_1

For direct use, an industrial PC system with well-installed applications and validated specifications.

Optional Items_Auto Flange Channel Letter Bender Machine_2

The air pressure ranges from 0.6 to 0.8 mpa, and you can prepare it yourself or purchase it using a machine.

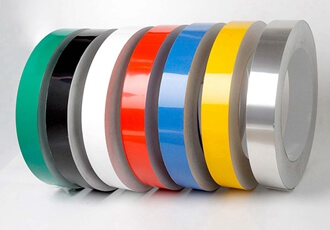

aluminum coils for channel letter

High-quality aluminum coils with various specifications are available as an alternative.

Hardware Feeding system Rolling continuous feeding structure(Closed loop self-test system)
Slotting system Pneumatic lifting rotary milling cutter structure
Bending system Double Axis Telescopic Bending system
Motor Three-phase stepper motor 2 set;
Two-phase stepper motor 1 set;
Servo Motor 1 set;
DC brushless motor 1 set
Weight 330kg
Dimensions L2000mm×W700mm×H1450mm


Performance


Bending Height Folded Aluminum, Flat Aluminum and all kinds of custom aluminum profiles (height 20mm-130mm)
Bending Thick 0.5-1.5mm
Format Supported AI PLT DXF
Feeding accuracy Length±0.1mm; Radius>10mm


Sfotware


Motion control Leetro four-axis motion control card
Software system AutoDrive Automatic Bending System
Input voltage 220V 50Hz 3Kw
Air pressure 0.6-0.8Mpa

Package and Shipment

Model Package Size Gross Weight
BEL-A130S 185cm×89cm×166cm, 2.733CBM 400KG

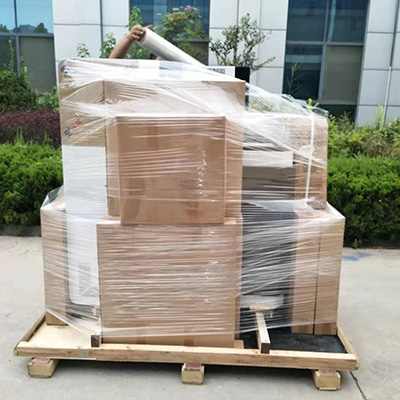

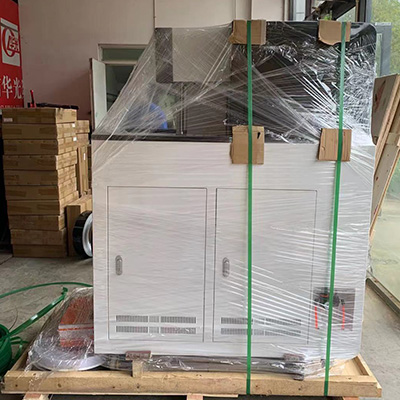

Precision Aluminum Profile Channel Letter Bender package-1 Precision Aluminum Profile Channel Letter Bender package-2 Precision Aluminum Profile Channel Letter Bender package-3
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craft case.
