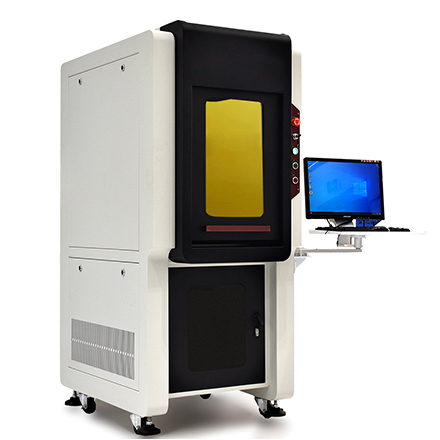

Metal Fiber Laser Engraving Cutting Machine
Metal Fiber Laser Engraving Cutting Machine

Enclosure 50W 100W Jewelry Metal Fiber Laser Engraving Cutting MachinE


Category:

Fiber Laser Marking Machine

Model No.:

BE-F40D

Views:

59600

Rating:

★★★★★5 /5

Price Range:

US$5000-US$9800/set

Payment Term:

T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance

Production Time:

10-15 Days

Shipping:

Sea/Train/Truck

Warranty Period:

Three Years with Lifelong Free Service



  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS
  • Safety enclosure prevents human eyes body from laser radiation, and ensures operators healthy comfortable working environment.
  • Big dimension allows large space for different marking options.
  • Equiped with 50W 100W high power fiber laser source, this new design fiber laser marking machine enables to do large size marking/deep engraving/cutting on metal and some nonmetals.
  • As fiber laser source burst out very powerful laser beam instantaneously, it is non-contact, green, and permenent marking which not destroying the base material.
  • It is widely used in aluminium, gold, silver, platinum, titanium, brass, tungsten, carbide nickel, stainless steel, chrome copper and nonmetals like ABS, PBT, silicon, ABS, PS, polymer etc.

Good Features

◆  Class I Enclosure:Full safety enclosure protects human eyes from laser radiation and prevent laser head from dust.

  Motorized Z-axis:It allows to adjust focal distance easily for different marking application.

  High Precision Marking:Equip with advanced fiber laser source, generating thin powerful laser beam and realizing high precision marking

Long Lifespan and Low Operating Cost:Fiber laser source lifetime over 100000 hours, almost free of maintenace and no consumables

  Fast Marking Speed:Different from other traditional marking machine, powerful laser source integrating high speed galvo head to realize instantaneous marking

◆  Intelligent Sofware:Most popular Ezcad professional marking software to ensure flawless and procise marking

◆  PC Included:Controlling PC included with software and parameters setup well. Provide big convenience to operators.

img_email

Parts Introduction

Full Safety Enclosure

  • It protects human eyes from laser radiation
  • It ensures the laser head clean and avoid marking process from dust, especially under bad working environment.
  •

Fiber Laser Source

  • The world’s most famous fiber laser source has a lifetime of over 120,000 hours, no consumables, and is maintenance-free with consistent quality.
  • To achieve high precision marking, an extremely thin laser beam and great laser focusing capacity are required.

High Speed Galvo Head

  • The well-known Sino-galvo digital scanning head, with a maximum speed of 8000mm/s, ensures stability and efficiency while meeting industrial marking requirements.
  • High sensitivity, high precision positioning, and powerful anti-interference capabilities.

Operation Buttons

  • Urgent Stop: If an error occurs during marking, the operator can stop the machine by pressing the red urgent stop button.
  • Key Switch: Laser Head
  • Laser: Laser On/Off
  • Up/Down: Control the laser head go up and down, to adjust laser focus.

  •

Controlling PC

  • Brand new computer
  • Software and parameters set up well on the PC.
  • It saves time and energy for operators to set up parameters.

Alarm Light

  • Power saving and small consumption
  • It indicates the working status
  • Long lifespan

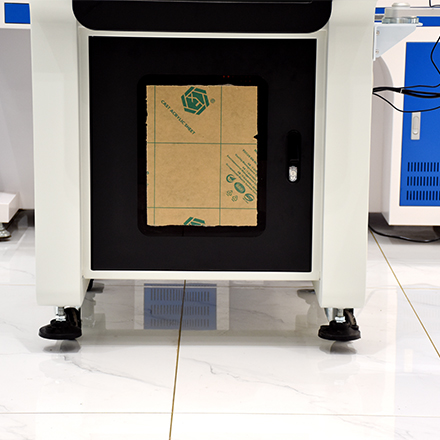

Safety Door

  • Observation window allows to watch the marking process.
  • It ensure safety and convenience for operators.

Large Space

  • Big working space ensures multiple marking options.
  • No matter big object or small object, the big space allows flexibility

Computer Holder

  • Scientific design meets human ergonomics.
  • Computer installed on the metal rack, which saving space.

Electronic Parts

  • Taiwan famous brand MW power supply, which supply stable power to different parts.
  • Scientific wiring

Power Connection Ports

  • Machine equips with ground wire for safety.
  • Reasonable button layout

Exhaust Fans

  • Big exhaust fans ensure the machine excellent cooling effect
  • Powerful and low noise

Rolling Wheel

  • It helps moving the machine easily.
  • Strong bearing load
  • Good abrasion resistance
LEARN MORE

Application

  • Hardware tools, auto parts, sanitary ware, medical equipment, communication equipment, glasses clocks, instruments, bamboo and woodware, clothing, food, beverage, packaging, handicrafts, PCB, bearings, nameplate marking, bar code, two-dimensional code Identification and marking, wood, wooden handicrafts, shells, rubber products and keyboard marks, leather, clothing accessories, medicine, mobile phone keys, plastic transparent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, signs, sanitary ware, hardware products, tool accessories, fine instruments, glasses and watches, jewelry, luggage buckles, knives, locks, cooking utensils, stainless steel products, PVC pipes and other industries.
  • The practical materials include: ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), rare metals and alloys (gold, silver, titanium), metal oxides, special surface treatment (phosphating, aluminum anodization, electroplating surface), ABS material (electric appliance shell, daily necessities),epoxy resin (electronic component packaging, insulating layer).

Optional Items

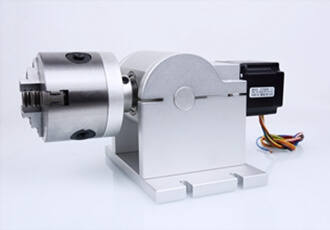

Rotary Device(65mm, 80mm, 100mm diameter)

  • Rotary device can hold the round object and rotate when marking. It realizes rotary working.

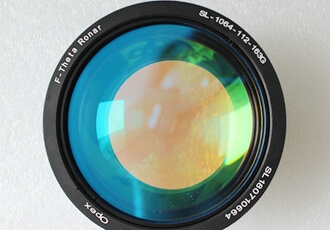

Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)r

  • The machine need equip with different focus lens if marking size different.
  • Also, marking size different, power and laser spot size vary.

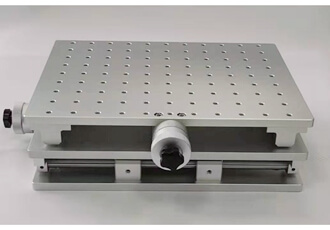

Working Table

  • It helps to adjust the focus distance.
  • XYZ axis can be adjusted up and down flexibly.

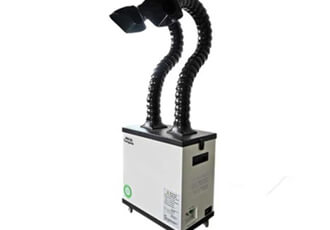

Fume Extractor

  • To protect the environment and human’s health, the fume extractor can clean the fumes and dust occurred when working.

Cutting Fixture

  • This cutting fixture helps correction the metal plate and fix the thin plate without deformation, especially for gold plate, holographic foil etc.

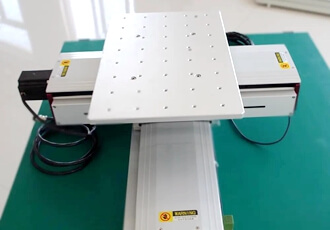

XY Electric Moving Table

  • It works when marking on big size material. It can divide the marking job into several times.
Model BE-F40D
Laser source Raycus brand (IPG, MAX, JPT optional)
Laser power 20W 30W 50W 100W
Weave length 1064 nm
Marking area 70*70mm,110*110mm,175*175mm,220*220mm,300*300mm
Laser repetition frequency 20KHZ-80KHZ
Beam quality 1.5 M²
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Double Red Pointer
Laser Source Life Span More than 120,000 hours
Control software JCZ EZCAD
Supported Format Bitmap: BMP, JPG, JPEG, GIF,TGA, PNG, TIF, TIFF  Vector: AI, PLT, DXF, DST, SVG,JPC, NC, G, BOT, GBR
Control board ORIGINAL BJJCZ
Operating Voltage AC220V/50HZ/ or AC110V/60HZ
Gross Power ≤500W
Supported Windows Windows
Certificate ISO, CE, FDA
Material can be processed all metal material and part of non-metal material, such as hard plastic
Others USB cable for connection, U flash disk with software and English manuals and install video.
After-sales Service Three years warranty for machine.Whole life maintenance. We offer overseas engineer service if needed. We accept user to our factory for free training.
Packaging Standard Export Plywood Box
Plug European/America/UK/International different Plugs
Net Weight 240kgs
 Gross Package weight 307kgs
Packaging Dimension 123*90*203cm

Package and Shipment

Model

Net Weight

Package Size

Gross Weight

Volume

BE-F40D

240KGS

123×90×203CM

307KG

2.2CBM

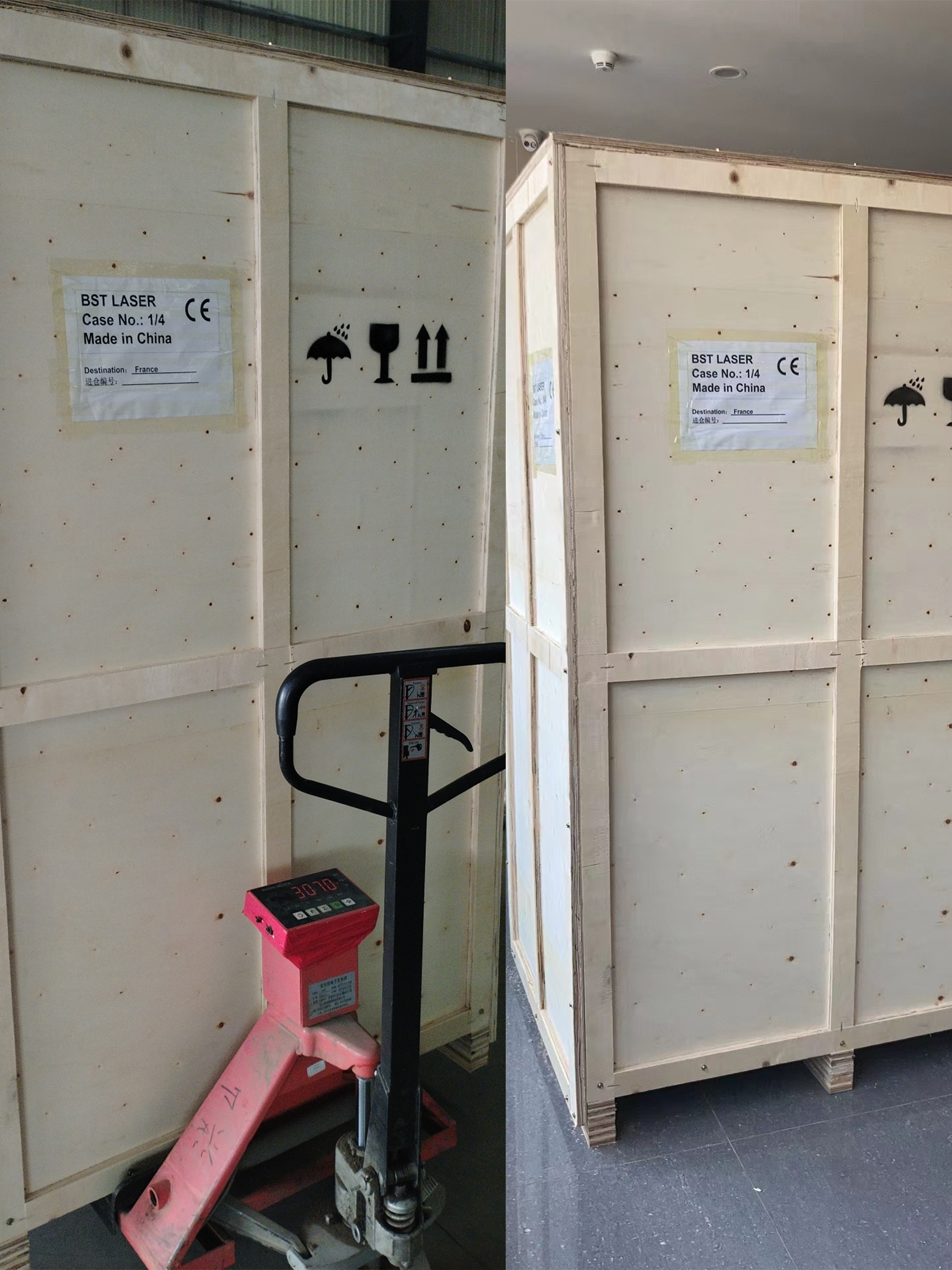

Inside layer is covered by thickening PE film and foam for waterproof.

Middle layer is covered by foam to protect the machine from shaking.

Outside is with fumigated Wooden Box which comply with export standard.
