Affordable Hybrid Metal Nonmetal Steel Acrylic Fiber Co2 Laser Cutter
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1325CG |
| Views | 83900 |
| Rating | ★★★★★5/5 Based on 680 Votes |
| Price Range | US$8800 – US$9800/set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 10-15 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS

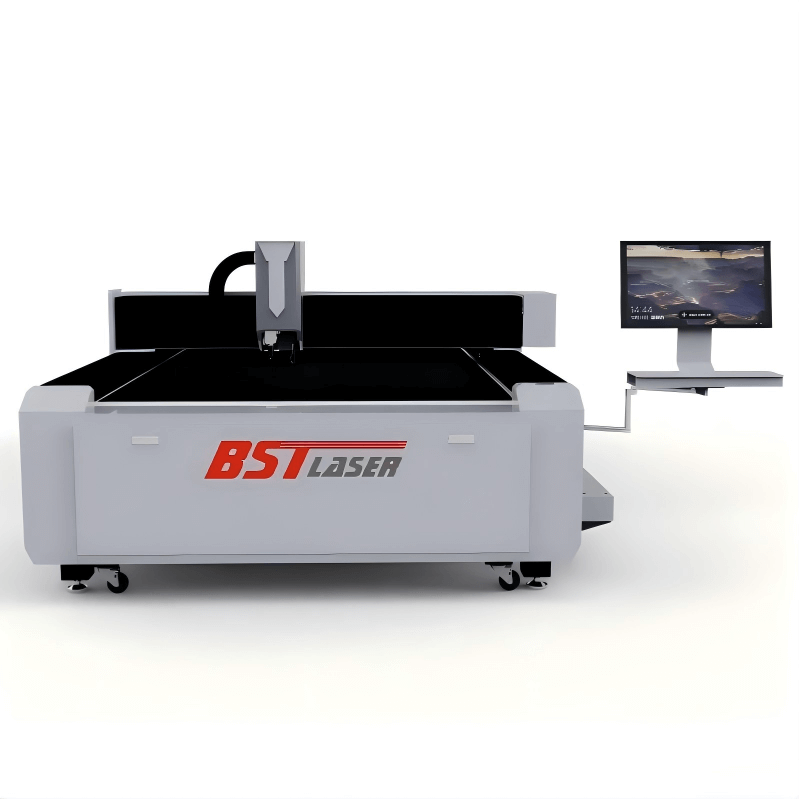

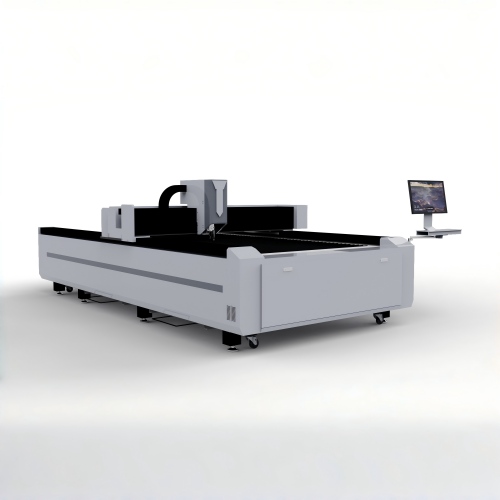

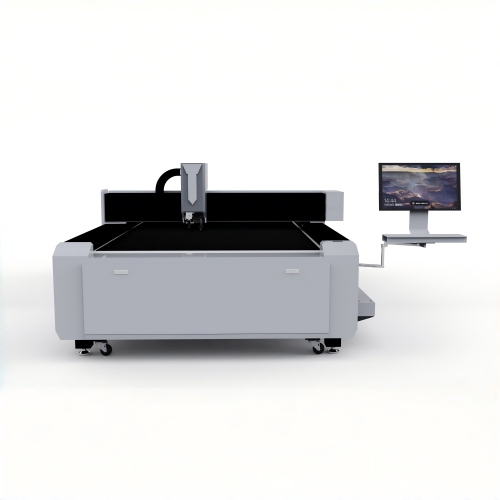

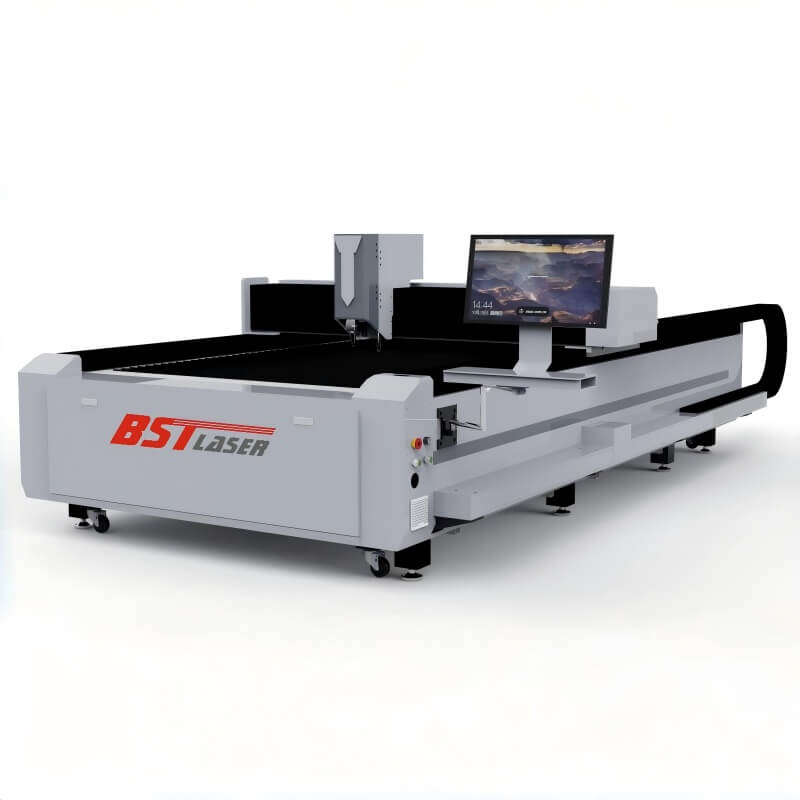

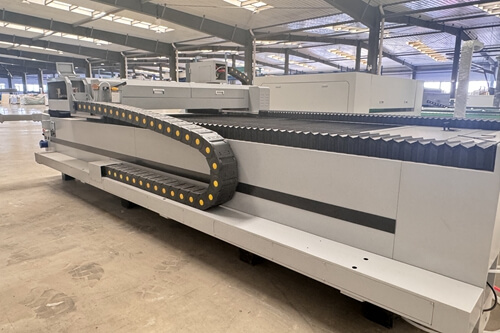

One Machine, Infinite Materials. Meet the 1325 Hybrid Laser Cutter.
Cut through the competition—and virtually any material—with the ultimate dual-laser solution.
Tired of switching between machines for different jobs? The 1325 Hybrid Laser Cutter ends the compromise. By integrating powerful fiber and CO2 laser sources in one robust system, this machine delivers unmatched versatility. Whether you’re shaping precision metal parts or crafting detailed acrylic signs, it handles it all with speed and accuracy, streamlining your workflow from a single platform.
Good Features
- Dual-Laser Powerhouse: Equipped with both a high-power fiber laser (for metals) and a CO2 laser (for nonmetals), it cleanly cuts everything from stainless steel to wood and plastic without needing separate machines.
- Engineered for Efficiency & Precision: Built for reliable, high-volume production.
- High-Speed Cutting: Achieve cutting speeds of up to 60 meters per minute, dramatically reducing project time.
- Superior Accuracy: Features high-precision components like servo motors and ball screws, ensuring smooth operation and repeatable positioning accuracy within ±0.05mm.
- User-Friendly Operation: Controlled by intuitive CNC software (like Au3tech) that supports common design file formats (AI, DXF, DWG, etc.), making it easy to go from design to finished part.
Parts Introduction

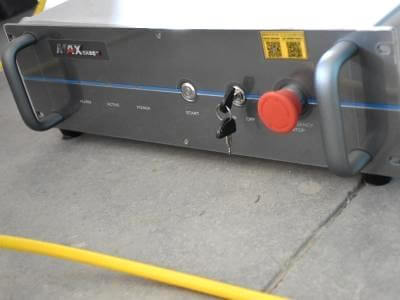

Fiber Laser Source
- A high-power, solid-state laser generator optimized for cutting reflective metals (e.g., stainless steel, aluminum) with high efficiency and beam quality.
- Lifetime over 10 years, free of maintenance and almost no consumables.

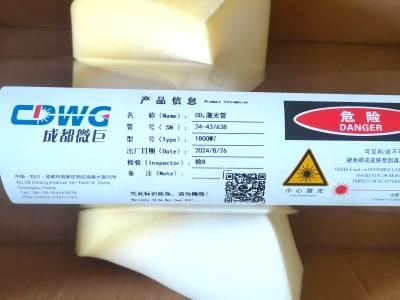

Sealed CO2 Laser Tube
- A glass laser tube that generates a laser beam by exciting a gas mixture. It is specifically designed for cutting and engraving non-metallic materials (e.g., acrylic, wood, plastic).
- Lifetime 10000 hours

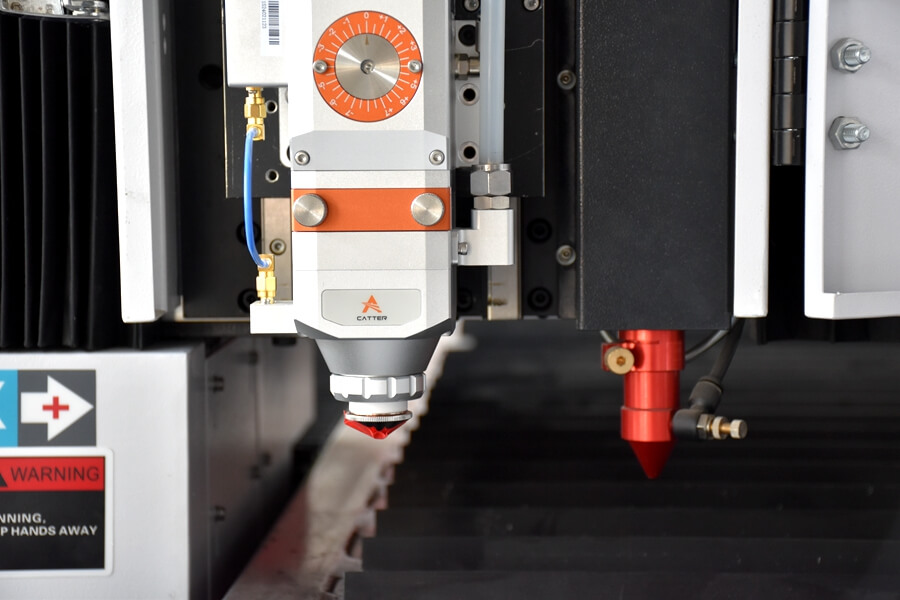

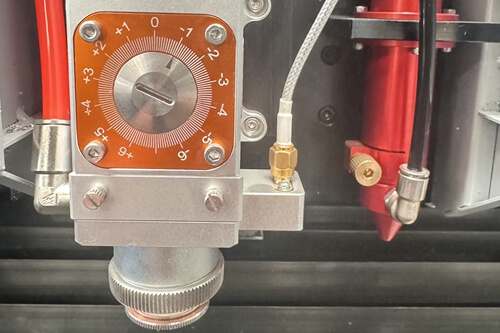

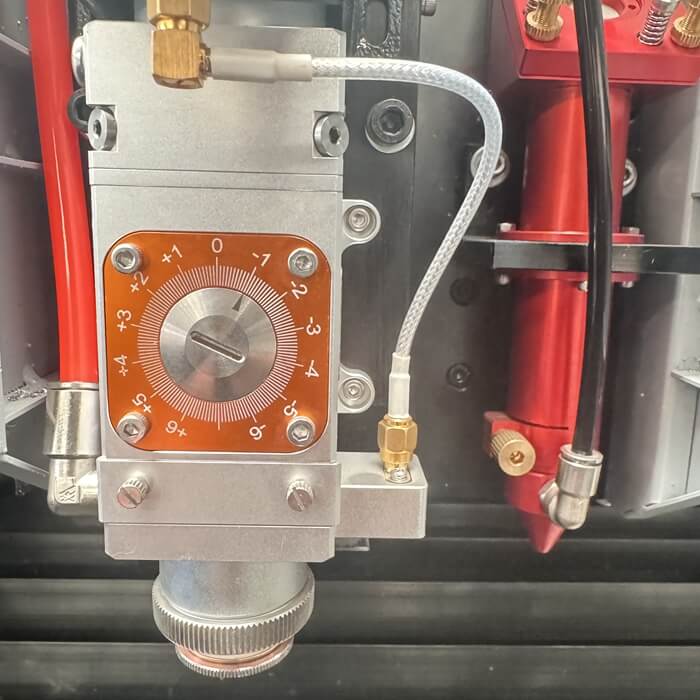

Laser Cutting Head
- An integrated assembly containing the focusing lens, nozzle, and sensor. It precisely focuses the laser beam onto the material surface.
- The machine typically includes separate heads for fiber and CO2 lasers.

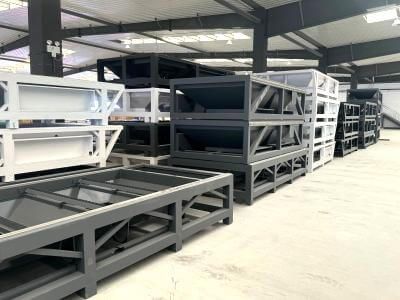

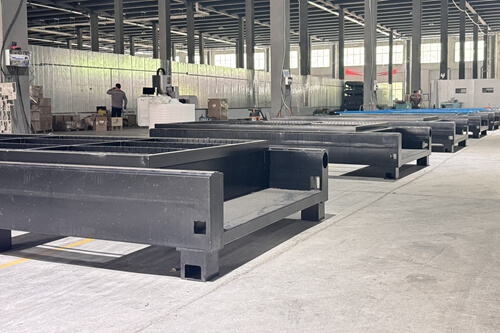

Gantry Frame & Machine Bed
- Heavy-duty machine tool designand the rigid, welded steel structure providing a stable 1300mm x 2500mm working platform.
- The precision gantry is milled using imported German equipment and undergoes secondary annealing for stress relief.
- The moving gantry ensures consistent accuracy during high-speed operation.

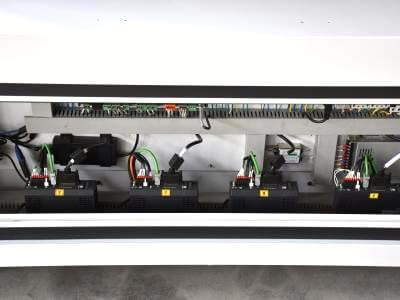

Servo Motors & Drives
- High-precision servo systems that control the movement of the X, Y, and Z axes.
- They provide fast acceleration, high torque, and exceptional positioning repeatability.

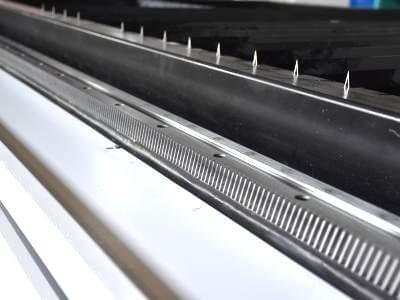

Precision Ground Rack and Pinion
- The core transmission components that translate the motor’s rotation into precise linearsquare guide rails along the XY axes.
- ensuring minimal backlash and long-term accuracy.

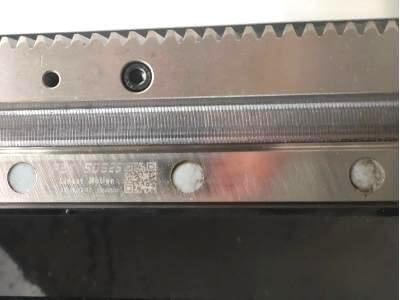

Linear Guide Rails
- High-rigidity, wear-resistant rails that support and guide the gantry’s movement, enabling smooth, high-speed operation with minimal vibration.

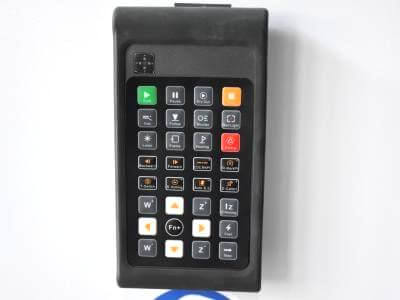

CNC Controller & Software
- A dedicated industrial computer (DSP) paired with user-friendly software (e.g., based on Au3tech).
- It processes design files and controls all machine functions, including laser switching.

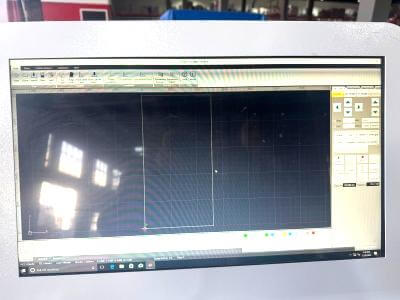

Industrial Control Panel
- A physical interface, often with a touchscreen, for operators to start jobs, adjust parameters, and control the machine manually.

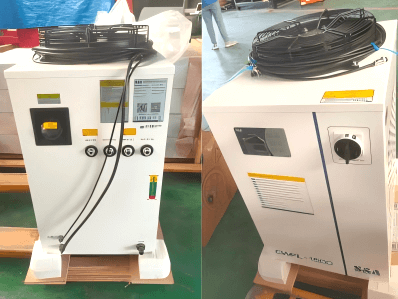

Water Chiller
- Powerful water cooling system that maintains the optimal operating temperature of the fiber laser source and co2 laser path, which is critical for its performance and lifespan.

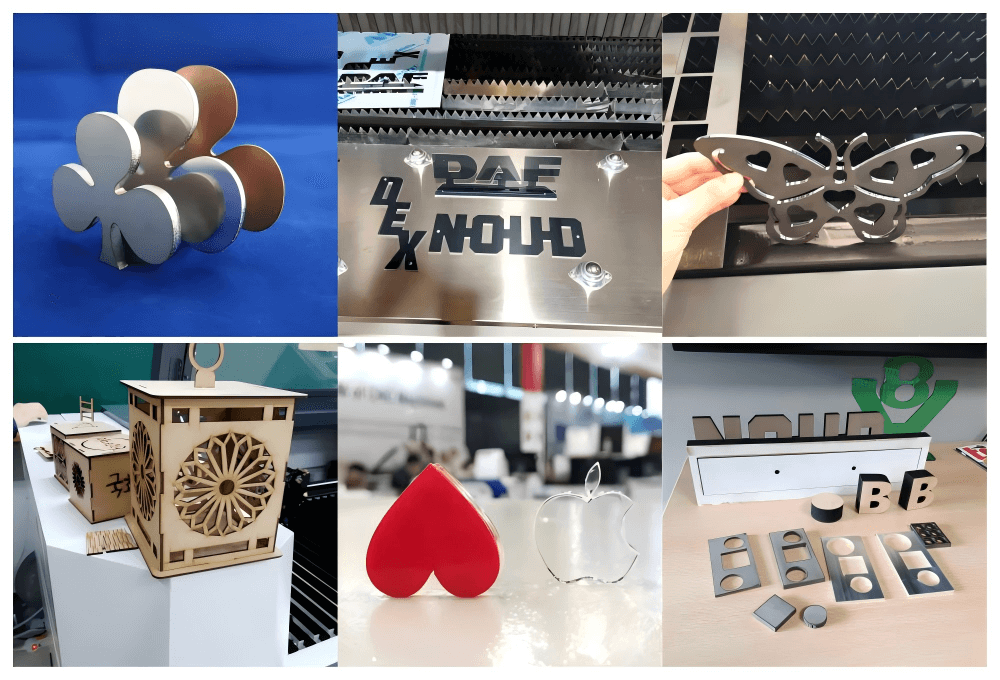

Application
Unmatched Material Versatility: Expand your service offerings.
This machine is compatible with an extensive range of materials:
Metals: Carbon steel, stainless steel, aluminum, copper, brass.
Non-Metals: Acrylic, wood, MDF, plastic, rubber, glass, leather, stone, paper
| Parameters | Specifications |
| Model No. | BE-DK1325CG |
| Working Area (Cutting Range) | 1300 mm x 2500 mm |
| Maximum Sheet Loading Size | 1350 mm x 2550 mm |
| Overall Machine Dimensions (L*W*H) | 3910 mm x 2260 mm x 1250 mm |
| Machine Weight | Approx. 1300 kg |
| Laser Type | • Fiber Laser • Sealed Water-Cooled CO2 Laser Tube |
| Laser Power | • Fiber: 1200W 1500W • CO2: 130-150W/150W-180W |
| Laser Cooling Method | Industrial Water Chiller |
| Positioning Accuracy | ±0.02 mm |
| Minimum Line Width | 0.1 mm |
| Cutting Speed | Up to 18 m/min (Material dependent) |
| Maximum Acceleration | 0.4 G |
| Cutting Thickness | 0.1 – 8 mm (Material dependent) |
| Motion Drive Method | Servo Motor Drive |
| Motion Transmission Method | Precision Rack and Pinion with Linear Guide Rails |
| Auxiliary Gas | Oxygen, Nitrogen, or Compressed Air |
| Supported File Formats | PLT, AI, DXF, etc. |
| Maximum Acceleration | 0.4 G |
| Operating System for Software | Windows 7 / 8 / 10 |
| Operating Voltage | 220V, 50Hz/60Hz |
| Total Machine Power | 12000 W |

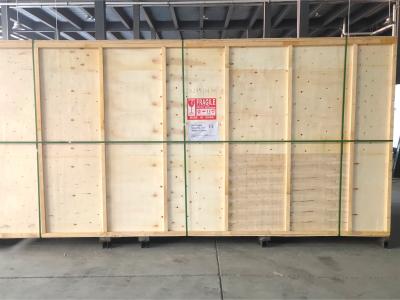

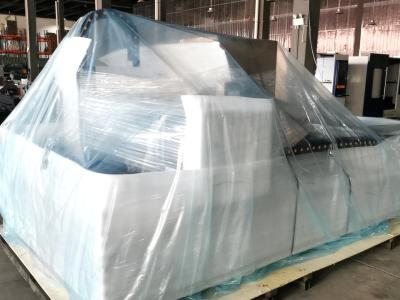

Package and Shipment
| Model | Package Size | Gross Weight |
|---|---|---|
| BE-DK1325CG | 446cm×223cm×180cm, 17.9CBM | 2000KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
