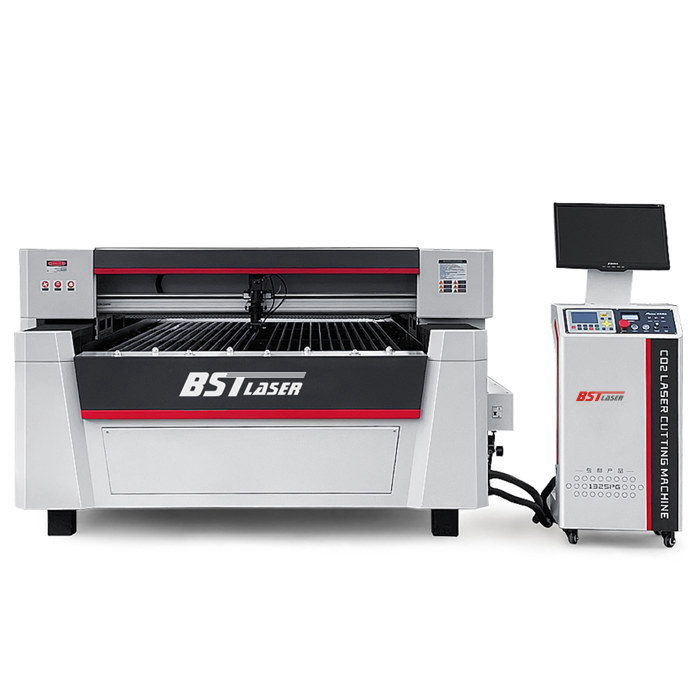

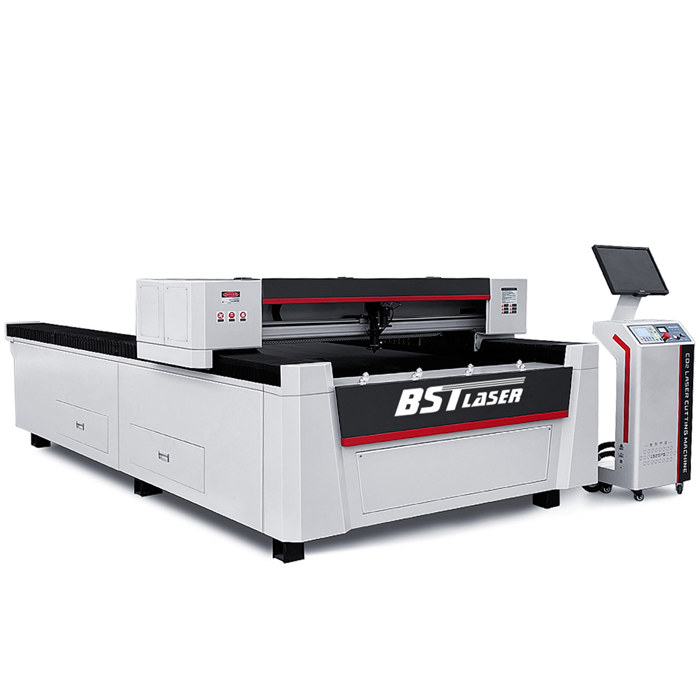

300w Co2 Laser Cutter 1325
300w Co2 Laser Cutter
300w Co2 Laser Cutter 1325
300w Co2 Laser Cutter 1325
300w Co2 Laser Cutter
300w Co2 Laser Cutter 1325

Industrial Gear Transmission 300w Co2 Laser Cutter 1325


Category Co2 Laser Cutting Machine
Model No. BE-DK1325PG
Views 9500
Rating ★★★★★5/5 Based on 680 Votes
Price Range US$5000 – US$9000/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 10-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Gear Transmission 300w Co2 Laser Cutter is the perfect tool for those looking for an efficient and accurate way to cut acrylic,wood, mdf,plexiglass and other nonmetal materials. This laser cutter has a variety of features that make it ideal for DIY projects, from its adjustable cutting speed and laser power to its ability to cut materials up to 3mm thick. It completely resolves the instability and precision concerns associated with high-speed cutting; when cutting 3mm acrylic with 300w, the speed may exceed 100mm/s.

The machine designed as standards of fiber metal laser cutting machines, with a high strength and heavy loading steel frame welding machine bed that has been aged, and CNC gantry milling,whole machine net weight is around 1500kg.

Good Features

High End Position;
Flagship Product
Innovative Technology;
Multi Patent Technology
High Precision and Speed;
Combined in One Machine
300w /450w Big Power;
Meeting High Speed Cutting Demand
Smooth Running with Low Vibration;
Ensure Laser Tube and Path Reliability
High Power Optic Lens;
Full Water Cooling Mirror Frame &Laser Head
Mechanical Grade Assembly Accuracy;
Meeting High Accuracy Demand
Patent Technology;
Double Blowing, Fire Proof Design
  • Use a laser tube with a power output of 300W. Better laser output mode with a double-tube folding balanced cavity construction. Marble bracket with dual high voltage construction, dual power supply mode, long life, and stability.
  • Support higher-power and more dependable optical lenses. The mirror silicon-based gold-plated substance has a diameter of 30mm, an industrial-grade precision optical mount, and a lens water-cooling feature.
  • High-power water-cooled laser head with selectable 20/25/30 diameters and focal lengths. The mirror and cutting nozzle heights can be flexibly adjusted.
  • Patented laser heads with a double-blowing design can increase cut surface quality and prevent fire danger.
  • A 300W high-speed cutting feature-optimized motion control algorithm and software light control mode. Technology with a zero reset patent.
  • Optional CCD positioning, edging and cutting.

Parts Introduction

300w Co2 Laser Cutter 1325

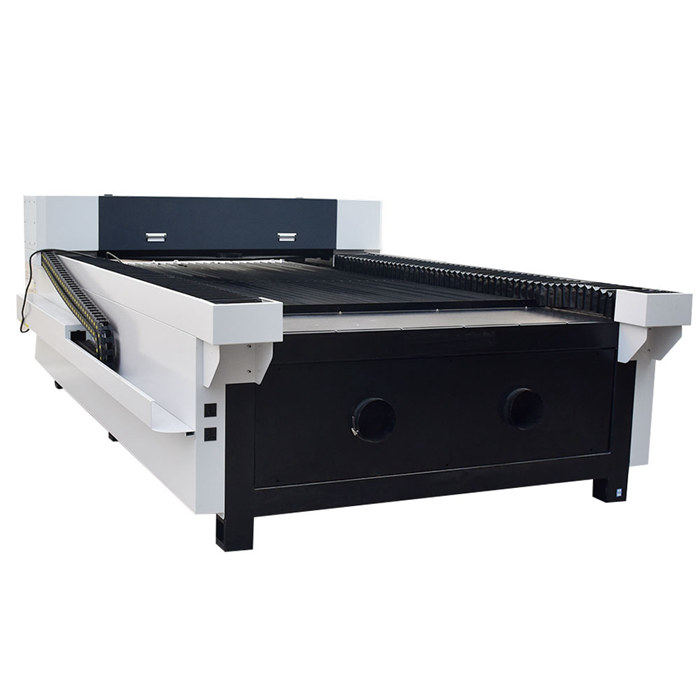

Heavy Machine Structure

  • High Strength Welding Structure with 5mm Pipe Welding Steel Frame
  • With beam reinforcement on double sides to ensure the stability ,Ensure the machine does not deform after 20 years of usage
co2 laser cutter 11

Japan Imported Shimpo Reducer

  • More than ten times as much shaft output is spent on accuracy and stability life.
  • Grade 3 accuracy
300w Co2 Laser Cutter 1325

Ball Screw Transmission

  • Ensure high stability, minimal noise, and smoothness when traveling.
300w Co2 Laser Cutter

Big Servo Motor

  • The X, Y, and Z axes are all driven by servo motors. The Y Axis has a twin driver that allows for high-speed and high-precision transmission.
4fed6dd976090a12434f0b81e4bce0b

Industrial Water Cooling Laser Head

  • Updated Laser Cutting Head, Patented Technology
  • Compatible with a variety of focus distances and lens sizes
  • Double Blowing and Fire-Prevention

300w Co2 Laser Cutter 1325

300w Big Laser Tube

  • High stability and the fine laser beam from a top Chinese brand.
  • Meeting the requirements of highly efficient processing and large-scale industrial production with a global guarantee
300w Co2 Laser Cutter

Module Screw Design

  • Inside is an X Axle Ball Screw that is compact and modest in size.
  • No cutting noise, no dust, and excellent cutting precision
Reflect Mirror Cooling System

Reflect Mirror Cooling System

  • As part of the massive heat dissipation, cool lenses and reflecting mirrors are used.
  • Prolong lifespan and avoid damage from heating, especially for the 180w power.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Auto Exhausting/Blowing

  • Several Self-sufficient Innovation.
  • Automatic opening and closing when the machine is in use.
  • Exhaust stop 15S/30S after the machine stops processing, ensuring that the smoke is entirely cleansed.
co2 laser cutter machine 1325

Dust waste Recycling Drawer

  • It is a user-friendly scientific design. Users may quickly clean the dust waste generated during cutting to prevent dust from affecting the environment or the cutting impact.
300w Co2 Laser Cutter 1325

Industrial Water Chiller CW-6000

  • To safeguard the water circulation from power outages, use the CW-6000 Water Chiller with temperature display and Auto Degree setting.
LEARN MORE

Application

Gear transmission 300w Co2 laser cutters offer many benefits when used for a variety of cutting applications. They are known for their high precision and accuracy, as well as their speed and reliability. They are also highly cost-effective and can be used to cut a wide range of materials. Gear transmissions are essential parts of any machine, and the precision and accuracy of their production is critical to the successful operation of these machines.

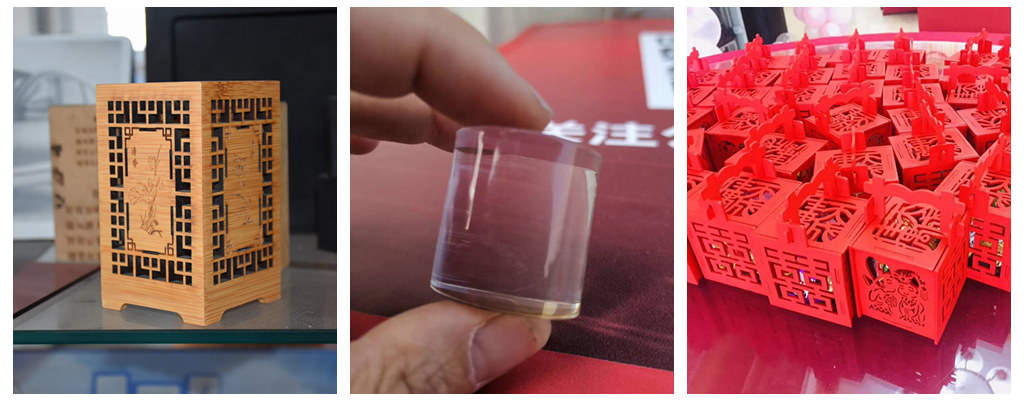

Readily available materials include nonmetal materials such as acrylic, organic glass, wood, MDF, textile, fabric, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, gum, ceramics

Advertisement, arts and crafts, toys, automotive, mechanism, electron, as well as trademarks, embroidery, clothes, and other industries.

300w Co2 Laser Cutter
What Material Can the Laser Handle?

Material Engrave Cutting
Acrylic
Glass ×
Laminates
Leather
Paper
Plastics
Stone ×
Textiles
Wood
Metal × ×

Optional Items

Optional Items

Water Cooling Laser Head

Cool lens and reflect mirrors during high power and mass production cutting,prolong the parts lifetime .

Dynamic Following System

When the materials are uneven, the machine can detect their height and automatically adjust the focus distance.

CCD Edge Recognition System

Automatic Nesting + Auto Scanning+ Auto position recognition, or cutting printed images such as logos and photographs on t-shirts, etc.

Big Air Pump

Make sure the cutting effect is fine and smooth when the machine needs to cut really thick wood or acrylic.

Model BE-DK1325PG
One Time Max Processing Size ≥1250X2450mm
Laser Power 100W/120W/150W/180W/300W
Max Loading Width Hermetic and Detached Co2 Laser Tube
Machine Weight 1500KG
Max Moving Speed 0-60000mm/min
Max Cutting Speed 0-12000mm/min
Best Cutting Speed 1mm/s-180mm/s
Speed Control 0-100% (No Period Control)
Max Cutting Depth 30mm (Cutting Acrylic)
Mechanical Ratio 0.025mm
Laser Power Control Software Control /Manual Control (Optional )
Laser Tube Cooling Industrial Water Cooling
Repeat Location Accuracy ±0.1mm
Power AC220V/50HZ ±15 50hz(optional 220v,60hz or 110v/60hz)
Driving Servo Motor Drive ,Y Axis Dual Drive+X Axis Ball Screw Transmission
Support Graphics Mode BMP DST PLT DXF AI DWG
Operating Temperature 0℃-45℃
Machine Size Dimension 2100X3600X1200mm
Machine Power 2500w (150w Laser Device )

Cutting Parameters

Materials Thickness 300w Cutting Data 150w–180w Cutting Data
Cutting Speed Best Cutting Speed Cutting Speed



Acrylic

3mm 80-100mm/s 80mm/s 40-60mm/s
5mm 40-50mm/s 40mm/s 20-28mm/s
8mm 20-25mm/s 20mm/s 10-15mm/s
15mm 8-12mm/s 8mm/s 2-4mm/s
20mm 5-7mm/s 4mm/s 1-1.5mm/s
30mm 2-3mm/s 2mm/s 0.6-1mm/s
Note: Above Speed is just for you as reference, fastest cutting speed affected by materials, environment, voltage, etc. Best Cutting Speed is reference for the new laser tubes which ensure the best cutting effect.

Package and Shipment

Model Package Size Gross Weight
BE-DK1325PH 3620×2140m×1250m, 9.68CBM 1500KG
Acrylic Wood MDF Laser Cutter Machine 1325 Acrylic Wood MDF Laser Cutter Machine 1325 Acrylic Wood MDF Laser Cutter Machine 1325
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
