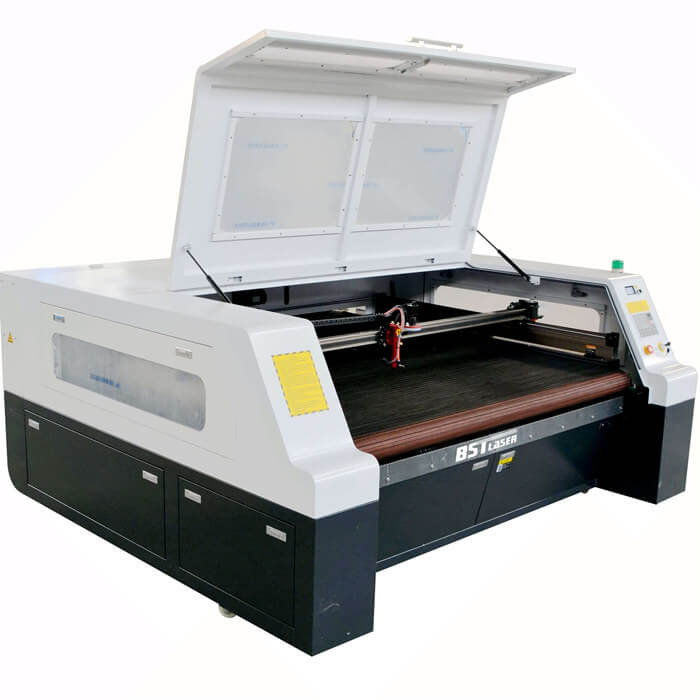

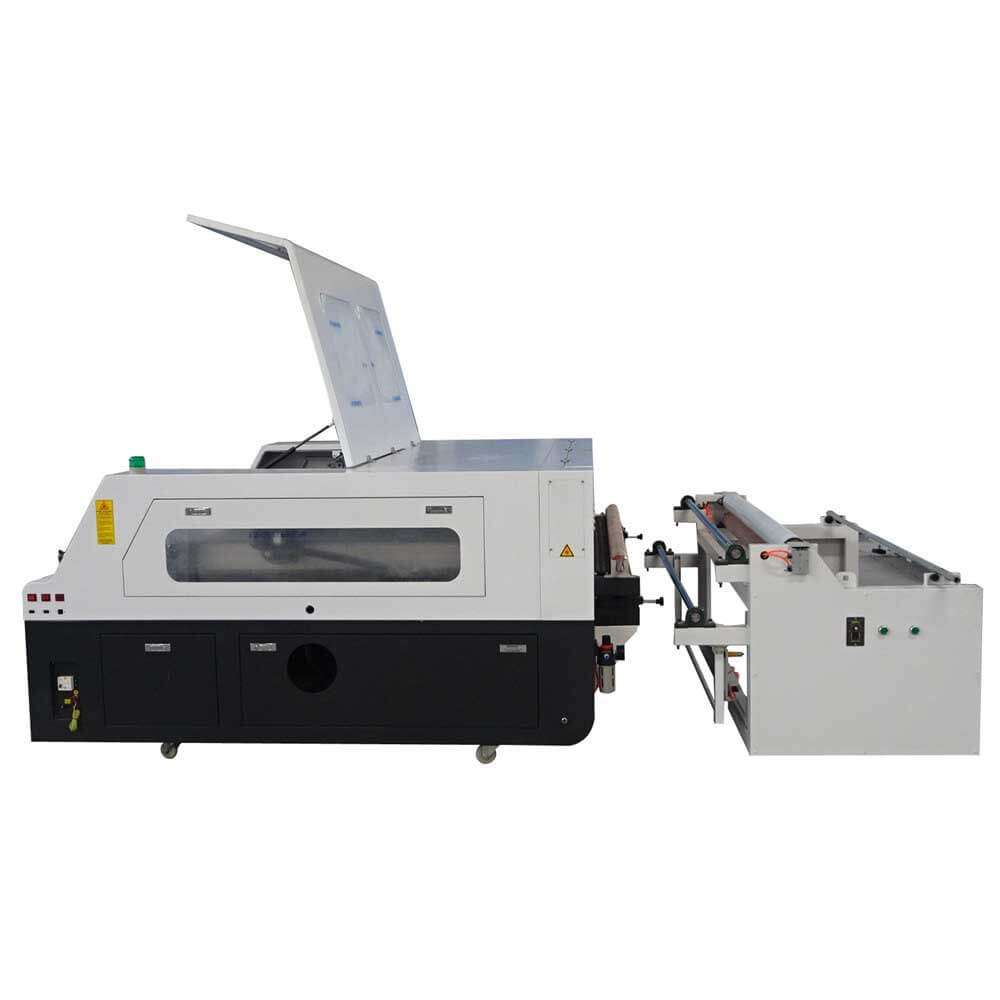

Auto Feeding Laser Cut Fabric Machine with CCD


Category Co2 Laser Cutting Machine
Model No. BE-DK1612A / BE-DK1810A
Views 6500
Rating ★★★★★4.9/5 Based on 500 Votes
Price Range US$4000 – US$9000/set Based on the Features
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 10-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The Co2 laser cut fabric machine has an automatic feeding system fixed with a selected rolling and feeding system, which completes all of the cloth processing phases simultaneously, saving labor and substantially lowering expenses. It is ideal for engraving and cutting on very long workpieces, such as a single roller of cloth, fabric, leather, or clothing. Can be equipped with a giant version CCD recognition camera, which can recognize automatically and position precisely for cutting, preventing material and time waste due to faulty positioning.

Machine Feature:

  • Adopt modern recognition systems, which recognize automatically and locate cutting properly and quickly by entering photos into a computer. This drastically saves material waste and time waste.
  • Fast curvilinear cutting capability.
  • Friendly human-machine interface to completely support design software such as CAD, CORELDRAW, and PHOTOSHOP.
  • Multi-document capability: SC series equipment can hold up to 256 working documents, allowing for the mass manufacturing of 256 different goods.
  • All-optical isolation system with a high-speed differential input and output circuit design, long-distance transmission signal without distortion, and strong anti-jamming capabilities, the system has realized the no.12 working state output, state 16-way input, and can easily dock with the user production site.
  • Large-format laser cutting incisions are smooth and fine; they meet the blanking, machining the entire piece of cloth.
  • Design of a stable light path that matches an industrial water-cooled machine.
  • Automatic feeding and discharge save time and increases labor efficiency.
  • The feeding system uses specific words with mesa, a pedrail automatic feeding device, and convenient processing objects move freely on the cutting machine’s surface.

img_email

Parts Introduction

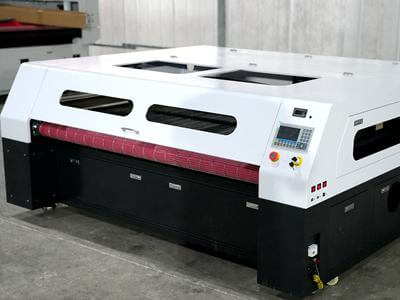

Auto Feeding Laser Cut Fabric Machine with CCD

Unique Machine Design

  • Fully automatic feeding and receiving saves time and improves labor efficiency, and the cutting size may be adjusted.
  • The Heavy Loading Machine Structure ensures consistent and precise engraving and cutting.

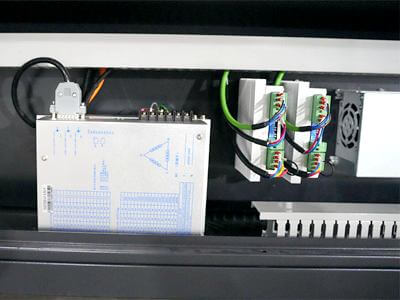

Ruida Controlling System

  • The newest co2 laser controlling system from Ruida Technology is the DC6445G system.
  • It has improved hardware stability as well as resistance to high voltage and static electricity.

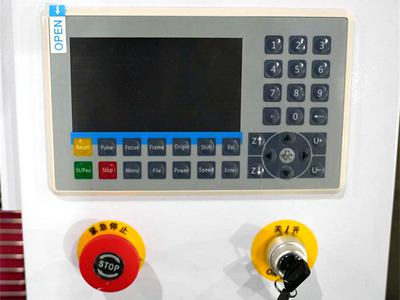

  • The human-machine operating system, which is based on a 5-inch color screen, offers a more user-friendly interface and more powerful functions.

Crawler-type Working Table

  • Crawler-type triangular mesh working platform, processing with two laser heads
  • Fast cutting speed and excellent fabric utilization rate are guaranteed when the automatic discharge system is used, enabling continuous feeding cutting.

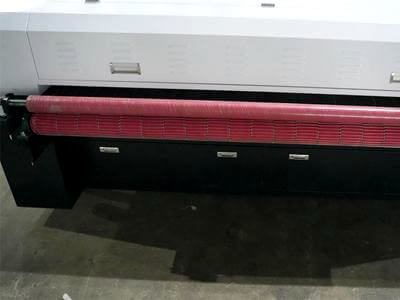

Solid Rubber Step Roller

  • Ensure smooth feeding and that no pressure marks appear on the material’s surface.

Automatic Collection Brush

  • Can collect the finishing cutting fragments and increase operating efficiency.
co2 laser tube (3)

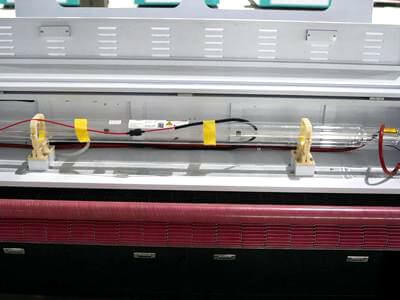

Glass Laser Tube

  • Top Reci Brand with a 10-year warranty
  • Original label and code on that, which clients may view on the official website
co2 laser cutter 11

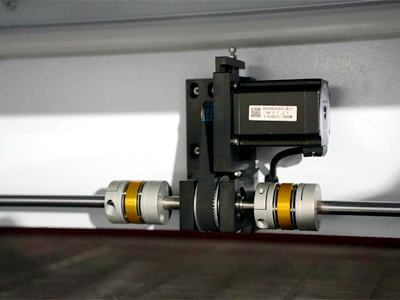

Reduction Gears

  • During high-speed cutting, the original imported brand ensures excellent cutting precision and rapid speed.

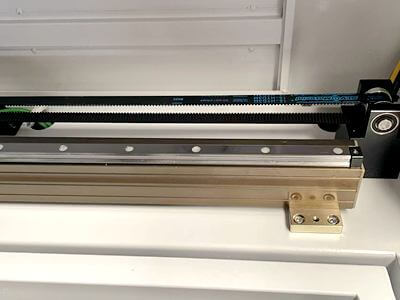

High Speed Sliding Rail

  • A specially constructed sliding rail for engraving and cutting clothing fabrics ensures high-speed processing and improves efficiency.
co2 laser cutter

Unique Exhausting System

  • Normally, large amounts of smoke and odor are produced during the fabric-cutting process; however, this design can absorb the smoke and preserve your environment.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

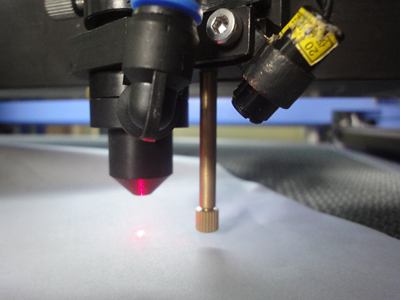

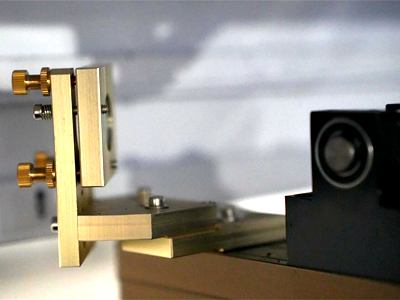

Reflect Mirror& Lens

  • High-quality imported lenses from the United States offer more precise beam focusing, finer beams, and longer life.
Compact-Co2-Laser-Cutting-M

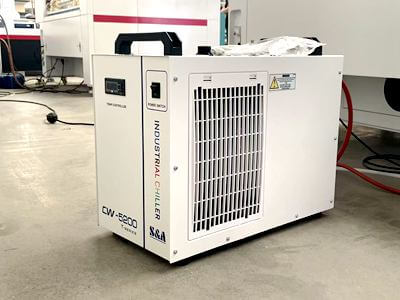

Industrial Water Chiller

  • Adopt CW-5000/CW5200 Water Chiller with temperature display, which can avoid over-burning, to protect the water circulation from electricity-off.
LEARN MORE

Application

Auto Feeding Laser Cut Fabric Machines offer a range of benefits to businesses looking to increase their efficiency and precision when cutting fabric. These machines can quickly and accurately cut fabric pieces to exact specifications, resulting in a higher yield of usable fabric pieces.



Materials on hand:

Leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving, and cutting are all common applications for fabric laser cutter.

Industry of Application:

The garment industry, trademarks, embroidery, apparel, fabric and crafts, toys, automotive, mechanism, advertisement, and artistic industries.

Best Laser is a prominent maker of laser cutters, offering laser cutter engravers, fabric laser cutters, and Co2 laser cutters for sale.

Material Engraving Cutting Material Engraving Cutting
Car upholstery Leather
Seat covers PU artificial leather
Carpets Wool fabrics
Blankets Microfiber
Non-woven PVC floor MATS
Polypropylene Textiles and clothing

co2 laser cutter

Optional Items

Dual Head CO2 Laser Engraving Cutting Machine 1

Double Head

A double laser head can manage itself independently and three times faster than a single laser head.

BE-DK1612A Optional Items

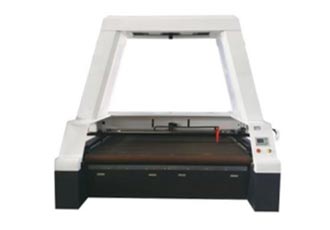

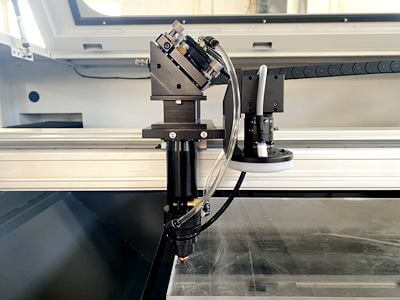

Big Version CCD Camera

  • New Version CCD recognition system, extracting cutting outlines automatically, typesetting, and optimizing the cutting path
  • Imported CCD camera with 18 million pixels and excellent resolution
BE-DK1612A Optional Items

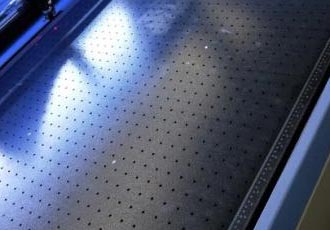

Vacuum Absorbing Table

Can securely absorb soft materials to the working table, making it ideal for cutting light and thin materials such as silk cloth.

Co2 Wood Laser Cutter Machine

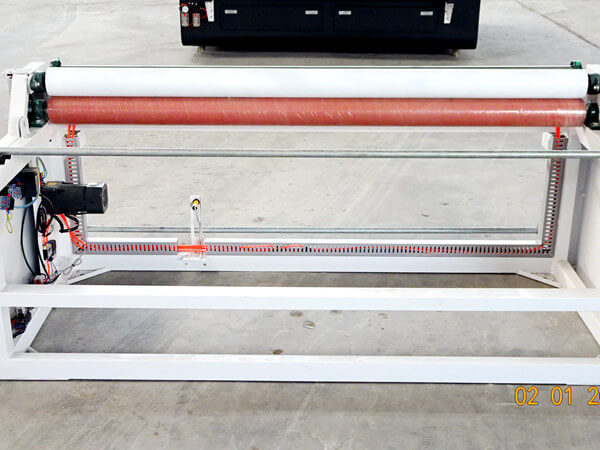

Auto Deviation Correcting System

Auto-feeding and rolling to ensure straight and accurate feeding.

BE-DK1612A Optional Items

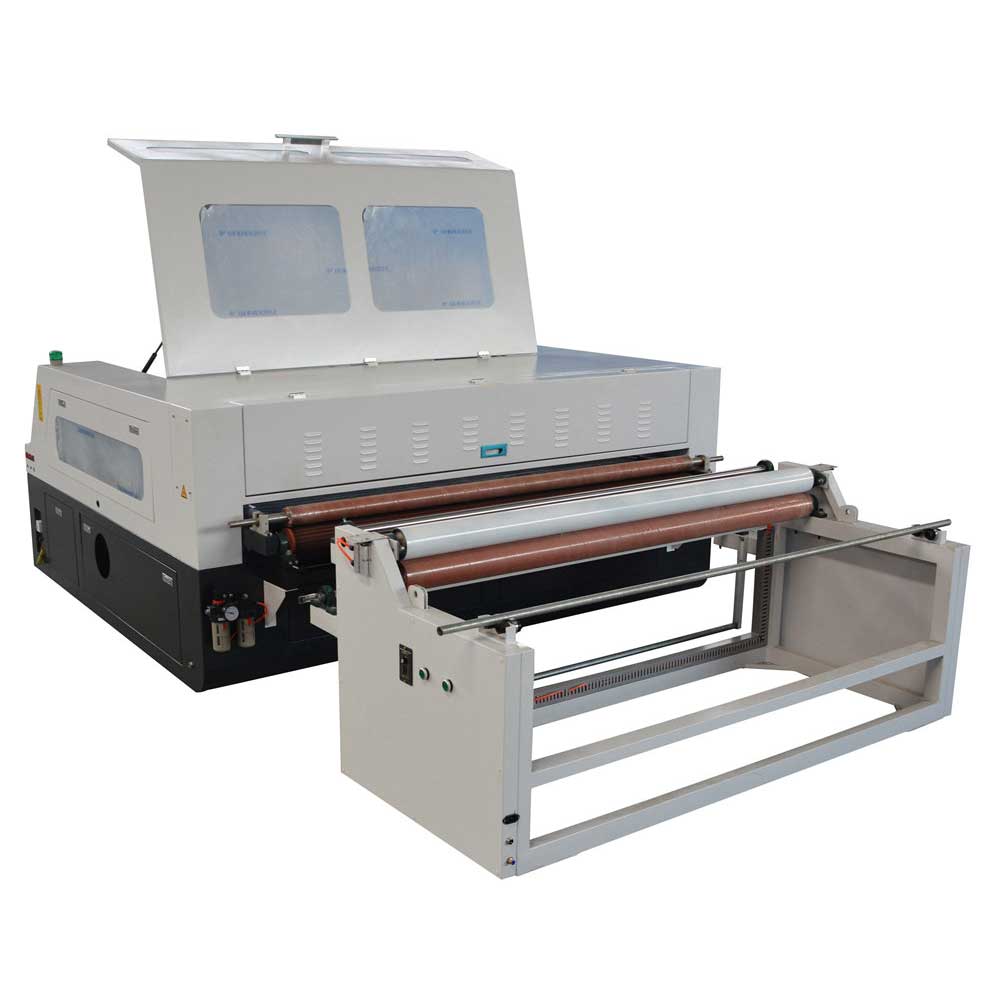

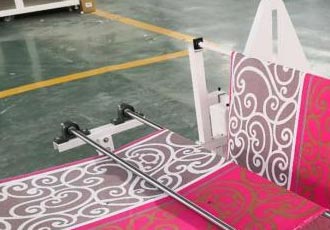

Auto Feeding & Rolling System

Suitable engraving/cutting on a very long work piece, allowing the entire textile processing to be completed at once.

Items BE-DK1612A BE-DK1810A
Working Area: 1600×1200mm 1800×1000mm
Laser Type: Hermetic and Detached CO2 Laser Tube
Laser Wavelength: 10.64um
Laser Power: 100w 130w 150w 180w
Positioning Accuracy ±0.05mm
Engraving Speed: 0-1000mm/s
Cutting Speed: 0-600 mm/s
Working Table B type mesh belt
Minimum Forming Character English: 1×1mm, Chinese: 1.5×1.5mm
Power Supply 220v10% (50hz or 60hz)
Software Supported ArtCut, Photoshop (Conversion Output); CorelDraw and AutoCAD(Direct Output)
Graphic Format Supported: PLT/DXF/DST/BMP/AL etc.(Direct Output)
Working Environment: Temperature: 0-45℃ Humidity: 5%-95%
Driver Way: Digital Subdividing Step Driver
Laser Device Cooling Type Circulating Water Cooling

Package and Shipment

Model Package Size Gross Weight
BE-DK1612A 2440x1700x1290mm, 5,35CBM 850KG
BE-DK1810A 2500x1980x1300mm, 6.56CBM 980kg
co2 laser cutter Co2 Laser Cutting Machine 9060 3 Auto Feeding Laser Cut Fabric Machine with CCD
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
