Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 1
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 3
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Distributor Wanted Compact Co2 Laser Cutting Machine 1390
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 1
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 3

Distributor Wanted Compact Co2 Laser Cutting Machine 1390


Updated Laser Cutting Head, Patent Technology Double Blowing, and Fire-Resistant Compatible with a variety of focus distances and lens sizes

Category Co2 Laser Cutting Machine
Model No. BE-DK9060VT/ BE-DK1390VT
Views 12000
Rating ★★★★★4.9/5 Based on 800 Votes
Price Range US$2500 – US$4500/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 7-10 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

Compact CO2 laser cutting machines have become an ideal choice for those looking to do DIY projects and other small-scale operations. These machines offer the same precision and accuracy as their larger counterparts, but at a fraction of the cost. These machines are small, efficient, and cost-effective, making them ideal for businesses of all sizes. With a range of cutting materials, speed control, and programmable automation, these machines can meet the demands of any project.

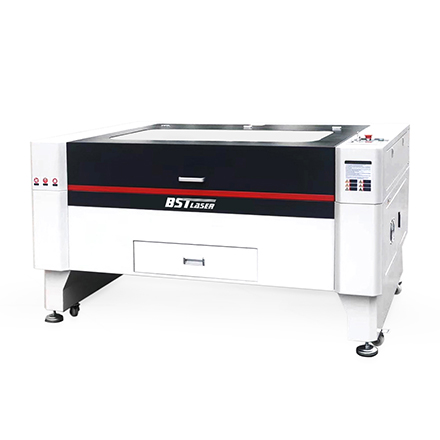

The 1390 Co2 Laser Cutter is with the latest design,machine body is welded by square tube, which has high strength and not easy to deform. Fully enclosed design, safe and reliable. This co2 laser engraver is an technical innovation, fully considering customers’ needs and launched advanced laser engraving machine.
Compact Co2 Laser Cutting Machine 1390 2
Compact Design

  • Smaller dimension, easy for entering door.
  • One 40HQ can fit 24 sets. It is suitable for agent’s bulk order, which largely saving shipping cost.

High Precision and Fast Speed Cutting

It employs superior China Co2 laser technology with high power and good beam quality, allowing for high accuracy engraving/cutting.

One Machine Multiple Use

Engraving and Cutting different non-metal materials, such as acrylic, wood, plastic, leather, fabric, bamboo etc.

Easy Operation

  • Offline PC control or DSP (LCD Touch Controlling Panel)
  • The machine is outfitted with sophisticated Ruida V8 software, which has user-friendly and strong functionality and supports 12 languages.

Suitable for Heavy-duty Work

  • The machine body is made of steel pipe welding and has a lifespan of over 50 years without deformation thanks to accurate CNC milling.
  • Imported high precision linear guide rail and professional optical system, dust-proof and lubricated, enhance engraving quality and machine lifespan.
  • Adopt China’s well-known brand S&A CW-3000 Water Chiller with temperature display to avoid overheating and preserve the water circulation from power outages.
  • USA is equipped with global top grade. Focus lens and reflect mirrors were imported.
  • Adopting a high-speed step motor and driver, litter error, numeral timing, simulation quantum control of the laser intensity, and high-precision repetition, it is possible to engrave 11mm small English characters precisely.

img_email

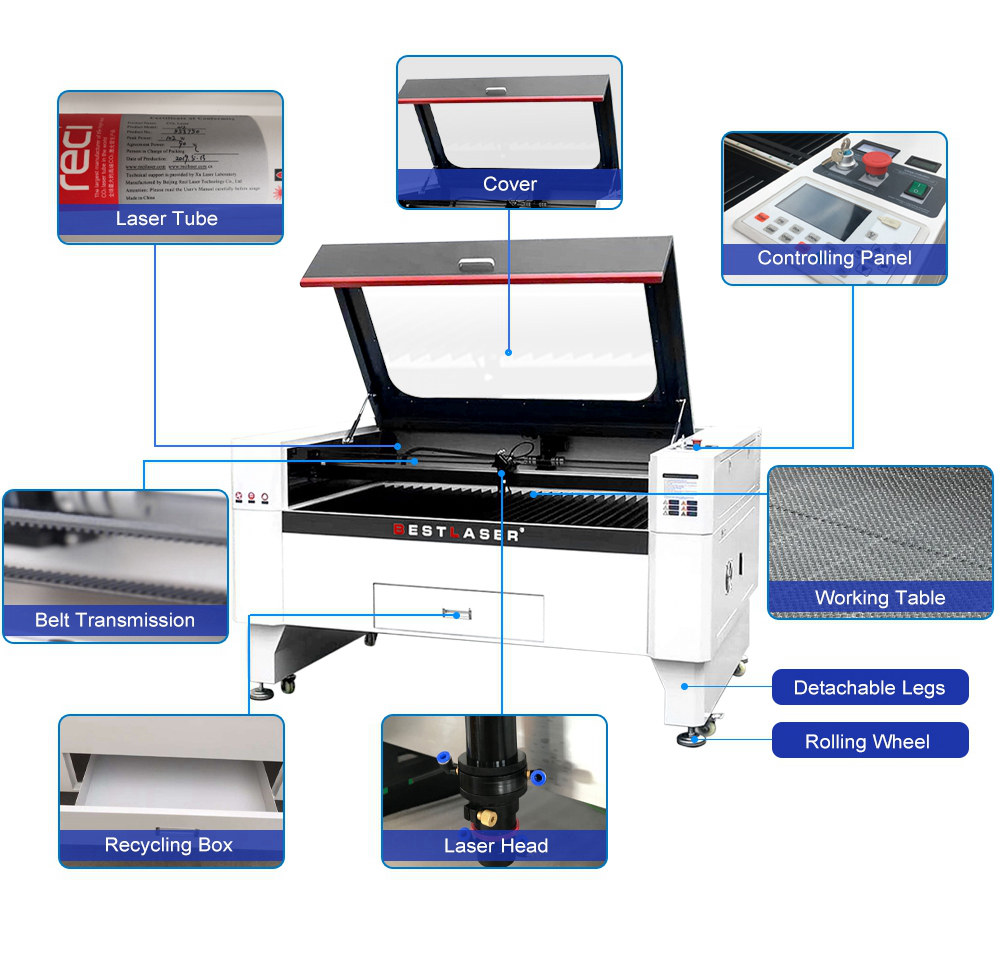

Parts Introduction

Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Machine Structure

  • One molding, 150KG, annealed and digital CNC machine processed, bearing capacity not easily deformed.
  • With a detachable bracket that may be divided into two sections.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Transmission System

  • Y-axis center drive + diaphragm flexible coupling is more exact than ordinary single-side motor installation, double Y has superior synchronization, and concentricity is adaptive via flexible coupling.
  • For flawless operation, the drive system employs imported bearings. A three-phase driver and a three-phase motor are used. High speed, precision, little noise, and powerful drive.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

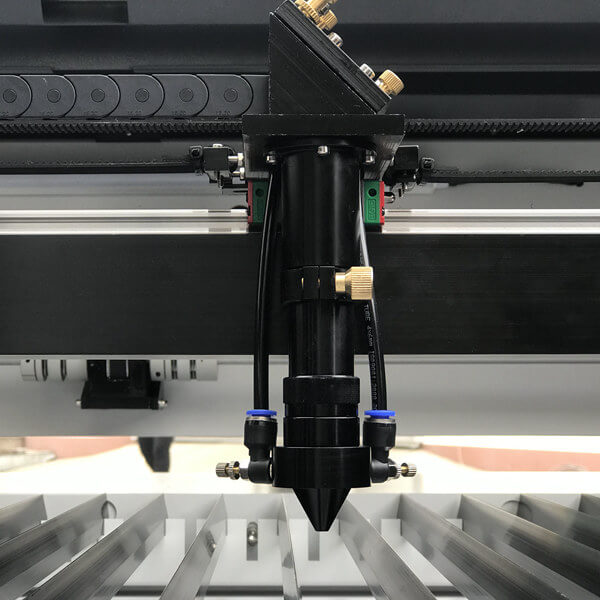

Industrial Water Cooling Laser Head

  • Updated Laser Cutting Head, Patent Technology
  • Double Blowing, and Fire-Resistant Compatible with a variety of focus distances and lens sizes
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Transmission System

  • Taiwan Hiwin/PMI Brand Linear Guide Rail ensures high stability and accuracy.
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 1

Control Panel

  • With separate current and voltage displays, it is simple to determine whether the machine is operating normally and precisely.
  • The panel output voltage is 24V, which is safer for humans.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Auto Exhaust Fan

  • Only start while working to assist you to conserve electricity consumption.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Air Pump

  • Top China Brand ACO series air pump ensures great cutting.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction img_6

Transmission System

  • NSK Bearing, imported from Japan, ensures great precision.
  • Transmission lifespan is increased fivefold.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Glass Laser Tube

  • Best Brand Reci Brand with a 10-year warranty.
  • Original label and code on that, which clients may verify on the official website.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

Reflect Mirrors and Lens

  • Imported from the United States, this is the world’s first brand.
  • The transmission rate of the lens is three times that of the competition.
  • The Mirror is a silicon gold dielectric film lens that is 20% more expensive than a metal molybdenum mirror.
Compact-Co2-Laser-Cutting-M

Industrial Water Chiller

  • Adopt a CW-3000/5000/CW5200 Water Chiller with a temperature display to prevent overheating and safeguard the water circulation from power outages.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction img_8

European Standard Electric Parts Layout

  • The electric parts are modularized and use high-quality electronic components. Strong and weak currents are separated, resulting in less interference and greater stability.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Cutting Table

  • Both a strip blade table and a honeycomb table are available.
  • Strip blade table for heavy materials including acrylic, wood, MDF, and plastic.
  • Honeycomb tables are made of light materials like leather, cotton, and textile.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Dust Waste Recycling Drawer

  • It is a user-friendly scientific design. Users may quickly clean the dust waste generated during cutting to prevent dust from affecting the environment or the cutting impact.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction

Machine Design

  • With heat emission holes on every surface of the machine, it is excellent in every aspect.
LEARN MORE

Application

Compact CO2 laser cutters are an ideal tool for creating intricate, detailed cuts in a variety of materials. With the ability to cut through wood, plastics, metals, and other materials, these machines can be used in a variety of applications such as sign-making, woodworking, and engineering.

Craft gift, decorating, packaging and printing, molding, advertising sign, furniture, shoe, leather, clothes proofing, home decoration textiles, purses, gloves, apparel, embroidery, toys, and so on are all examples of application industries.

Acrylic, plexiglass, wood, MDF, marble, cloth, leather, rubber, bamboo, crystal, horn, paper plate, plastic, and so on.

Compact Co2 Laser Cutting Machine 1390 3Compact Co2 Laser Cutting Machine 1390 4

Material Engraving Cutting Material Engraving Cutting
Acrylic Cloth
MDF Paper
Wood Stone ×
PVC Marble ×
Double Color Board Granite ×
Rubber Stainless steel × ×
Leather, Fabric Carbon steel × ×

img_email

Optional Items

BE-DK1490VII Optional Items

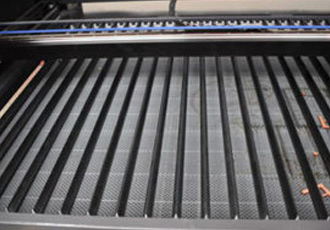

Double Working Table

Honeycomb and Thicken Strike Working Table to Meet Different Engraving and Cutting Requirements

Optional Items BE-DK1390VT_2

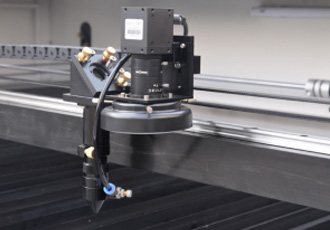

CCD Position Edge Scanning System

Industrial CCD Camera (Auto Focusing Distance/Diaphragm/Sensitometry).

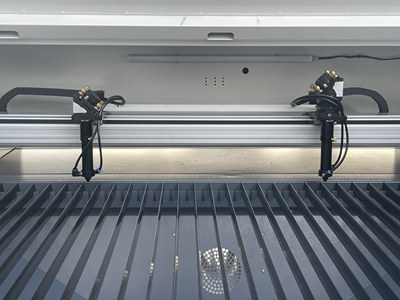

double laser head

Double Working Table

The two heads may work together or individually, greatly improving working efficiency.

Model BE-DK9060VT BE-DK1390VT
Processing Size 900x600mm 1300x900mm
Laser Power 100W/120W/150W/180W/200W
Laser Type Hermetic Co2 Laser Tube, Laser Wavelength: 10.6μm
Max Moving Speed 0-60000mm/min
Cutting Speed 0-12000mm/s
Speed Control 0-100% (No Period Control)
Max Cutting Depth 0-30mm (150w Cutting Acrylic)
Repeat Location Accuracy 0.01mm
Max Scanning Resolution 2500DPI
Laser Tube Cooling Industrial Water Cooling
Smallest Letter Chinese Character: 2mm×2mm, English Letter: 1mm×1mm
Laser Power Control Software Control (0-100% Nonlinear Tunable) /0-5V analog quantity manually adjusted
Power AC220V/50HZ (Standard), Optional: AC220V/60HZ or AC110V/60HZ
Engraving Table Honeycomb/Strike/Up Down Table (Optional )
Layered Color Input Support
Communication Mode USB/Network Cable / U Disk Loaded
Support Graphics Mode BMP DST PLT DXF AI DWG
Working Environment Temperature: 0℃-45℃, Humidity: <80% (No Condensation)
Machine Power 2500w(150w)

Package and Shipment

Model Package Size Gross Weight
BE-DK13090V 1.6m*1.3m*1.3m, 2.7CBM 350KG
Compact Co2 Laser Cutting Machine 1390 6 Compact Co2 Laser Cutting Machine 1390 7 Compact Co2 Laser Cutting Machine 1390 9
Putting in 3 layers with Fumigated Wooden Cases Fasten and Fixed well,loading in container EXW Factory Send to the named sea port by Sea
