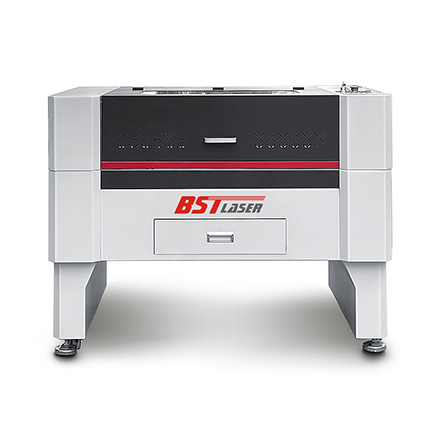

Acrylic Wood MDF Co2 Laser Cutting Machine 9060
Acrylic Wood MDF Co2 Laser Cutting Machine 9060
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 1

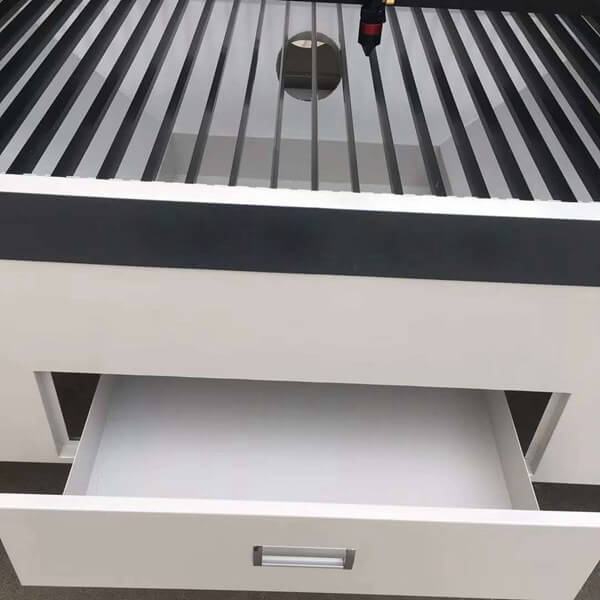

Acrylic Wood MDF Co2 Laser Cutting Machine 9060 2
Acrylic Wood MDF Co2 Laser Cutting Machine 9060
Acrylic Wood MDF Co2 Laser Cutting Machine 9060
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 1
Acrylic Wood MDF Co2 Laser Cutting Machine 9060 2

Acrylic Wood MDF Co2 Laser Cutting Machine 9060


Category Co2 Laser Cutting Machine
Model No. BE-DK9060
Views 5822
Rating ★★★★★4.9/5 Based on 50 Votes
Price Range US$2500 – US$4000/set Based on the Features
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Leading Time 5-7 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The BST LASER CO2 laser cutting machine 9060V is specifically developed for high-precision engraving and cutting of tiny nonmetallic materials. The standard laser tube is 100W, but it can be matched with 130W, 150W, or 180W laser tubes with enlarged covers. High-speed and balanced cutting performance is ensured by the proper optimization of transmission components, rail guiding systems, and axis motion.

Three-dimensional suction and double-blowing anti-fire features have been introduced. The software function has been improved once more, making it more powerful. The optional CCD locating edge-cutting capability improves cutting convenience and accuracy.


Machine Features

  • The transmission system employs an intermediate drive path along the Y axis, and imported diaphragm coupling ensures high transmission accuracy.
  • The standard machine includes an industrial cold water system, an air-blowing system, and a smoke exhaust system.
  • Compatible with blades and honeycomb cutting working tables to fulfill a variety of processing needs. More laser processing needs can be met by having a modular lifting platform.
  • Low-speed cutting is less erratic and more steady thanks to the use of high-precision Taiwan square linear guides and outstanding reduction gear components. Cutting precision is ensured.
  • The balance of power and torque with an all-digital three-phase stepping motor driver and matching motor much outperforms the present two-phase stepping system on the market.
  • High-speed data transmission interface that enables two types of computer output and U disk import.
  • The machine supports network transmission and communication over a local area network using the standard TCP/IP protocol suite.
  • Support the engraving function after the power is turned off. If the power goes out unexpectedly at work, it can still function after it is turned back on.
  • The corresponding laser tubes have been completely upgraded, and they all employ long-life catalytic laser tubes. Customers save money on consumables since the laser spot is tiny and has a long lifetime.
  • Having a front and back design that makes it simple to fill the entire plate.

img_email

Parts Introduction

Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Machine Structure

  • One molding, 150KG, annealed and digital CNC machine processed, bearing capacity not easily deformed.
  • The frame is built of 100*100 metal tubing, which ensures its stability.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Transmission System

  • Y-axis center drive + diaphragm flexible coupling is more exact than ordinary single-side motor installation, double Y has superior synchronization, and concentricity is adaptive via flexible coupling.
  • Imported bearings are used in the drive system to ensure flawless operation. A three-phase driver and a three-phase motor are used. High speed, precision, little noise, and powerful drive.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

LCD DSP Offline Control System

  • Adopting the top China Brand Latest Ruida Controller with complete number keys and other standard function keys makes operation easier and more convenient.
  • Communication without borders is supported by 12 different foreign languages.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Control Panel

  • With separate current and voltage displays, it is simple to determine whether the machine is operating normally and precisely.
  • The panel output voltage is 24V, which is safer for humans.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Three-dimensional Suction System

  • Larger holes down and smaller holes up, may efficiently absorb smoke and dust during processing.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Belt Transmission

  • Taiwan ONK brand Transfer Belt (5m) with high tension and durability.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Auto Exhaust Fan

  • Only start while working to assist you conserve electricity consumption.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Air Pump

  • Top China Brand ACO series air pump ensures great cutting.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Glass Laser Tube

  • Best Brand Reci Brand with a 10-year warranty. Original label and code on that, which clients may verify on the official website.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Reflect Mirros and Lens

  • Imported from the United States, this is the world’s first brand.
  • The transmission rate of the lens is three times that of the competition.
  • The Mirror is a silicon gold dielectric film lens that is 20% more expensive than a metal molybdenum mirror.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Power Supply

  • Can provide enough laser power to the laser tube. With a 5-year life span and consistent performance.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Laser Cutting Head

  • The aluminum alloy adjustable laser head is lighter than conventional metal laser heads, reducing inertia error when the laser head moves and never deforming over time.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Industrial Water Chiller

  • Adopt a CW-5000/CW5200 Water Chiller with a temperature display to prevent overheating and safeguard the water circulation from power outages.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Front and Back Through Design

  • The unusual design with the broad plate allows for easy feeding; the typical height is 40cm, but various sizes can be adjusted.
LEARN MORE

Application

Nonmetal materials include acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, gum, ceramics, and so on.
Advertisement, arts and crafts, toys, cars, mechanisms, and electrons, as well as trademarks, needlework, clothes, and other sectors.



Cutting and Engraving Material List

Material Engraving Cutting
Acrylic
MDF
Wood
PVC
Double Color Board
Rubber
Leather, Fabric
Cloth
Paper
Stone ×
Marble ×
Granite ×
Stainless Steel × ×
Carbon  Steel × ×

app_9060

Optional Items

BE-DK1490VII Optional Items

Double Working Table

  • Honeycomb Working Table: Designed specifically for engraving or soft material engraving cutting (like cloth, leather, silk, fabric, etc).
  • Strike Working Table: Primarily used for cutting and processing heavy materials such as wood, MDF, plexiglass, acrylic, and so on.

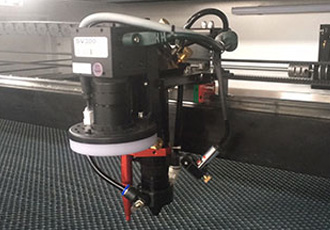

Optional Items_9060_4

CCD Camera System

  • Auto Nesting + Auto Scanning +Auto Position Recognition, or cutting a printed image, such as a logo or a picture on a t-shirt, etc.
double laser head

Double Laser Head

The two heads may work together or individually, greatly improving working efficiency..

Model BE-DK9060V
Working Area 900x600MM
Laser Power 100W/130W/150W/180w
Laser Type Hermetic and Detached Co2 Laser Tube
Engraving Speed 0-60000MM/S
Cutting Speed 0-10000MM/S
Cutting Thickness 0-25MM Acrylic (Others Determined by Materials)
Repeat Location Accuracy +/-0.0125MM
Driving Mode DC0.8A 24V Stepper Motor
Position System Red Dot
Interface USB
Radio 0.025MM
Voltage AC220V/50HZ or 110V/60HZ or Depend on Customer
Minimum Letter Chinese Character: 2MM, English Letter: 1MM
Machine Power ≤1500W
Controlling System CNC Professional Control System
Support Graphics Mode BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF etc.
Cooling Mode Circulation Water Cooling and Protection System
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Laser Engraving & Cutting Software
Operating Temperature 0-45C
Operating Humidity: 5-95%
Packing Standard Wooden Box
Operation Detailed Video to Teach Customer How to Operate the Machine

Package and Shipment

Model Package Size Gross Weight
BE-DK9060V 1.71m×1.3m×1.28m, 2.845CBM 470KG
Co2 Laser Cutting Machine 9060 1 Co2 Laser Cutting Machine 9060 3 Acrylic Wood MDF Co2 Laser Cutting Machine 9060 4
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
