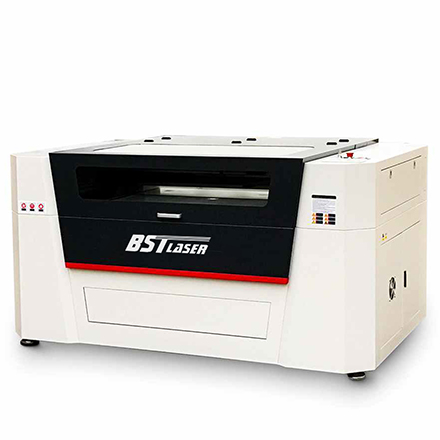

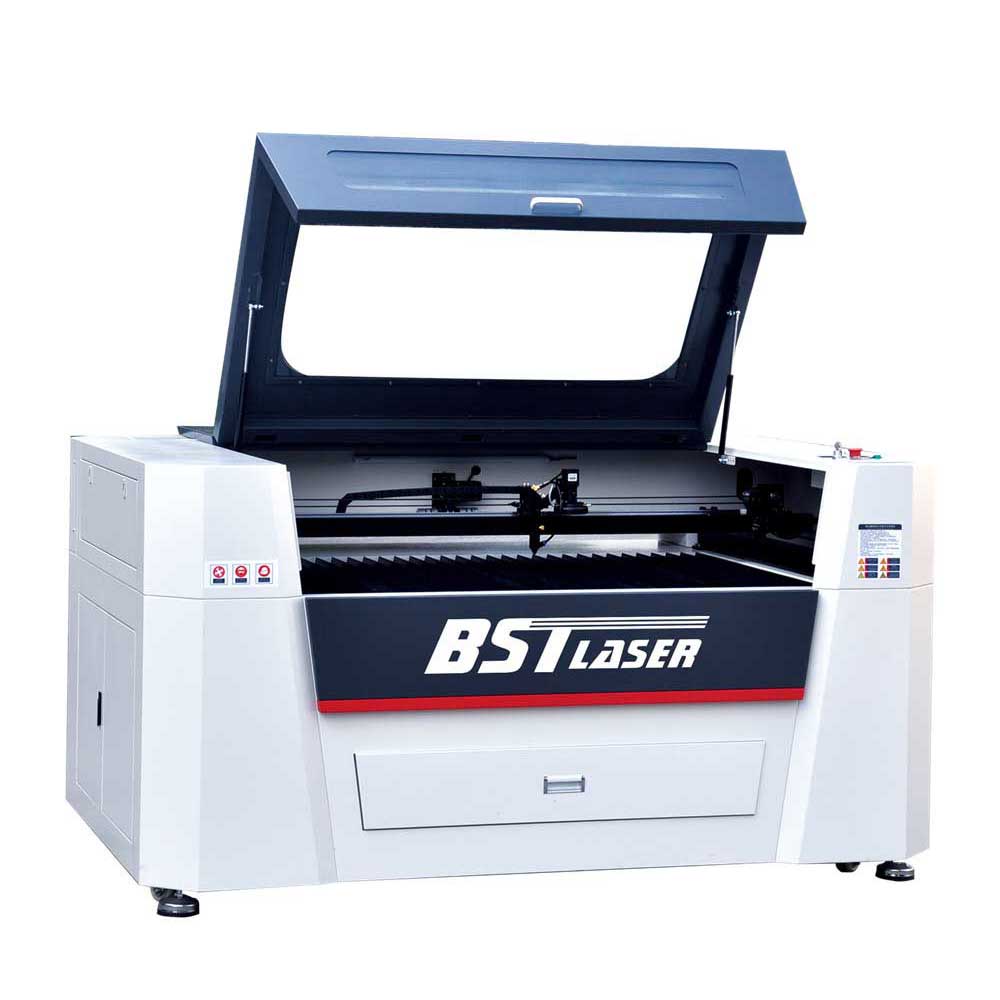

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine
co2-laser-cutter-1490
Co2 Laser Cutter Machine 3
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine
co2-laser-cutter-1490
Co2 Laser Cutter Machine 3

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine


Category Co2 Laser Cutting Machine
Model No. BE-DK1490V/BE-DK1412V
Views 10000
Rating ★★★★★5/5 Based on 499 Votes
Price Range US$2500 – US$5800/set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-10 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A CO2 laser cutter machine is a tool used to cut and engrave materials such as wood, plastic, and metal. It works by focusing a beam of infrared light, generated by a laser, onto a material to create a precise cut or engraving in the material. Whether you’re a hobbyist, maker, or professional looking for a versatile and precise tool, a CO2 laser cutter machine can open up a world of possibilities.

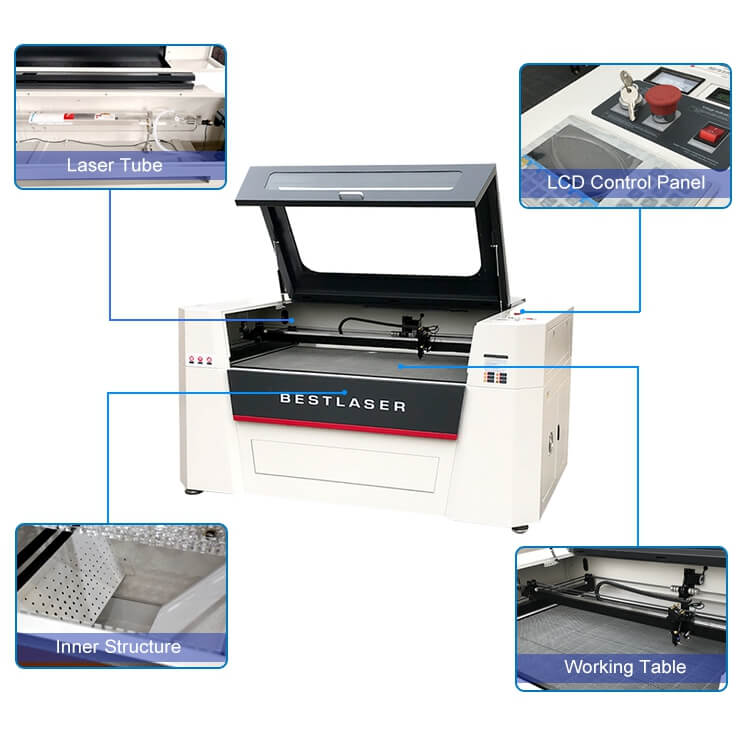

Co2 Laser Cutter Machine 10

Good Features

  • Heavy-duty machine structure to ensure long-term usage without deformation, making it appropriate for mass production.
  • Newly added powerful exhausting system and double blowing system to prevent fire, ensuring the safety of the cutting and the health of the human body.
  • The machine may be equipped with a CCD camera to achieve high-precision positioning and contour edge cutting.
  • The Y axis with a scientific middle drive and imported diaphragm coupling ensure high accuracy transmission.
  • Intelligent temperature display on an industrial water cooling system.
  • Strip blades and honeycomb tables are offered to meet a variety of cutting needs, and modular down tables are supported.
  • Using a well-known brand of square linear guide rail from Taiwan. A better reduction gearbox produces less cutting vibration and offers greater cutting precision.
  • 0 high-speed data transmission interface, as well as PC control and DSP offline USB disk file import.
  • The most recent Ruida/Trocen controlling software supports 12 languages, making it suited for international consumers.
  • If the power is turned off and on again, the machine can resume an unfinished cutting task.
  • Using a long service life of 10000h Co2 laser tube and USA-imported lens mirrors, a narrower laser beam is produced, lowering the cost of operation consumables.
  • Single or double heads can be added as needed. Front and back through allow for full plate feeding.

img_email

Parts Introduction

Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Machine Structure

  • One molding, 150KG, annealed and digital CNC machine processed, bearing capacity not easily deformed.
  • The frame is built of 100*100 metal tubing, which ensures excellent stability.
Co2 Laser Cutter Machine 9

Transmission System

  • When compared to ordinary single-side motor installation, Y-axis middle drive + diaphragm flexible coupling is more exact, double Y has greater synchronization, and concentricity is adaptable via flexible coupling.
  • The drive system uses imported bearings for flawless operation. A three-phase driver and a three-phase motor are used. High speed, precision, little noise, and powerful drive.
Dual Head CO2 Laser Engraving Cutting Machine 6

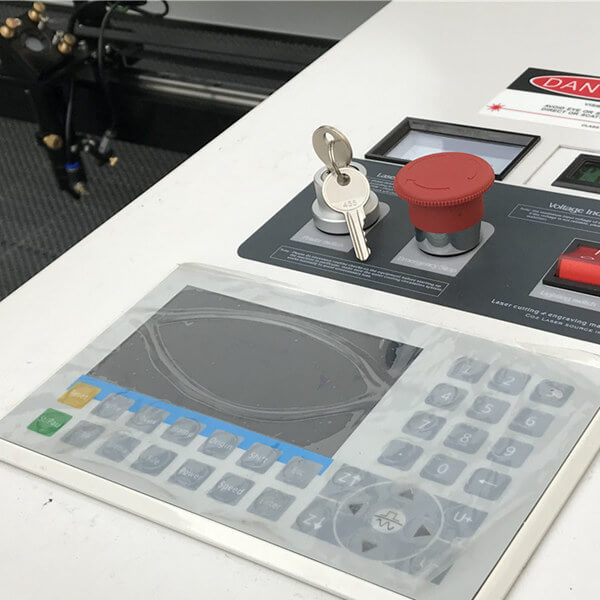

LCD DSP Offline Control System

  • Adopting a top China Brand Latest Ruida Controller with full number keys and other standard function keys makes operation easier and more convenient.
  • Communication without borders is supported by 12 different foreign languages.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Control Panel

  • With separate current and voltage displays, it is simple to determine whether the machine is operating normally and precisely.
  • The panel output voltage is 24V, which is safer for humans.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Unique Exhaust System

  • Bigger holes down and smaller holes up, may efficiently absorb smoke and dust during processing.
Dual Head CO2 Laser Engraving Cutting

Unique Working Table Design

  • Worktable holders with variable level heights that are simple to modify based on varied material thicknesses. Furthermore, two working tables (strike+honeycomb) can be conveniently placed.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Glass Laser Tube

  • Top Brand CDWG Brand with lifetime 10000h
  • Original label and code on that where clients can verify official website
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

Reflect Mirrors and Lens

  • USA imported, global first brand
  • Lens transmission rate is three times than other brand
  • Mirror is a silicon gold dielectric film lens, which is 20% higher than the metal molybdenum mirror
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Power Supply

  • Can provide enough laser power to the laser tube. With a 5-year life span and consistent performance.
Acrylic Wood MDF co2 Laser Cutting Machine 9060 Parts Introduction

Laser Cutting Head

  • Patented Laser Cutting Head Technology.
  • Fire-prevention and double blowing.
  • Compatible with various focus distances and lens sizes.
Compact-Co2-Laser-Cutting-M

Industrial Water Chiller

  • To safeguard the water circulation from electrical outages, use a water chiller with a temperature display like the CW-5000/CW5200 that can prevent over burning.
Distributor Wanted Compact Co2 Laser Cutting Machine 1390 Parts Introduction img_6

Transmission System

  • Japan Imported NSK Bearing Transmission Lifetime prolong 5 times.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Auto Exhausting/Blowing

  • Intelligent Self-Design.
  • When the machine is running, it will automatically open and close.
  • Exhaust Fan stops 15S/30S after the machine stops processing, ensuring that the smoke is entirely cleansed.
Dual Head CO2 Laser Engraving Cutting Machine 3

European Standard Circuit Layout

  • The electrical component is modularized and laid out.
  • Strong and weak currents are separated, resulting in less interference and greater stability during cutting.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Guide Rail

  • Genuine Taiwan Hiwin/PMI Brand Linear Guide Rail which ensure high stability and accuracy.
Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine Parts Introduction

Loading System

  • Auto Front and Back design methods allow for easier processing of super-long and massive materials such as large wood acrylic plate sheets.
LEARN MORE

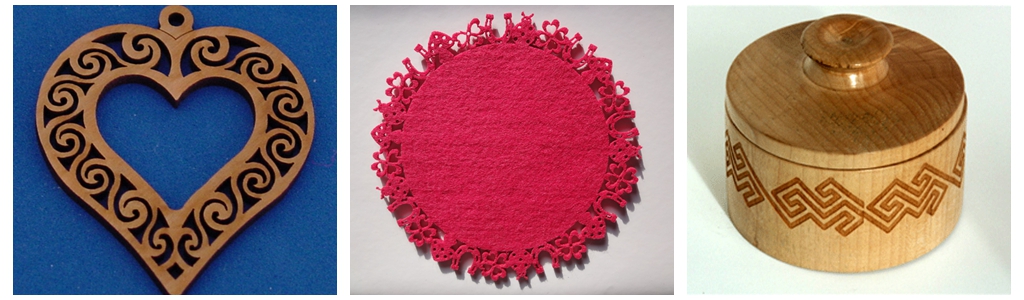

Application

Application Industry: craft gift, decoration, packaging and printing, molding, advertising sign, furniture, shoe, leather, clothing proofing, home decoration fabrics, handbags, gloves, clothing, embroidery, toys etc.

Application Materials: acrylic, plexiglass, wood, MDF, marble, cloth, leather, rubber, bamboo, crystal, horn, paper plate, plastic etc.
Co2 Laser Cutter Machine 2
Co2 Laser Cutter Machine 1

Material Engraving Cutting Material Engraving Cutting
Acrylic Cloth
MDF Paper
Wood Stone ×
PVC Marble ×
Double Color Board Granite ×
Rubber Stainless steel × ×
Leather, Fabric Carbon steel × ×

Optional Items

BE-DK1490VII Optional Items

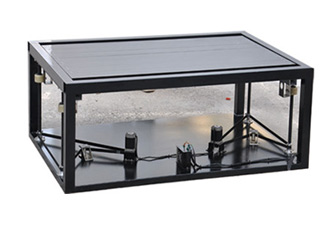

Motorized Up and Down System with Auto Focus Function

  • Typically used to thicken materials with thicknesses greater than 20mm in conjunction with a rotational system.
  • With a Separated Design, you can remove it from the machine when you don’t need the cutting performance, or you can utilize one set on multiple machines to save money.



BE-DK1490VII Optional Items

Rotary System

  • Rotary engraves cylindrical or column work pieces in a circle.
  • We have three designs to satisfy your various applications, and unique requests can be accommodated.
BE-DK1490VII Optional Items

Double Working Table for Different Applications

  • Honeycomb Working Table: Designed specifically for engraving or soft material engraving cutting (like cloth, leather, silk, fabric, etc.).
  • Strike Working Table: Primarily used for cutting and processing heavy materials such as wood, MDF, plexiglass, acrylic, etc.
BE-DK1490VII Optional Items

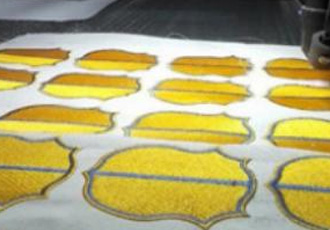

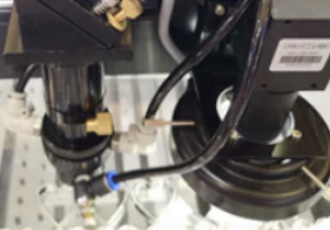

CCD Camera System

Auto Nesting+Auto Scanning+Auto Position Recognition, or cutting a printed image, such as a logo or a picture on a t-shirt, etc.

BE-DK1490VII Optional Items

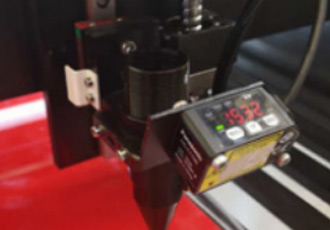

Auto Following Function

Machine can sense the cutting materials hight and adjust focus distance automatically when the materials are not even.

BE-DK1490VII Optional Items

Lens Cooling System

Cooling the lens and reflecting mirrors during high power and mass production cutting extends the life of the item.

Model BE-DK14090V BE-DK1412V
Working Area 1400x900MM 1400x1200MM
Laser Power 80W/100W/130W/150W/180w/200w
Laser Type Hermetic and Detached Co2 Laser Tube
Engraving Speed 0-60000MM/S
Cutting Speed 0-10000MM/S
Cutting Thickness 0-25MM Acrylic (Others Determined by Materials)
Repeat Location Accuracy +/-0.0125MM
Driving Mode DC0.8A 24V Stepper Motor
Position System Red Dot
Interface USB
Radio 0.025MM
Voltage AC220V/50HZ or 110V/60HZ or Depend on Customer
Minimum Letter Chinese Character: 2MM, English Letter: 1MM
Machine Power ≤1500W
Controlling System CNC Professional Control System
Support Graphics Mode BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF etc.
Cooling Mode Circulation Water Cooling and Protection System
Auxiliary Devices Exhaust Fan and Exhaust Pipe
Cutting Platform Professional Thickening Strip or Honeycomb Work Table
Power Control Mode Laser Energy Combining Movement Control System
Software Professional Laser Engraving & Cutting Software
Operating Temperature 0-45C
Operating Humidity 5-95%
Packing Standard Wooden Box
Operation Detailed Video to Teach Customer How to Operate the Machine

Package and Shipment

Model Package Size Gross Weight
BE-DK1490V 2.21m×1.6m×1.28m, 4.53CBM 600KG
BE-DK1412V 2.21m×1.92m×1.26m, 5.35CBM 650KG
Co2 Laser Cutting Machine 9060 1 Co2 Laser Cutting Machine 9060 3 Acrylic Wood MDF Co2 Laser Cutting Machine 9060 4
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
