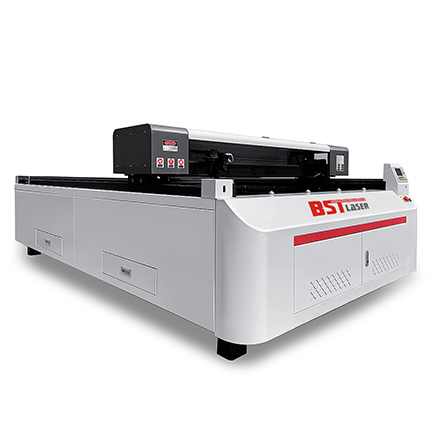

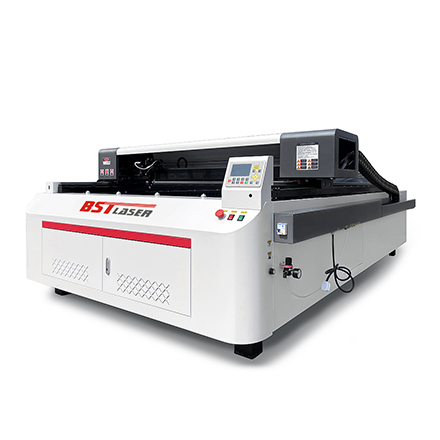

Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Acrylic Wood MDF Laser Cutter Machine 1325
Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Industrial Flatbed Acrylic Wood MDF Laser Cutter Machine 1325
Acrylic Wood MDF Laser Cutter Machine 1325

Flatbed Acrylic Wood MDF Laser Cutter Machine 1325


Category Co2 Laser Cutting Machine
Model No. BE-DK1325PL
Views 2500
Rating ★★★★★4.9/5 Based on 700 Votes
Price Range US$4000 – US$7500/set Based on the Features
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Leading Time 10-15 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A flatbed acrylic wood MDF laser cutter machine is a powerful tool that can be used to cut, engrave, and mark a variety of materials. From wood to acrylic to MDF, a laser cutter can bring your creative ideas to life with precision and accuracy.  This machine uses a laser to cut through a variety of materials with precision and accuracy. It’s ideal for cutting intricate designs, letters, shapes, and more. With the ability to cut complex shapes, create intricate designs, and even engrave text, these machines are a great way to take your projects to the next level.

Machine Feature:

  • High-strength heavy-duty steel frame welded construction that has been aged and high-temperature annealed. The frame is expertly welded, and the weighted frame ensures the bed’s excellent strength and reliability.
  • To guarantee the levelness and parallelism of the machine tool, the plane of the rack rail is processed by CNC gantry milling.
  • To guarantee the machine tool’s high-speed machining performance, it has excellent transmission components and a Y-axis twin motor drive.
  • A more stable light channel is provided by optical frames.
  • It has two sets of double-fan lower suction systems and two sets of suction systems with auxiliary higher suction.
  • The entire machine is outfitted with leaking overload protection.
  • To safeguard the water circulation against power outages, use the CW-5000/6000 Water Cooling System with Alarm Protection and temperature display.
  • With luxury consumables, a USA Original Focus Lens and reflect mirror, and a Chinese Best Quality Laser Tube, it achieves great efficiency and consistency.
  • It has high precision in repetition, numeral timing, low error, simulated quantum control laser power, and can engrave 11mm small English characters precisely.
  • Without the use of a laser, the Red Light Pointer determines the exact position.



img_email

Parts Introduction

Acrylic Wood MDF Laser Cutter Machine 1325

Heavy-duty Welded Bed Structure

  • Make certain that the bed is not deformed during transit, especially if it will be used for an extended period.
  • Deformation, a lack of precision, or a random change in the laser direction could result from an unreasonable or light bed structure.
Acrylic Wood MDF Laser Cutter Machine 1325

Powerful Controlling System

  • The most recent Trocen Controlling System with Colorful Screen makes operation more simple and more convenient.
  • Supporting 12 different foreign languages, communication is possible without any obstacles.
Acrylic Wood MDF Laser Cutter Machine 1325

Strong Step Motor

  • The three-phase closed-loop stepper motor provides great torque and cutting accuracy.
Acrylic Wood MDF Laser Cutter Machine

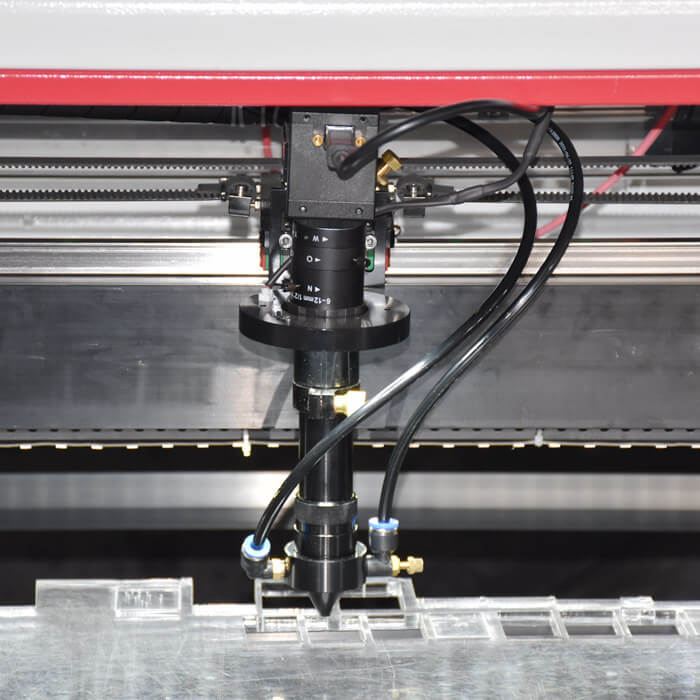

Professional Laser Cutting Head

  • Updated Laser Cutting Head, Patent Technology Double Blowing, and Fire-Prevention
  • Compatibility with various focus distances and lens sizes
Acrylic Wood MDF Laser Cutter Machine 1325

Professional Drag Chain

  • Ensure smooth and stable processing while cutting at high speeds.
Acrylic Wood MDF Laser Cutter Machine 1325

Linear Guide Rail

  • Top China-made brands Hiwin and PMI guide rail offer exceptional cutting precision and stability throughout processing, with Japan-imported SMAG available as an option.
Acrylic Wood MDF Laser Cutter Machine

Belt Transmission

  • High and consistent transmission efficiency, high strength, anti-aging, good flex resistance, low elongation, top China Brand conveyor belt
Acrylic Wood MDF Laser Cutter Machine 1325

Electronic Circuit Board

  • The safety and dependability of machine circuits exceed industry norms and regulations when using European industrial electrical cabinets.
High Performance Power Supply

High Performance Power Supply

  • With the Ampere Meter shown on the LCD screen
  • Integrated fault detection
Acrylic Wood MDF Laser Cutter Machine 1325

Red Light Pointer

  • Making the laser visible and easy to frame ensures great cutting precision and simple operation.
LEARN MORE

Application

The acrylic wood MDF laser cutter machine has become a popular and versatile tool for a wide range of applications. It is capable of cutting, engraving and marking a variety of materials with precision and accuracy. This makes it an ideal tool for creating intricate and detailed designs, as well as for industrial and commercial applications.

Nonmetal materials like acrylic, organic glass, wood, MDF, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, gum, and ceramics are examples of readily accessible materials.

Advertisement, arts and crafts, toys, automotive, mechanism, electrical, trademarks, needlework, clothing, and other industries.

app_1325
Material List for Cutting & Engraving

Material Engraving Cutting Material Engraving Cutting
Acrylic Cloth
MDF Paper
Wood Stone ×
PVC Marble ×
Double Color Board Granite ×
Rubber Stainless steel × ×
Leather, Fabric Carbon   steel × ×



Optional Items

Optional Items

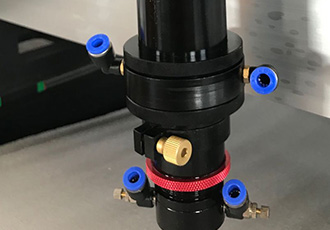

Water Cooling Laser Head

The lifespan of the components is increased when the lens and reflecting mirrors are cooled during high power and mass production cutting.

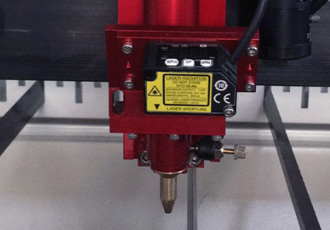

Dynamic Following System

When the materials are uneven, the machine can detect their height and automatically adjust the focus distance.

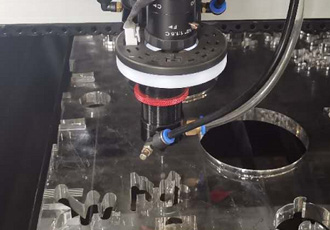

CCD Edge Recognition System

Nesting automatically + Scanning automatically+ Cut printed images such as logos and portraits on t-shirts, for example, using auto position recognition.

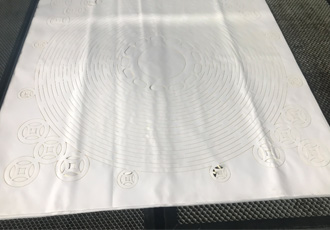

Honeycomb Working Table

Designed specifically for engraving or soft material engraving cutting (like cloth, leather, silk, fabric, etc.)

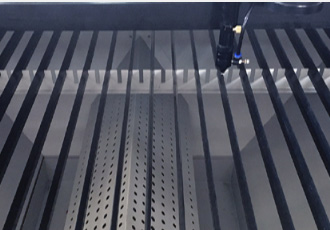

Strike Working Table

Mainly used for cutting and heavy material processing such as wood, MDF, plexiglass, acrylic, and so on.

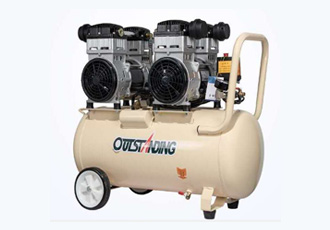

Air Pump

Make sure the cutting effect is fine and smooth when the machine needs to cut thick wood or acrylic.

Model BE-DK1325PL
One Time Max Processing Size ≥1250X2450mm
Laser Power 100W/120W/150W/180W/300W
Max Loading Width Hermetic and Detached Co2 Laser Tube
Machine Weight 1500KG
Max Moving Speed 0-60000mm/min
Max Cutting Speed 0-12000mm/min
Best Cutting Speed 1mm/s-180mm/s
Speed Control 0-100% (No Period Control)
Max Cutting Depth 30mm (Cutting Acrylic)
Mechanical Ratio 0.025mm
Laser Power Control Software Control /Manual Control (Optional )
Laser Tube Cooling Industrial Water Cooling
Repeat Location Accuracy ±0.1mm
Power AC220V/50HZ ±15 50hz(optional 220v,60hz or 110v/60hz)
Driving Servo Motor Drive ,Y Axis Dual Drive+X Axis Ball Screw Transmission
Support Graphics Mode BMP DST PLT DXF AI DWG
Operating Temperature Degree: 0℃-45℃, Humidity: <80% (no condensation)
Machine Size Dimension 1950X3830X1200mm
Machine Power 2500w (150w Laser Device )

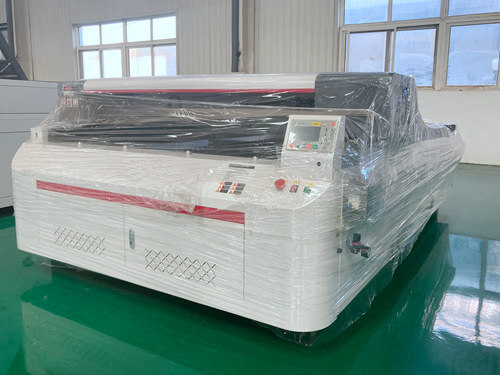

Package and Shipment

Model Package Size Gross Weight
BE-DK1325PL 3265x2150x1295mm, 9.09CBM 1500KG
Acrylic Wood MDF Laser Cutter Machine 1325 Acrylic Wood MDF Laser Cutter Machine 1325 Acrylic Wood MDF Laser Cutter Machine 1325

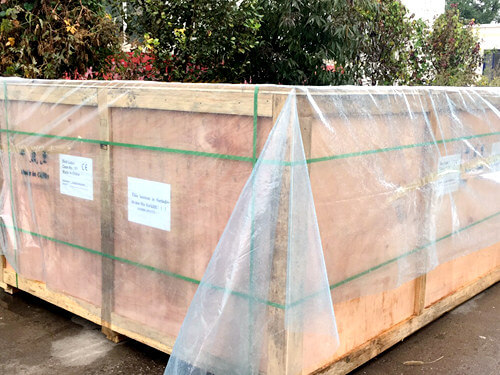

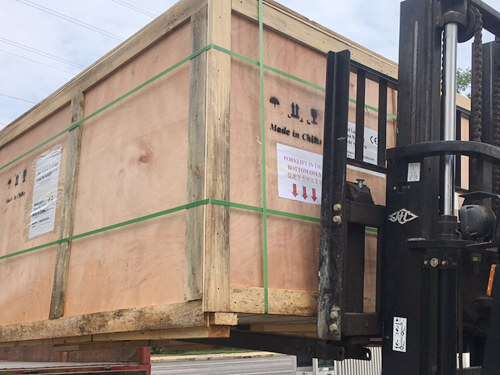

Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
