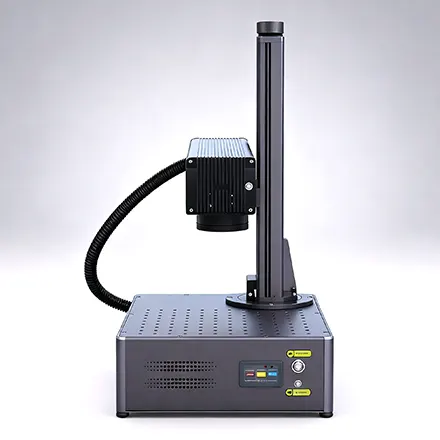

Integrated MOPA Fiber Laser Marker with Auto Focusing
| Category | Fiber Laser Marking Machine |
| Model No. | BE-F20E |
| Views | 12000 |
| Rating | ★★★★★4.8/5 Based on 500 Votes |
| Price Range | US$1799 – US$2899/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 5-7 Days |
| Shipping | Air Express |
| Warranty Period | 24 Months with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
The Mini Integrated Fiber Laser Marking Machine combines precision, versatility and efficiency in a compact all-in-one design. With intelligent autofocus and optional MOPA laser source, it ensures superior metal marking—excelling at vivid black and full-color effects on stainless steel.Its non-contact process preserves workpiece integrity, producing consistent, wear-resistant and eco-friendly marks.
Technical Feature:
◆ Compact All-in-One Design: A sleek, space-efficient build that fits perfectly in small workshops, offices, or production lines. Lightweight and portable for effortless setup, relocation, and daily operation.
◆ Smart Autofocus System: With one-click automatic focusing, the laser instantly adjusts to different material heights, ensuring pinpoint accuracy and eliminating manual calibration.
◆ MOPA Fiber Laser Ready: Adjustable pulse width and frequency allow precise control over marking depth and color, ideal for creating rich black or full-color engravings on stainless steel and other metals.
◆ High-Speed, High-Precision Marking:Delivers engraving speeds up to 10,000 mm/s with ±0.01 mm accuracy, perfect for intricate logos, QR codes, serial numbers, and fine details.
◆ Versatile Material Compatibility: Easily engraves metals like stainless steel, aluminum, gold, and titanium, as well as non-metal materials such as plastics, leather, and wood.
◆ Durable & Low-Maintenance: Built with a fiber laser source rated for over 100,000 hours of reliable performance, minimizing downtime and service needs.
◆ Intuitive Software Integration: Works seamlessly with EZCAD and supports common design file types (ai, .dxf, bmp, etc.), simplifying workflow setup and production processes.
Parts Introduction

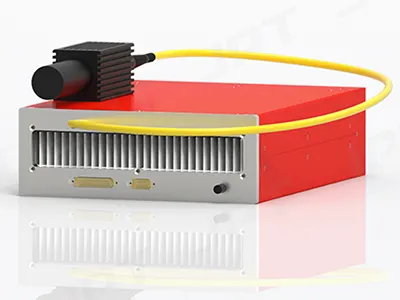

JPT MOPA Fiber Laser Device
Achieve true color engraving with the JPT MOPA laser — from vibrant stainless steel tones to blackened aluminum. Fine-tune settings (1–4000 kHz, 2–500 ns) or use Monport’s ready-made color presets for instant, brilliant results.
Small and Compact Size
Maximize Your Space Without Compromising Power, only 18kg,save your shipping cost 50%.
One Click Auto Focusing Function
Simply press the button, and our autofocus feature takes care of the rest, adjusting the focal length automatically to ensure your engravings are always spot-on with ±1 mm accuracy.
360 Degree Rotation
The Marking Head and Column can Rotate 360 Degree for Different Engraving Requirement.
Ultimate Versatility
- Supports Windows 7/8/10/11/xP & macOS
- Compatible with Lightburn Software,which makes the operation simple and efficient

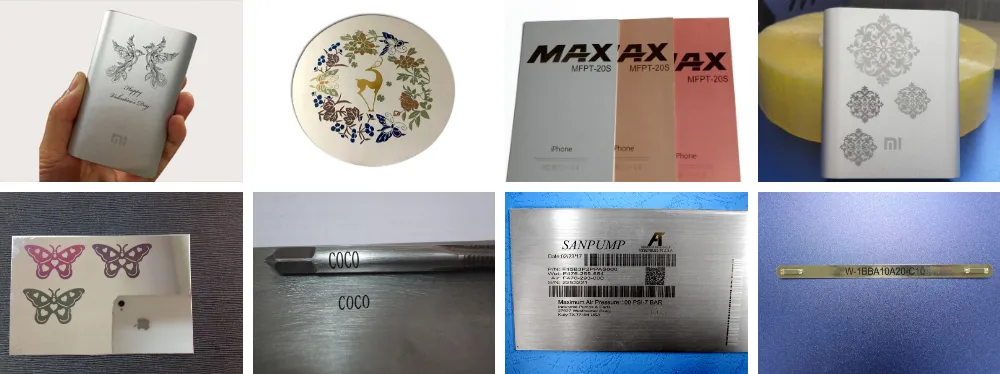

Application
This Small Fiber Laser Marker is Ideal for engraving logos, serial numbers, barcodes, and QR codes on metals like stainless steel, aluminum, and titanium, as well as plastics and leather. With color marking capability, it’s widely used in jewelry, electronics, tools, and customization industries. Delivers fast, precise, and permanent results for both industrial and creative applications.
Optional Items

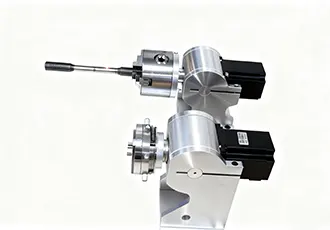

Rotary Axis
Rotary device can hold the round object and rotate when marking. It realizes rotary working.
Optional Size :65mm, 80mm, 100mm diameter (Special Size can be Customized )

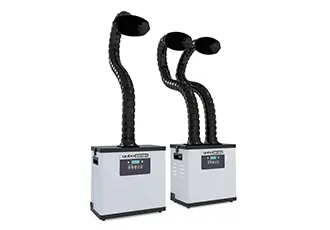

Fume Extractor
Can absorb the smoke and dusts completely during marking, protect your health and surroundings.

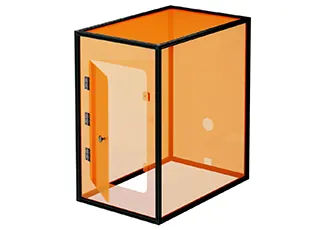

Enclosed Cover
Protect you from Laser harm and smoke pollution, strictly with European production standard.
| Wave Length | 1064nm |
| Frequency | 1-4000hz |
| Pulse Width | 2-500ns |
| Beam Quality | <1.5M2 |
| Marking Speed | <10000MM/S |
| Max Pulse Energy | 2mj |
| Max Engraving Depth | 0.04-0.1mm |
| Repetition Precision | ± 0.1 µm |
| Min. Line Width | 0.2MM |
| Cooling | Air Cooling |
| Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Working Temperature | 32-104°F (0-40°C) |
| Working Humidity | <75%( No condensation) |
| Working Environment | Clean, free of dust |
| Gross Power | < 1000W |
| Safety Protection Class | IP54 |
| Laser Generator Safety Class | Ⅳ |
| Est. Laser Service Life (MTTF) | 100,000 hr |
| Max Z Height (field lens to workbench) | 350mm |
Package and Shipment
| Model | Net Weight | Package Size | Gross Weight |
| BE-F20E | 18KGS | 21.46 × 15.35 × 13.78 in | 32KG |
Packing List
| 1x Fiber Laser Marker | 1x USB Cable(2 meters) |
| 1x Power Cord(1.5 meters) | 1x USB Flash Drive |
| 1x User Manual | 1x Goggles |
| 1x Wrench Set | 1x Foot Switch |
| 1x Ruler（30cm） | 2x Positioning Bars |
| 4x Screws M6*12 | 4x Screws M6*10 |
| 4x Screws M5*16 | 1x USB to Type C Adapter |
-
