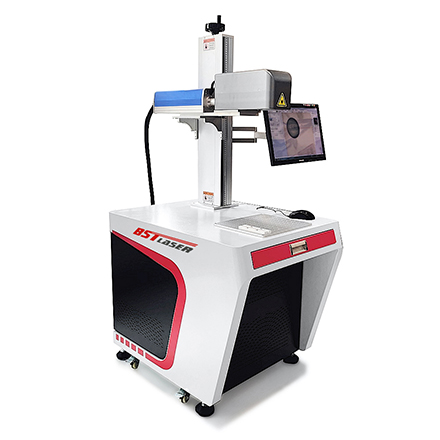

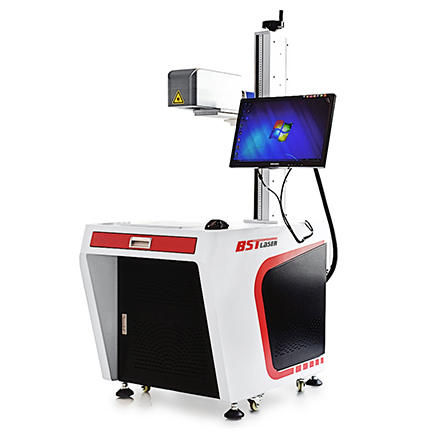

Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
3d laser engraving machine
Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
Auto Focusing 3D Dynamic Fiber Laser Engraving Machine
3d laser engraving machine

Auto Focusing 3D Dynamic Fiber Laser Engraving Machine


Category Fiber Laser Marking Machine
Model No. BE-F20R
Views 57600
Rating ★★★★★4.9/5 Based on 2000 Votes
Price Range US$7899 – US$11999/Set
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time 7-15 Days
Shipping Air/Sea/Train/Truck
Warranty Period Three Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

The 3D Dynamic Fiber Laser Engraving Machine is an effective instrument for making one-of-a-kind and customized items. This equipment cuts and engraves elaborate designs on a range of materials, including metal, wood, glass, and plastic, using a high-powered laser beam.

Big size 3D laser engraving machine can set the focal distance and do autofocusing, which ensures high accuracy marking. It uses imported core components and a high precision 3D scanning head, integrating professional 3D software to realize full 3D marking on curved surfaces.

The 3D marking software is quite powerful, allowing for simple 3D file editing.

Machine Feature:

  • It can engrave many distinct 3D shapes, such as a slope, cylinder, cone, ball, and so on, by subverting typical 2D marking mode.
  • With its sophisticated 3D galvanometer scanner, it could produce extremely accurate laser dots that were within 0 to 100 mm in height. It may leave a mark on the 3D curved surface. And the marking quality is consistent over the scope (0100mm height).
  • By eliminating deforming like elongation and slope, it displays target graphics on workpieces.
  • Nobody will “ignore” the border. The markings are consistent throughout.
  • The 3D marking engraving software was able to import charts that were exported from the most popular 3D applications on the market and alter those charts in a way that was straightforward and user-friendly.
  • It uses a marble base, which enhances the 3D laser machine’s overall stability, smoothness, and anti-seismic capabilities.
  • Appropriate for varied continuous planar marking and 3D surface curvature changing.
  • A high level of consistency and repeatability.
  • The laser focus length can automatically be adjusted based on the curvature of the 3D surface.
  • The 3D Laser Engraving Machine is ideal for engraving large-scale area objects up to 600 x 600mm, curved mode surfaces with depths of up to 10mm, and deep engraving cravings with depths of up to 1mm, among other things.

img_email

Parts Introduction

flying fiber laser marking machine

Fiber Laser Generator

  • The well-known Raycus Fiber Laser has a lifespan of over 100,000 hours, requires no consumables, and requires no maintenance.
  • Genuine and original, the Fiber Laser Device features a tracking security code.
  • Guaranteed for 36 months, with free technical assistance for life.
3d laser engraving machine (2)

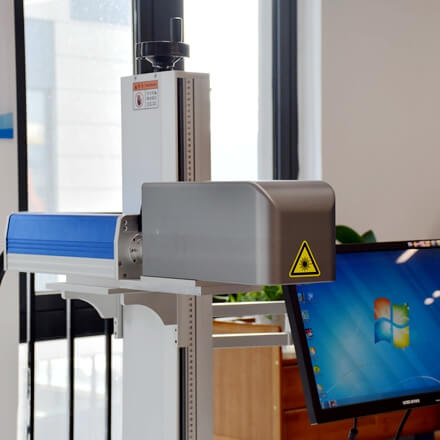

3D Marking Head

  • Equipped with an innovative 3D galvanometer scanner that can mark on 3D curved surfaces, and marking quality is uniform within the scope (0-100mm).
  • China Reliable Brand Sino-Galvo 3D Dynamic Focusing System for Curved Surface/Big Flat Surface/Deep Engraving.
3d laser engraving machine (3)

Marking System

  • Taiwan Imported 3D Dynamic Software with User-Friendly Operation Interface, Easy to Use, and Language Support
  • It could import the output chart from the primary 3D software and alter the charts in a simple, user-friendly manner.
3d laser engraving machine (4)

Brand New Industrial PC

  • Brand new industrial PC with pre-configured parameters, no bugs, and no blue screen.
3d laser engraving machine (1)

Thickening Machine Cabinet

  • With a stronger cover and a heavy-duty design, the thickening machine cabinet maintains its shape even after prolonged use.
3d laser engraving machine (5)

High Precision Working Table

  • High Quality Aluminum Alloy Materials
  • Size:300*300mm,400*400mm,500*500mm, 600*600mm With Holes
  • Suitable for affixing Marking Pieces in any position
  • Please provide a metal bar for engraving on the metal nameplate.
3d laser engraving machine (6)

Friend Label Notice

  • For simple identification, each port is labeled with a clean, high-quality label sticker.
  • Port for Power Supply/Foot Pedal/Rotary Device.
3d laser engraving machine (7)

Exhausting System

  • Multiple exhaust fans to ensure better air cooling and continuous long-term operation.
LEARN MORE

Application

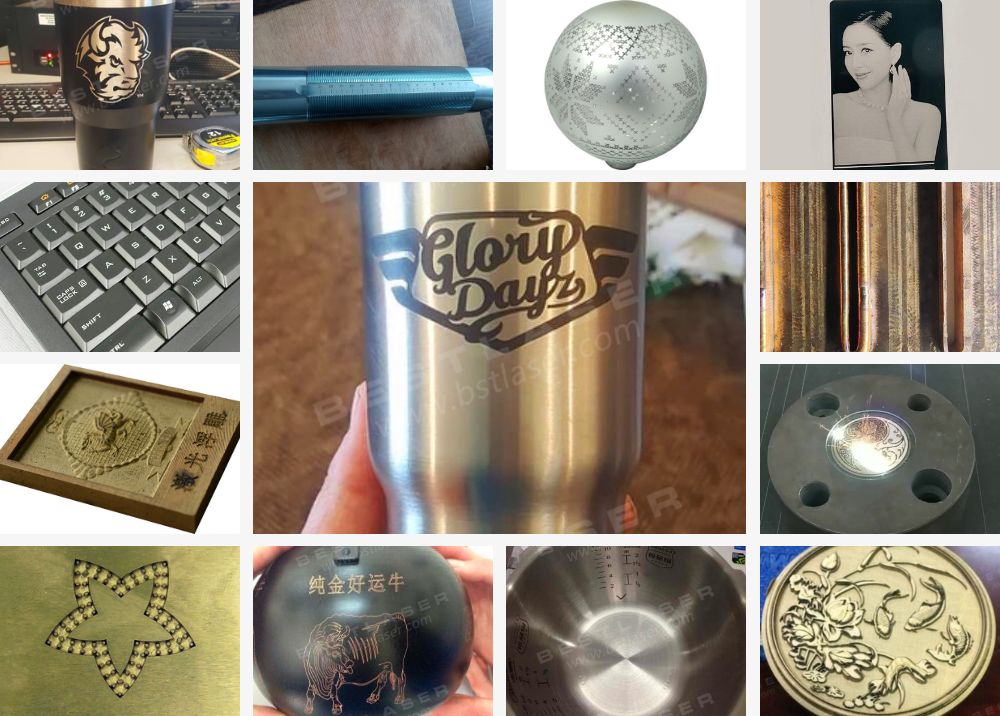

Metal deep engraving, 3D carving, curved surface marking, and large flat size marking are some examples of engraving techniques.

The 3D dynamic fiber laser marking machine is frequently utilized in a variety of items, including integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electrical and communication devices, aerospace components, all types of auto parts, home appliances, hardware tools, dies, etc.

app_BE-F20R

Optional Items

Co2 Galvo Laser Machine

Rotary Device (65mm, 80mm, 100mm diameter)

When marking, the rotary device can hold the circular item and rotate it. It enables rotary operation.

Co2 Galvo Laser Machine

Working Table

It aids in adjusting the focus distance.

The XYZ axis can be moved up and down with ease.

online laser marking machine (4)

Fume Extractor

To safeguard the environment and human health, a fume extractor can clean up any fumes or dust that may have been generated while working.

Co2 Galvo Laser Machine

Cutting Fixture

This cutting fixture aids in the correction of metal plates and the fixing of thin plates without distortion, particularly for gold plates and holographic foil.

3d laser marking machine

XY Electric Moving Table

It works well for marking on large pieces of material. It has the ability to divide the marking operation into many stages.

Model No. BE-F20R
Type 3D Dynamic Fiber Laser Marking Machine
Laser Source Pulsed, High Energy Ytterbium Fiber Lasers
Nominal average output power 30w,50W,100W
Central emission wavelength: 1060-1070 nm, Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM) <10 nm
Pulse width, (FWHM) 50-110 ns
Pulse Repetition Rate* kHz 20-200 kHz
Energy per pulse (PRR = 20 kHz) 1 MJ
Typical beam quality, M2 <1.6
Output fiber delivery length 3m
Operating voltage: 220V
Scanning Speed: 0-8000mm/s
Marking Speed: 0-5000mm/s
Marking size: 400*400MM, 500*500MM, 600*600MM
Spot size: 5.7-8mm
Cooling unit: Air cooled
Pilot laser: 650nm diode laser, visible red light for marking guide
Continuous working time: ≥24h

Package and Shipment

Model Package Size Gross Weight
BE-F20R 1.04m×0.8m×1.15m, 0.95CBM 220KG
uv laser marking machine (1) uv laser marking machine uv laser marking machine (1)
Inside layer is covered by thickening plastic film and fastened. Middle Layer wrapped by thick sponge foam to avoid shaking on the way. Outer layer packed by professional export thick wood craftcase.
