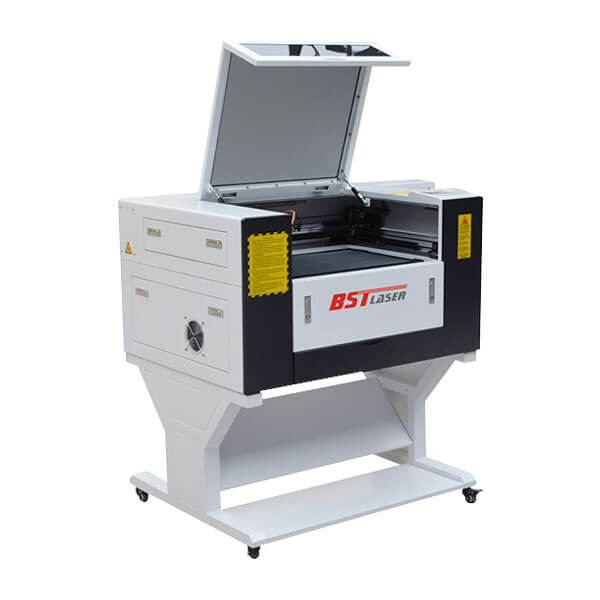

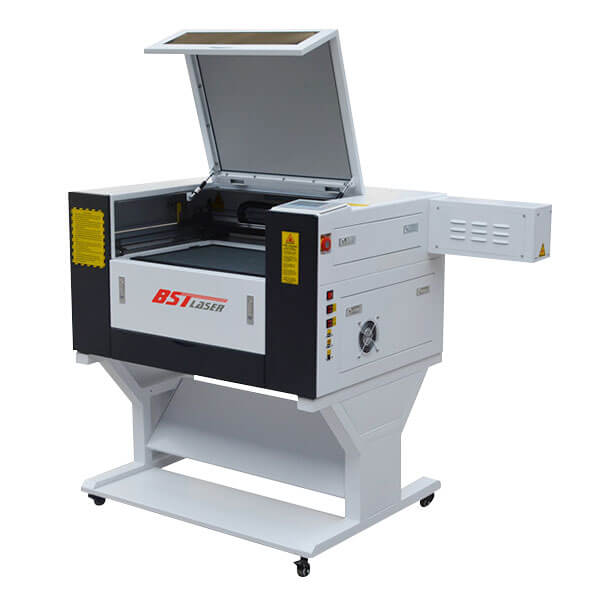

Small Desktop 50w 60w 6040 Co2 Laser Engraver Cutter


Category Co2 Laser Cutting Machine
Model No. BE-DK6040
Views 5822
Rating ★★★★★4.9/5 Based on 50 Votes
Price Range US$1000 – US$2500/set Based on the Features
Payment Term T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
 Leading Time 5-7 Days
Shipping Sea/Train/Truck
Warranty Period Two Years with Lifelong Free Service
  • PRODUCT DETAILS
  • TECHNICAL SPECIFICATIONS
  • CUSTOMER TESTIMONIALS

A small desktop Co2 laser engraver cutter can be an excellent way to unlock the power of laser cutting, allowing you to take on projects you never thought possible. Whether you’re an experienced professional or just getting started in the industry, a small desktop Co2 laser engraver cutter can be the perfect tool for your next project.

BE-DK6040 is a cost-effective and practical model with high-precision engraving and a standard electric-lifting work table. The mini laser engraver is specially designed for craft engraving and uses imported components and the most advanced photo-mechanic-electronic integration technologies. The desktop co2 laser engraver ensures a stunning appearance, useful functionality, and superior performance.

Machine Feature:

  • The compact co2 laser machine 6040 has an industrial water chiller, an air compressor, and a fan inside the unit, taking up little space and moving effortlessly.
  • Be supplied with a high-speed motor and driver, which improves the stability and precision of the equipment.
  • DSP control software that is fast, stable, and simple to use.
  • Elegant design, simple to learn and use, ideal for educational shows, DIY, arts and crafts.
  • The machine has an electric-lifting work table that is ideal for engraving customized sheets.
  • The tiny laser engraver can support a wide range of file formats, including BMP, PLT, AL, DST, and DXF, thanks to its robust editing software and high compatibility.

img_email

Parts Introduction

Small Desktop 50w 60w 6040 Co2 laser engarver cutter

Separated Machine Structure

  • The entire machine is of European standard design, with conventional and classic colors white and black.
  • Mini Co2 Laser Cutter 6040 combines the upper machine body and lower legs into one unit that can be split based on your actual space and personal preferences, making it very easy to transport and relocate..
Small Desktop 50w 60w 6040 Co2 laser engarver cutter Ruida Controlling System

Ruida Controlling System

  • Ruida Technology’s DC6445G technology is the latest generation of co2 laser control. It has improved hardware stability as well as resistance to high voltage and static electricity. The human-machine operating system, which is based on a 5-inch color screen, offers a more user-friendly interface and more powerful functions.
Exquisite Cutting Head

Exquisite Cutting Head

  • The enclosed jet design of the laser head of the laser machine 6040 protects and cleans the lens.
  • Lightweight but elegant, it is ideal for high-speed engraving and cutting.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter Working Table

Working Table

  • As an option, a thicker honeycomb working surface with small holes and a strike working table are included.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter Guide Rail

Guide Rail

  • With a stainless steel guide rail and a sliding slider bearing design, the friction coefficient is lower, the precision is higher, and the operation is faster.
Small Desktop 50w 60w 6040 Co2 laser engarver cutter co2 laser29

Reflect Mirror & Lens

  • High-quality imported lenses from the United States offer more precise beam focusing, finer beam, and longer life.
LEARN MORE

Application

Craft, advertising embellishment, Plexiglass, Rubber Plate, Mould, paper, and other industries.

Non-metal materials used include Plexiglass, Acrylic, PVC, Leather, Textile, Cloth, Rubber, Plastic, Wood, Paper, Stone, and others. It is also known as the 40w Co2 laser engraver, tiny laser engraver, 60w laser engraver, plastic engraver, and laser engraver for wood due to its wide range of applications.

Co2 Laser Engraver Cutter 1

Optional Items

Optional Items_6040_1

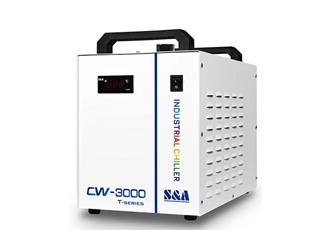

Industrial Water Chiller

Industrial Water Chiller with Automatic Alarm and Instant Cooling.

Optional Items_6040_2

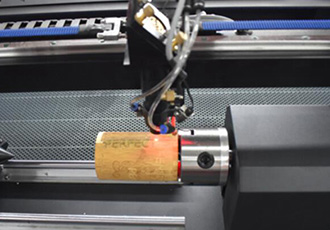

Rotary System

Rotary engraves cylindrical or column workpieces in a circle.

BE-DK1610 Optional Items

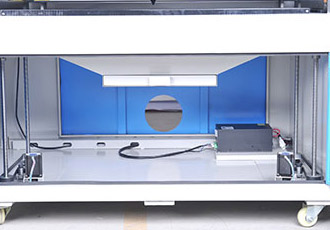

Motorized Up and Down Working Table

With a lifting range of 0-300mm, it is ideal for engraving huge sheets or high workpieces.

Items BE-DK6040
Laser Type: Hermetic and Detached CO2 Laser Tube
Laser Wavelength: 10.64um
Laser Power: 50w 60W
Working Area: 600*400(mm)
Engraving Speed: 0-1000mm/s
Cutting Speed: 0-600 mm/s
Resetting Positioning Accuracy <0.01mm
Minimum Forming Character English: 1×1mm, Chinese: 1.5×1.5mm
Power Supply 220v10% (50hz or 60hz)
Software Supported ArtCut, Photoshop, CorelDraw and AutoCAD
Graphic Format Supported: PLT/DXF/DST/BMP/AL etc.
Working Table: Honeycomb table
Up-down height: 0-300mm
Working Environment: Temperature: 0-45℃ Humidity: 5%-95%
Driver Way: Digital Subdividing Step Driver
Laser Device Cooling Type Circulating Water Cooling

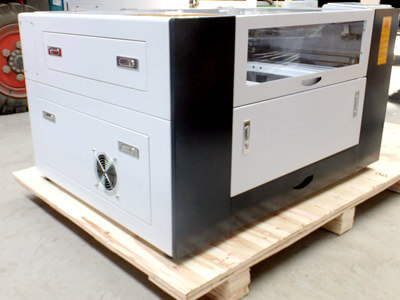

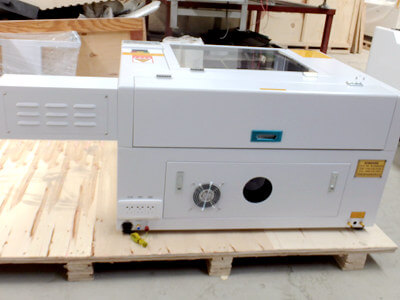

Package and Shipment

Model Package Size Gross Weight
BE-DK6040 1.3m×1.01m×0.74m,0.972CBM 160KG

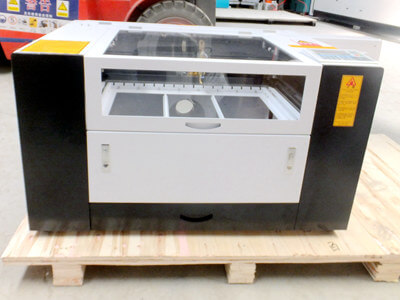

Co2 Laser Engraver Cutter 2 Co2 Laser Engraver Cutter 3 Co2 Laser Engraver Cutter 4
Inside layer is covered by thickening pe film and foam for waterproof. Middle layer is covered by foam to protect the machine from shaking Outside is with fumigated Wooden Box which comply with export standard
